Pioneer® Hyperformance™ 12,000 BTU 23.5 SEER2 Ductless Mini Split Inverter++ Energy-Star Wi-Fi Air Conditioner Hyper Heat Pump Full Set 230V

Overview

Summary

• Ultra Low Ambient Hyperformance™ Ductless Mini Split Hyper Heat Pump System
• Cooling capacity: 12,000 BTU/H (1 Ton) with 23.5 SEER2 / 12.7 EER2 efficiency
• Heating capacity: 12,000 BTU/H (1 Ton) with 9.5 HSPF2 / 3.74 COP efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Hyper Heat Unit (Continues heating in -22°F weather)
• Wireless Internet Access Included (Via Free Smartphone App)

What's Included

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control (with wall holder and batteries)
• Internet Control Module
• Copper Lines*
• Signal Cable Between Units*
• Drain for Indoor/Outdoor*
• Wall Passage Sleeve*
• Putty for Wall Hole*
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

*If ordered with an installation kit

Our Guarantee

• 5 years Warranty for Parts (Extendable to up to 7 years)
• 5 years for Compressor (Extendable to up to 10 years)

Features

[[FEATURES]]

Technical Information

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity (BTU/hr): 12,000 (3,000 ~ 14,000)
• Rated Power Input (Cooling): 940W
• Rated Current (Cooling): 4.3A
• Cooling SEER2: 23.5 BTU/W.h
• Cooling EER2: 12.7 BTU/W.h
• Heating Rated Capacity (BTU/hr): 12,000 (3,000 ~ 16,000)
• Rated Power Input (Heating): 940W
• Rated Current (Heating): 4.3A
• Heating HSPF2 (Region IV/V): 11 / 9.5 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.74 / 1.98 W/W
• Refrigerant Type/Weight: R410A/1.18kg

• Recommended Application Area: 200~550 Sq.Ft

Indoor Unit Data

• Part Number: WF012GHFI25HLH
• Air Flow (Hi/Med/Lo): 377 / 324 / 253 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 42/40/36/32/29 dB(A)
• Net Dimensions (WDH): 33-1/2 x 8-1/8 x 10-5/8 Inches
• Carton Dimensions (WDH): 35-1/2 x 10-1/4 x 13-1/8 Inches
• Net / Gross Weight: 18.7 / 23.1 Lbs

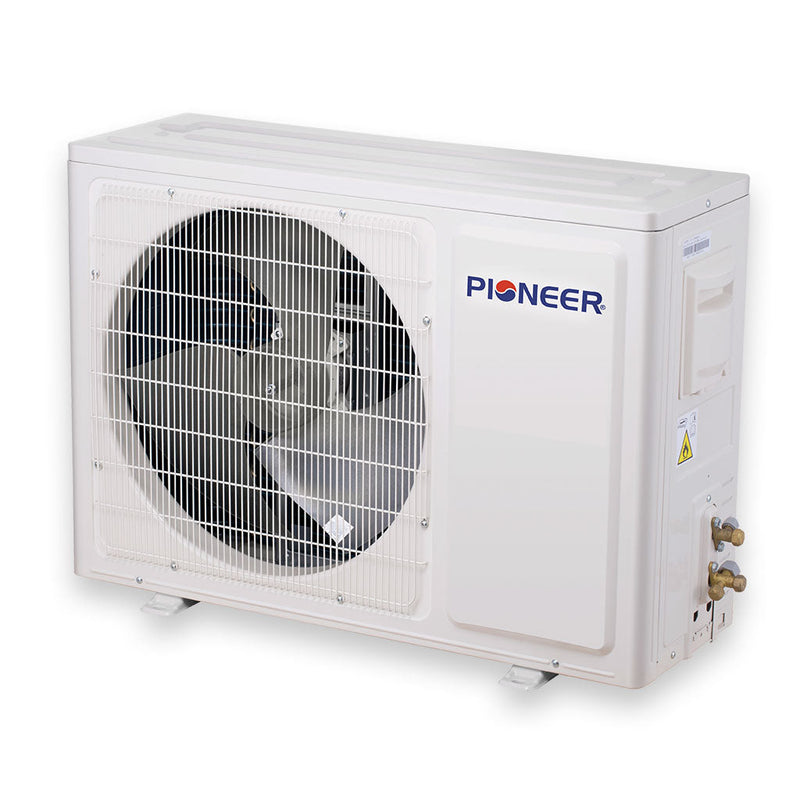

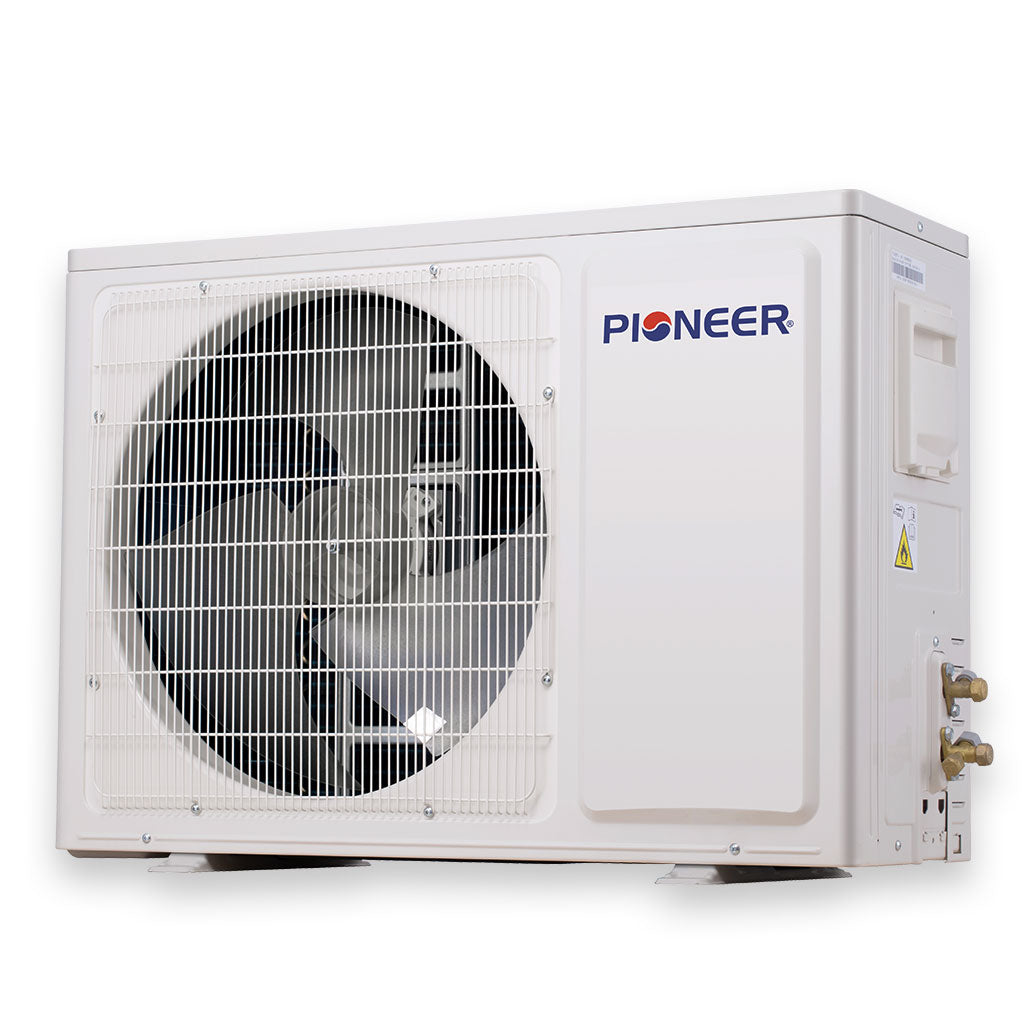

Outdoor Unit Data

• Part Number: YN012GHFI25RPH
• Sound Level: 53 dB(A)

• Net Dimensions (WDH): 31-7/8 x 11 x 23 Inches
• Carton Dimensions (WDH): 37 x 15-1/8 x 25-1/4 Inches
• Net / Gross Weight: 72.6 / 79.2 lbs
• Electrical Circuit Size: 15A (double-pole)

Manuals & Documents

• Product Brochure
• User & Installation Manual
• Service Manual
• Wi-Fi App Manual
• Heating Performance Chart
• AHRI Certificate
• Energy Guide
