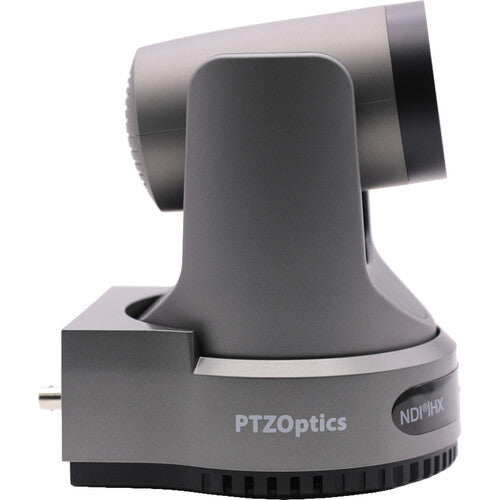

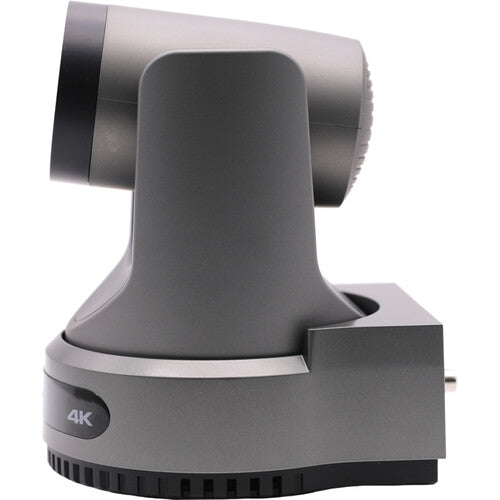

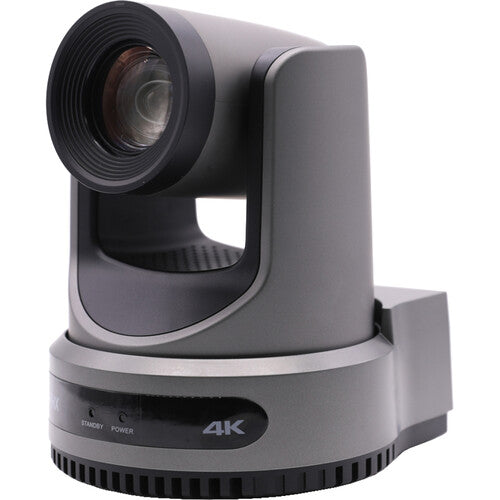

PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Gray)
The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolution equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light. Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI|HX for unparalleled performance and versatility.
The Move 4K offers built-in auto-tracking capabilities — no need to run software on another computer — freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Move 4K can fit seamlessly into any production scenario. Mount your PTZ Move camera above, below, or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera’s orientation and saves time on installation and setup. Control your production from behind the scenes – or right in front of them.
In addition to Move 4K’s auto-tracking features, users will also have access to our latest Web UI — updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.
Users can also take control of their PTZ cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive, or Tricaster — or check out one of our hardware joysticks controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.
Key Features:
- UHD 4K (3840 x 2160p) video resolutions up to 60 fps
- Built-in auto-tracking capabilities
- 20x optical zoom lens with a 60.7° horizontal field of view
- High performance in low-light scenarios with Wide Dynamic Range
- 3D noise reduction with the latest low-noise CMOS sensor
- Serial (RS-232 / RS-485) and IP control (LAN/WAN)
- H.264, H.265, and MJPEG video compression when IP streaming
- USB 2.0, HDMI 2.0 / 3G-SDI, NDI|HX 3 / IP streaming (SRT, RTSP, RTMP)
- PoE+ (Power over Ethernet) or 12 VDC power supply
- Built-in tally light
- Photo booth capable
Specifications:
Imaging
| Image Sensor |
1/1.8"-Type CMOS
|
| Effective Sensor Resolution |
8.42 Megapixel (3840 x 2160)
|
| IR Cut Filter |
No
|
| Focus Control |
Autofocus
Manual Focus
|
Exposure Control
| Shutter Speed |
1/10000 to 1/30 Second
|
| Signal-to-Noise Ratio |
55 dB
|
| Minimum Illumination |
0.5 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Range: 2500 to 8000K
Presets: Auto, Indoors, Manual, One Push, Outdoors, VAR
|
Lens
| Focal Length |
6.25 to 125mm
|
| Max Optical Zoom |
20x
|
| Max Digital Zoom |
2x ( in 1080p)
3x ( in 720p)
|
| Field of View |
Horizontal: 60.7 to 3.5°
Vertical: 34.1 to 1.89°
|
| Maximum Aperture |
f/1.58 to 3.95
|
Video Capture
| Video Output |
via HDMI / RJ45 / USB
3840 x 2160 at 25/29.97/50/59.94/60.00 fps
1920 x 1080p at 25/29.97/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 59.94/60.00 fps
via SDI/BNC
1920 x 1080p at 25/29.97/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 59.94/60.00 fps
|
| Internal Recording |
No
|
| Audio Recording |
AAC Audio
|
| Broadcast Output |
NTSC/PAL
|
| Supported Protocols |
Camera Control
Pelco-D/Pelco-P/RS-232/RS-485/VISCA
|
| IP Streaming |
H.264/H.265/MJPEG via HTTP/NDI/NDI HX/ONVIF/RTMP/RTMPS/RTSP/SRT/UDP
640 x 320 to 3840 x 2160 up to 60p (Main Stream: 0.03 to 102.4 Mb/s)
320 x 240 to 720 x 480 up to 60p (Sub Stream: 0.03 to 20.48 Mb/s)
|
Control
| Presets |
255
|
| Pan/Tilt |
Tilt: 120° (-30 to 90°) at 1.7 to 69.9°/s
Pan: 340° (-170 to 170°) at 1.7 to 100°/s
|
| Tally Light |
Yes
|
Interface

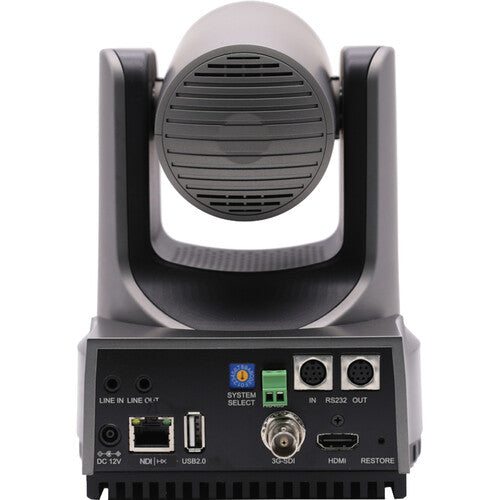

| Video I/O |
1x HDMI 2.0 Output
1x BNC (3G-SDI) Output
1x RJ45 (NDI) Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
1x 1/8" / 3.5 mm TRS Stereo Line Output
|
| Other I/O |
1x D-Sub 8-Pin (RS-232) Control Input
1x D-Sub 8-Pin (RS-232) Control Output
1x Block 2-Pin (RS-485) Control Input/Output
1x USB-A (USB 2.0) Control Input (Shared with Video Output)
|
| Built-In Microphone |
No
|
| Built-In Speaker |
No
|
Power
| PoE Support |
Yes: PoE+ 802.3at
|
| Power I/O |
1x DC (12VDC) Input
|
| Power Consumption |
Device: 12 VDC at 1 A (18 W)
|
Environmental
| Operating Conditions |
22 to 72°F / -10 to 40°C at 10 to 80% Humidity
|
| Storage Conditions |
-40 to 140°F / -40 to 60°C
|
| Impact Resistance |
No
|
| Environmental Resistance |
No
|
General
| Mounting |
1x 1/4"-20 Female
3x M3 Female
|
| Materials |
Aluminum, Plastic
|
| OS Compatibility |
Computer: Windows 7 to 11 / macOS / Linux
Mobile: Android Only
|
| Dimensions (W x H x D) |
5.6 x 6.9 x 5.9" / 141.5 x 176 x 151 mm
|
| Weight |
3.24 lb / 1.47 kg (Body Only)
|
Packaging Info
| Package Weight |
6.7 lb
|
| Box Dimensions (LxWxH) |
10.3 x 10.1 x 9.1"
|
What's in the Box:
1 x PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Gray)
1 x IR Remote Control
1 x 12 VDC Power Adapter
1 x USB-A to USB-A Cable
1 x RS-232 Cable
2 x AA Battery
Limited 5-Year Manufacturer Warranty
