PTZOptics Producer-4K Camera & Controller Bundle (Gray)
The PTZOptics Producer 4K Bundle is a future-proof PTZ multi-camera system. Capture every detail in ultra-high-definition with 3 award-winning 20x Move 4K cameras. Each camera includes advanced auto-tracking capabilities and comes native with NDI|HX for unparalleled performance and versatility. Elevate your production control with the SuperJoy’s superior control features, setting a new standard in joystick operations. The fusion of 4K video clarity with the advanced SuperJoy controller offers unmatched video production prowess, meeting the demands of video professionals seeking the best.
The camera's features include a 1/1.8" 4K CMOS 8.42MP sensor for crisp imagery. The built-in zoom lens has an optical zoom range of 20x, and you can zoom in further with up to 16x digital zoom. With 255 programmable preset positions via serial, you can set the camera to rapidly move between positions using IP, RS-232, or RS-485 with separately available controllers, or by using IR control with the included remote. It also features a tally light, and it is photo booth capable. The video output is compressed using H.265, H.264, or MJPEG formats, and you can transmit up to two simultaneous streams using SRT, RTSP, and RTMP protocols.
The camera supports external audio input via a 3.5mm stereo line-level jack for embedding audio into your stream, and a 3.5mm audio output. Power is provided by the included AC adapter or via PoE+ (Power-over-Ethernet) on a supported network.
Key Features
- UHD 4K (3840 x 2160p) video resolutions up to 60 fps
- Built-in auto-tracking capabilities
- 20x optical zoom lens with a 60.7° horizontal field of view
- High performance in low-light scenarios with Wide Dynamic Range
- 3D noise reduction with the latest low-noise CMOS sensor
- Serial (RS-232 / RS-485) and IP control (LAN/WAN)
- H.264, H.265, and MJPEG video compression when IP streaming
- USB 2.0, HDMI 2.0 / 3G-SDI, NDI|HX 3 / IP streaming (SRT, RTSP, RTMP)
- PoE+ (Power over Ethernet) or 12 VDC power supply
- Built-in tally light
- Photo booth capable

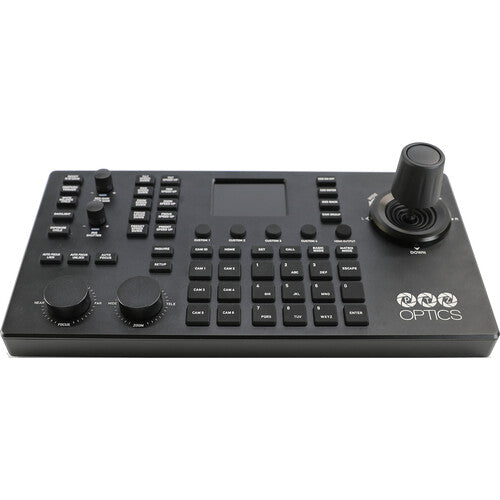

PTZOptics SuperJoy NDI|HX/IP & Serial PTZ Camera Joystick Controller
Control up to 28 PTZ cameras using NDI, IP, or serial with the SuperJoy NDI|HX/IP & Serial PTZ Camera Joystick Controller from PTZOptics. The SuperJoy offers joystick and button control for up to 28 PTZ cameras, in four groups of seven cameras each, with support for NDI, VISCA, VISCA-over-IP, Pelco-P, and Pelco-D protocols over IP and serial RS-232, RS-422, and RS-485 communication. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen.
The controller also offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras. An HDMI output allows you to send the camera video to a remote streaming unit, and the status information can also be included in the output. Other features include glowing buttons for working in the dark, 255 camera presets, nine quick presets, and four super preset buttons. You can import and export configurations using IP or via the USB port.
The SuperJoy supports a variety of camera models and manufacturers, and you can simultaneously control multiple brands such as HuddleCamHD, Sony, PTZOptics, BirdDog, and NewTek. The unit comes with an 8' long RS-232C cable and 12 VDC power supply, or it can be powered using Power-over-Ethernet (PoE).
Features
- Limited NDI|HX and Sony control
- IP, RS-232, RS-422, and RS-485 communication
- VISCA-over-IP, Pelco-P, Pelco-D, ONVIF, and VISCA protocols
- Camera on-screen display control
- Control four groups with up to seven cameras in each group for a total of 28 cameras
- Control multiple different PTZ camera brands simultaneously, including HuddleCamHD, PTZOptics, Sony, BirdDog, and NewTek
- Full pan/tilt/zoom PTZ camera control with speed adjustments on the fly
- 255 presets, nine quick presets, four super presets
- Exposure and white balance control
- Four customizable buttons using TCP, UDP, and HTTP control
- Program and RTSP output via HDMI
- Power-over-Ethernet (PoE) support
- Fine-tune zoom and focus control dials, redesigned joystick, and focus lock/unlock
- Glowing buttons for viewing in dark rooms
- Large LCD screen with controller status
- Import and export settings via LAN or USB
- Power adapter and 8' RS-232C cable are included
Specifications:
Imaging
| Image Sensor |
1/1.8"-Type CMOS
|
| Effective Sensor Resolution |
8.42 Megapixel (3840 x 2160)
|
| IR Cut Filter |
No
|
| Focus Control |
Autofocus
Manual Focus
|
Exposure Control
| Shutter Speed |
1/10000 to 1/30 Second
|
| Signal-to-Noise Ratio |
55 dB
|
| Minimum Illumination |
0.5 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Range: 2500 to 8000K
Presets: Auto, Indoors, Manual, One Push, Outdoors, VAR
|
Lens
| Focal Length |
6.25 to 125mm
|
| Max Optical Zoom |
20x
|
| Max Digital Zoom |
2x ( in 1080p)
3x ( in 720p)
|
| Field of View |
Horizontal: 60.7 to 3.5°
Vertical: 34.1 to 1.89°
|
| Maximum Aperture |
f/1.58 to 3.95
|
Video Capture
| Video Output |
via HDMI / RJ45 / USB
3840 x 2160 at 25/29.97/50/59.94/60.00 fps
1920 x 1080p at 25/29.97/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 59.94/60.00 fps
via SDI/BNC
1920 x 1080p at 25/29.97/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 59.94/60.00 fps
|
| Internal Recording |
No
|
| Audio Recording |
AAC Audio
|
| Broadcast Output |
NTSC/PAL
|
| Supported Protocols |
Camera Control
Pelco-D/Pelco-P/RS-232/RS-485/VISCA
|
| IP Streaming |
H.264/H.265/MJPEG via HTTP/NDI/NDI HX/ONVIF/RTMP/RTMPS/RTSP/SRT/UDP
640 x 320 to 3840 x 2160 up to 60p (Main Stream: 0.03 to 102.4 Mb/s)
320 x 240 to 720 x 480 up to 60p (Sub Stream: 0.03 to 20.48 Mb/s)
|
Control
| Presets |
255
|
| Pan/Tilt |
Tilt: 120° (-30 to 90°) at 1.7 to 69.9°/s
Pan: 340° (-170 to 170°) at 1.7 to 100°/s
|
| Tally Light |
Yes
|

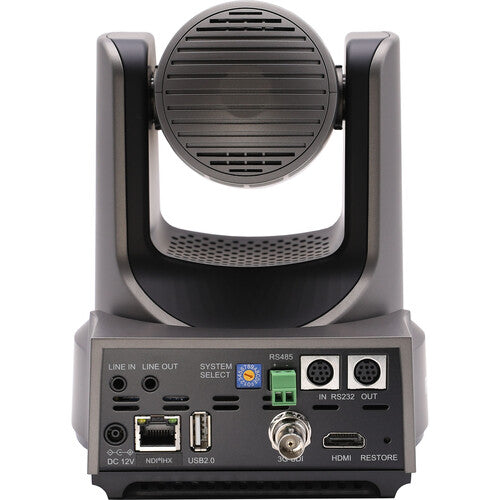

Interface
| Video I/O |
1x HDMI 2.0 Output
1x BNC (3G-SDI) Output
1x RJ45 (NDI) Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
1x 1/8" / 3.5 mm TRS Stereo Line Output
|
| Other I/O |
1x D-Sub 8-Pin (RS-232) Control Input
1x D-Sub 8-Pin (RS-232) Control Output
1x Block 2-Pin (RS-485) Control Input/Output
1x USB-A (USB 2.0) Control Input (Shared with Video Output)
|
| Built-In Microphone |
No
|
| Built-In Speaker |
No
|
Power
| PoE Support |
Yes: PoE+ 802.3at
|
| Power I/O |
1x DC (12VDC) Input
|
| Power Consumption |
Device: 12 VDC at 1 A (18 W)
|
Environmental
| Operating Conditions |
22 to 72°F / -10 to 40°C at 10 to 80% Humidity
|
| Storage Conditions |
-40 to 140°F / -40 to 60°C
|
| Impact Resistance |
No
|
| Environmental Resistance |
No
|
General
| Mounting |
1x 1/4"-20 Female
3x M3 Female
|
| Materials |
Aluminum, Plastic
|
| OS Compatibility |
Computer: Windows 7 to 11 / macOS / Linux
Mobile: Android Only
|
| Dimensions (W x H x D) |
5.6 x 6.9 x 5.9" / 141.5 x 176 x 151 mm
|
| Weight |
3.24 lb / 1.47 kg (Body Only)
|
Packaging Info
| Package Weight |
6.7 lb
|
| Box Dimensions (LxWxH) |
10.3 x 10.1 x 9.1"
|
What's in the Box:
3 x PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Gray)
1 x IR Remote Control
1 x 12 VDC Power Adapter
1 x USB-A to USB-A Cable
1 x RS-232 Cable
2 x AA Battery
Limited 5-Year Manufacturer Warranty
1 x PTZOptics SuperJoy NDI|HX/IP & Serial PTZ Camera Joystick Controller
1 x 12 VDC Power Adapter
1 x RS-232C Cable (8')
Limited 2-Year Manufacturer Warranty
