PTZOptics Studio 4K Camera with 20x Optical Zoom (Gray)
Experience the cutting-edge prowess of PTZOptics Move 4K, boasting 4K 60fps auto-tracking, simultaneous outputs, and versatile control options. Seamlessly integrate with leading video production software like OBS, vMix, and Wirecast for an unparalleled live streaming experience.

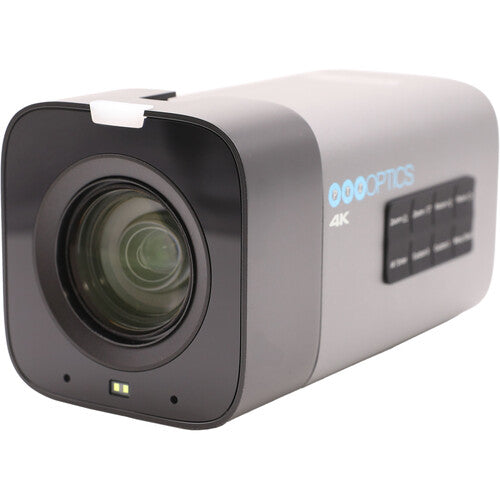

Capture UHD 4K60 resolution video with this gray Studio 4K Camera with 20x Optical Zoom from PTZOptics. The Studio 4K features a 20x zoom lens with a 60.7° angle of view as well as a 16x digital zoom to get even closer to your subjects. The camera allows you to stream live on a network using NDI|HX2, SRT, RTMP/RTSP using H.264/H.265 video formats. Control options include IP and RS-485 using the built-in terminal connector.
4K Video Capture
The Studio 4K can be used as a standalone box camera or as an addition to a larger studio setup. Its high-resolution sensor provides crystal-clear 4K resolution, 20x optical zoom, and it is conveniently Hive-Linked to the easy-to-use PTZOptics online platform, Hive Studio, delivering connectivity and control from anywhere.
Multiple Connections
The Studio 4K features SDI, HDMI, USB, and IP output and comes native with NDI|HX2 support, allowing seamless integration into various video production setups. It can connect directly to a live production switcher, streams over a network, or records through an SDI interface. Built-in connectivity links to the online Hive Studio platform automatically.

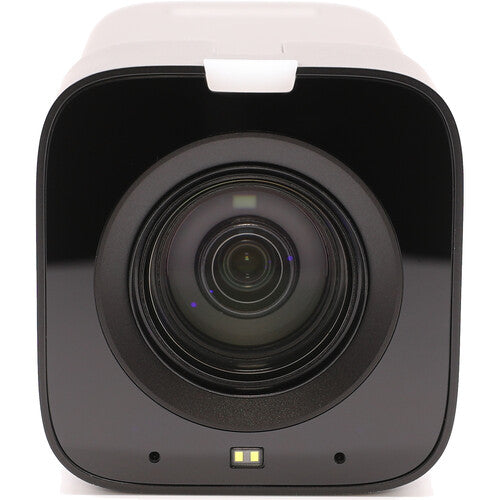

Powerful Zoom
Capture a head-and-shoulders shot of your subject from up to 90' away with 20x optical zoom, and even closer with 16x digital zoom, making it ideal for medium or large spaces. It features a maximum 60.7° wide field of view.

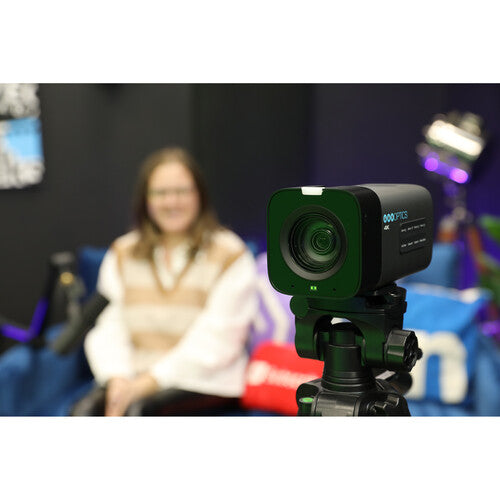

Applications
The Studio 4K fits right into a Move SE or Move 4K multi-camera setup, enhancing your production capabilities. Its high-quality construction and discreet profile makes it a great choice for streaming meetings, worship services, courtrooms, sports, and security applications.
Specifications:
| Camera & Lens |
Image Sensor & Lens |
12x and 20x: 1/2.8” CMOS, 8MP (8.4M effective pixels) |
| Digital Zoom |
16x |
| Resolution and Frame Rate |
HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50 |
| Optical Lens Focal Length (Zoom) |
12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
20x: f = 4.7mm ~ 94mm, F1.6 ~ F3.6 |
| Optical Lens Field of View, Horizontal & Vertical |
12x: H 6.9° ~ 72.5° | V 3.9° ~ 44.8°
20x: H 3.5° ~ 60.7° | V 1.9° ~ 34.1° |
| Display Field of View |
12x: 80.2°
20x: 67.8° |
| Min Lux |
0.5 Lux @ (F1.8, AGC ON) |
| Shutter |
1/30s ~ 1/10000s |
| Presets |
255 Presets |
| Presets Accuracy |
0.1° |
| Image Flip |
Supported |
| Image Mirror |
Supported |
| Image Freeze |
Supported |
| Physical Specifications |
Material |
Aluminum, Plastic |
| Color |
Gray or White |
| Dimensions (L x W x H) |
5.7" L x 2.99" W x 3.09" H | 145mm L x 76mm W x 78.5mm H |
| Weight |
12x: 1.5 lbs | 0.68kg
20x: 1.4 lbs | 0.64kg |
| Working Environment |
Indoor |
| Humidity Range |
10% ~ 80% |
| Operating Temperature |
14°F ~ 104°F (-10°C ~ 40°C) |
| Storage Temperature |
-40°F ~ 140°F (-40 ~ 60°C) |

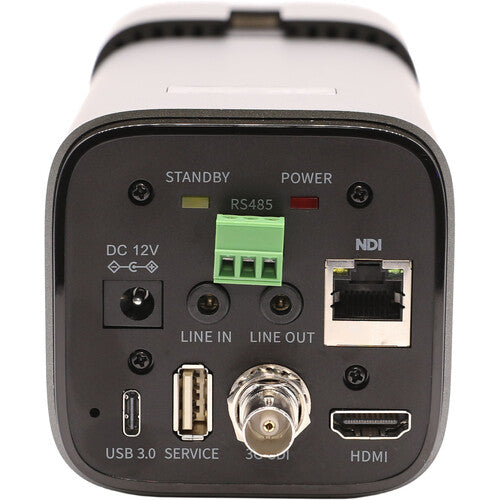

| Connections |
HD Video Output |
1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI® HX3 enabled
1x HDMI: Version 2.0
1x USB: 3.0 Type C
1x 3G-SDI: BNC type, 300mVP-p, 75Ω, Along to SMPTE 424M |
| Audio Interface |
1x 3.5mm Line level input
1x 3.5mm Line level output |
| Video Formats |
USB:
- YUY2: Max resolution 1920x1080p @ 30fps
- MJPEG: Max resolution 3840x2160p @ 30fps
- H.264 AVC & SVC: Max resolution 3840x2160p @ 30fps
RTSP/NDI® HX3 only:
- H.265: Max resolution 3840x2160p @ 60fps
|
| Compression Standards |
H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI® HX3 only)
|
| UVC Version Supported |
UVC 1.1 ~ 1.5 |
| Supported Protocols |
TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI® HX3, SRT, Multicast, etc. |
| IR |
4x IR Addresses, Max distance 30ft / 9m |
| Power Supply |
JEITA type (DC IN 12V) / PoE+ (802.3at) |
| Current Consumption |
Max 2A |
| Power Consumption |
Max 18W |
What's in the Box:
1 x PTZOptics Studio 4K Camera with 20x Optical Zoom (Gray)
1 x Power Supply

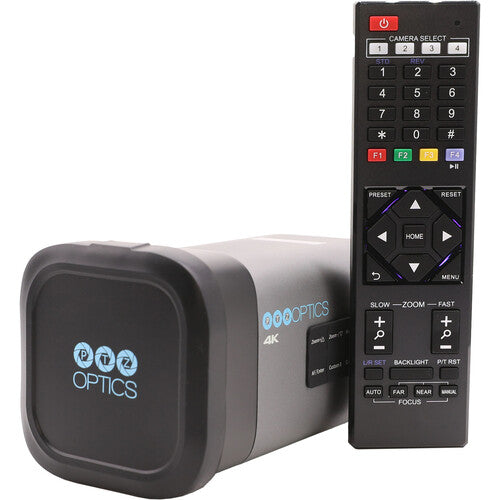

1 x IR Remote Control
2 x AA Battery (Remote)
1 x USB-C to USB-A Cable
1 x Camera Lens Cap
Limited 5-Year Manufacturer Warranty
