PTZOptics Studio SE Hive-Linked Camera with 12x Optical Zoom (Gray)
The PTZOptics Studio SE Hive-Linked 12X Camera is a compact, all-in-one studio camera built for livestreaming, content creation, and remote production. It features a 1/2.8"" CMOS sensor and delivers up to 1080p60 HD video via HDMI, 3G-SDI, USB-C, IP, and native NDI HX3—all without requiring a license. Its Hive Studio link provides instant connection to PTZOptics' user-friendly online control platform.
Equipped with 12x optical zoom and a 72.5–6.9° field of view, the camera captures crisp detail and offers flexible framing. Built-in mic, line-level I/O, and tally light support seamless integration into live production setups. Power options include AC or PoE. Control is available via IR remote, web UI, Hive Studio, or third-party platforms.
The Studio SE offers flexible control via the included IR remote, a web UI, PTZ control app, USB port, PTZOptics joysticks, camera management platform, and Hive Studio. Power the Studio SE camera using the included AC adapter or using PoE with a separate network switch.
Key Features:
- Link to Easy Hive Studio Platform
- Up to 1080p60 Video, 1/2.8" CMOS Sensor
- 3G-SDI, HDMI & USB-C Outputs
- IP & Native NDI HX3 Streaming
- 12x Optical Zoom, 16x Digital Zoom
- 72.5 to 6.9° Field of View
- Easy Network Connection, LED Tally Light
- Built-In Mic, 3.5mm Line Input & Output
- IR Remote, Web UI & App Control Options
- 12 VDC or PoE with Separate Switch
Specifications:
Imaging
| Image Sensor |
1/2.8"-Type CMOS
|
| Effective Sensor Resolution |
8.4 Megapixel
|
Recording
| Video Output |
HDMI
3840 x 2160p at 59.94/60.00/25/50/29.97/30.00 fps
1920 x 1080p at 59.94/60.00/25/50/29.97/30.00 fps
1920 x 1080i at 59.94/60.00/50 fps
1280 x 720p at 59.94/60.00 fps
SDI/BNC
1920 x 1080p at 59.94/60.00/25/50/29.97/30.00 fps
1280 x 720p at 59.94/60.00/50 fps
|
Exposure Control
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1/30 Second
|
| Minimum Illumination |
0.5 Lux
|
| Focal Length |
4.1 to 49.2mm
|
| Aperture Range |
f/1.8 to 2.68
|

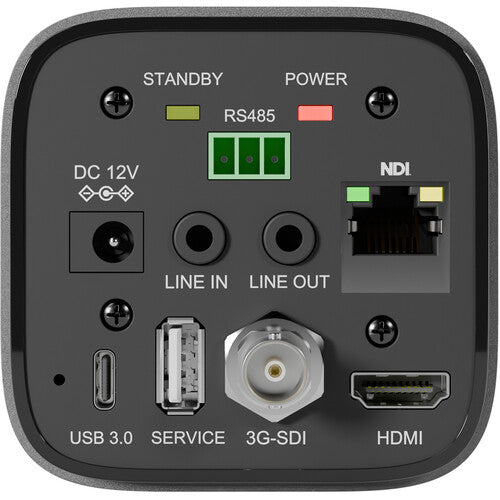

Interface
| Digital I/O |
1x RJ45 (NDI) Video Output
1x HDMI Video Output
1x BNC (3G-SDI) Video Output
1x 1/8" / 3.5 mm TRS Stereo Audio Input
1x 1/8" / 3.5 mm TRS Stereo Audio Output
1x USB-C Video Output
1x USB-A Firmware Input
|
| Power I/O |
1x Barrel
1x RJ45
|
| Adapter / Cable |
No
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Supported Protocols |
Video Streaming
NDI|HX3/RTSP/UDP/HTTP/TCP/RTMP
Camera Control
ONVIF
|
| Mobile App Compatible |
No
|
Power
| Voltage |
12.0 VDC
|
| Power Consumption |
18 W
|
Environmental
| Operating Conditions |
14 to 104°F / -10 to 40°C at 10 to 80% Humidity
|
General
| Accessory Mounting |
1 x Cold Shoe Mount
1 x 1/4"-20 Female
|
| Dimensions |
5.7 x 3.1 x 3" / 145 x 78.5 x 76 mm
|
| Weight |
24 oz / 680 g
|
Packaging Info
| Package Weight |
3.67 lb
|
| Box Dimensions (LxWxH) |
9 x 8.9 x 5.6"
|
What's in the Box:
1 x PTZOptics Studio SE Hive-Linked Camera with 12x Optical Zoom (Gray)
1 x 12V, 2A International Power Supply
1 x Lens Cap
1 x USB-A to USB-C Cable
1 x IR Remote
2 x AAA Battery
Limited 5-Year Manufacturer Warranty
