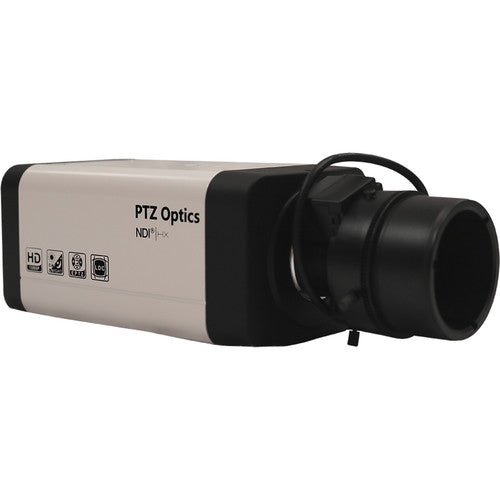

PTZOptics VL NDI HX ZCam HD
For streaming broadcast-quality video at a concert, hospital, conference, or house of worship, the VL NDI|HX ZCam HD IP Network Camera from PTZOptics easily covers any event or location with a 4.4-88.5mm C/CS mount lens, a 4x zoom, and a video resolution up to 1080p60. The camera can fit into any NDI-compatible setup, features a 1/2.7" CMOS sensor, and captures a 2.07 MP image with 3G-SDI and NDI|HX high definition output.

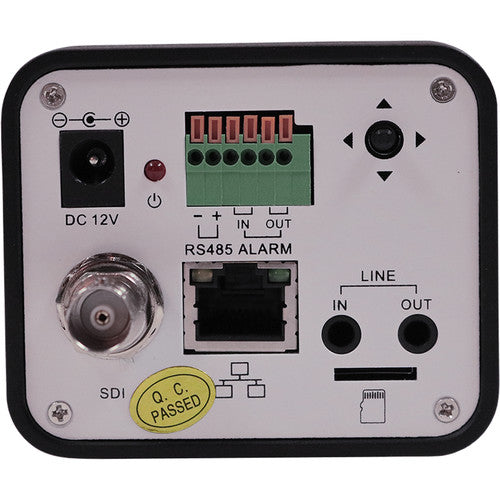

The camera connections include a 3G-SDI BNC connector, single-channel audio input and output, a RS-485 serial connector for remote communication, and an Ethernet port for IP streaming, which features 802.3af PoE (Power over Ethernet). Broadcasting up to two streams simultaneously is supported; an HD stream with a maximum 1080p resolution, and a second SD stream with a maximum 720p resolution. A wired serial remote or web-based application can be used to connect and control, and the camera also features a joystick for local control of all the camera settings and operations.

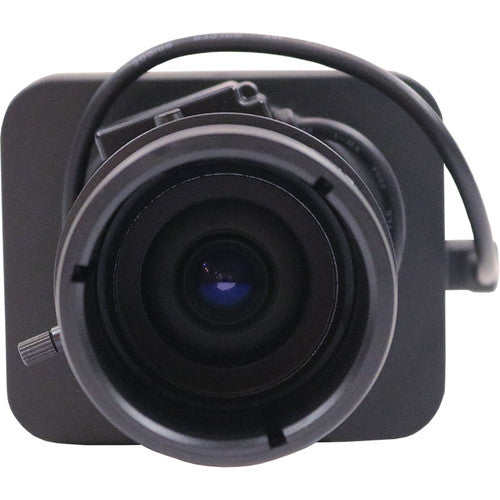

With the optical 4x zoom lens, the horizontal field of view ranges from 21 to 72° with a maximum aperture of f/1.4, which provides wide coverage and advanced low-light performance. Supported IP streaming protocols include RTSP and RTMP, AAC audio, H.265, H.264, and MJPEG compression. For greater image detail and quality in low light, the sensor's DRC (dynamic range control) assists in keeping your image sharp and balanced, and the high SNR (signal-to-noise ratio) reduces noise at ≥55 dB, particularly in low-light situations.
A 12V power adapter is included in the package.
Key Features
- Panasonic 1/2.7 inch 2.07MP HD CMOS sensor
- 3.8 to 13mm C/CS mount lens with 4x zoom and 21 to 72° field of view
- Maximum of 1080p60 streaming video; two simultaneous streams possible with second stream maximum of 720p
- IP streaming via RTSP and RTMP with H.265, H.264, and MJPEG compression
- 3G-SDI, ND|HX, Ethernet IP network outputs; 802.3af PoE (Power over Ethernet) supported
- High SNR (signal-to-noise ratio) of ≥55 dB and wide DNR (dynamic range) to keep noise low and quality and detail high
- Joystick or remote control over serial connection
- Stream and configure camera over IP with web application
- A 12V power adapter is included
Specifications:
Inputs / Outputs
| Video I/O |
1x BNC (3G-SDI) Output
|
| Audio I/O |
1x 1/8" / 3.5 mm Line Input
1x 1/8" / 3.5 mm Line Output
|
Power
| Power Source |
AC Adapter with Power Brick
|
| DC Input Power |
12 VDC
|
| Power Consumption |
12 W
|
Environmental
| Operating Temperature |
14 to 104°F / -10 to 40°C
|
| Storage Temperature |
-40 to 140°F / -40 to 60°C
|
Packaging Info
| Package Weight |
1.85 lb
|
| Box Dimensions (LxWxH) |
9.4 x 4.9 x 4.5"
|
What's in the Box:
1 x PTZOptics VL NDI HX ZCam HD IP Network Camera with 4x Optical Zoom Lens
1 x 4x Zoom Lens
1 x AC Power Adapter
Limited 5-Year Manufacturer Warranty
