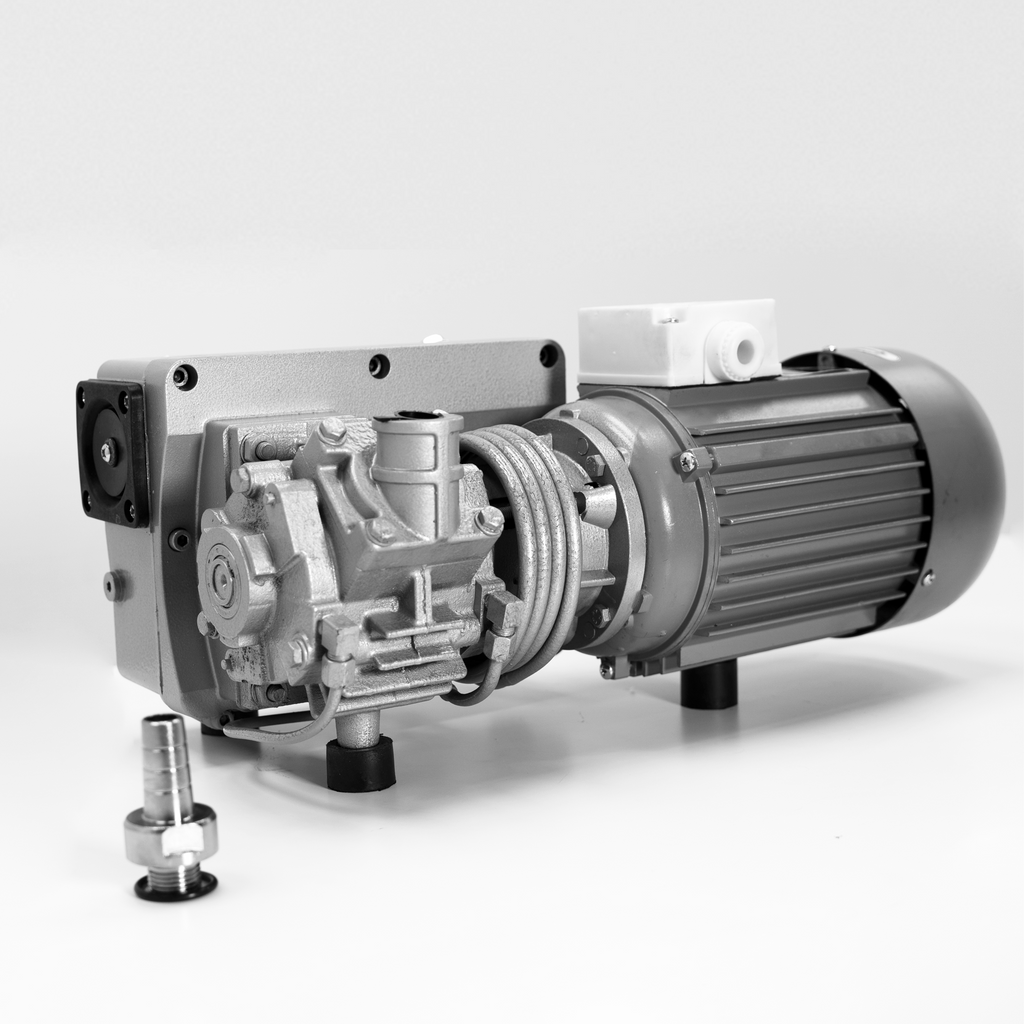

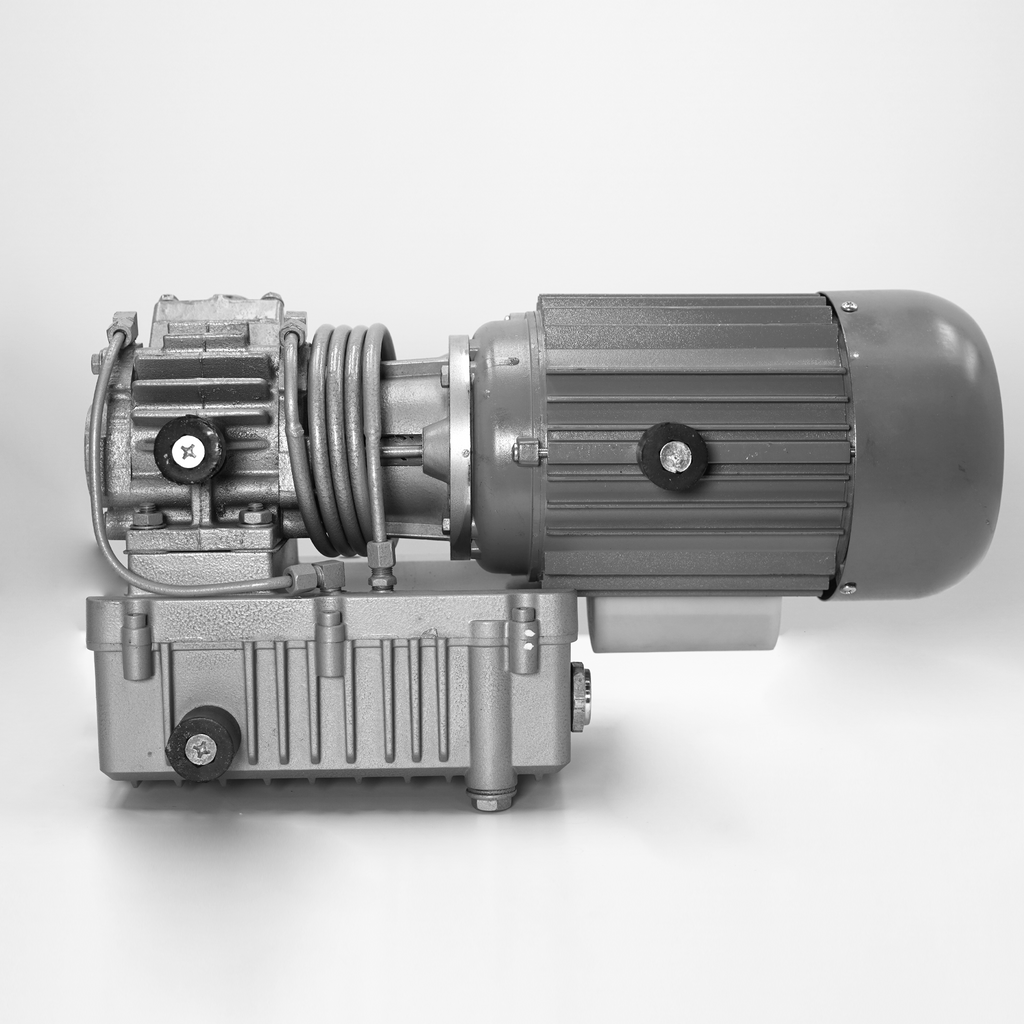

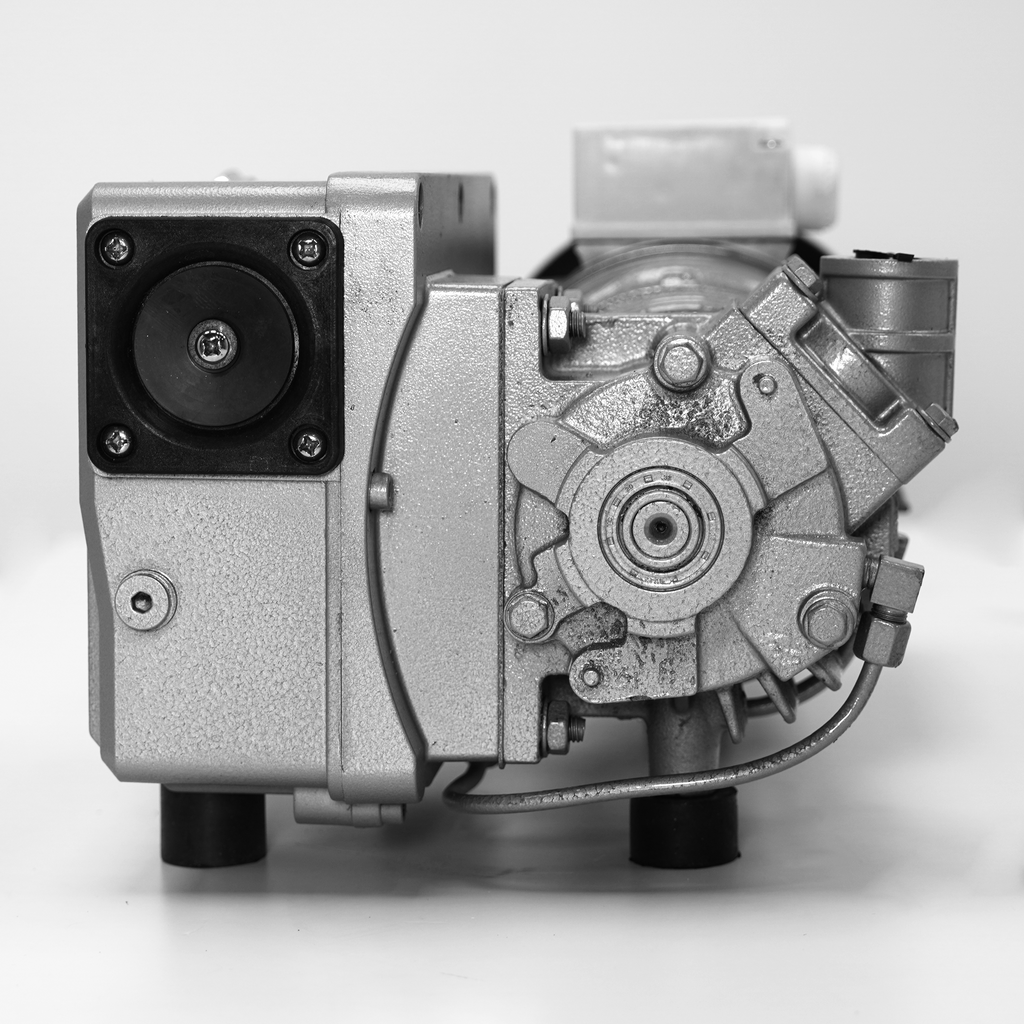

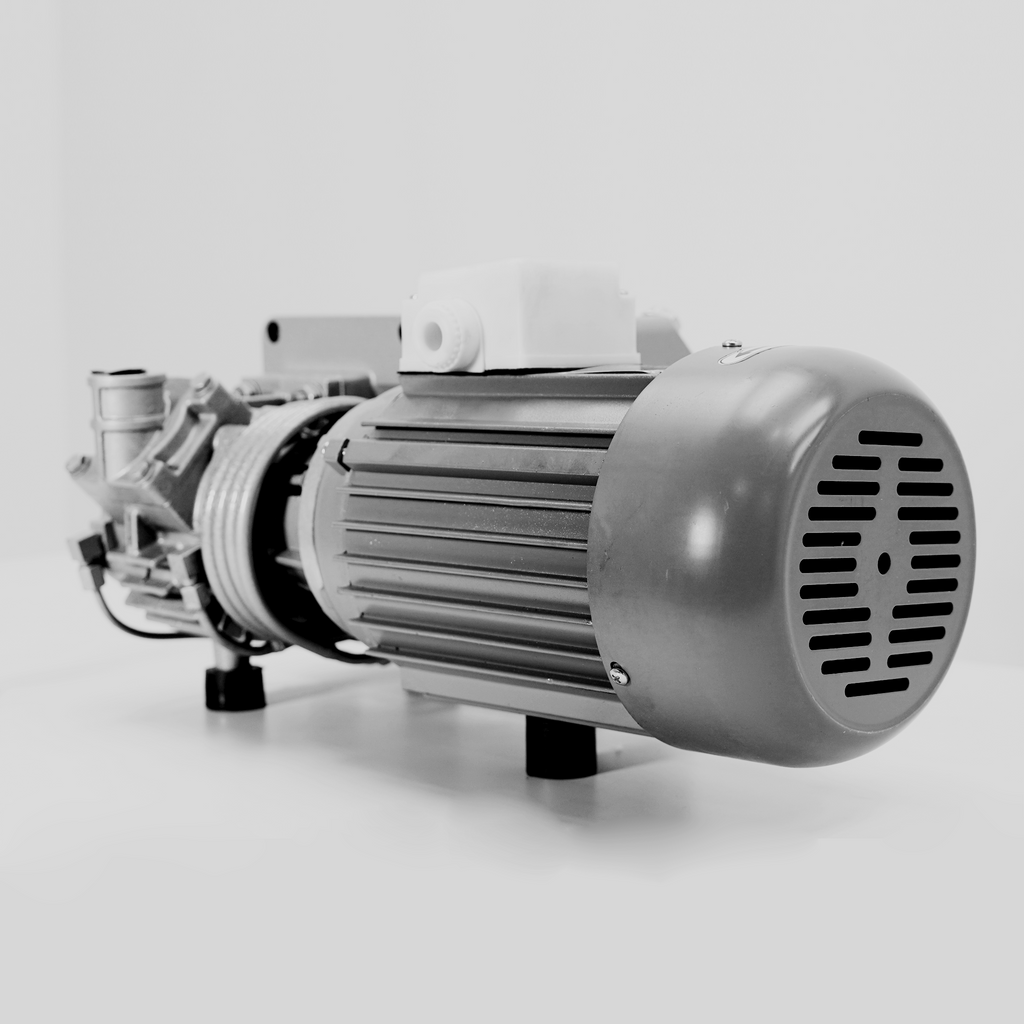

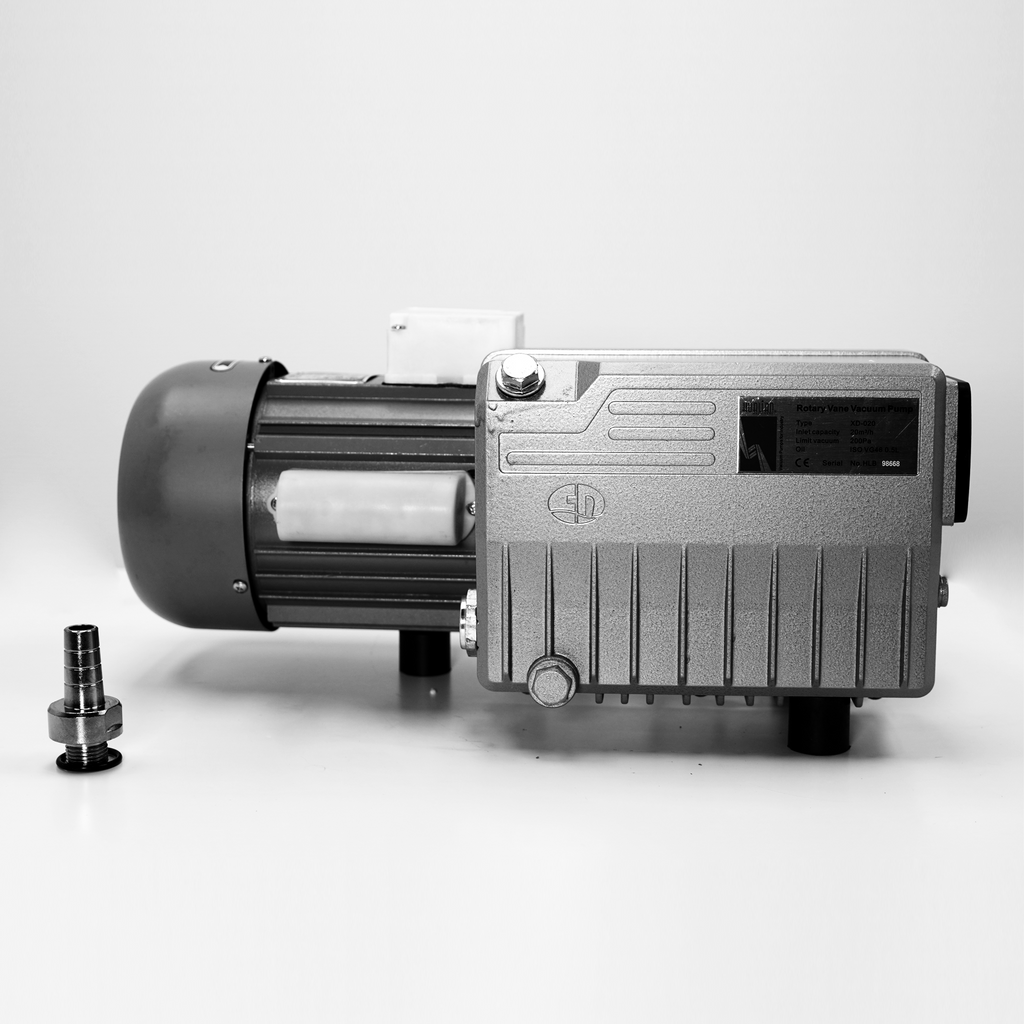

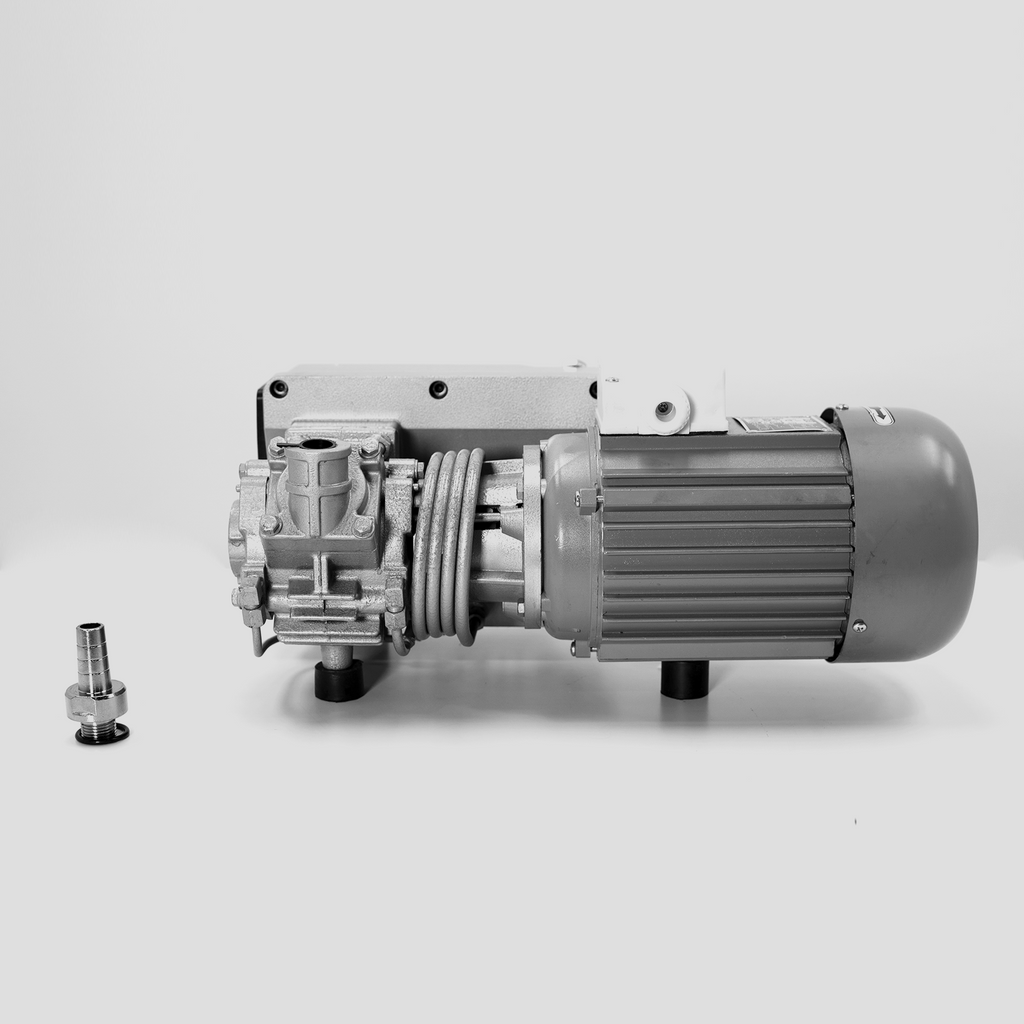

This Vacuum Motor & Pump assembly is specifically designed for Single Chamber Vacuum Pack Machines, delivering exceptional performance and efficiency. The assembly combines the powerful YC8032A motor, operating at 3360 RPM and 900W, with the high-performing XD-020 pump to ensure consistent vacuum generation and reliable packaging operations. Built for industrial environments, the motor runs on 220V and 8A, with a robust 300µF/250V capacitor and IP44E protection for enhanced durability and safety.
Key Features:
-
High Performance: The motor operates at 3360 RPM and 900W, providing strong and reliable vacuum generation to handle demanding packaging tasks.
-
Durable Construction: With an IP44E protection class, the motor is safeguarded against dust and water ingress, ensuring longevity and reliable operation even in challenging environments.
-
Efficient Power: Designed for 220V, 8A, and 60Hz operation, the assembly is optimized for stable and energy-efficient performance across various industrial applications.
-
Complete Solution: The assembly includes the XD-020 pump, engineered to maintain optimal vacuum pressure, ensuring seamless integration and enhanced packaging performance.
Motor Specifications:
-
Model: YC8032A
-
Speed: 3360 RPM
-
Power Output: 900W
-
Voltage: 220V
-
Current: 8A
-
Frequency: 60Hz
-
Capacitor: 300µF/250V
-
Protection Class: IP44E
Pump Specifications:
-
Model: XD-020
-
Pump Type: High-efficiency vacuum pump designed for continuous vacuum maintenance.
Applications: This Vacuum Motor & Pump assembly is ideal for Single Chamber Vacuum Pack Machines, providing the robust vacuum power needed for a wide range of packaging applications. Its reliable and efficient design enhances the productivity and operational efficiency of vacuum sealing processes, making it a valuable component in industrial packaging environments.
Conclusion: For businesses seeking a durable and high-performance vacuum solution, this Vacuum Motor & Pump assembly is a perfect choice. Its powerful motor, combined with the efficient XD-020 pump, ensures that your vacuum packaging machine operates smoothly and consistently, improving overall packaging efficiency and reliability.
