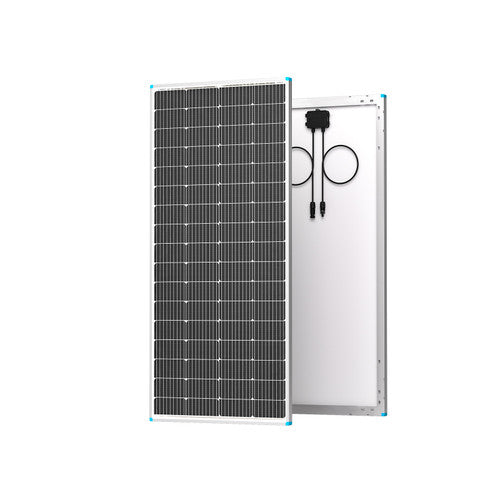

Renogy 200W Rigid Solar Panel
The Renogy 200W Rigid Solar Panel is a high-performance solar panel designed to deliver efficient energy for various off-grid applications, including RVs, boats, and cabins. This durable panel is built with high-quality materials to withstand harsh environments, making it an excellent choice for long-term outdoor use.
200W Power Output
Provides up to 200W of clean solar energy suitable for powering 12V batteries or running small off-grid appliances.

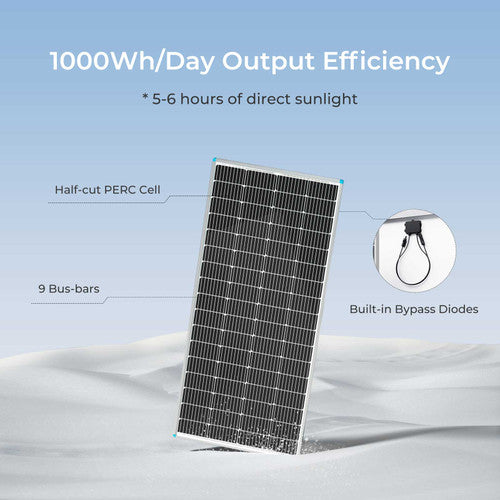

High-Efficiency Monocrystalline Cells
Renogy’s monocrystalline solar cells are known for their high efficiency, ensuring consistent energy production even in low-light conditions, helping you maximize energy generation.

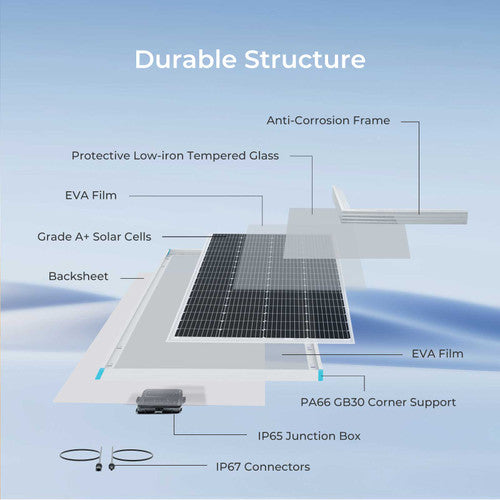

Durable Aluminum Frame
The rigid panel is built with a corrosion-resistant aluminum frame, ensuring longevity and the ability to withstand snow, wind, and other environmental challenges.

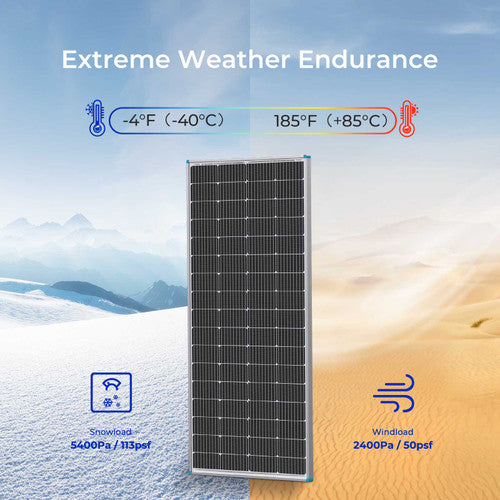

Weather-Resistant Design
With an IP65-rated junction box, the panel is protected from low-pressure water jets and environmental particles, making it ideal for outdoor use in diverse weather conditions.
Pre-Drilled Holes for Easy Installation
The panel comes with pre-drilled holes for quick mounting and installation, compatible with Renogy’s Z-brackets, pole mounts, and tilt mounts.
Specifications:
-
Max Power at STC: 200W
-
Open Circuit Voltage: 23V
-
Short Circuit Current: 11.05A
-
Optimum Operating Voltage: 19.2 V
-
Optimum Operating Current: 10.42 A
-
Operating Temperature: -40°F~194°F / -40℃~90℃
-
Maximum System Voltage: 600 VDC UL
-
Maximum Series Fuse Rating: 20A
-
Output Cable: 13 AWG (2.6 ft long)
-

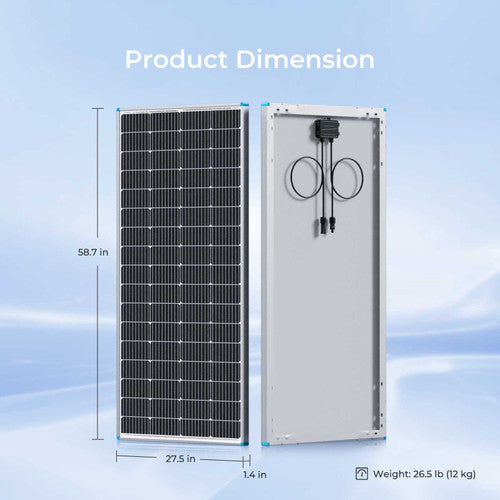

Dimensions: 58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm
-
Weight: 26.46 lb (12 kg)
-
Solar Cells: 68 Cells ((2+2)*17)
-
Junction Box: IP65
-
Connectors: Solar Connectors
-
Module Efficiency: 19.2%
-
Cell dimension: (158.75 x 158.75) mm / (6.25 x 6.25) in x 40 cells
-
Material and workmanship warranty: 10-Year Workmanship Warranty
-

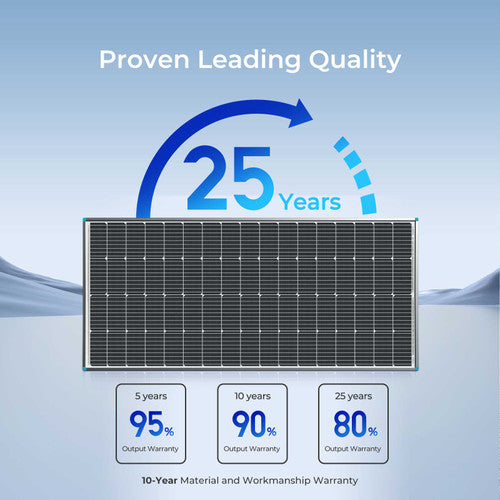

Performance Warranty: Over 80% Output at 25 Years
What's in the Box:
1x Renogy 200W Rigid Solar Panel
1 x User Manual
