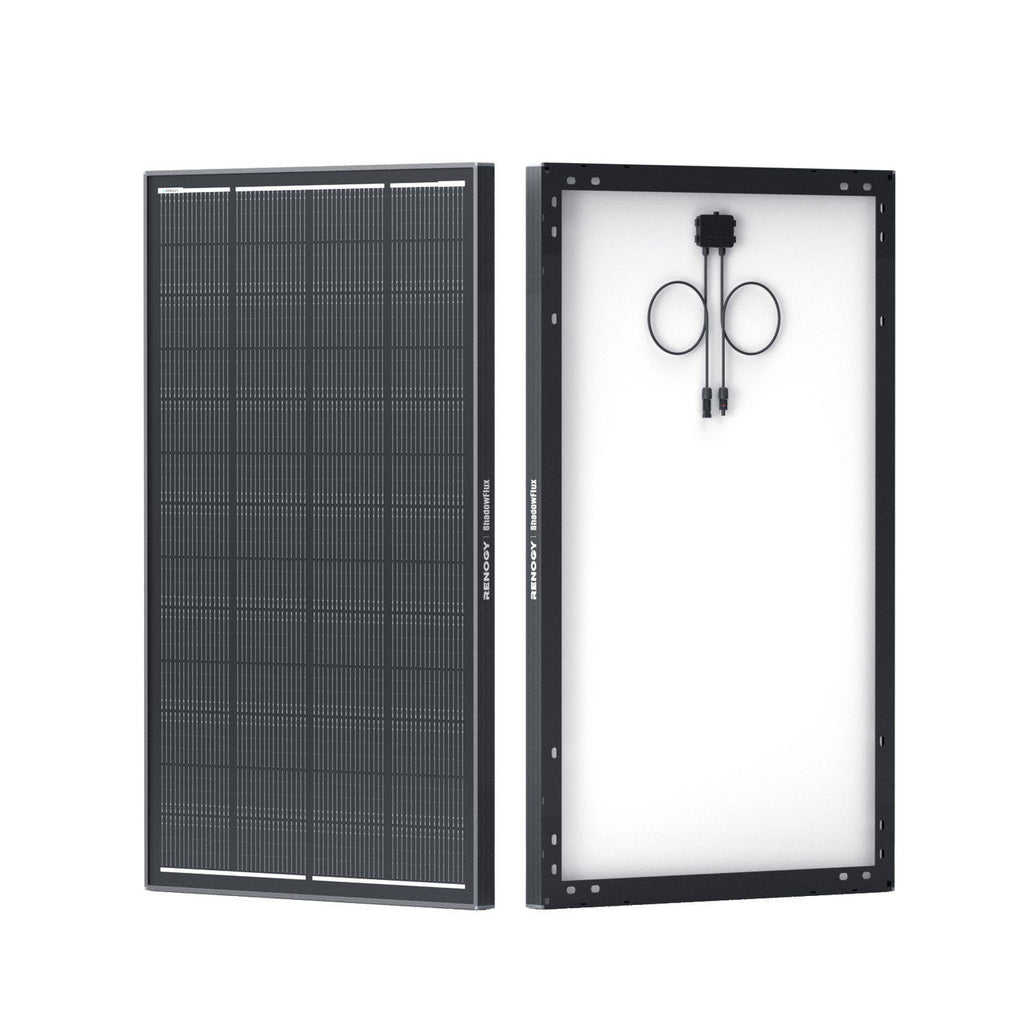

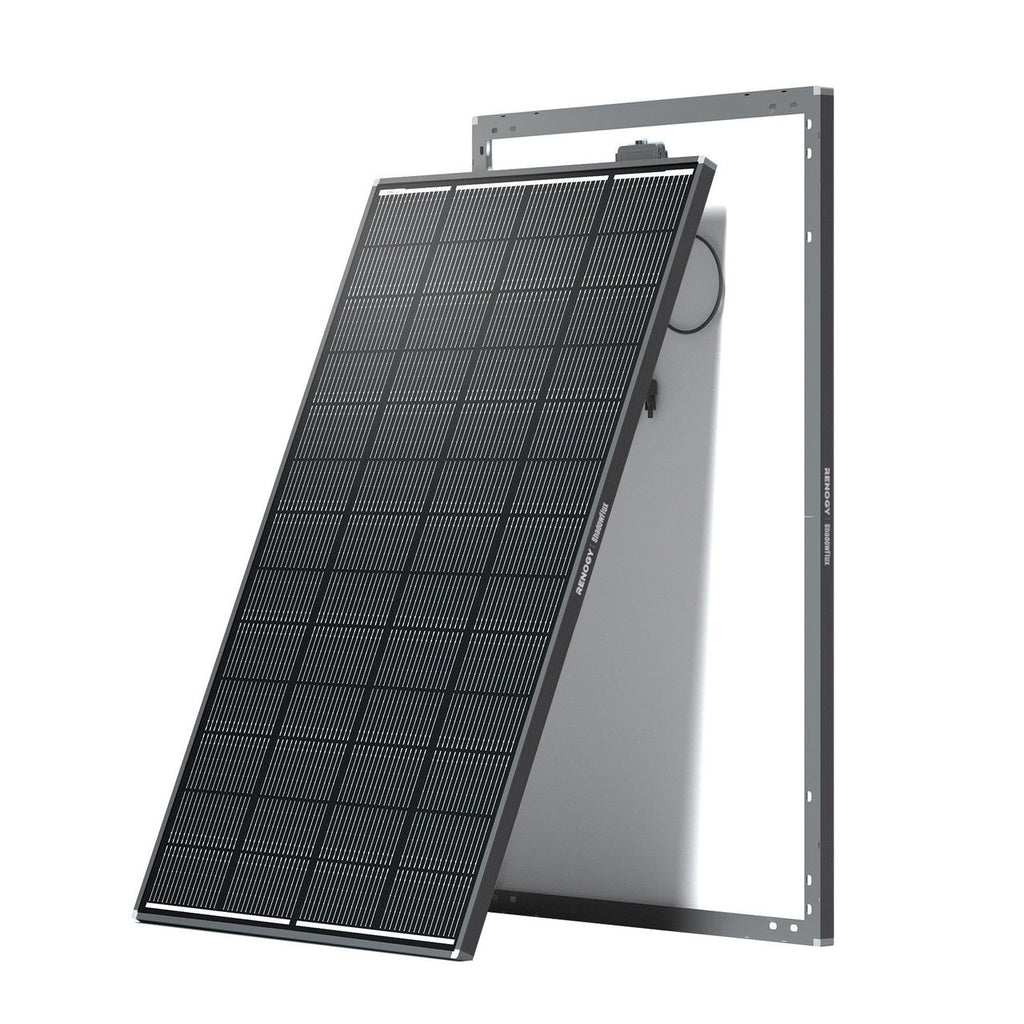

Renogy 200W ShadowFlux™ Anti-Shading N-Type Solar Panel

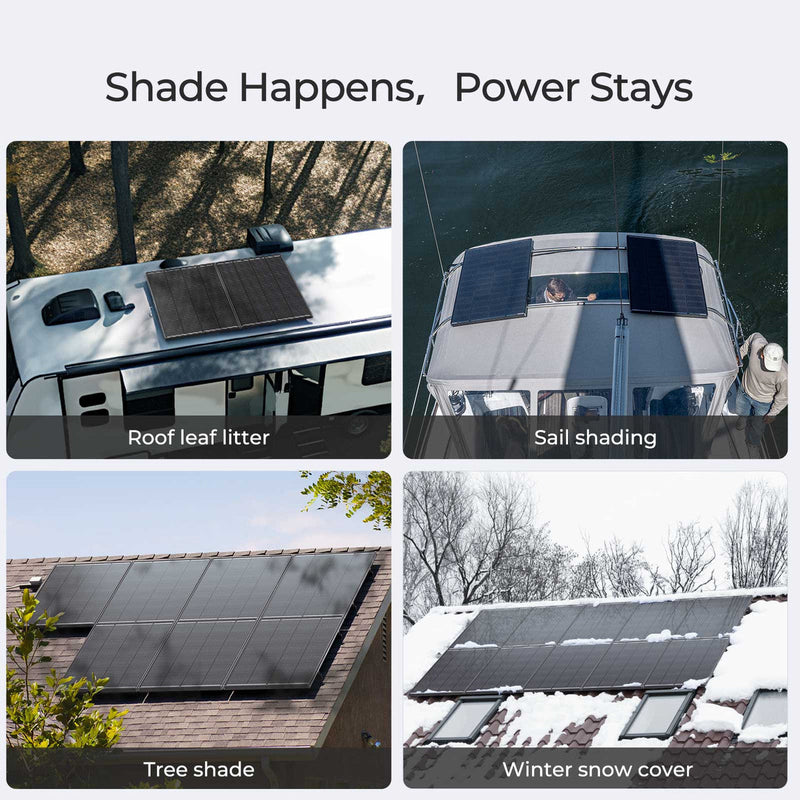

Enjoy 200W of pure energy with Renogy Anti-Shading N-Type Solar Panel featuring Renogy's trademark ShadowFlux tech that optimizes output even if your RV or boat is parked in partially shaded areas.

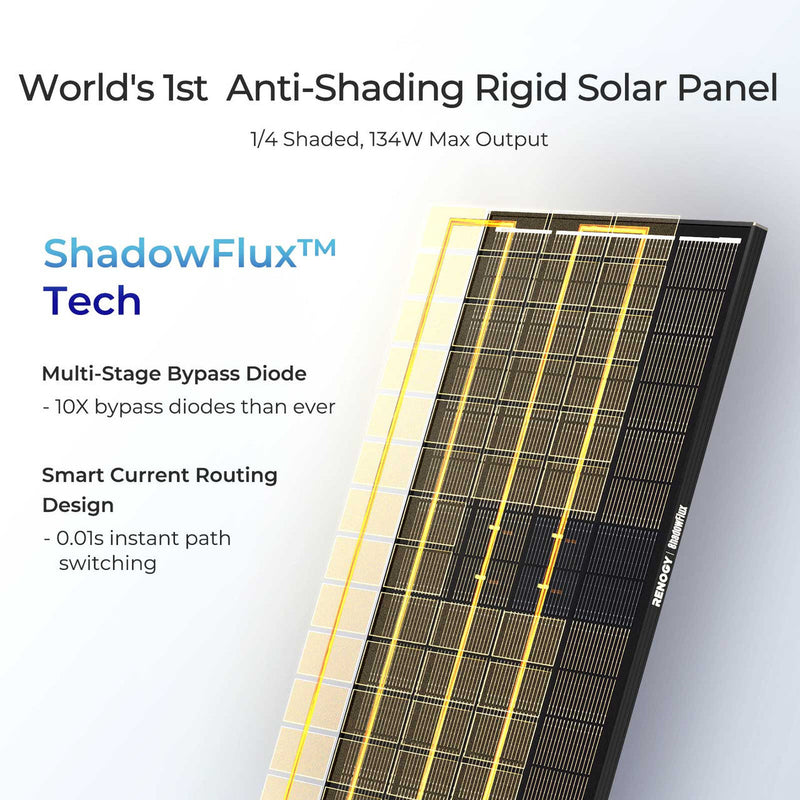

7% smaller and 10% lighter than any regular panels, these N-Type solar panels are easy to install and easier to use. Designed to supply you with endless power for your off-grid adventures, Renogy achieves optimal harnessing of the sustainable solar energy by using 10 times more bypass diodes combined with dynamic current distribution resulting in the ShadowFlux, a breakthrough tech that helps maintain optimal power output even in partial shades.

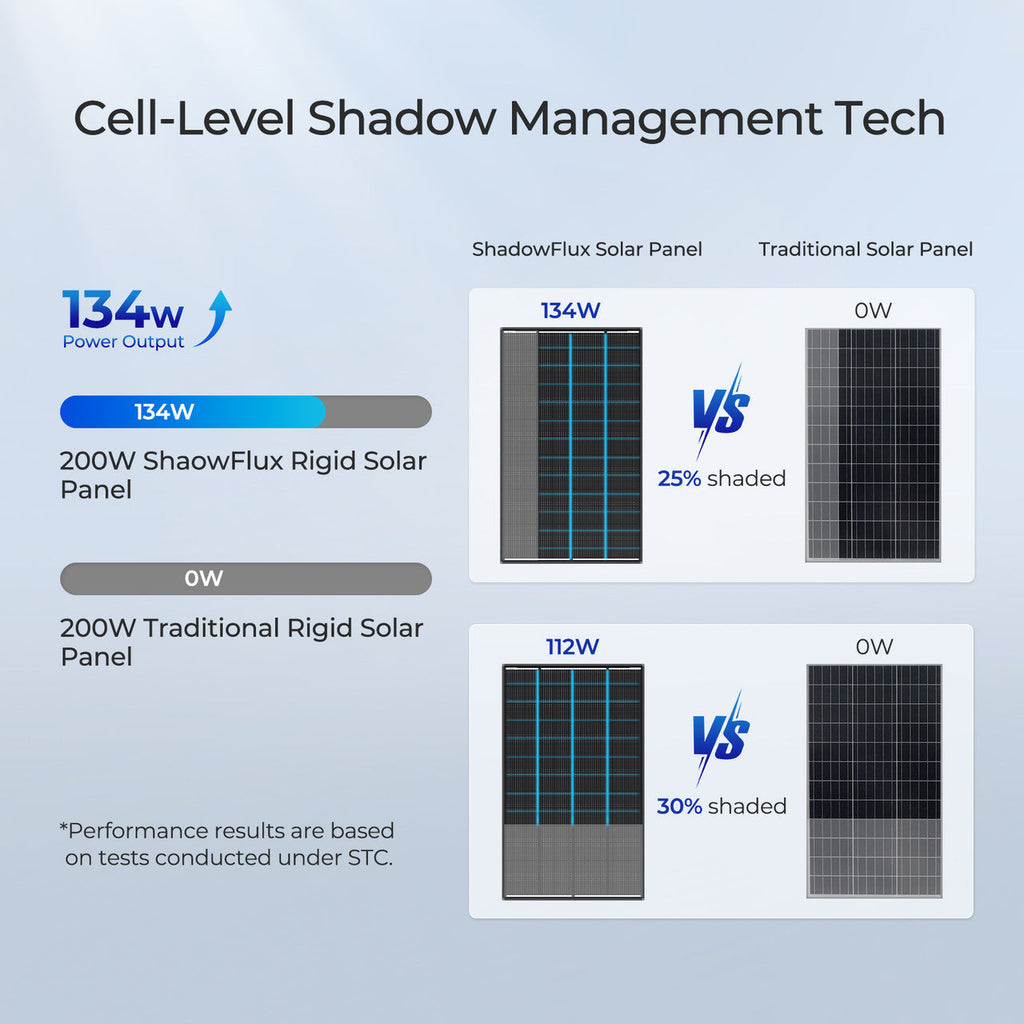

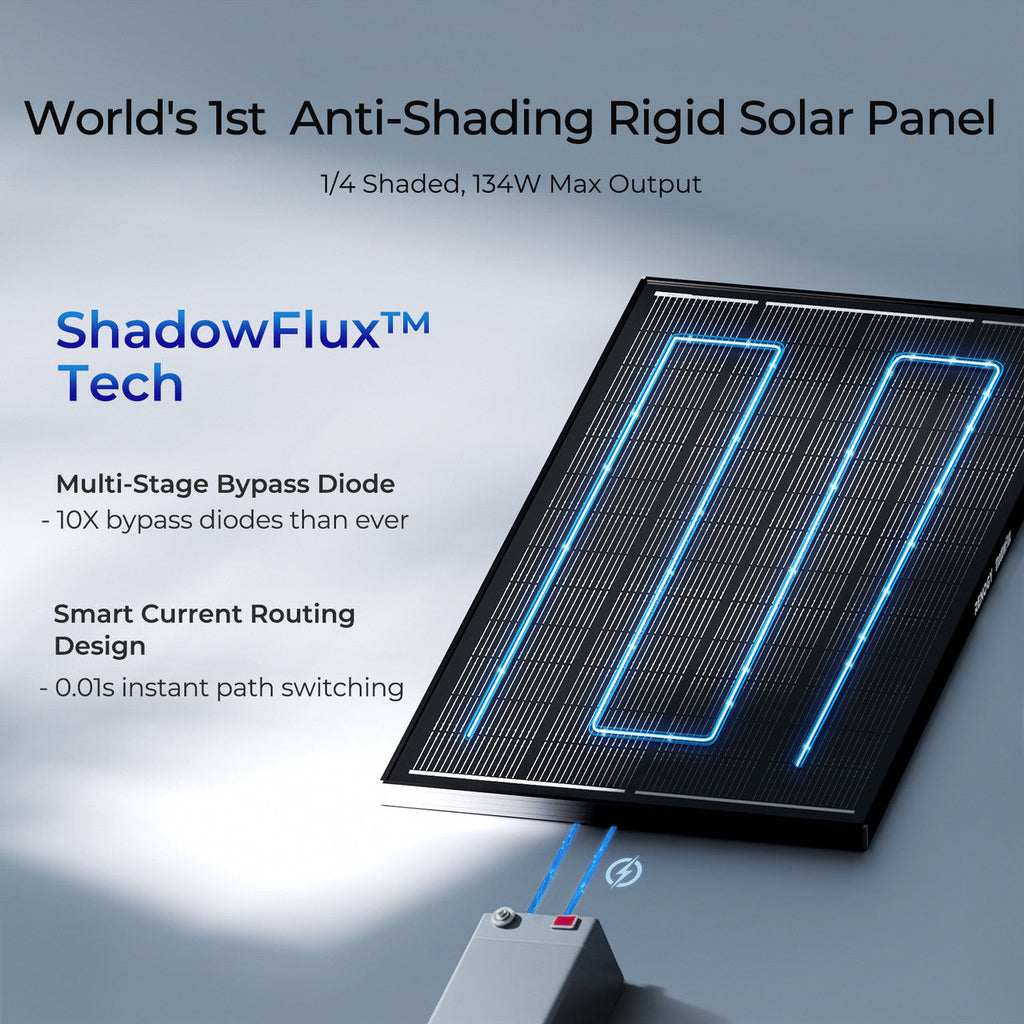

Hailed as the leader in solar panel category, ShadowFlux with linear power loss helps sustain high output. The shaded cells in this module do not consume power successfully avoid local overheating, while the smart current routing design achieves instant path switching in 0.01s with dynamic control.

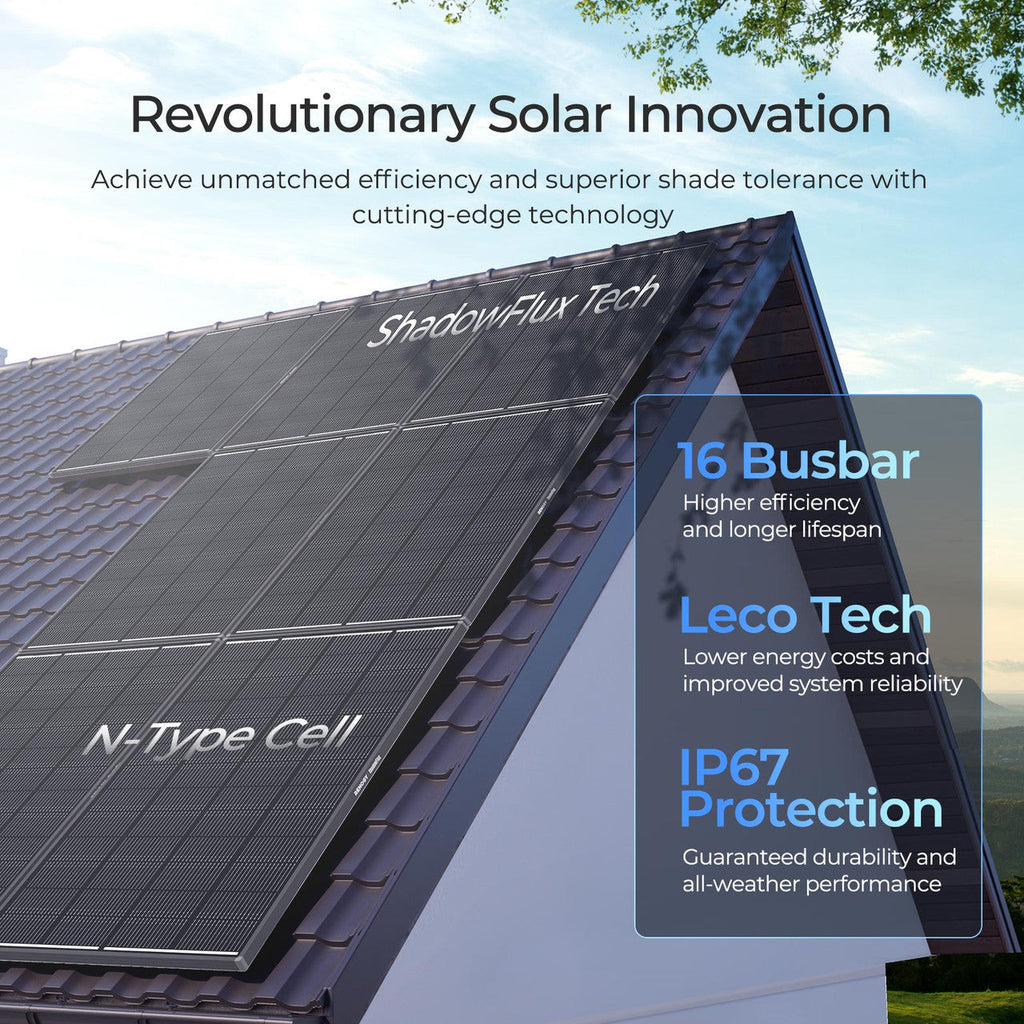

From RVs to boats to rooftops, the petite panels steal the show with a sleek, all-black look. Built for the great outdoors the panels are IP67 certified waterproof and dustproof and is precisely designed to withstand 2400Pa wind loads and 5400Pa snow loads.
Highlights:
- Maximizes output in partial shading with ShadowFlux technology

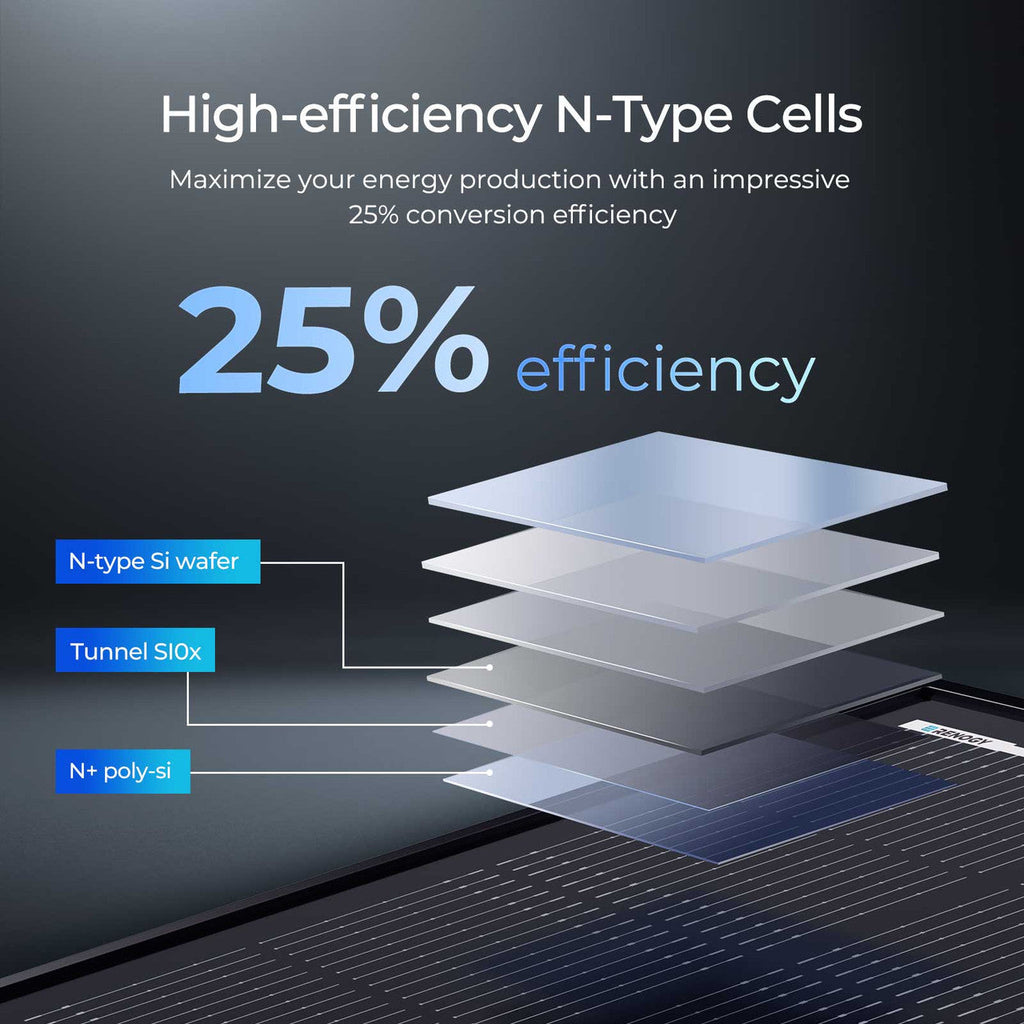

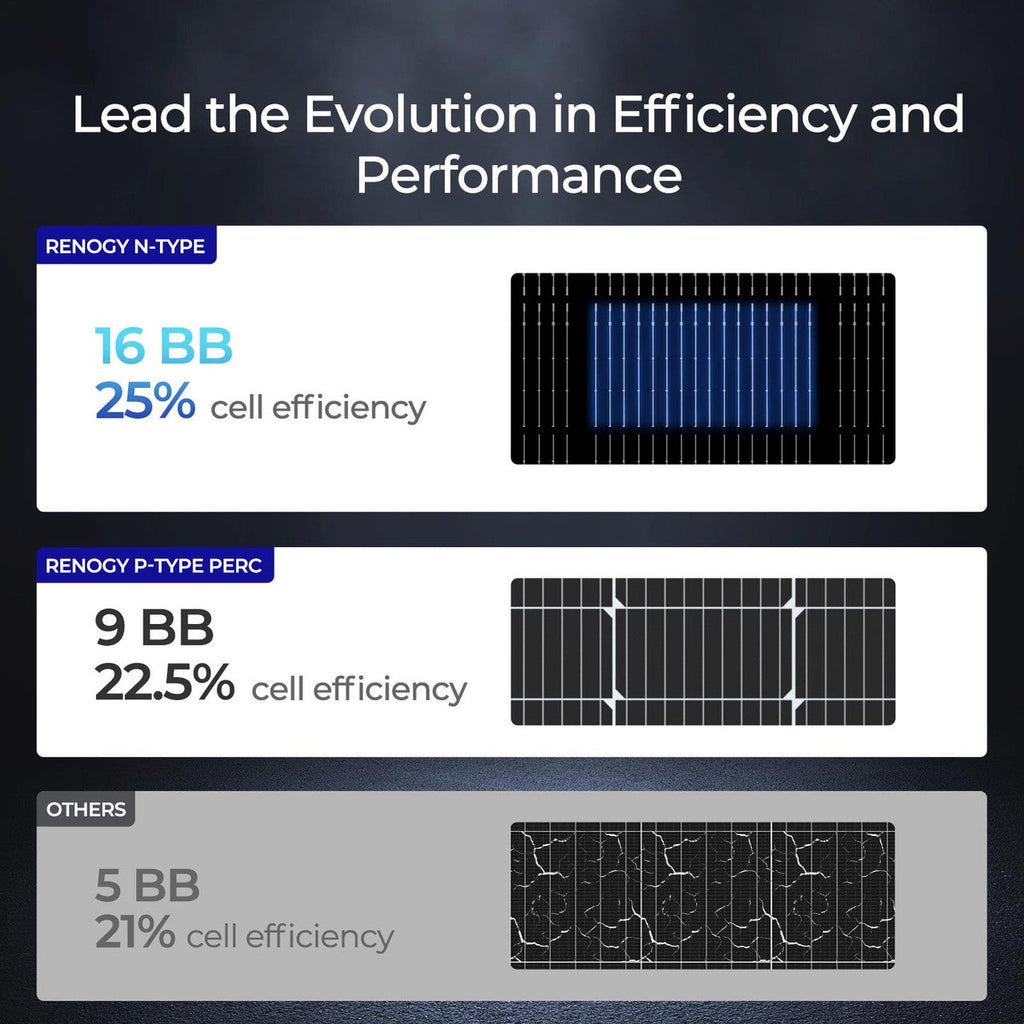

- 25% efficiency with anti-hotspot tech for less overheating
- 7% smaller, 10% lighter than other panels for easy install
- Rated ≥IP67 for protection against to water, dust, and stress
- Consistent 36.5V VOC output - even when partially shaded
Specifications:
Panel Type: Rigid
Max Power at STC: 200W
Open Circuit Voltage: 36.5V
Short Circuit Current: 6.86A
Optimum Operating Voltage: 31.3V
Optimum Operating Current: 6.38A
Maximum System Voltage: 1000VDC
Maximum Series Fuse Rating: 15A
Module Efficiency： 20.7%
Operating Temperature: -40°F~185°F / -40℃~85℃
Dimensions: 49.69*30.08*1.18inch
Weight: 10.81kg/23.83lb
Material and Workmanship Warranty: 5 Years
Performance Warranty: 25 Years 80% Output Warranty
What's in the Box:
1 x Renogy 200W ShadowFlux™ Anti-Shading N-Type Solar Panel
