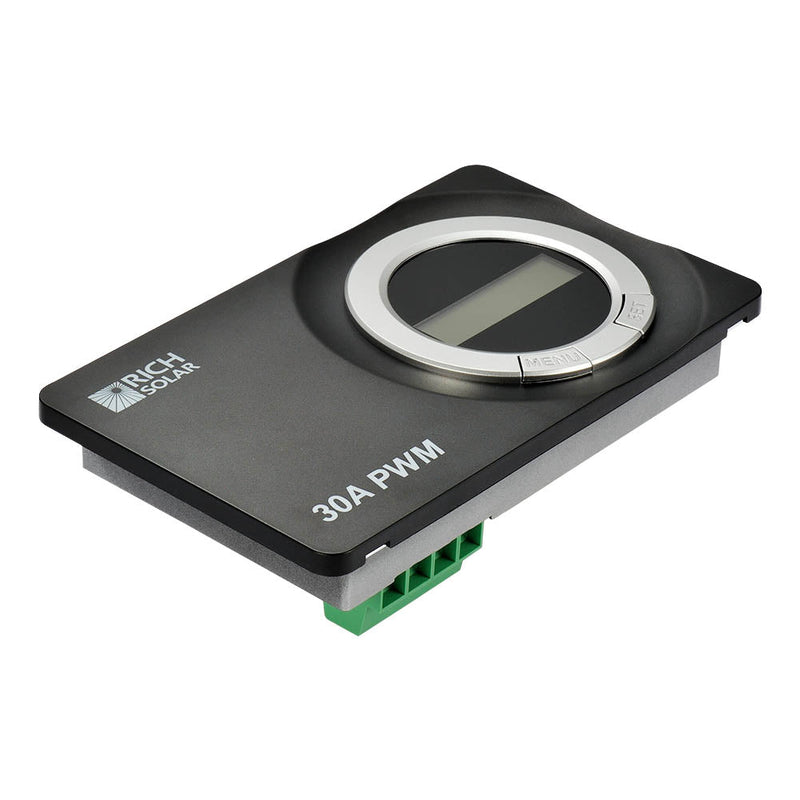

Rich Solar 30 Amp Flush Mount PWM Solar Charge Controller
The 30 Amp Flush Mount PWM solar charge controller from Rich Solar is dedicated to manage the charging process of your 30 Amp solar panels. An ideal controller contraption for medium-sized solar installations, this 30 Amp solar charge controller is a top-rated regulator that boasts of high-quality and low-failure rate components.

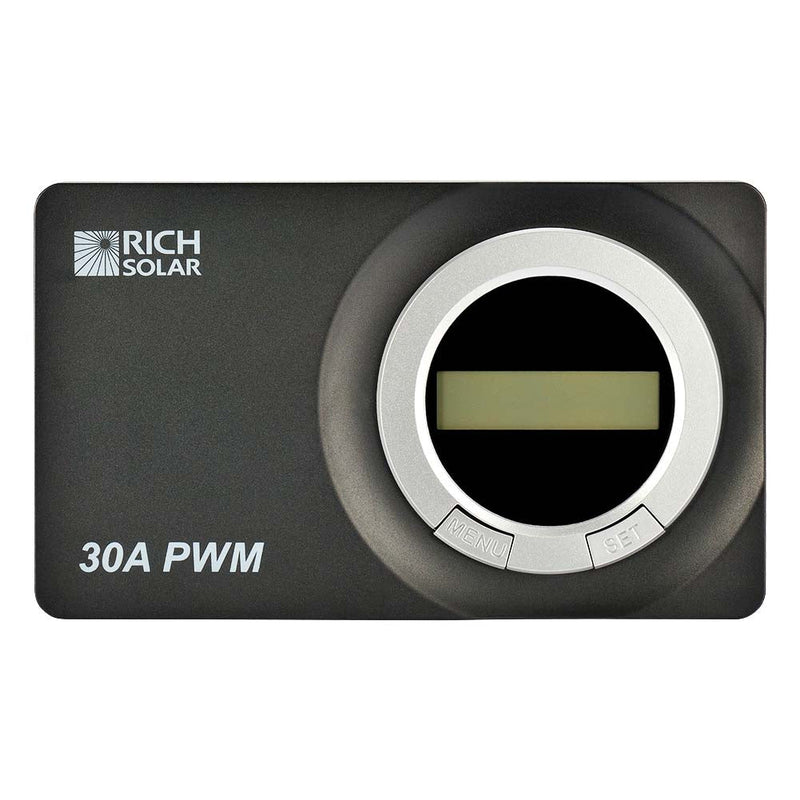

Compatible with Sealed, Gel and Flooded types of batteries, the PWM allows 3-stage intelligent charging including Bulk, Boost/Equalize and Float. Get all your info on the digital LCD monitor that display real-time data including operational parameters and error codes.
Highlights:
- PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid
- Real-time energy statistics feature

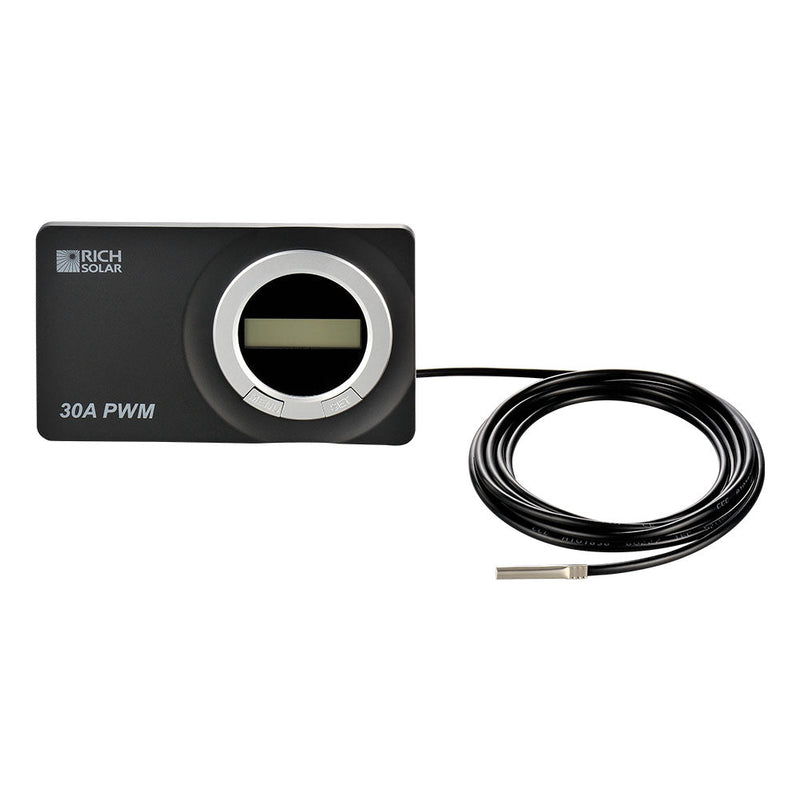

- Battery temperature compensation
- Voltage drop sampling interface design
- Multiple communication peripherals

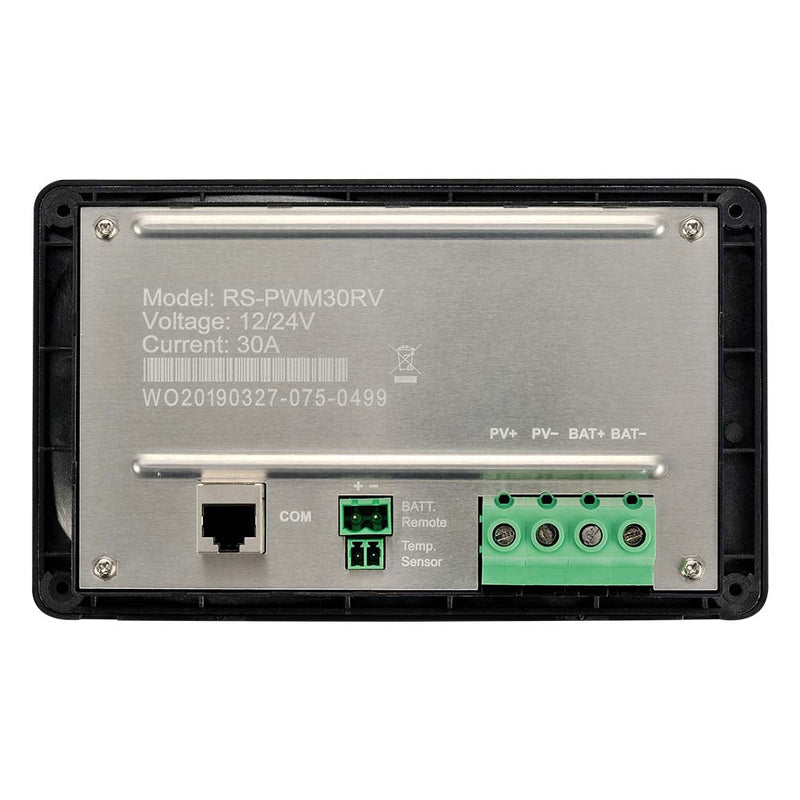

- RS485 communication port with Modbus protocol
- Short circuit protection for 5V/200mA power supply
Specifications:
Electrical Specifications
Nominal Voltage: 12/24VDC or Auto
Battery Input Voltage Range: 8V～32V
Rated Charge Current: 30A
Max. PV Short Circuit Current: 30A
Max. PV Open Circuit Voltage: 50V
Battery Type: Sealed(default)/Gel/Flooded
Self-consumption: ≤4.2mA/12V;≤2.6mA/24V
Temperature Compensation Coefficient: -3mV/°C/2V(Default)
Charge Circuit Voltage Drop: 0.21V
Environmental Parameters
Storage Temperature Range: -30°C～+80°C
Working Environment Temperature: -20°C～+55°C(100% input and output)
Relative Humidity: ≤95%, N.C.
Enclosure: IP30
Grounding: Common negative
Altitude: 5000m
Pollution Degree: PD2
Mechanical Parameters
Dimension (L×W×H): 178.5×105.5×48.3mm
Mounting Dimension: 166.5×93.5mm
Mounting Hole Size: Φ5mm

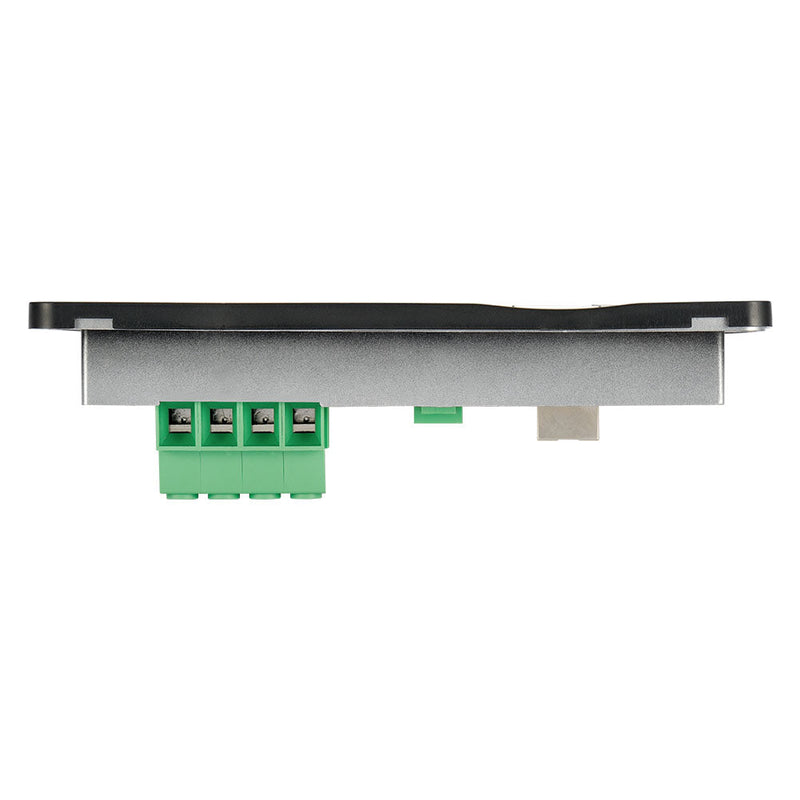

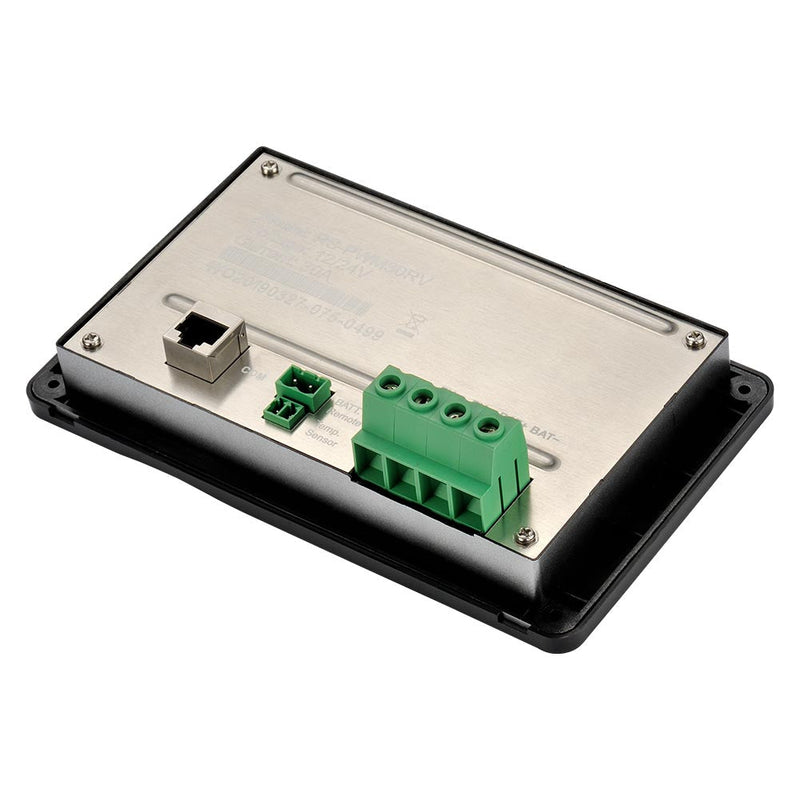

Terminal: 16mm2/6AWG
Recommended Cable: 6mm2/10AWG
Net Weight: 0.31kg
What's in the Box:
1 x 30 Amp Flush Mount PWM Solar Charge Controller
1 x User Manual
