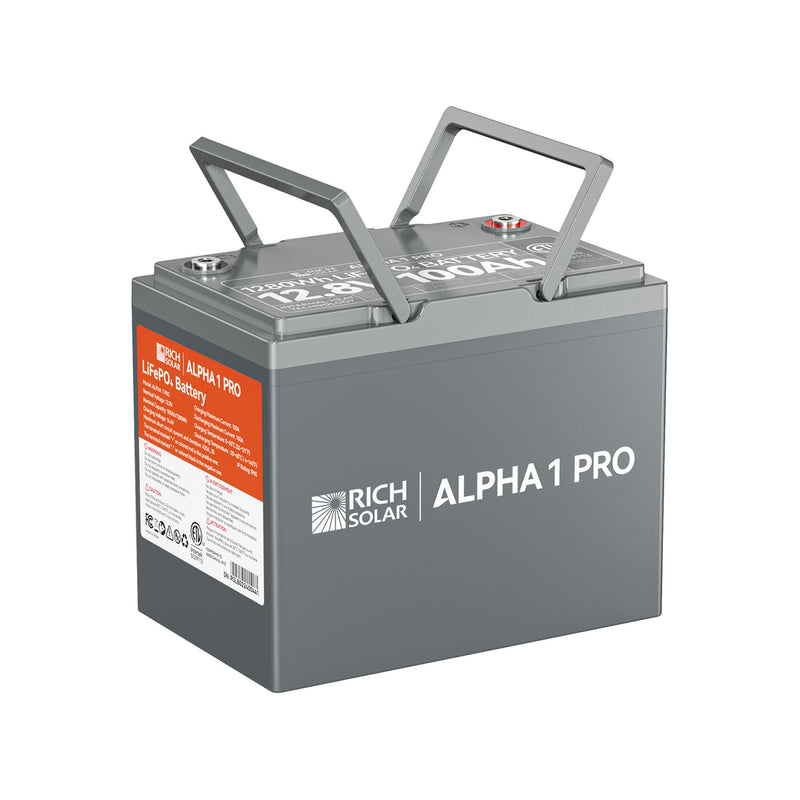

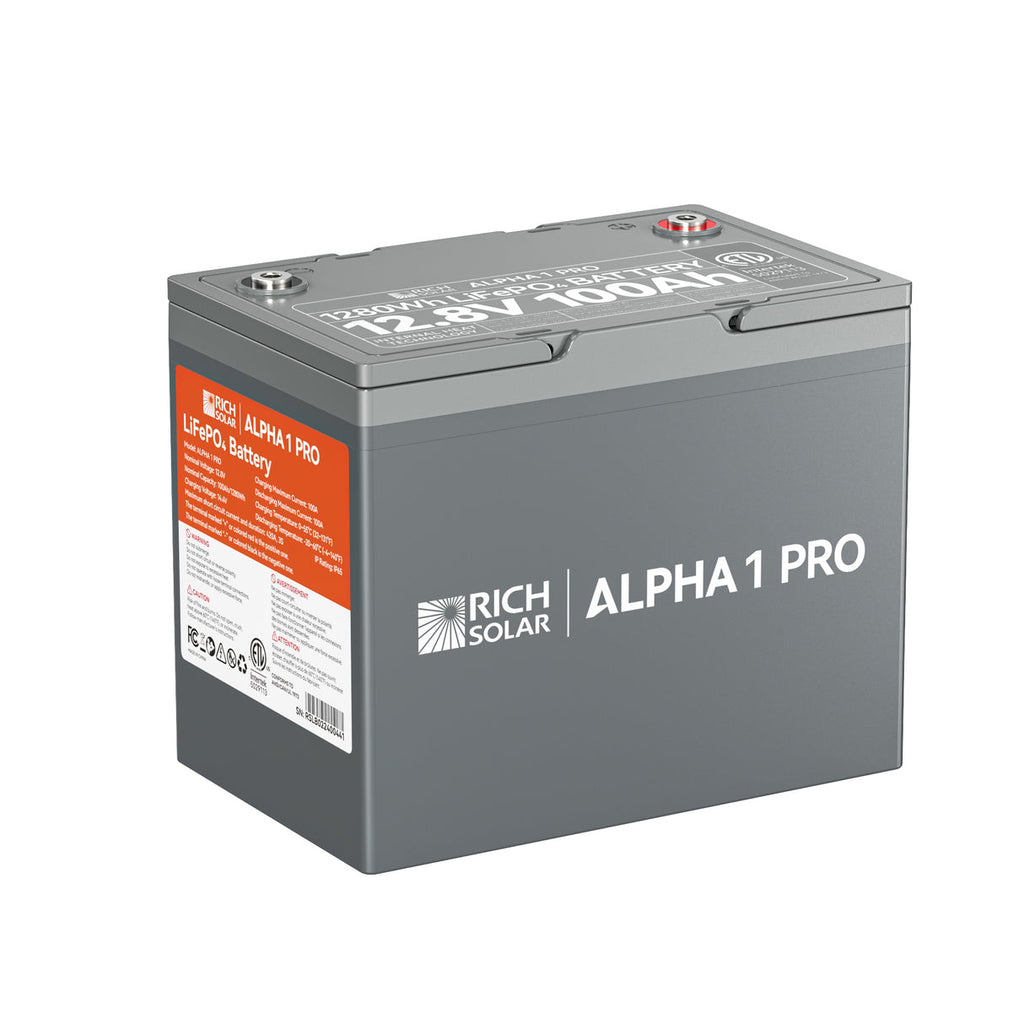

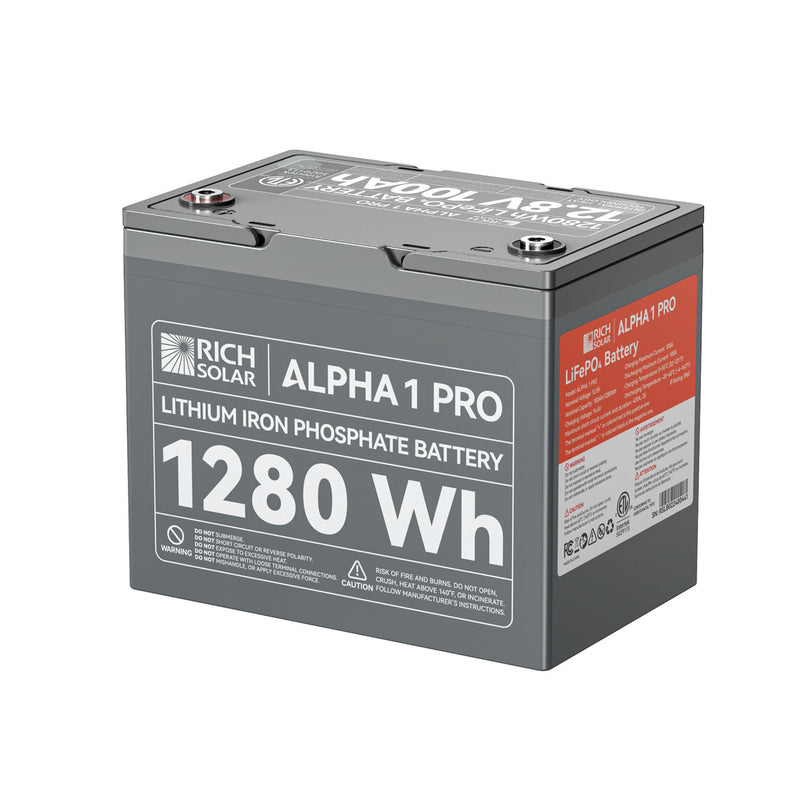

Rich Solar ALPHA 1 PRO | 12V 100Ah LiFePO4 Battery
ALPHA 1 PRO is a charming 12V 100Ah LiFePO4 battery from Rich Solar, built to power your off-grid adventures perfected for boats, RVs, cabins, campers and crazy DIYs, this lithium iron phosphate battery generates 1280Wh of energy for a good 7000+ lifetime cycles, yet delivers consistent and durable performance every single time.
The robust construction coupled with internal heating protects the battery in extreme low-temperatures by automatically triggering the internal heat once the temp drops down below 5-degree C and shuts off the heat once the internal temp reaches 10-degree C, thus ensuring a consistent performance at all times.
Designed with a Battery Management System (BMS) in place, ALPHA 1 PRO with its high quality industrial grade A+ battery cells, responds intuitively to protect battery from overcharge, over discharge, overcurrent, low and high temp fluctuations and short circuit.
Monitor the battery operation status and performance of ALPHA 1 PRO via your mobile device in real time thanks to its in-built Bluetooth module.
Specifications:
BATTERY
Cell Type: LiFePO4 Battery
Maximum Expansion (Parallel & Series): 4P4S
BMS
Maximum Charging Current: 100A
Maximum Continuous Discharge Current: 100A
Maximum Discharge Current 10 Seconds: 110A
CHARGE
Charge Voltage: 14.4V ± 0.2V
Recommend Charge Current: 50A (0.2C)
TEMPERATURE
Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature: 14℉ to 95℉ (-10℃ to 35℃)
SELF-HEATING
External Power Draw: 100W
Internal Heating Starts: < 41℉ (5℃)
Internal Heating Stops: > 50℉ (10℃)
OTHERS
Net Battery Weight: 24.0lb
Dimensions (L*W*H): 10.2 x 6.6 x 8.3in (Group 24 size)
Housing Material: ABS (Flame Retardant Plastic)
Certifications: UL1973, FCC, UN38.3, ETL
What's in the Box:
1 x ALPHA 1 PRO 12V 100Ah LiFePO4 battery
1 x User Manual
