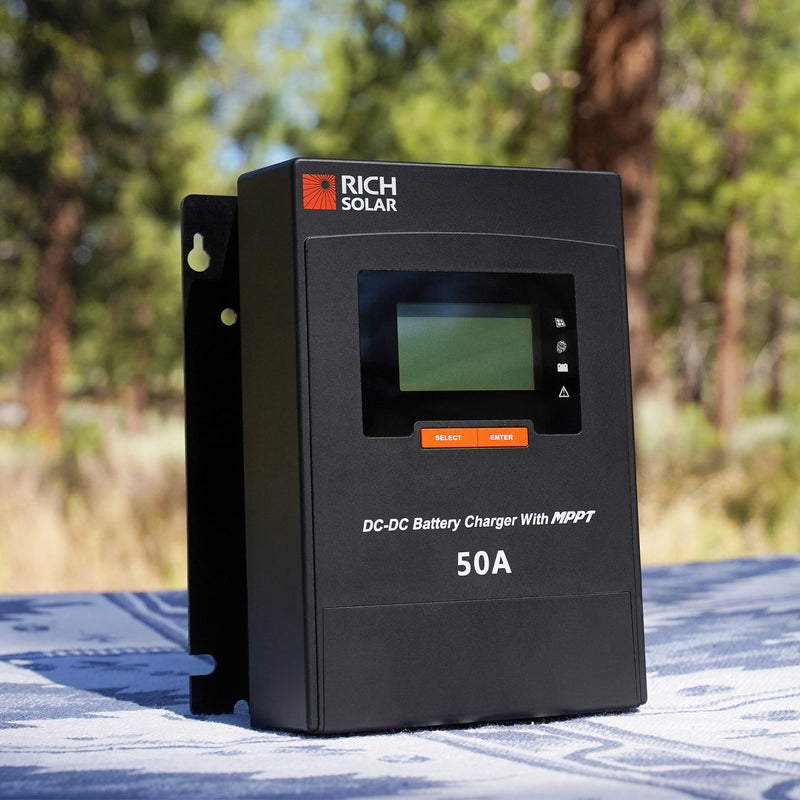

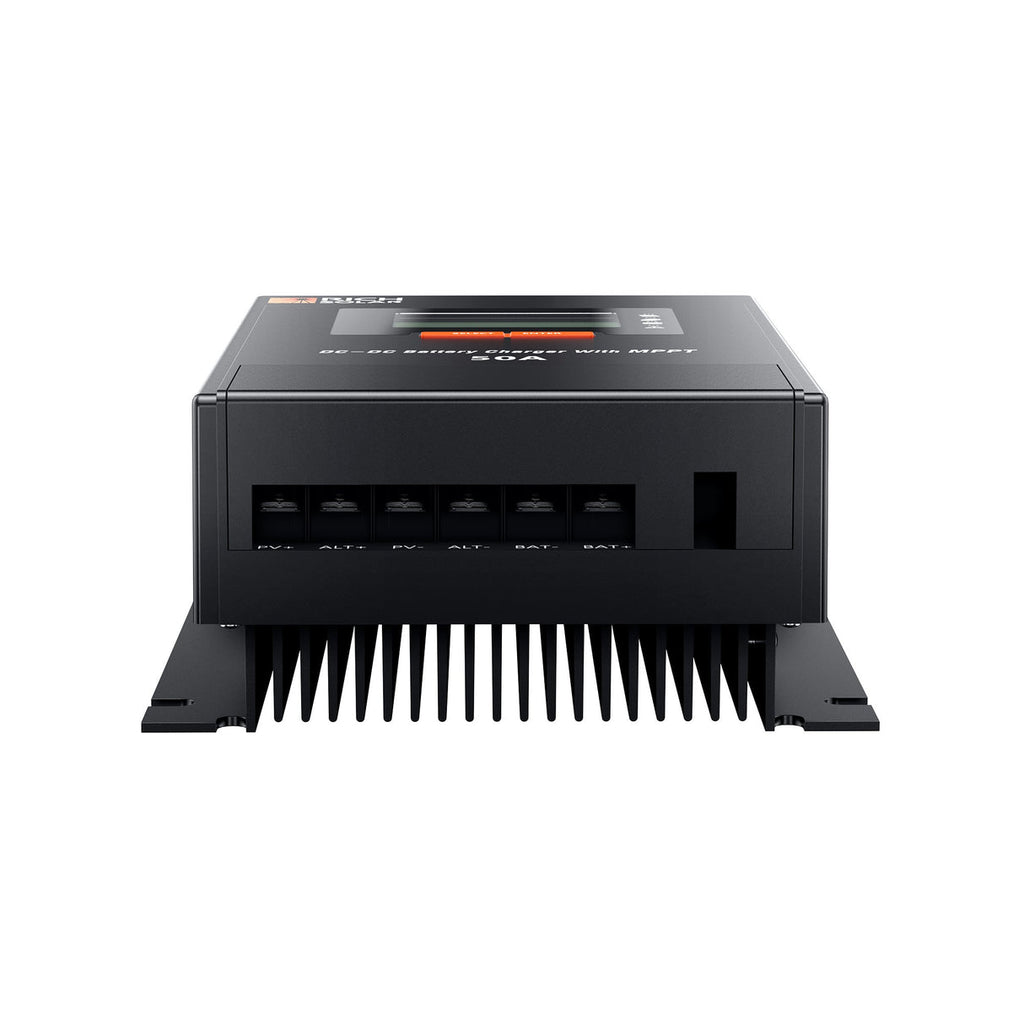

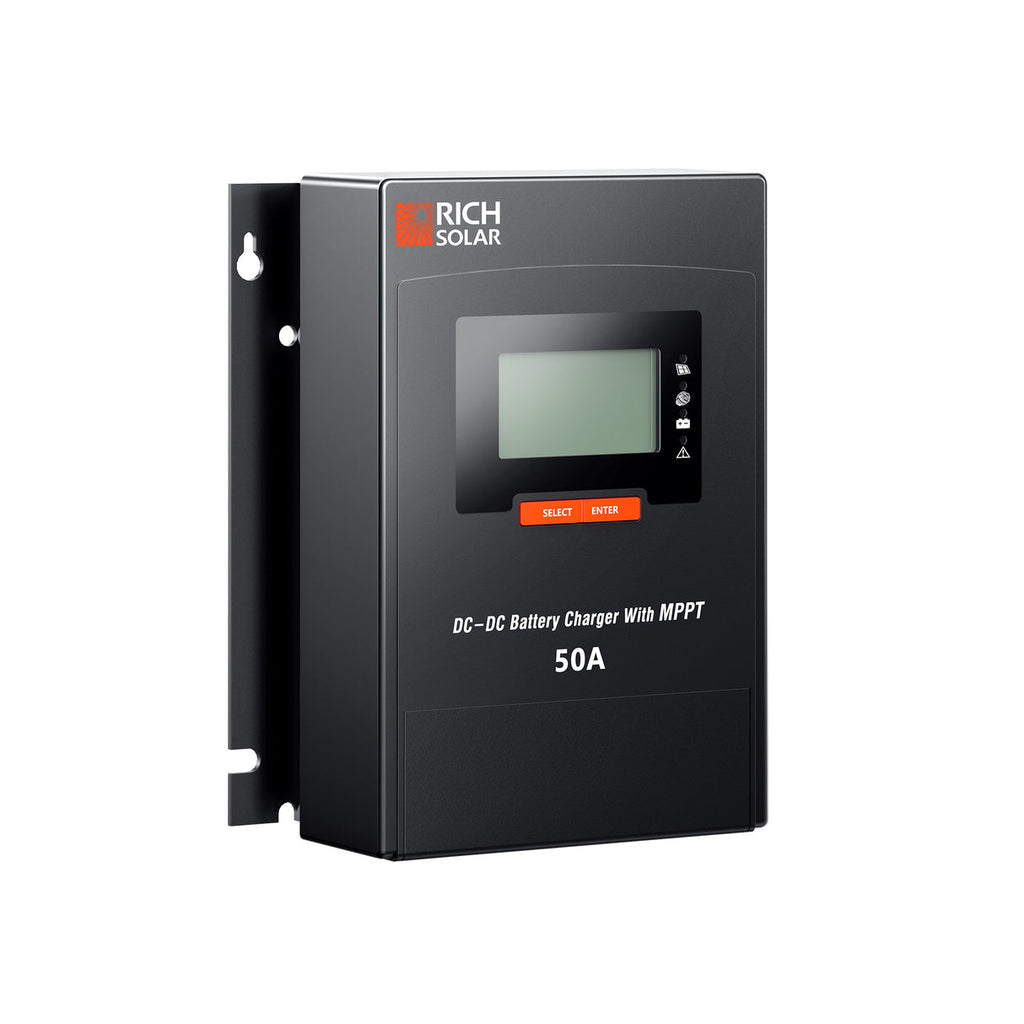

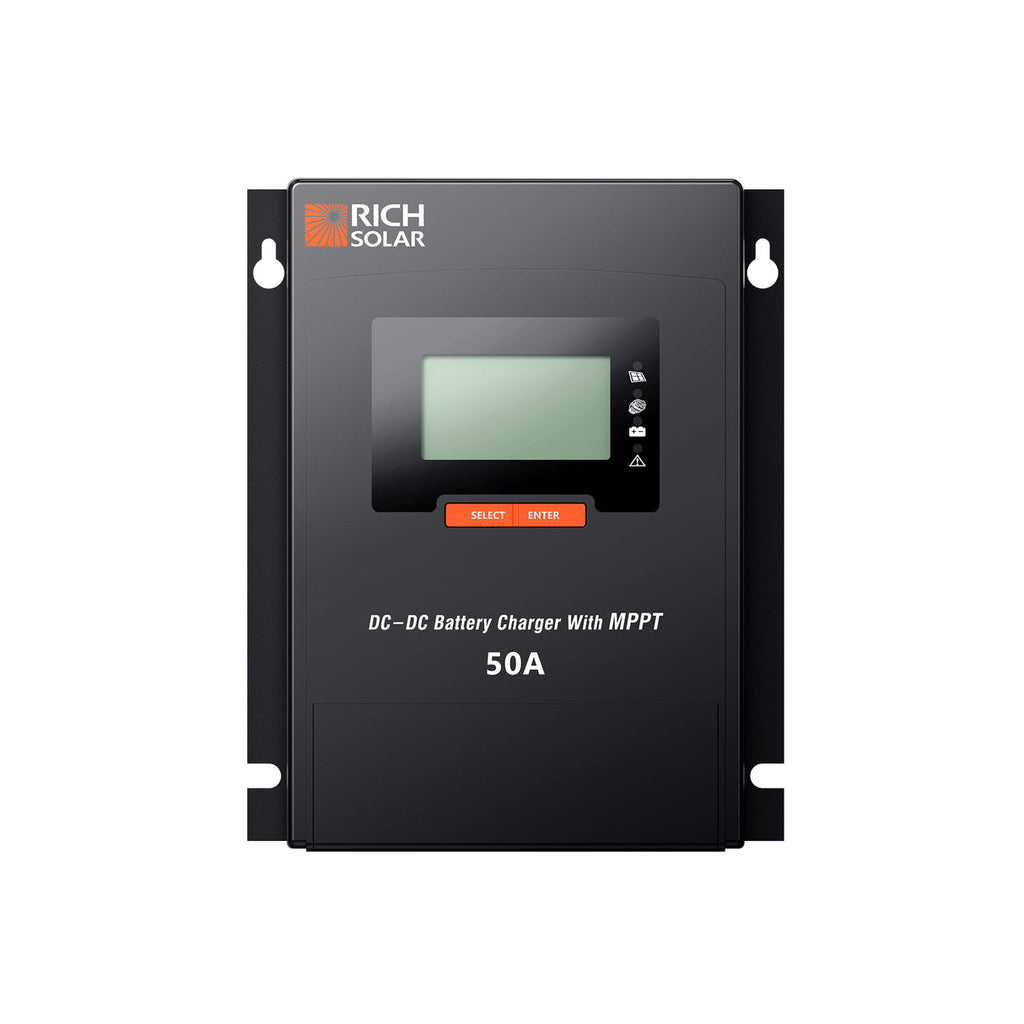

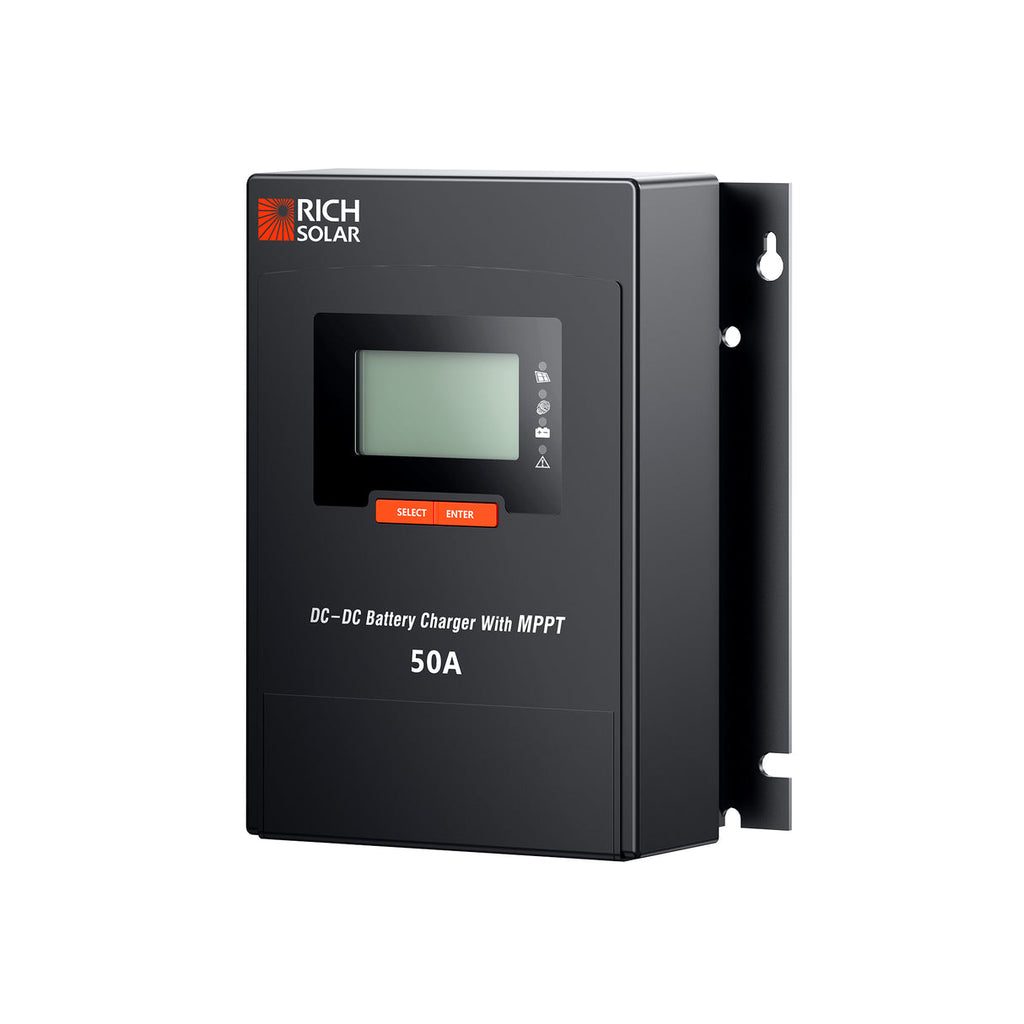

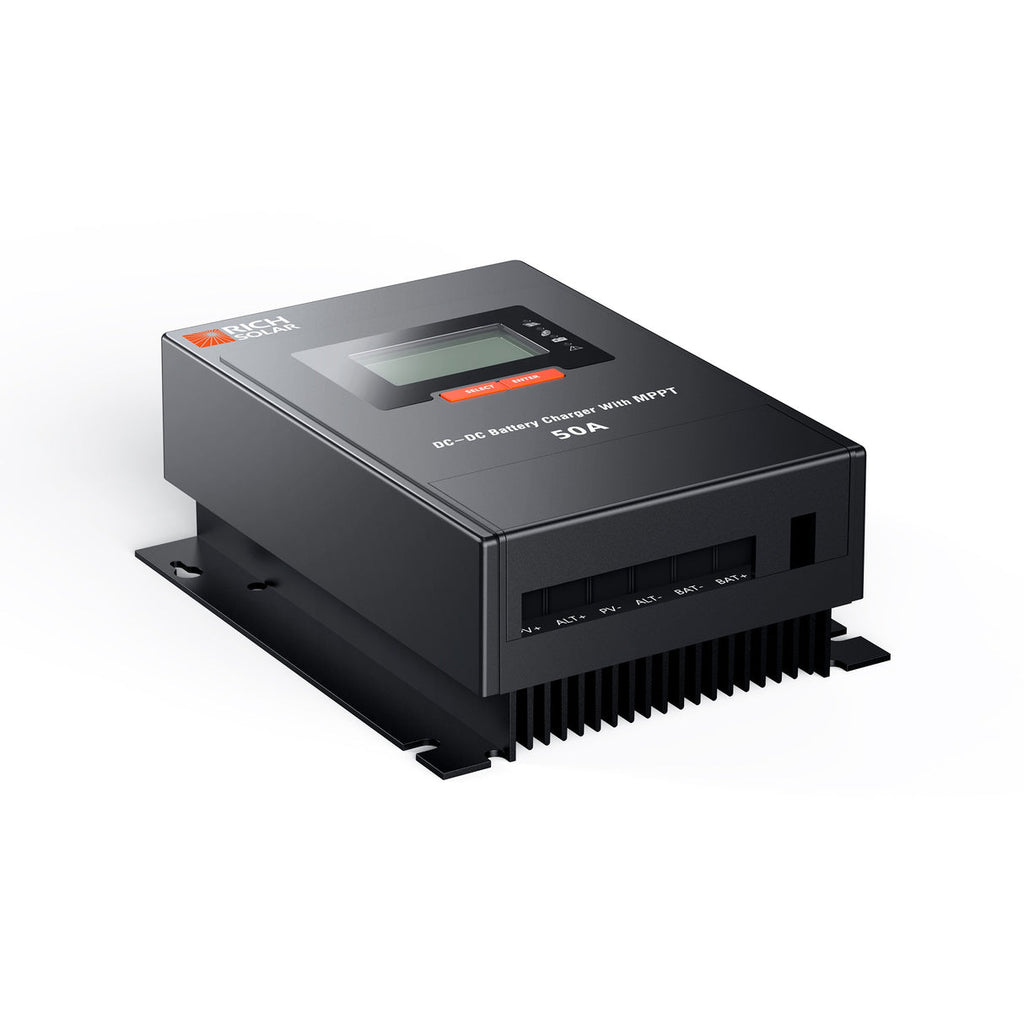

Rich Solar BRAVO 50 | 50 Amp MPPT Solar Charge Controller
Rich Solar brings your way the BRAVO 50, a 50 Amp MPPT charge controller, exclusively engineered for your RVs, campers, boats, vans and every possible off-grid adventure you ever dream of.
Ranked as #1 DC to DC solar controller, BRAVO 50 can connect to the PV and your vehicle's alternator, utilizing MPPT algorithm for optimal charging efficiency to ensure max power transfer to your battery to power up your off-grid energy sustainability.
Meant for both leisure and starter batteries, BRAVO 50 supports TTL communication.
Specifications:
PV INPUT
Max. Open Circuit Voltage: 55Vdc
MPPT Voltage Range: 17-36Vdc
Max PV Input Current: 45A
Max PV Input Power: 800W
BATTERY TYPE - Li-ion / Lead Acid / User Defined
Rated Battery Voltage: 12Vdc
Battery Voltage Range: 9-17Vdc
Max MPPT Charging Current: 50A
Max Alternator Charging Current: 60A
MPPT Charging Mode: Buck
BATTERY TYPE - Lead Acid
Rated Battery Voltage: 12Vdc
Max MPPT Charging Voltage: 13.8V
Max MPPT Charging Current: ≤25A
Max Alternator Input Voltage (Conventional): 13.2-16Vdc
Max Alternator Input Voltage (Euro 6 Standard): 12-16Vdc
Alternator Charging Mode: Buck, Boost, Buck-Boost
EFFICIENCY
MPPT Tracking Efficiency: >99%
Max Charging Conversion Efficiency: 98%
COMMUNICATION
Embedded Interfaces: TTL, Remote Switch
GENERAL
Weight: 4.7 lb
Dimensions: 8.7 x 6.9 x 3.2 in
Protection Degree: IP32
Operating Temperature Range: -35°C~65°C（-31℉～149℉)
CERTIFICATION
Safety: IEC62109
EMS: IEC61000, FCC SDOC
Rohs: YES
What's in the Box:
1 x BRAVO 50 Amp MPPT Solar Charge Controller
1 x User Manual
