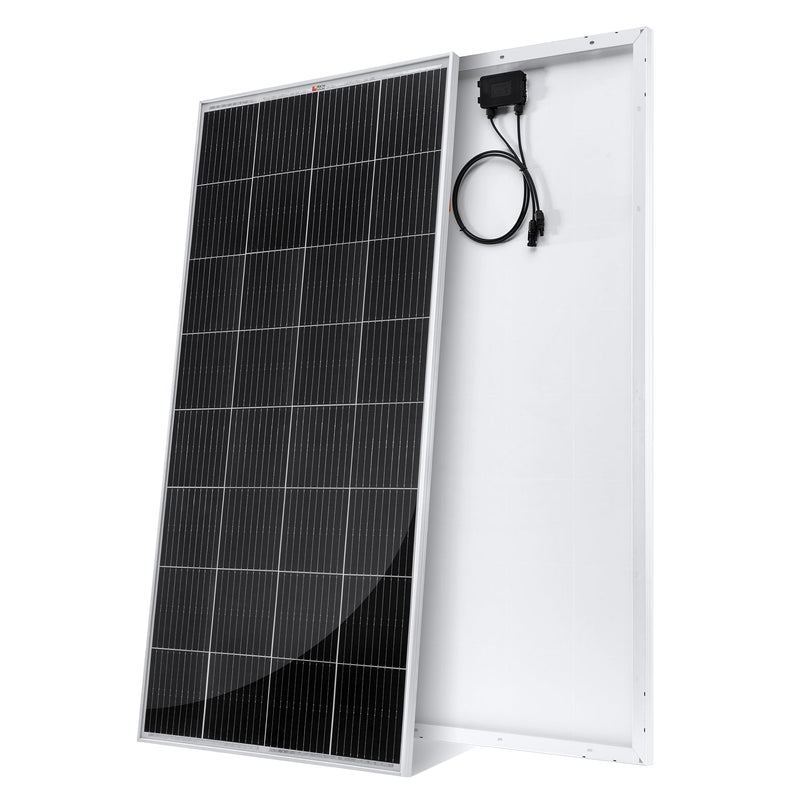

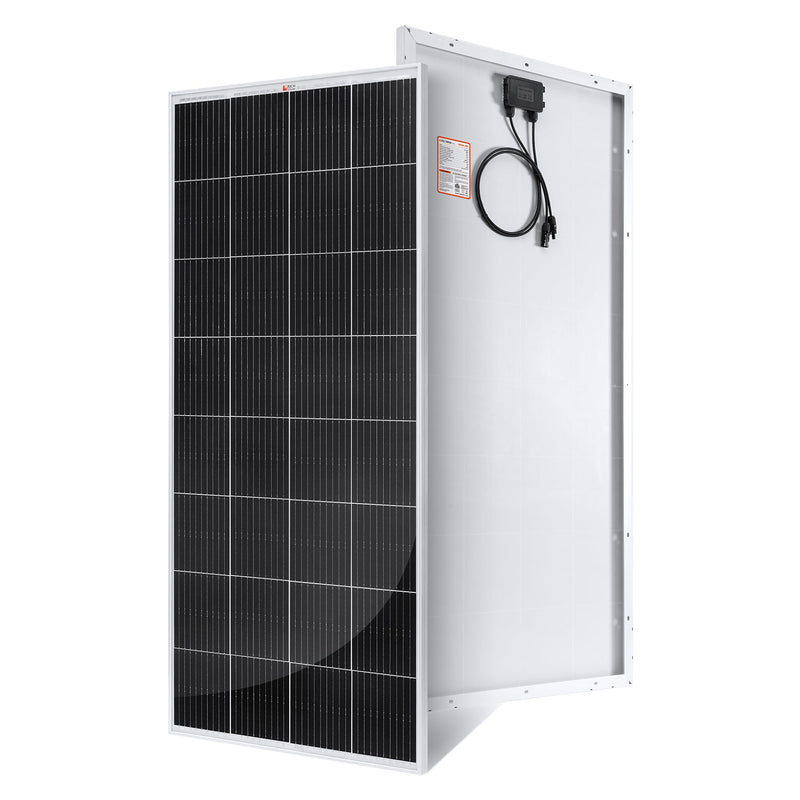

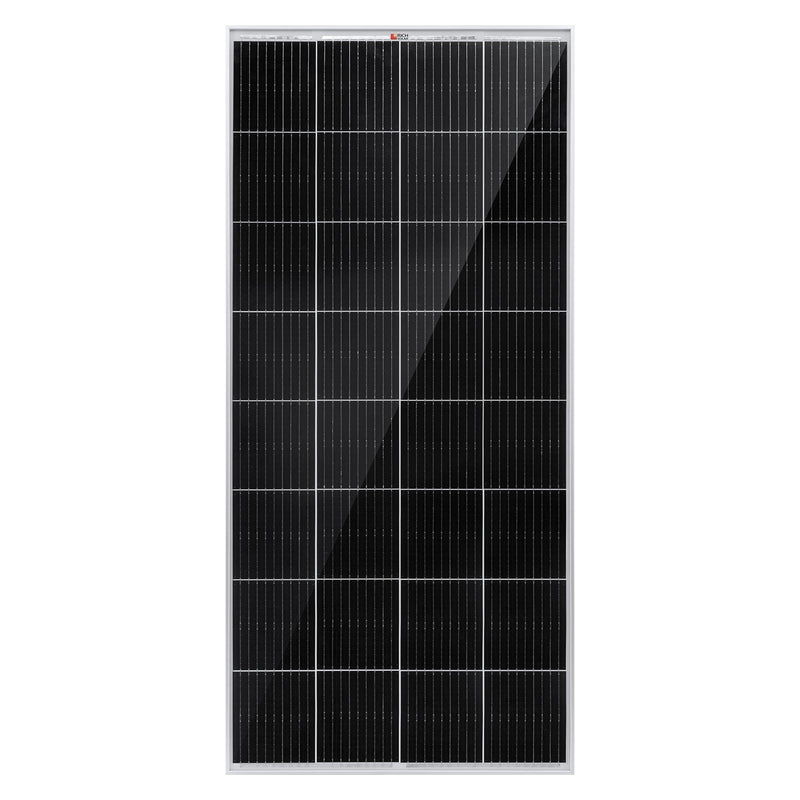

Rich Solar MEGA 200 | 200 Watt Solar Panel
The Rich Solar MEGA 200 is a high-efficiency, 12V 200-watt monocrystalline solar panel built for serious off-grid setups. Whether you're powering an RV, tiny home, cabin, or mobile workstation, this panel delivers dependable energy output—even in shaded or low-light conditions. Its anti-reflective tempered glass and anodized aluminum frame provide rugged protection in harsh environments, while pre-drilled mounting holes and plug-and-play MC4 connectors make setup quick and simple. Built for long-term use, the MEGA 200 is backed by a 25-year power output warranty and a 10-year workmanship guarantee, giving you peace of mind wherever your solar journey takes you.
Key Features
Industry-Standard Output: Generates up to 10.9 amps to charge 12V battery banks; includes 3 ft quick-connect MC4 cables and supports series or parallel configurations.
High-Efficiency Performance: 19.7% module efficiency ensures more power per square inch, with excellent performance in cloudy, shaded, or low-light conditions.
Rugged & Weatherproof: Anti-reflective tempered glass and an anodized aluminum frame protect against wind, snow, hail, and extreme temperatures.

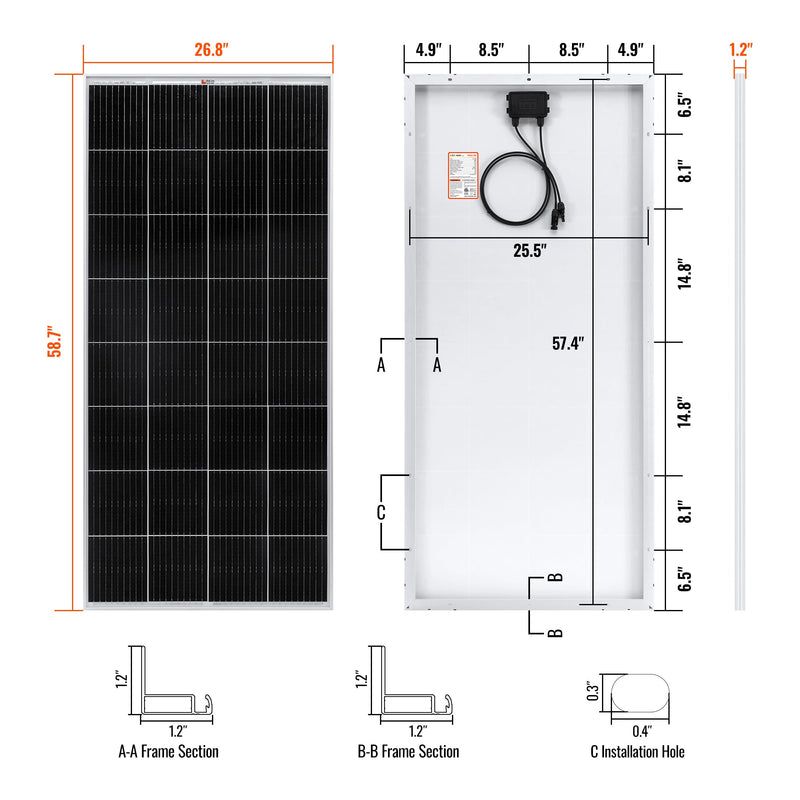

Easy Installation: Pre-drilled with 14 mounting holes for universal compatibility with Z-brackets, pole mounts, ground racks, and tilt mounts.
Long-Term Warranty Coverage: Includes a 25-year power output warranty and 10-year workmanship warranty.
Specifications
Electrical Data (STC): Value
Peak Power (Pmax): 200W
Power Output Tolerance: 0 ~ +5W
Maximum Power Voltage (Vmp): 18.4V
Maximum Power Current (Imp): 10.9A
Open Circuit Voltage (Voc): 21.8V
Short Circuit Current (Isc): 11.6A
Maximum System Voltage: 1500V DC
Max Series Fuse Rating: 20A
Module Efficiency: 19.7%
Operating Conditions STC: 1000W/m², 25°C, AM 1.5
What’s in the Box
1 × 200W 12V Monocrystalline Solar Panel
2 × Panel leads (pair): 3 ft each with MC4 connectors

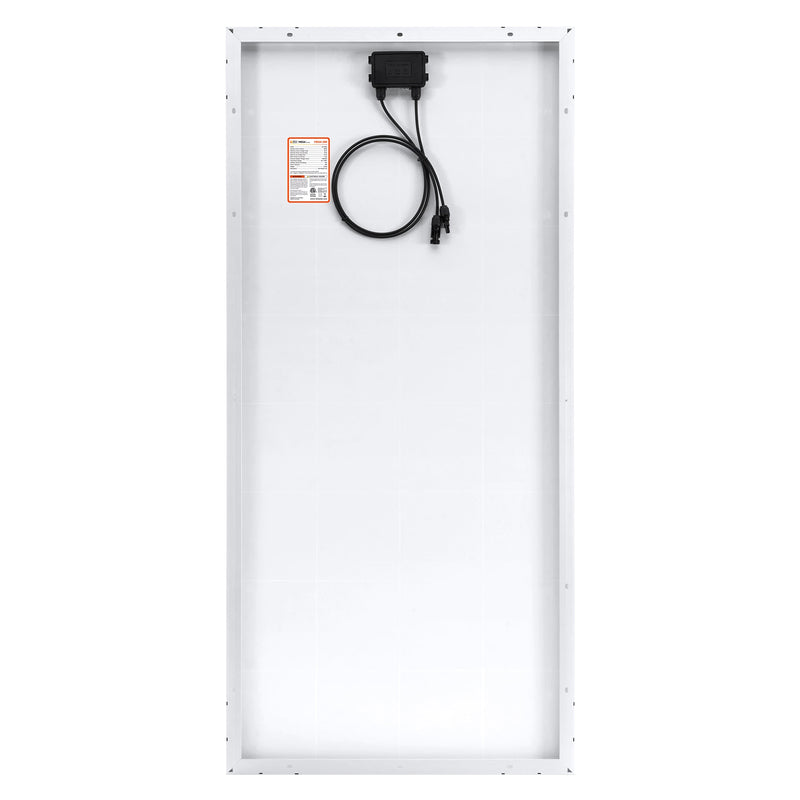

1 × IP67-rated waterproof junction box
1 × Bypass diodes pre-installed in junction box
