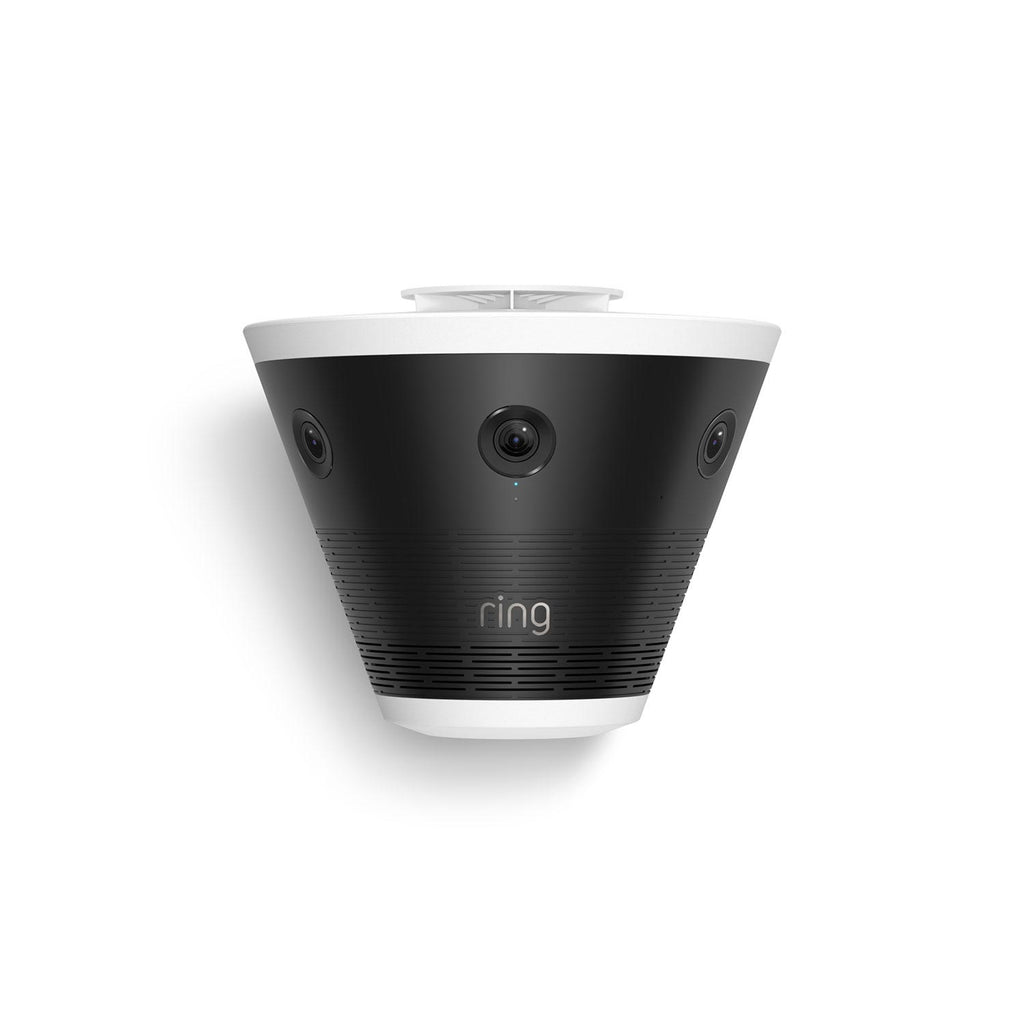

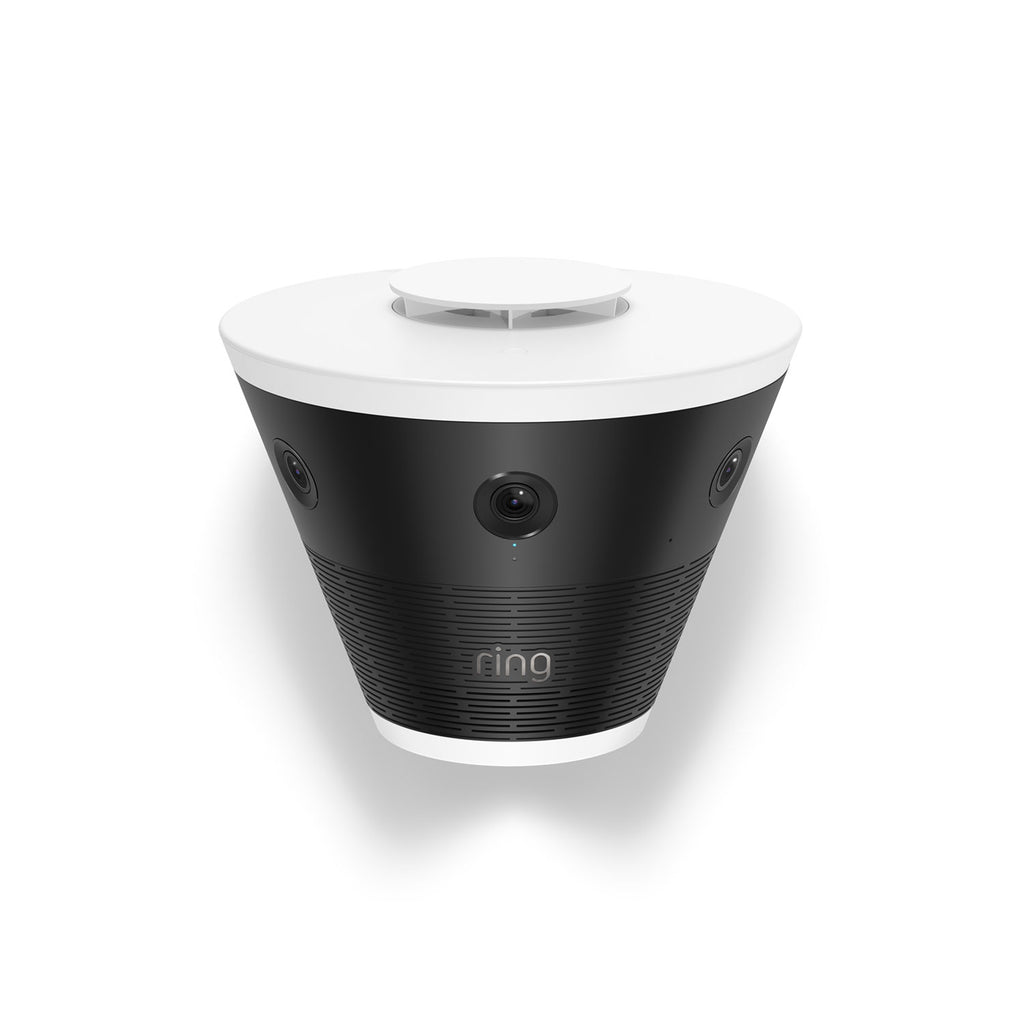

RNG ELITE 270 4K
See around corners and keep two sides of your property in view with the Ring Elite 270 4K. Designed specifically for outside-corner installation, its five Retinal 4K cameras combine their views into a seamless 270° panoramic picture, providing expansive coverage without sacrificing detail. Panorama Control lets you explore the stitched view, while Hyperfocus provides enhanced clarity when zooming in. Night Vision, advanced motion detection, two-way talk, intelligent alerts, and an 85 dB security siren provide comprehensive protection day and night.
Key Features
270° Panoramic View - Monitor two sides of a property simultaneously with a sweeping 270° field of view designed for outside-corner coverage.

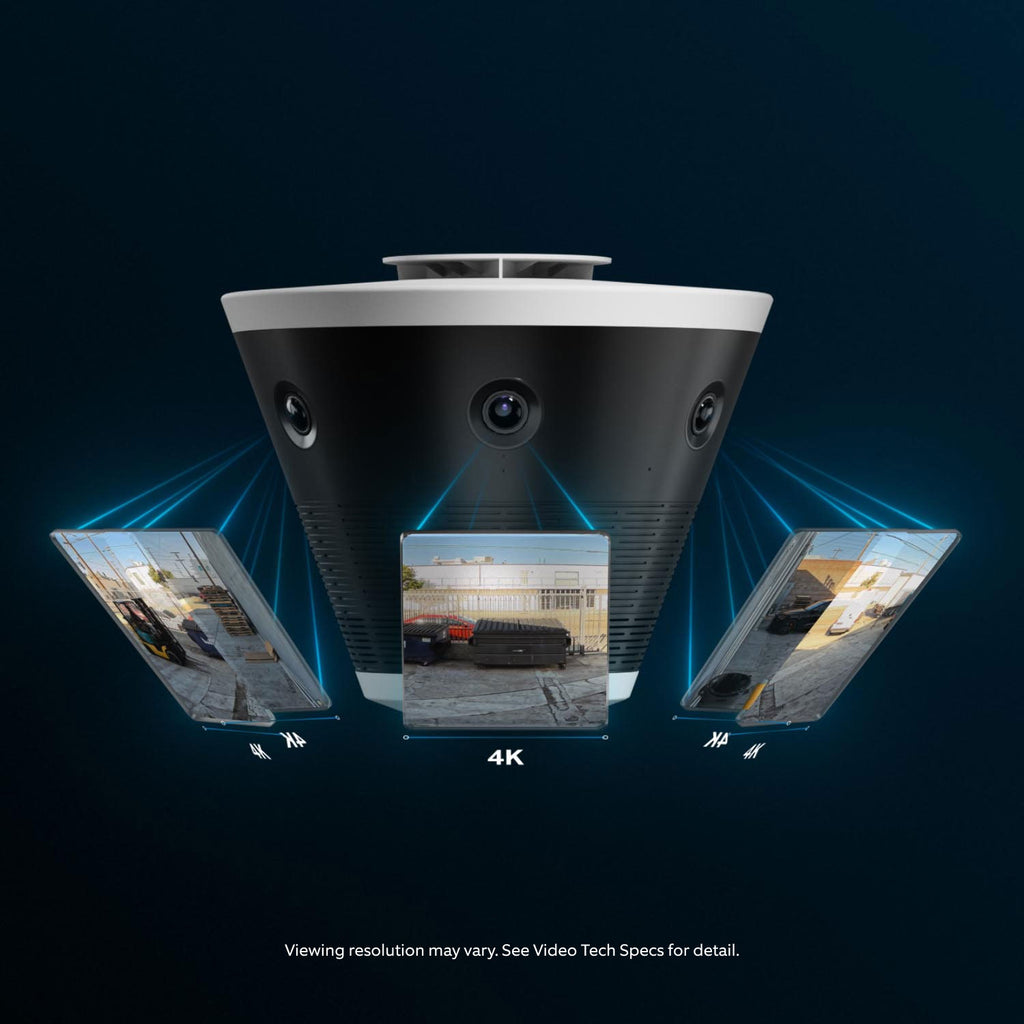

Retinal 4K - Five 4K cameras work together to create a seamless, high-resolution panoramic view.

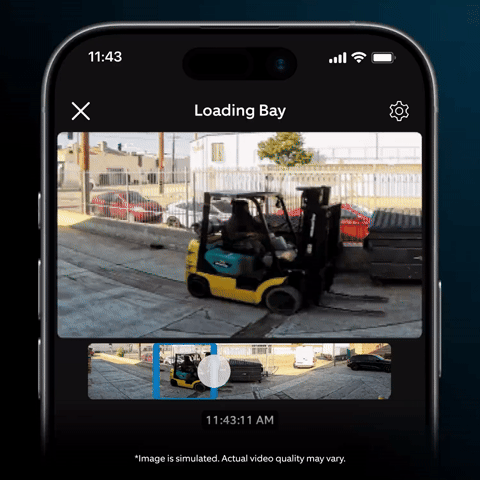

Panorama Control - Glide across the stitched panorama to explore different areas of the scene.
Hyperfocus - Zoom in up to 10x with enhanced clarity and detail.
Night Vision - See true color in low light and automatically switch to crisp black-and-white footage in total darkness.
Smarter Alerts - Get intelligent alerts designed to identify people, vehicles, and activity patterns, with compatible Ring subscription features.
Advanced Motion Detection - Customize Motion Zones to focus detection on the areas that matter most.
Two-Way Talk with Audio+ - Communicate through the camera with advanced noise cancellation.
85 dB Security Siren - Remotely activate the built-in siren when needed.
Flexible Connectivity - Connect using dual-band Wi-Fi 6 or PoE Type 4.
Weather Resistant - Built for outdoor installation and operation in temperatures from -4°F to 122°F (-20°C to 50°C).
Specifications
| Specification |
Details |
| Product Type |
Panoramic Security Camera |
| Camera System |
Five Retinal 4K Cameras |
| Video Resolution |
Live View and local playback up to 4K |
| Downloaded Video |
4K single-camera view; 720p panoramic view |
| Field of View |
270° |
| Panorama |
Seamless stitched panoramic view |
| Zoom |
Up to 10x |
| Night Vision |
Yes |
| Motion Detection |
Advanced Motion Detection with Customizable Motion Zones |
| Audio |
Two-Way Talk with Audio+ and advanced noise cancellation |
| Siren |
Remote-activated 85 dB security siren |
| Connectivity |
Wi-Fi 6 (802.11ax), Dual-Band 2.4 GHz/5 GHz, PoE Type 4 |
| Power |
USB-C Power Adapter or PoE Type 4 |
| Internet Requirement |
Recommended minimum upload speed of 30 Mbps |
| Alexa Compatible |
Yes |
| Mounting |

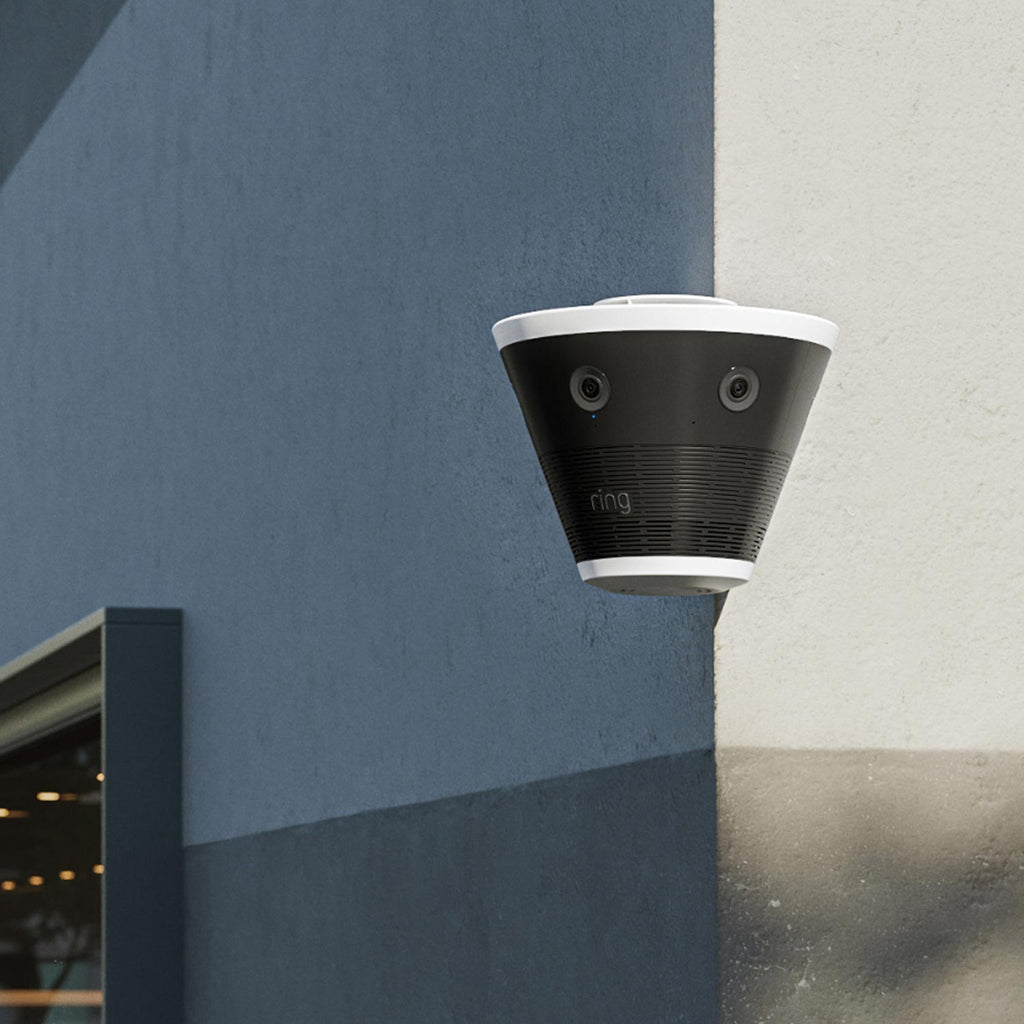

Outside-corner installation; pole mounting supported |
| Dimensions |
10.67" Diameter × 7.44" H |
| Dimensions (Metric) |
271 mm Diameter × 189 mm H |
| Weight |
5.78 lbs (2.62 kg) |
| Color |
White |
| Operating Temperature |
-4°F to 122°F (-20°C to 50°C) |
| Weather Resistance |
Yes |
| Installation Time |
Less than 15 minutes |
| Setup Requirement |
Corner installation; standard power outlet or PoE Type 4 |
| PoE Requirement |
PoE Type 4; IEEE 802.3bt or higher |
| Standard PoE |
Not supported; 15.4W standard PoE adapters are insufficient |
| 24/7 Recording |
Supported with a compatible Ring Protect subscription and the 24/7 Recording add-on |
What's in the Box
1 x Ring Elite 270 4K
1 x Mounting Plate
1 x Extended Mount
1 x Port Cover
1 x Plug-in Adapter
1 x Installation Hardware
1 x Set Up Guide
1 x Warranty and Safety Document
1 x Security Sticker
