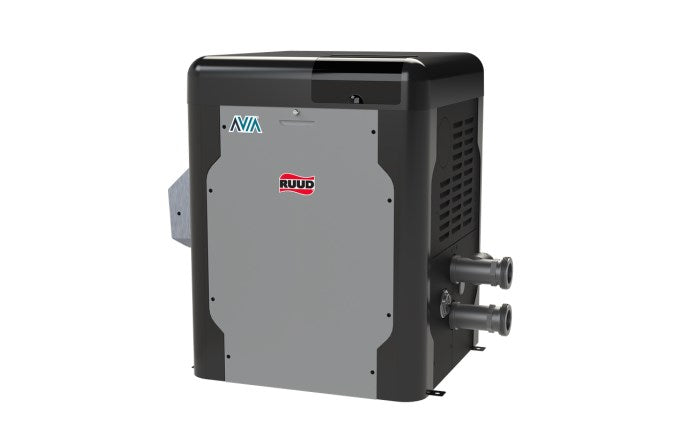

RUUD AVIA 264K BTU Natural Gas Pool & Spa Heater – Low NOx & WiFi Enabled (P-D264A-EN-C)

Managing your pool heater has never been easier or smarter. AVIA™ is built with an innovative Wi-Fi enabled control system that allows you to manage your pool heater and ecosystem through its easy to use touch control interface. No need for a separate control panel to manage your pool heater and ecosystem, AVIA™ does it All.

Specifications

• Flow Rate Min: 40 gal/min
• Frequency Rating (Hz: )60
• Fuel Type: Natural Gas
• Ignition Type: Electronic
• Includes: (2) 2" CPVC Tailpiece, (2) 2" CPVC Ring Nut, (2) O-rings, (1) 120V Blower Adapter, (1) 3-Wire Remote Harness, (1) Auxiliary Harness, (1) Raymote Quick Start Guide
• Min Circuit Ampacity: 1.2 amperage
• Minimum Sell Quantity: 1
• Pallet Quantity: 4
• Product Depth: 23.22 inch
• Product Height: 30.38 inch
• Product Weight: 135 pound
• Product Width: 32.61 inch
• Standards Approvals: CSA Certified, ANSI Certified
• Voltage: 120V, 240V
• BTU Input: 264 British thermal unit
• Elevation Max: 4500 inch
• Flue Diameter: 4 inch
• Gas Connection: 0.75 inch
• Gas Connection FIT: NPT
• Header MaterialPolymer
• Heat Exchanger Material: Copper
• Heater Color: Maroon, Gray
• Housing Finish: Matte
• Indoor Vent Pipe Diameter: 4 inch
• Maximum Circuit Breake: r1.6 amperage
• Thermal Efficiency: 0.84
• Tubing Material: Copper
• Water Connection 1: 2 inch
• Water Connection 2: 2 inch
• ItemShippingDimensions: 53 x 39 x 38 inch

What's in the Box

1 x Ruud Raypak AVIA P-D264A-EN-C Natural Gas Low NOx Pool and Spa Heater 264K BTU
1 x Instruction Manual
