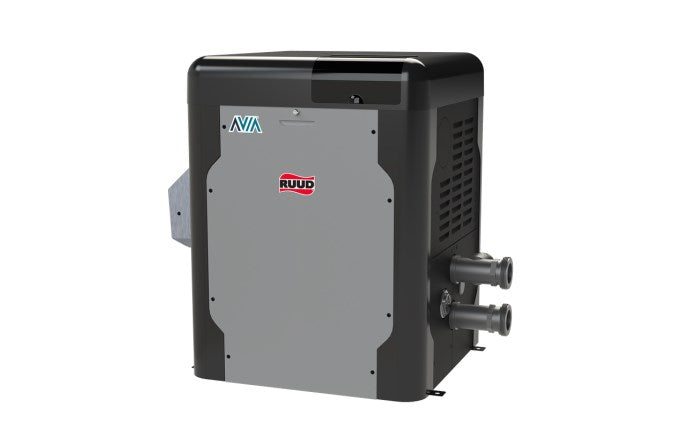

RUUD AVIA 399K BTU Liquid Propane Pool & Spa Heater – Low NOx & WiFi Enabled (P-D404A-EP-C)

Managing your pool heater has never been easier or smarter. AVIA™ is built with an innovative Wi-Fi enabled control system that allows you to manage your pool heater and ecosystem through its easy to use touch control interface. No need for a separate control panel to manage your pool heater and ecosystem, AVIA™ does it All.

Specifications

• Cabinet Depth: 23.24 inch
• Cabinet Height: 30.38 inch
• Cabinet Width: 23.22 inch
• Channel: Pool Equipmenrt
• Color: Maroon, Dark Gray, Light Gray
• Commercial, Residential, or Professional: Residential
• Control Type: Digital
• Each Product Weigh: t203 pound
• Finish: Matte
• Flow Rate Max: 100 gal/min
• Flow Rate Min: 40 gal/min
• Frequency Rating (Hz): 60
• Fuel Type: Propane
• Ignition Type: Electronic
• Includes: (2) 2" CPVC Tailpiece, (2) 2" CPVC Ring Nut, (2) O-rings, (1) 120V Blower Adapter, (1) 3-Wire Remote Harness, (1) Auxiliary Harness, (1) Raymote Quick Start Guide
• Min Circuit Ampacity: 1.2 amperage
• Product Depth: 23.22 inch
• Product Height: 30.38 inch
• Product Weight: 135 pound
• Product Width: 32.61 inch
• Standards Approvals: CSA Certified, ANSI Certified
• Voltage: 120V, 240V
• BTU Input: 399 British thermal unit
• Elevation Max: 4500 foot
• Flue Diameter: 4 inch
• Gas Connection: 0.75 inch
• Gas Connection FIT: NPT
• Header Material: Polymer
• Heat Exchanger Material: Copper
• Heater Color: Maroon, Gray
• Housing Finish: Matte
• Indoor Vent Pipe Diameter: 4 inch
• Maximum Circuit Breaker: 1.6 amperage
• Thermal Efficiency: 0.84
• Tubing Material: Copper
• Water Connection 1: 2 inch
• Water Connection 2: 2 inch

What's in the Box

1 x Ruud Raypak AVIA P-D404A-EP-C Liquid Propane Low NOx Pool and Spa Heater 399K BTU
1 x Instruction Manual
