Shelly 240V Appliance Metering and Control KIT w/3EM metering

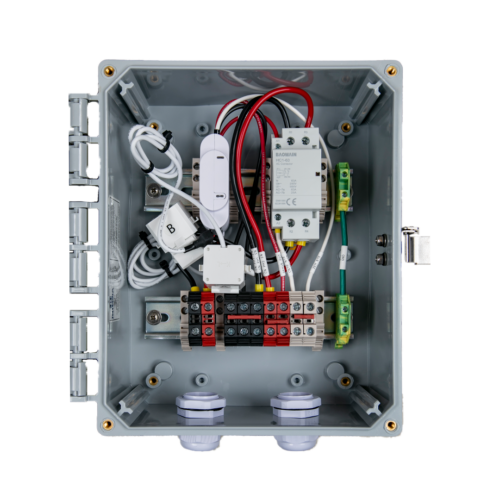

The Shelly 240v Metering and Control Kit is designed to inductively measure energy consumption while giving control through the use of a contactor.

The kit consists of Shelly 3EM, Shelly 63-2PNC, and Shelly IP661084 Enclosure.
Smart 3-phase energy meter with contactor control
•    Three independent measurement channels up to 120 A each
•    Contactor control (any size load it is rated for)
•    Reports power, voltage, current, overall energy, and power factor

Take control of your appliances with the Shelly 240V, which allows you to accurately measure energy consumption and remotely control devices with ease. With the 3EM metering system, you can track energy usage in real-time and make informed decisions to reduce waste and save money. Say goodbye to high energy bills and hello to smarter, more efficient energy management with the Shelly 240V Appliance Metering and Control Kit.

SPECIFICATIONS:

Shelly 3EM

AC Power Supply: 110-230V ±10%, 50/60Hz

Size: 73 mm x 57 mm x 22 mm

Contactor Control: Yes; 10A Max

Channels: 3

Operational Temperature: 0ºC to +40ºC

Power Consumption: < 1 W

Intelligent On/Off: Yes

Local and Remote: Control Yes

Sunrise / Sunset: Yes

Weekly Schedules" Yes

Wireless Wi-Fi Protocol: 802.11 b/g/n

Radio Frequency: 2400 – 2500 MHz

Range: Up to 50 m outdoors and up to 30 m indoors (depending on the building materials)

Shelly 63-2 PNC

Control Voltage: 220V / 230V AC

Maximum Current: 63A

Rated Voltage: (Ui)500VAC / (Ue) 250VAC

Number of Poles: 2

Electrical Life: 100,000 cycles

Mechanical Life: 1,000,000 cycles

Weight: 241g

Shelly IP661084 Enclosure

Size: 10"(H) x 8"(W) x 4"(D)

Certifications UL/cUL NEMA TYPE 4X IP66

VL Rating: 600

Construction: Polycarbonate

Hinged, mounting feet, and stainless-steel locking latch

WHAT’S IN THE BOX:

1 x Shelly 3EM Inductive Energy Meter with Contactor Output

1 x Shelly 63-2PNC Contactor 63 Amp, 2 Phase Normally Closed Contactor 50/60Hz AC

1 x Shelly IP661084 Gray Enclosure w/din IP66 rated 8”x10”x4” encloser with 2 – 8” sections of Din Rail

2 x DK10N Dinkle Din Rail Terminal, Support up to 6 Gauge Wire - White

4 x DK10N-BK Dinkle Din Rail Terminal, Support up to 6 Gauge Wire - Black

3 x DK10N-RD Dinkle Din Rail Terminal, Support up to 6 Gauge Wire Red

2 x DK4N-PE: Dinkle Din Rail Terminal, Support up to 1-Gauge Wire Green

6 x SS2 Spacers Dinkle Din Rail Spacers (3 for each rail)

1 x DSS10N-03P 3-Position Dinkle Terminal Jumper

2 x DSS10N-03P 2-Position Dinkle Terminal Jumper

1 x DSS10N-02P 2-Position Dinkle Terminal Jumper
