Shelly Dual Cover

Shelly Dual Cover

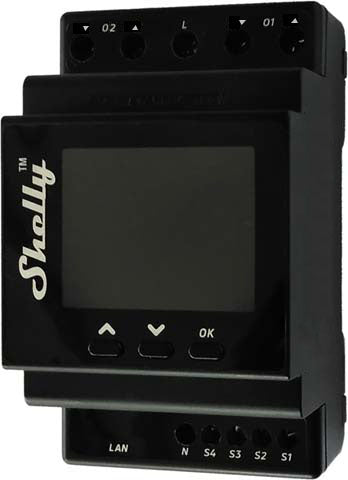

A smart dual-cover controller with power measuring capabilities, the Shelly Pro Dual Cover/Shutter PM is designed to be mounted on a DIN rail. With enhanced LAN connectivity and gen2 firmware flexibility, it offers professional integrators a greater range of end-user solution possibilities. It can be controlled by cloud home automation services or run independently in a local Wi-Fi network.

As long as the Shelly Pro Dual Cover PM is linked to both a Wi-Fi router and the Internet, it may be viewed, managed, and watched remotely from any location where the user has Internet access.

An incorporated web interface on the Shelly Pro Dual Cover PM allows for device control and monitoring in addition to setup adjustments.  Controlling motorized blinds, curtains, and roller shutters, remote control of parking gates, controlling barriers, sliding doors, and curtains is a breeze with the Shelly Cover.

Main Applications
•    Residential
•    MDU (Multi-Dwelling Units - apartments, condominiums, hotels, etc.)
•    Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
•    Industrial (factories, power plants, water processing, refineries, etc.)
•    Government/Municipal
•    University/college

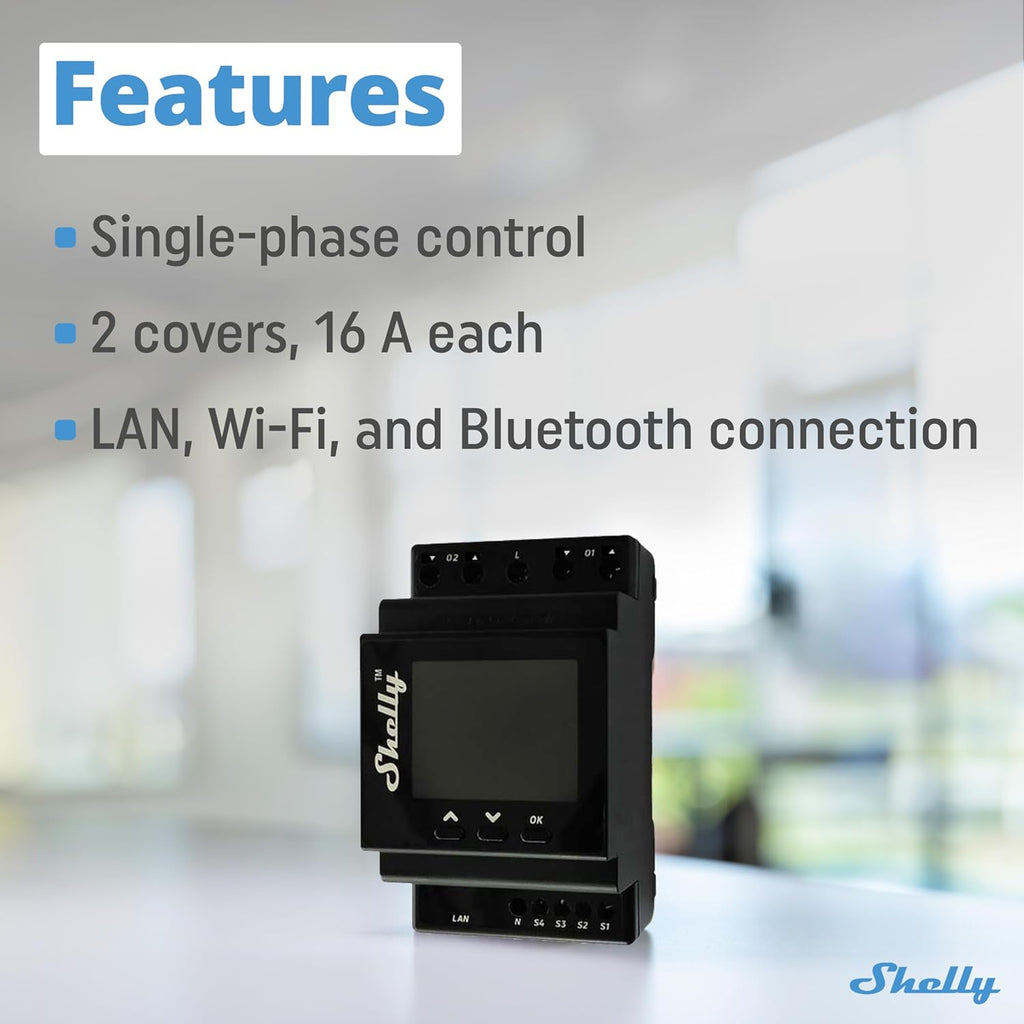

Highlights:

•    LAN, Wi-Fi, and Bluetooth connection
•    2 Covers/shutters, 16 A each
•    Power metering on each cover and free storage data

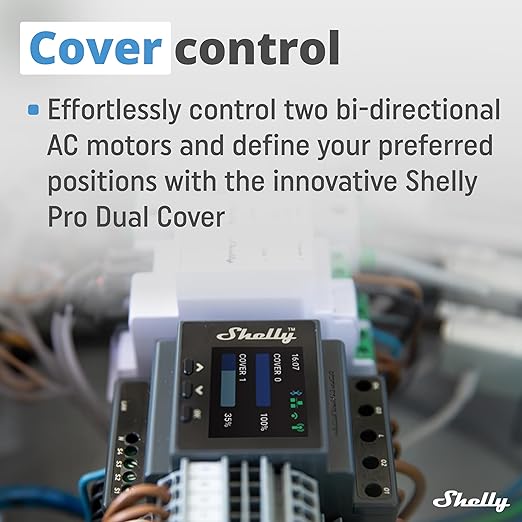

•    Cover (roller) control - roller shutters, awnings, gates, barriers, sliding doors, curtains, garage doors, bi-directional AC motors
•    Single-phase control
•    Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
•    Connectivity via Wi-Fi, Ethernet, Bluetooth
•    Safety features include protection against overheating, overvoltage, overcurrent, and overpower

SPECIFICATIONS:

Size (H x W x D): 96x53x59 ±0.02 mm / 3.78x2.01x2.32 ±0.02 in

Mounting: DIN Rail

Screw Terminals Max Torque: 0.4 Nm / 3.5 lbin (green connectors)

Conductor Cross Section: 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors)

Conductor Stripped Length: 6 to 7 mm / 0.24 to 0.28 in (green connectors)

Shell Material: Plastic

Color: Black

Environmental Ambient Temperature: -20 °C to 40 °C / -5 °F to 105 °F

Humidity: 30 % to 70 % RH

Max. Altitude: 2000 m / 6562 ft

Power Supply Voltage AC: 110 - 240 V

Power Supply Voltage DC: N/A

Power Consumption: < 4 W

Neutral Not Needed: No

Max Switching Voltage AC: 240 V

Max Switching Voltage DC: N/A

Max Switching Current AC: 16 A per channel, 40 A total

Max Switching Current DC: N/A

Voltmeter (AC): Yes

Ammeter (AC): Yes

Internal Temperature Sensor: Yes

RF Band: 2400 - 2495 MHz

Max. RF power: <20 dBm

Wi-Fi Protocol: 802.11 b/g/n

Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)

Bluetooth Protocol: 4.2

Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depending on local conditions)

CPU: ESP32-D0WDQ6

Flash: 8 MB

Schedules: 20

Webhooks (URL Actions): 20 with 5 URLs per hook

Scripting: Yes

MQTT: Yes

CoAP: No

WHAT’S IN THE BOX:

1 x Shelly Cover
