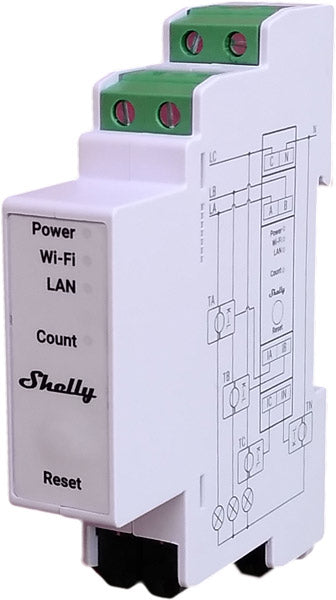

Shelly Pro 3EM-400 (with 3x 400A clamps)
The Shelly Pro 3EM-400 is the ultimate solution for all your energy monitoring needs. With three 400A clamps included, this device allows you to accurately measure the energy consumption of up to three separate circuits simultaneously.
With improved LAN connectivity and all the gen2 firmware flexibility, Shelly Pro 3EM-400 gives expert integrators more choices for end-user solutions. It can be used independently in a LAN or WiFi network, or it can be controlled by MQTT, HTTP, and WebSocket to access cloud home automation services. TLS is supported on all inbound connections.
In real-time, the device provides information on cumulative energy, instantaneous voltage, current, active power, and perceived power per phase. It keeps information in non-volatile memory that can be recovered every minute for up to 60 days.
If the Pro 3EM-400’s connection to an SNTP server is lost, its real-time clock will maintain the accurate time. As long as both the device and the automation system are connected to the same network infrastructure, the user can remotely access, configure, and monitor the Shelly Pro 3EM-400. The gadget contains an embedded web interface that may be used to change its settings, monitor, and operate the device. There is no internal relay in the device. A Shelly Pro Addon that is fastened to the Shelly Pro 3EM-400 allows for contactor control.
Features:
• 4 Quadrant measurement
• DIN rail mounting
• Multiple connection types
• Current transformer connection
• Phase sequence error detection (option)
• Channel-to-channel calibration- At least 5000 W is required for each channel
• No load threshold
• Optical pulse indication of energy usage
• Real-time clock
• Data logs
• Accuracy Class B (IEC 62053-21)
• Photovoltaic ready
Main Applications:
• Residential
• MDU (Multi-Dwelling Units - apartments, condominiums, hotels, etc.)
• Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
• Industrial (factories, power plants, water processing, refineries, etc.)
• Agricultural (farms, barns, silos, etc.)
• Government/municipal
• University/college
The Shelly Pro 3EM-400 is easy to install and integrates seamlessly with your smart home system. Take control of your energy usage with the Shelly Pro 3EM-400 and start saving money today.
SPECIFICATIONS:
Size (H x W x D): 94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in
Weight: 62 ±1 g / 2.19 ±0.05 oz
Mounting: DIN Rail
Screw Terminals Max Torque: 0.4 Nm / 4.43 lbin
Conductor Cross Section: 0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded, and bootlace lugs)
Conductor Stripped Length: 6 to 7 mm / 0.24 to 0.28
Shell Material: Plastic
Color: White
Environmental Ambient Temperature: -20 °C to 40 °C / -5 °F to 105 °F
Humidity: 30 % to 70 % RH
Max. Altitude: 2000 m / 6562 ft
Power Supply Voltage AC: 110 - 240 V, 50/60 Hz
Power Supply Voltage DC: N/A
Power Consumption: < 3 W
Internal-temperature Sensor: Yes
Voltmeters (RMS for each phase): 100 - 260 V
Voltmeters accuracy: ±1 %
Ammeters (RMS via CT for each phase and the Neutral): 0 - 400 A
Compatible CT: CT-400A
Ammeter’s Accuracy: ±1 % (5 - 400 A), ±2 % (0 - 5 A)
Power and Energy Meters: Active and apparent power, Active and apparent energy,
Power factor, Fundamental active and fundamental reactive energy
Channel-to-Channel Calibration Minimum load: 5000 W per Channel
No Load Threshold:30 VA per Channel
Measurement Data Storage: At Least 60 days of 1 min Data Resolution
Data export: CSV for PQ recorded values, JSON format export through RPC
RF Band: 2400 - 2495 MHz
Max. RF power: <20 dBm
Wi-Fi Protocol: 802.11 b/g/n
Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depending on local conditions)
Bluetooth Protocol: 4.2
Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depending on local conditions)
CPU: ESP32-D0WDQ6
Flash: 16 MB
Webhooks (URL Actions): 20 with 5 URLs per hook
Scripting: Yes
MQTT: Yes
CoAP: No
WHAT’S IN THE BOX:

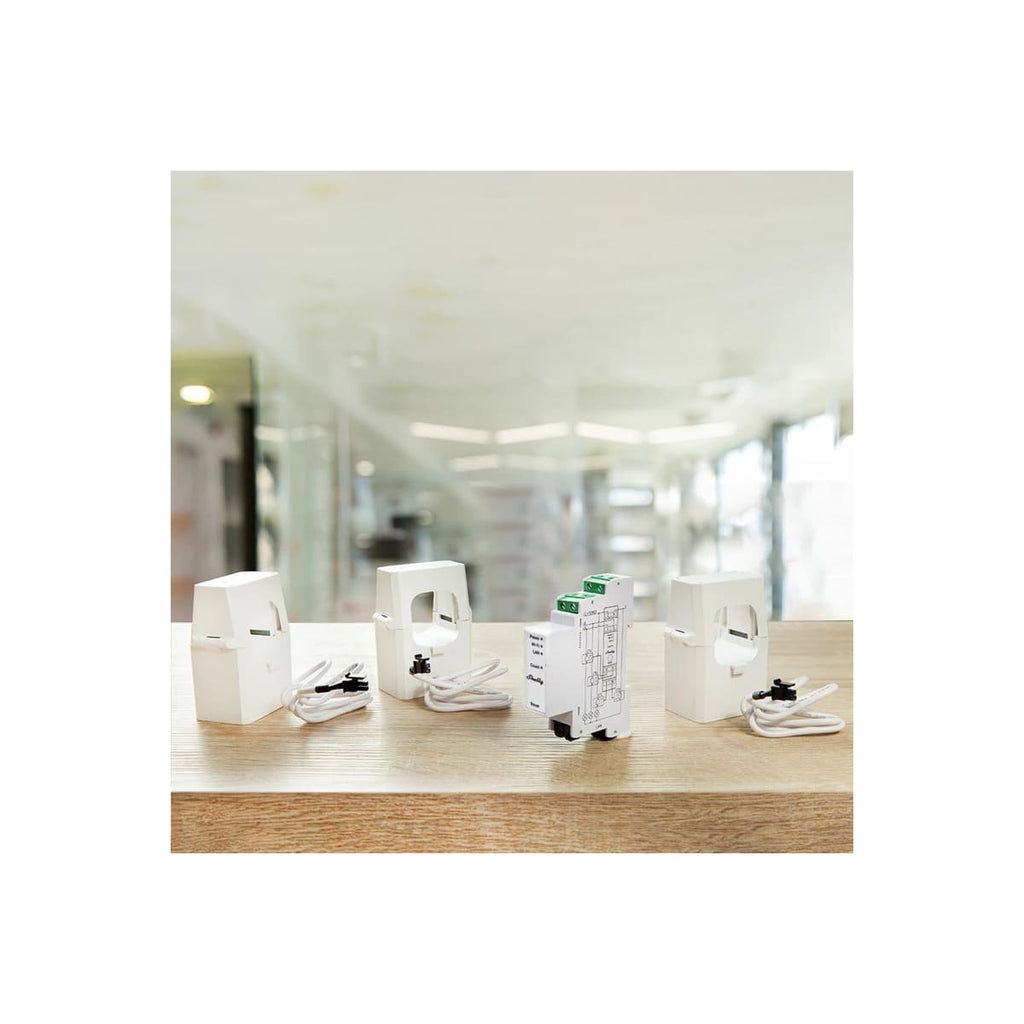

1 x Shelly Pro 3EM-400 Three-phase Energy Meter
3x 400A Clamps
