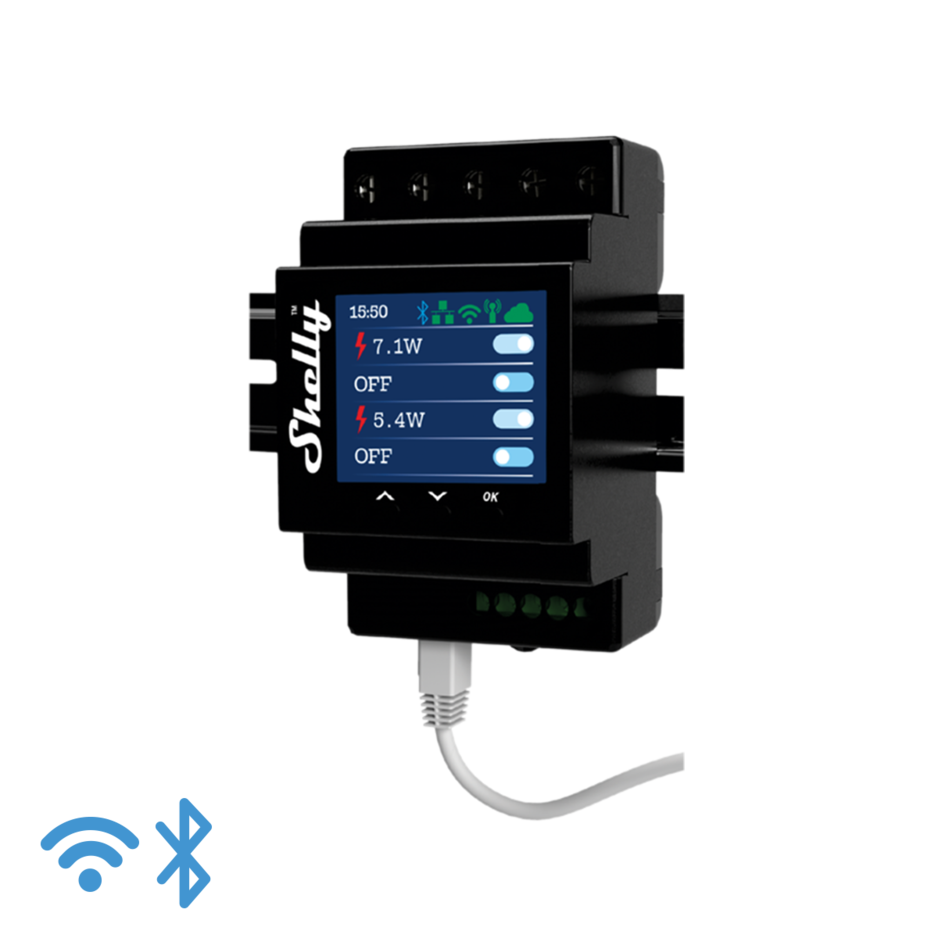

Shelly Pro 4 PM

The best solution for new home buildings and business facilities, Shelly Pro 4PM is a one-phase, 4-channel relay, supporting up to 16A per channel with a total device capacity of 40A.

Equipped with four integrated precise power meters that allow you to control and monitor the consumption for each channel separately, and LAN, Wi-Fi, and Bluetooth connectivity, the Shelly Pro 4M allows for a more secure and reliable connection.
Shelly Pro 4PM provides precise monitoring of power consumption. You may use it to operate a variety of appliances and gadgets. enhanced security features and support for TLS 1.2, enabling a wide range of safe local and cloud-connected integrations. Mjs scripting is fully supported by Shelly Pro 4PM, enabling you to develop additional features and functionality.

It's a 4-channel WiFi (2.4GHz) relay that has a power meter (per channel). It also has support for conventional switches, a color display, and 100Mbit Ethernet. Up to 16A can be controlled by each channel, with a total of 40A possible across all channels on the device. That should be sufficient to maintain a functional heating system.

With Shelly Pro 4PM, you can measure and regulate four distinct light circuits and have complete control over communal areas like hallways, garages, and storage rooms—all of which often have lights on all the time. With the scheduling and scripting features that Shelly Pro 4PM offers, you can now make them more energy-efficient.

Shelly Pro 4PM allows you to easily monitor your consumption and keep track of the amount of energy generated by your wind turbines and solar panels. Use Shelly 3EM's real-time energy generation and consumption data by connecting Shelly Pro 4PM to your appliances. It can turn off non-essential connected appliances in your house automatically when you need to save energy.

Shelly Pro 4 PM pairs quickly and shows up in the Shelly Cloud app as 4 devices. It allows you to see all the metrics at a glance without cluttering the interface. Quick Cards offers access to a toggle, name cloud status, and the current power draw. Similar information is available on Shelly’s Pro 4 PM display.

Main Applications
•    Residential
•    MDU (Multi-Dwelling Units - apartments, condominiums, hotels, etc.)
•    Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
•    Industrial (factories, power plants, water processing, refineries, etc.)
•    Government/Municipal
•    University/college

The Shelly Pro 4 PM is the ultimate smart home companion for managing your electrical devices with precision and ease.

Highlights:
•    LAN, Wi-Fi, and Bluetooth connection
•    2 Covers/shutters, 16 A each
•    Power metering on each cover and free storage data
•    Cover (roller) control - roller shutters, awnings, gates, barriers, sliding doors, curtains, garage doors, bi-directional AC motors
•    Single-phase control
•    Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
•    Connectivity via Wi-Fi, Ethernet, Bluetooth
•    Safety features include protection against overheating, overvoltage, overcurrent, and overpower

SPECIFICATIONS:

Power Supply AC: 110-230V ±10%, 50/60Hz

Maximum Load: Up to 16A per channel with up to 40A for the whole device

Power Supply DC: No

Channels: 4 Channel

Roller Shutter Mode: No

Device Temperature Protection: Yes

Overload Protection: Yes

Power Measurement: Yes

HTTP/HTTPS Webhooks: Yes

Custom Scripts (mJs): Yes

Operational Temperature: -20°C to + 40 °C

Device Power Consumption: < 4 W

Intelligent On/Off: Yes

Local and Remote Control: Yes

Sunrise/Sunset: Yes

Weekly Schedule: Yes

UL Listed Option: No

Wireless: Yes

Wi-Fi Protocol: 802.11 b/g/n

Wi-Fi Radio Frequency: 412 - 2484 MHz

Wi-Fi Radio Signal Power: 1mW

Wi-Fi Range: up to 50 m outdoors and up to 30 m indoors (depending on the building materials)

Bluetooth: Yes

Ethernet: Yes

Size: 90 x 52 x 57mm

WHAT’S IN THE BOX:

1 x Shelly Pro 4PM
