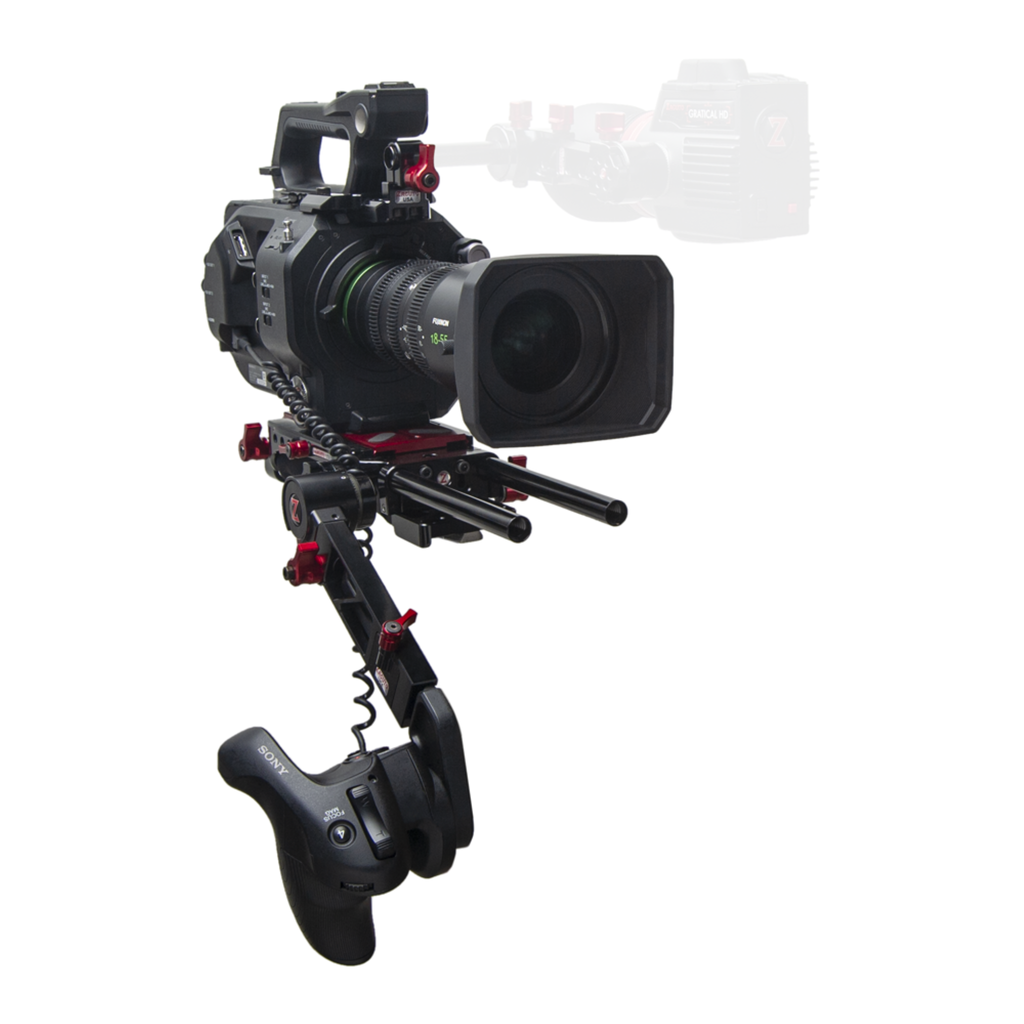

Sony FX9 Recoil Pro V2 is a shoulder rig designed specifically for the Sony FX9 camera. This is a Next Generation Recoil rig designed for optimal balance and comfort when shoulder mounted or on a tripod. With lenses and cameras being similar weights, the balance point is where the lens meets the camera body. In a shoulder mount rig, the balance point needs to be directly over your shoulder which puts the camera behind you. The Recoil rig adjusts for that balance point and relocates focus, monitoring and camera controls forward, creating a lighter, shorter and properly balanced rig.

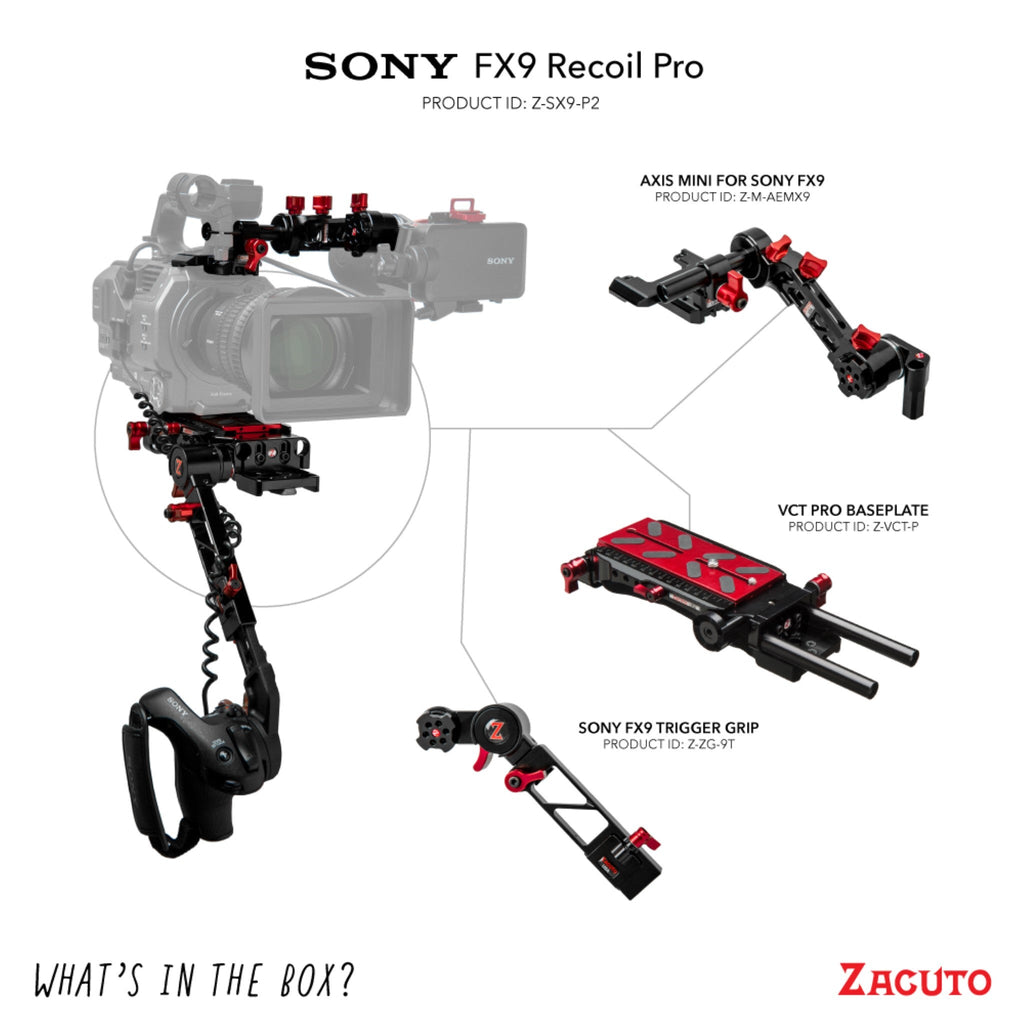

Sony FX9 Recoil Pro V2 shoulder-mounted rig includes our VCT Pro baseplate, the FX9 Trigger Grip to relocate the Sony FX9 handgrip, a LANC extension cable, and our Axis Mini for Sony FX9.
Includes:
VCT Pro – this baseplate has a sliding top plate for quickly removing the camera from the rig or fast lens changes, a built-in, curved shoulder pad, a v-wedge tripod connector (with ¼” 20 and 3/8" 16 screw option). It has removable and extendable 6.5” iris rods and rows of ¼” 20 screw holes along the sides for accessories. It has quick release 15mm rod parts in the rear. The recessed rod mount offers maximum accessory capable space under your camera lens.
FX9 Trigger Grip - the most adjustable handgrip for cameras with a rosette based relocatable grip. It allows for single-handed 360° rotation with the simple press of a trigger. Flip it down for a low, rock-solid handgrip. Raise it up for more of an Aaton style position. Or quickly flip it all the way up to set your camera flat on the ground or for storing in a case. The Rosette ZGrip Trigger attaches to your rig or camera via an M6 Rosette - the industry standard. At the end of the grip is another M6 rosette for the grip from your servo zoom lens or camera.
Axis Mini for Sony FX9 - Attaches to the included Sony Top Plate to mount either a rosette mounted EVF like the Gratical HD or the Sony monitor itself. Adjustable positioning for shoulder mounted shooting or tripod shooting.
SPECIAL NOTES:
This rig requires the addition of a Zacuto EVF or using the Sony FX9 LCD with Z-Finder.
Zacuto products are proudly made in the USA and non-electronic products have a lifetime warranty.
