Sony ILX-LR1 61 MP Camera with Sigma 24 mm f/3.5 Mapping Lens
Sony ILX-LR1 Mapping Payload is an enterprise-grade aerial imaging system designed for precision mapping and inspection missions. Integrated with a 61 MP full-frame sensor and a lightweight Sigma 24 mm f/3.5 lens, this payload captures ultra-high-resolution imagery optimized for photogrammetry and data modeling. Designed and assembled in the USA with NDAA-compliant components, it integrates seamlessly with the Freefly Astro and Astro Max through the Smart Dovetail interface for rapid deployment.
Professional imaging for aerial survey and inspection
The ILX-LR1's 35.7 × 23.9 mm full-frame Exmor R sensor produces 9,504 × 6,336 pixel images with superior dynamic range and minimal distortion-ideal for creating accurate orthomosaics and 3D models. With a total system weight of 970 grams (including gimbal and lens), the payload maintains long flight endurance on Astro platforms, typically 28-34 minutes. The Sigma 24 mm f/3.5 lens ensures uniform edge-to-edge sharpness, making it well-suited for mapping and infrastructure surveys.

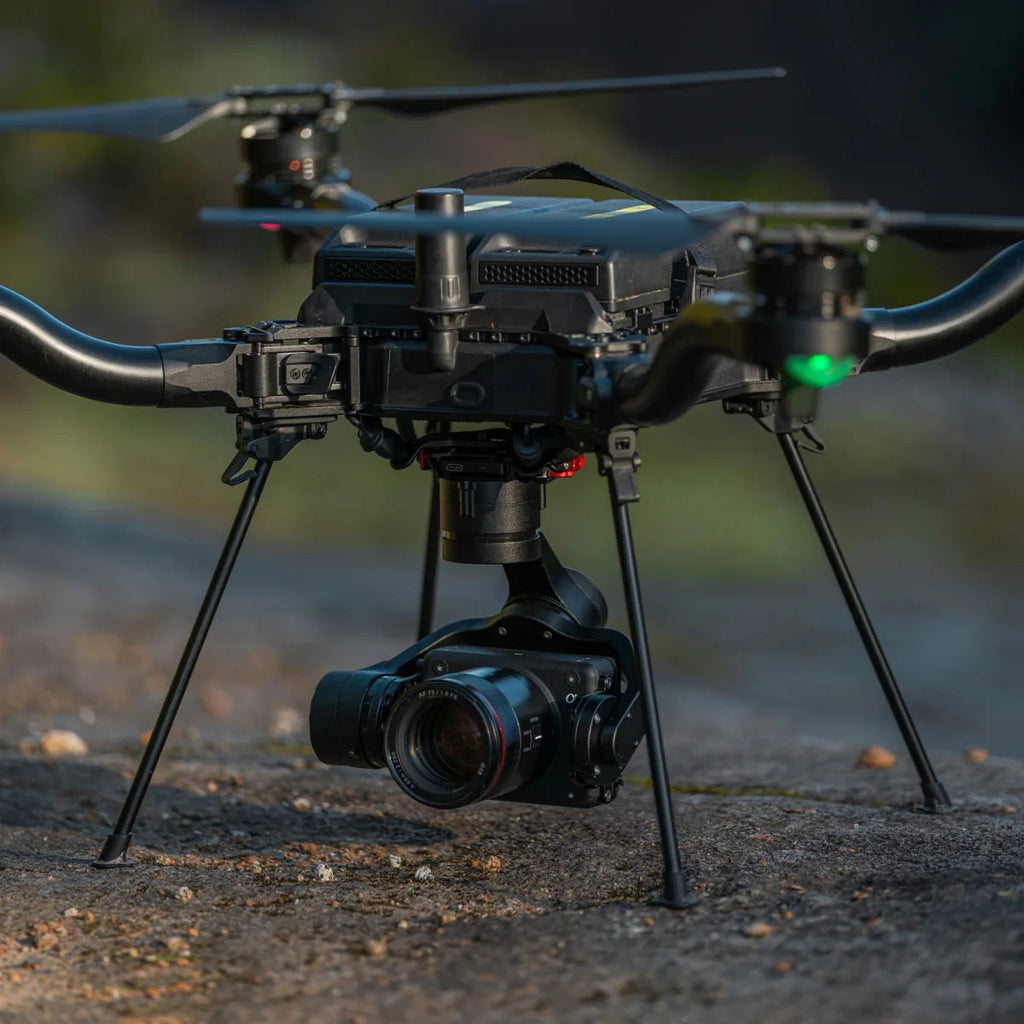

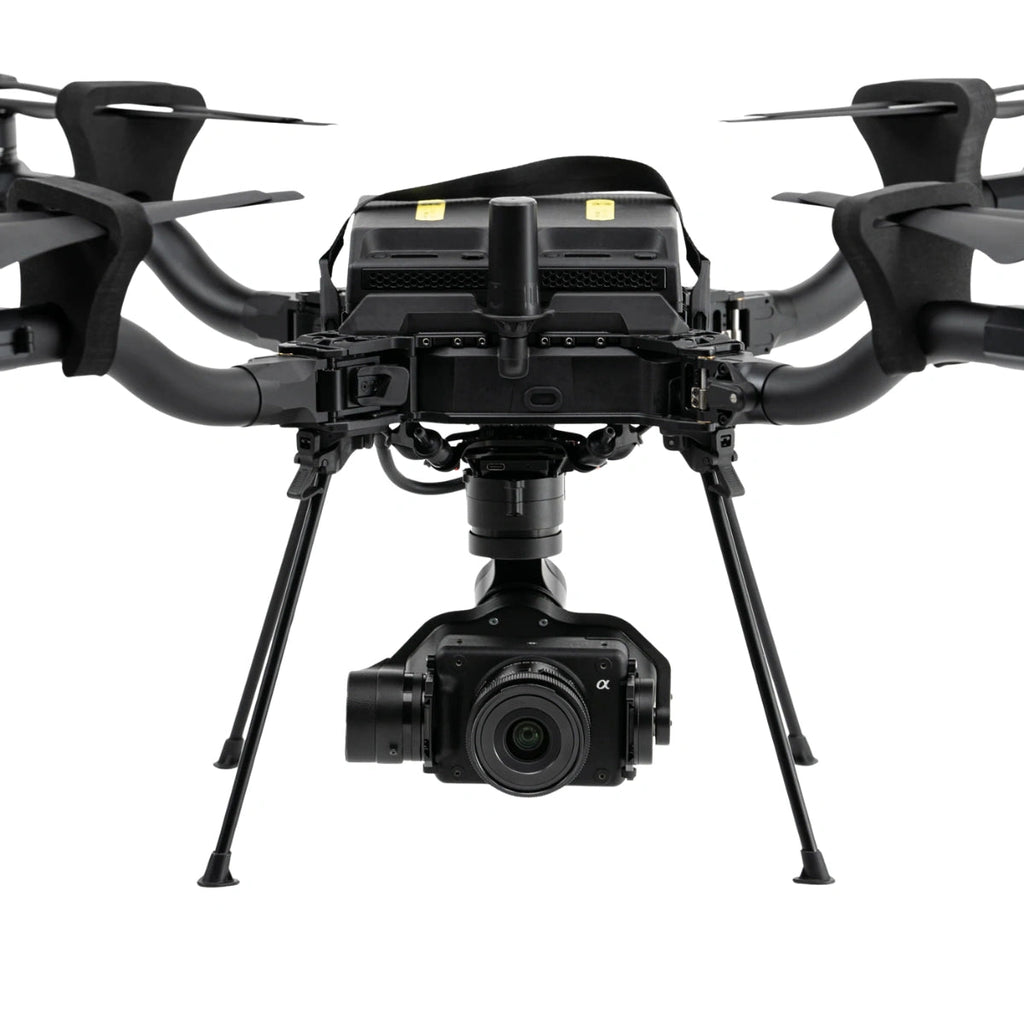

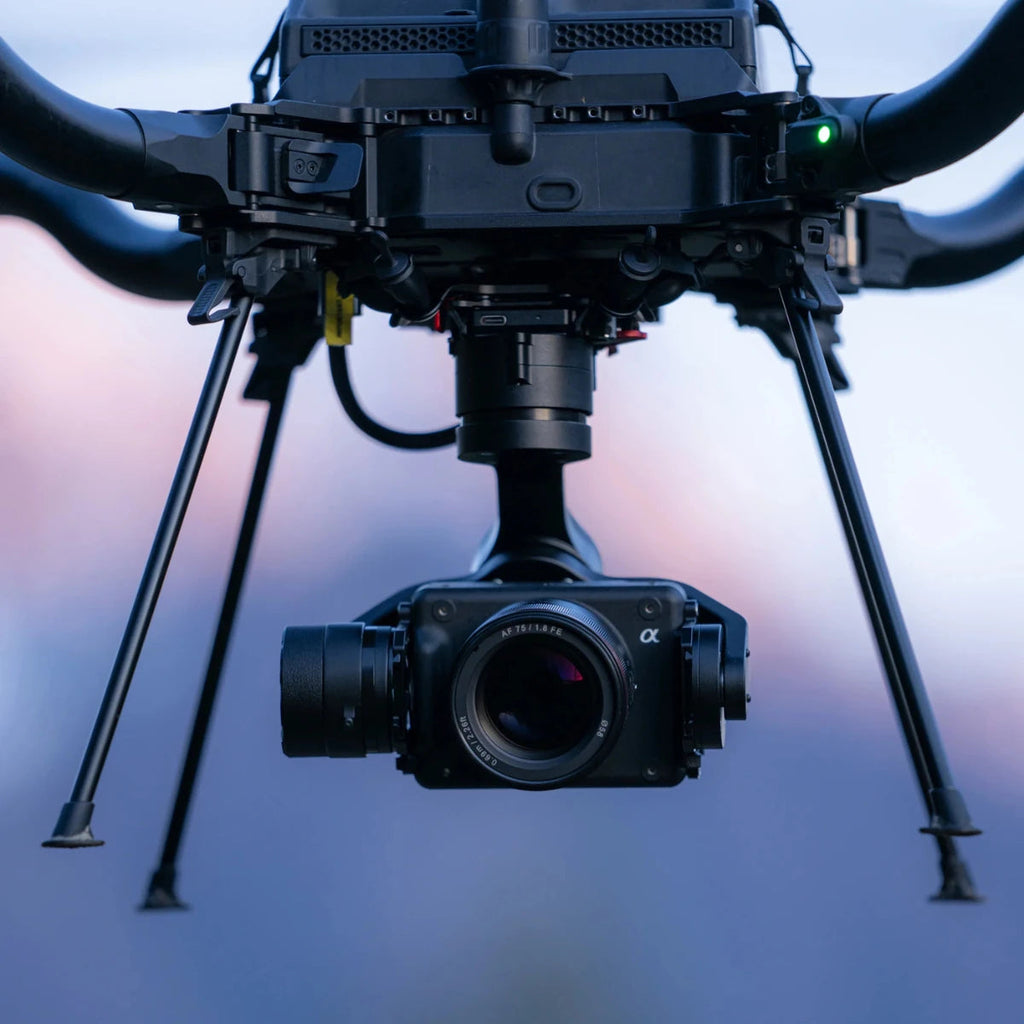

Optimized integration with Freefly Astro ecosystem
The LR1 Payload connects directly to the Astro series using the Smart Dovetail mount for power, command, and data link integration. Operators can trigger captures from the Pilot Pro controller and monitor telemetry in real time. The kit ships in a compact hard case with foam cutouts for additional lenses and accessories, providing a ready-to-deploy mapping solution for industrial and environmental applications.
Key Features and Benefits
- 61 MP full-frame sensor: Captures detailed imagery for mapping and modeling
- Sigma 24 mm f/3.5 lens: Delivers consistent, distortion-free sharpness across frame
- 970 g total payload weight: Maintains optimal Astro flight performance
- Smart Dovetail mount: Enables plug-and-play payload integration
- Designed and assembled in the USA: NDAA-compliant construction
- 9,504 × 6,336 resolution: Provides ultra-high clarity for orthophotos
- Compatible with Astro and Astro Max drones: Seamless system integration
- Compact protective case: Holds payload and extra lenses securely
- Supported by Freefly software tools: Simplifies workflow and data capture
Specifications:
- Ships in rugged travel case with room for 2 additional lenses
- SKB 3L-1209-4B-E with custom insert
- Exterior: 13.125" x 11.375" x 5.5" / 33.34 x 28.89 x 13.97 cm

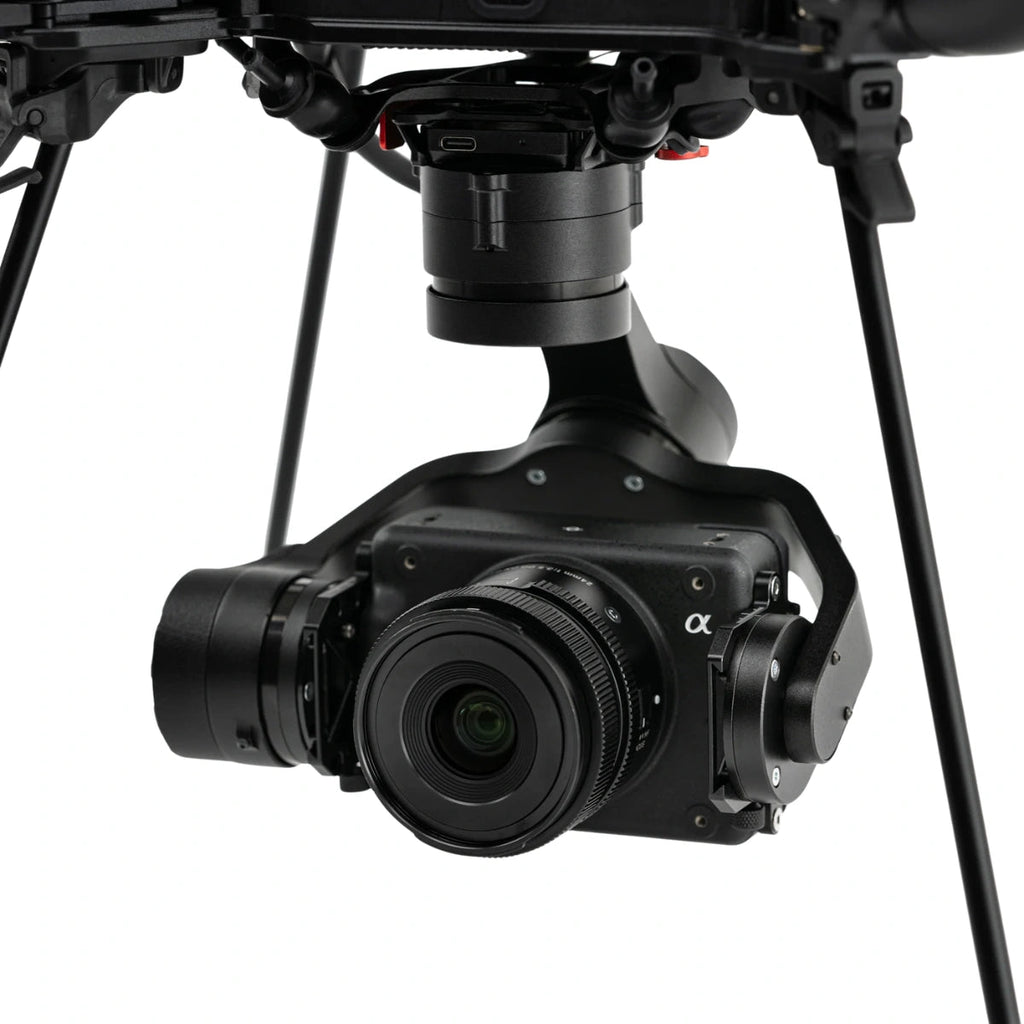

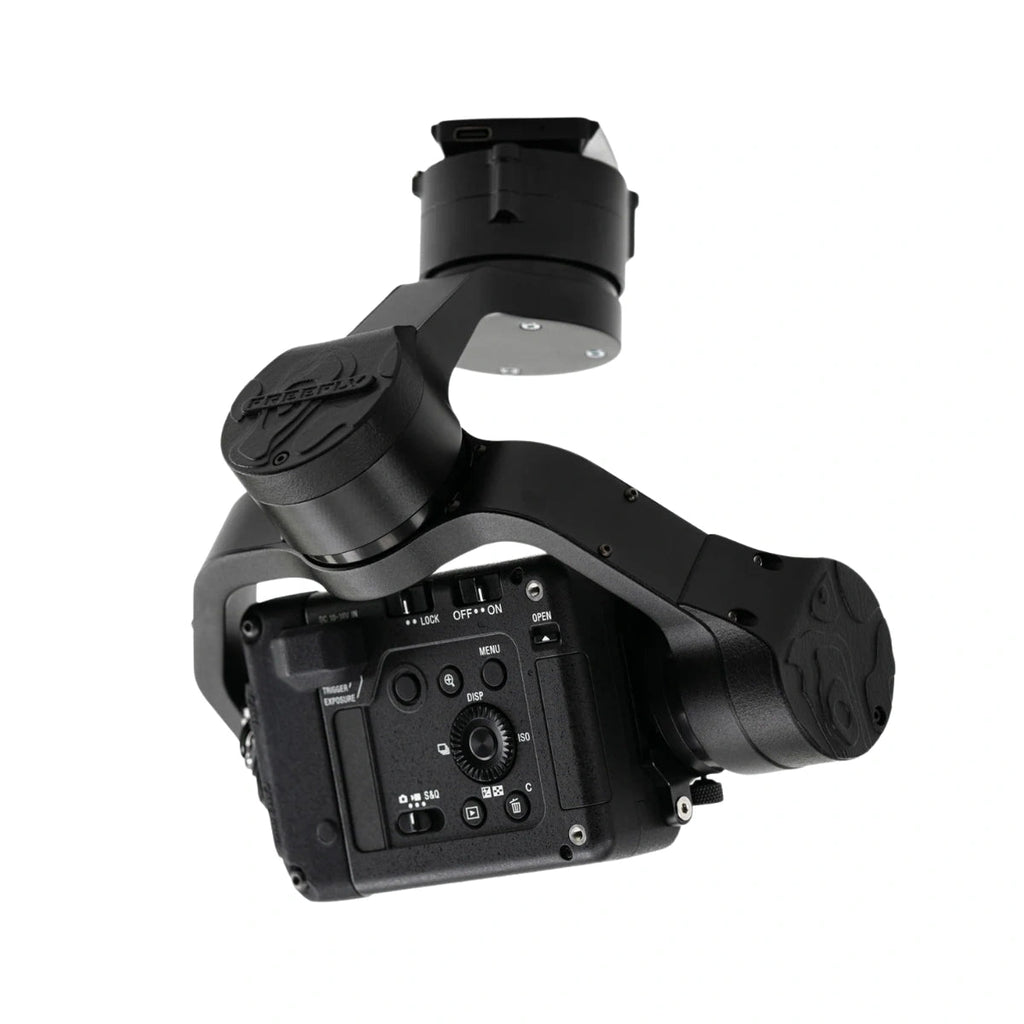

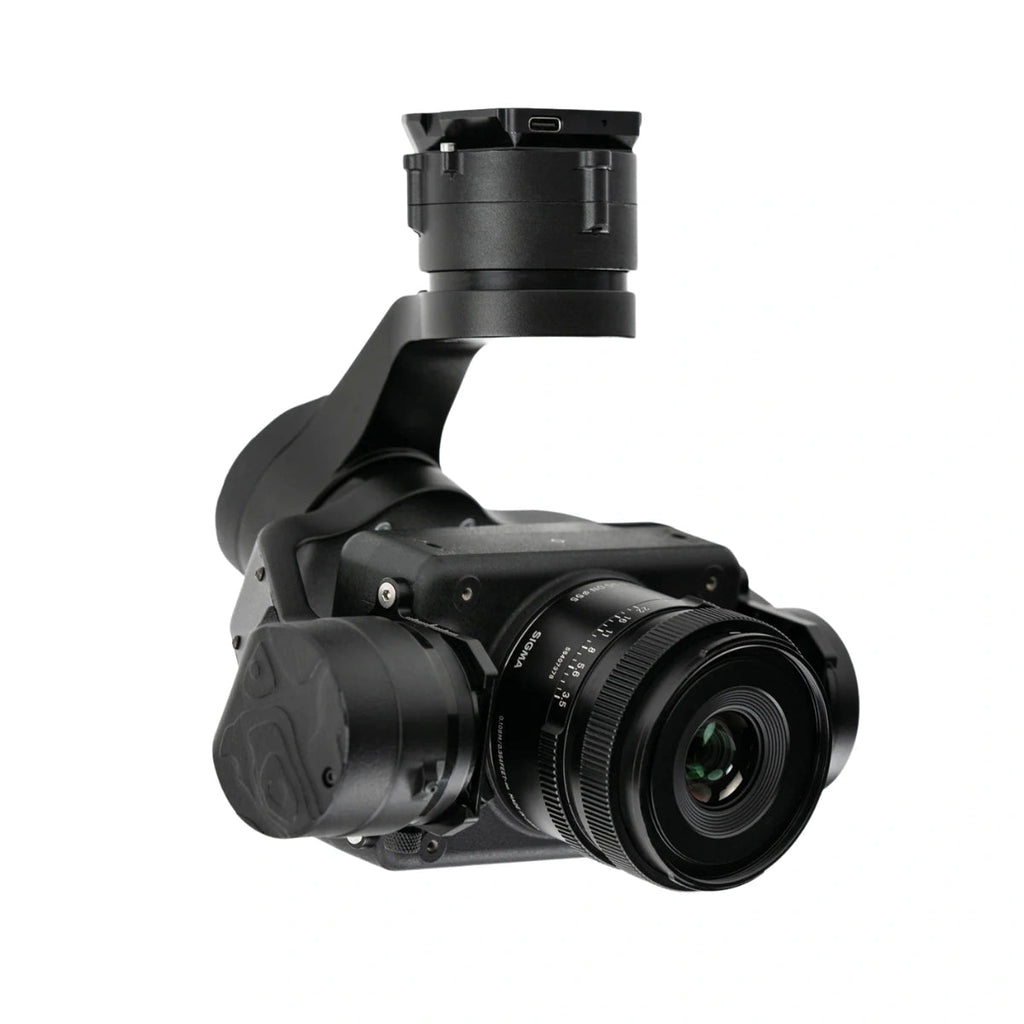

- Freefly Gimbal with Smart Dovetail Quick-Release
- Sony ILX-LR1 camera body installed in gimbal (61 megapixel resolution)
- Sigma 24mm f3.5 mapping lens (p/n 404965)
- Lightweight at only 970 g / 34.2 oz
- Camera and gimbal control from pilot controller (not included with payload, Pilot Pro controller ships with every new Astro)
- Typical Astro flights with Mapping Payload are 28–34 minutes (depending on speed / conditions / lens), per pair of batteries
- Three expansion ports for additional cameras, sensors, or power
- Payload is designed and assembled in USA. NDAA and DIU Blue approved
What's in the Box:
1 x Sony ILX-LR1 camera (pre-installed in gimbal)
1 x Sigma 24mm f3.5 mapping lens (p/n 404965)
1 x Travel case
1 x Freefly mapping gimbal
1 x USB-C thumb drive
