The world's first non-rudder vertical takoff and landing fixed-wing multi-spectral UAV system Swan-M1

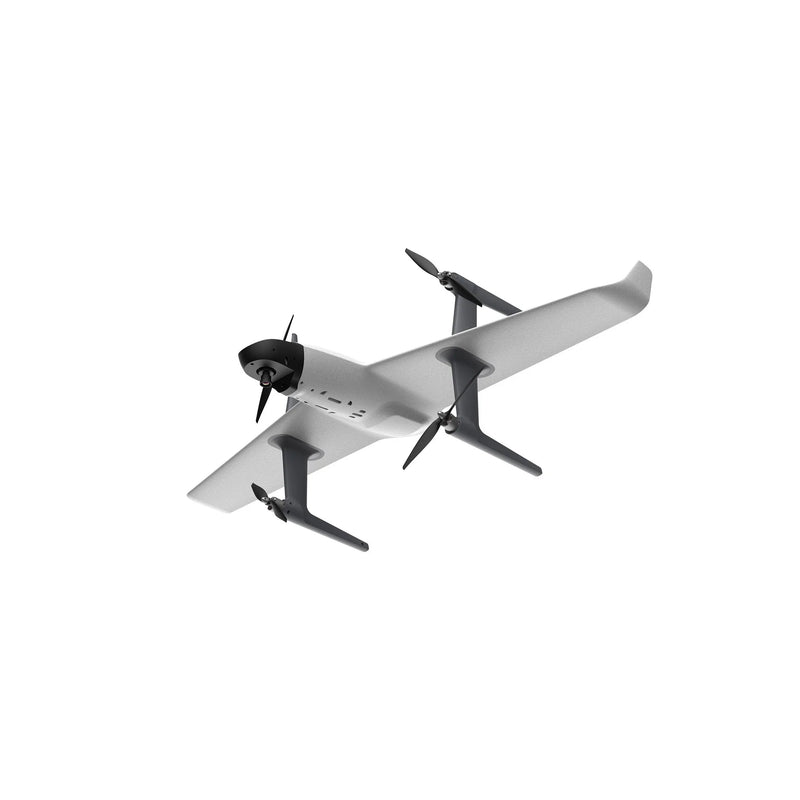

Swan K1 M1 Multispectral Drone System VTOL is the world's first non-rudder vertical takeoff and landing fixed-wing multi-spectral UAV system with 4 pieces of 1.3 million pixels multi-spectral channels and 1 piece of 8 million pixels of RGB channel.

SWAN-M1 Multi-spectral UAV has the characteristics of high data accuracy, wide flying coverage area, strong environmental adaptability, various application scenarios, easy to command and operate.

A Fixed-Wing UAV With Many Advantages

• High data accuracy
• Wide flying coverage area
• Strong environmental adaptability
• Multiple application scenarios
• Easy to command
• Modular design, easy to assemble
• 2-9 square kilometers per flight
• Centimeter accuracy
• 1 hour flight time

Case display

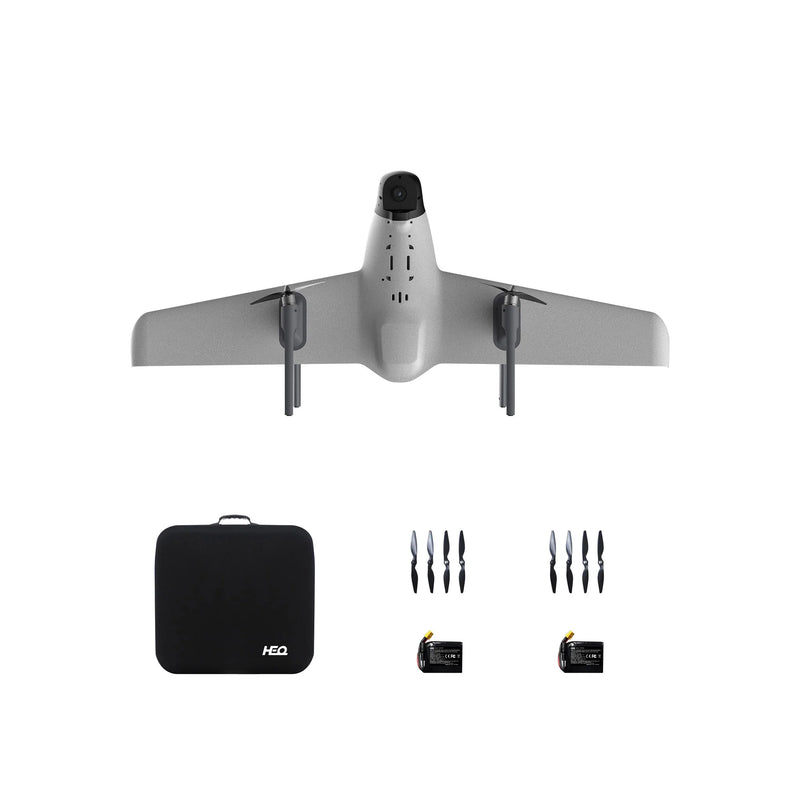

What's in the box?

1x Swan-K1 M1 aircraft
2x set of quick detachable nylon propellers
1x Radio controller(Mk15)
1x Carry case
2x 5500mAh 15.2V Lipo Battery
1x Power charger
1x Aircraft User Manual and Disclaimer
1x 4*1.3 million pixels Multi-spectral camera
1x 8 million pixels RGB channel
1x Yusense Map handle software

Specifications

Camera
Size
75×65×90mm (include 25mm lens)
Weight
220g( include lens)
Pixel
24.3 million pixels
Camera frame
APS frame
Sensor size
23.5×15.6mm
Miximum resolution
24MP
Lens mount
Sony E mount
Access current
2~7S 10~30V

PPK module
Operating Temperature
-30~+75 Celsius
GNSS Signal
GPS; GLONASS; BDS; Galileo
GNSS channel
72
Update rate
10Hz/5Hz
Input voltage
5V
Antenna voltage
3.3V
Average current
25mA
Data storage
6GB
Data Format
RINEX
Antenna interface
Mcx
Light
Trigger, satellite, storage, power
Horizontal accuracy
2cm+1ppm
Vertical accuracy
4cm+1ppm

Work efficiency
Overlap rate
80×70 resolution 5/10/20 cm 60min flying time
1 500 Flying height 210m
2-3 square kilometers per flight
1 1000 Flying height 420m
4-5 square kilometers per flight
1 2000 Flying height 840m
8-9 square kilometers per flight
Operation accuracy
1 500 Phase-free
Horizontal accuracy≤ 5cm
Height accuracy≤ 5cm
1 1000 Phase-free
Horizontal accuracy≤ 8cm
Height accuracy≤ 10cm
1 2000 Phase-free
Horizontal accuracy≤ 15cm
Height accuracy≤ 20cm
