Sync-sign

D75R+H1

SyncSign Meeting Room Scheduler- 7.5 inch Screen + Hub + Wall Mount

Enjoy 10% OFF this product with code CM10

Enjoy free shipping. Ships in 2-3 days


  • SyncSign Meeting Room Scheduler (7.5 inch) + Hub + Secure Wall Mount

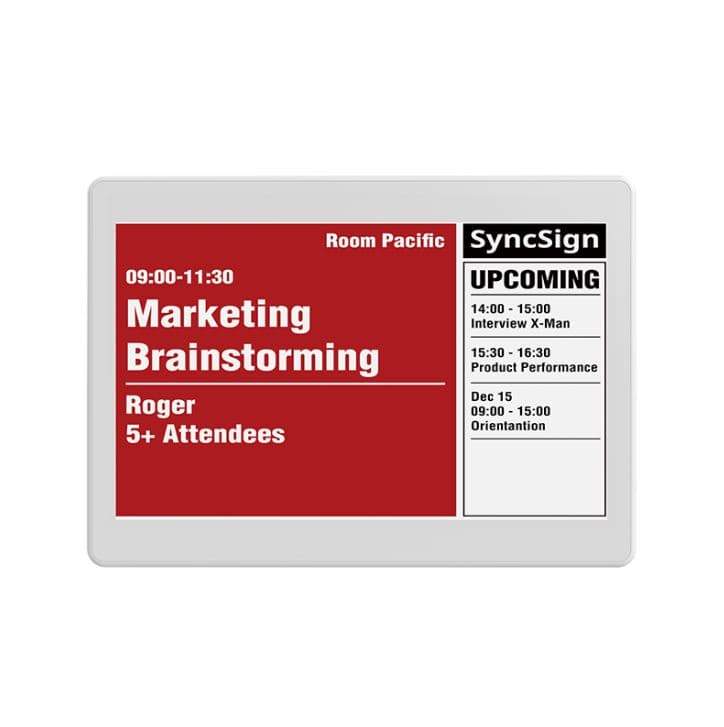

    The meeting room scheduler - 7.5 inch screen is a great asset to bring with you in any of your meetings. The bundle comes with an Hub and a Secure Wall Mount. It features e-paper display and has an effortless installation of digital signage. Information that you input in your meeting room scheduler, can be synced with calendars or web services. It also features 365 day battery life and can be self installed in minutes. This scheduler also features flexible templates and open api/sdk.

    Syncsign Meeting room Scheduler - wellbots



    This eco-friendly and sustainable device is wireless, offering 2.4GHz two way communication, no cables required. Additionally, ownership of this device entails you to reducing installation and maintenance fees.

    Syncsign 7.5 different usage - wellbots

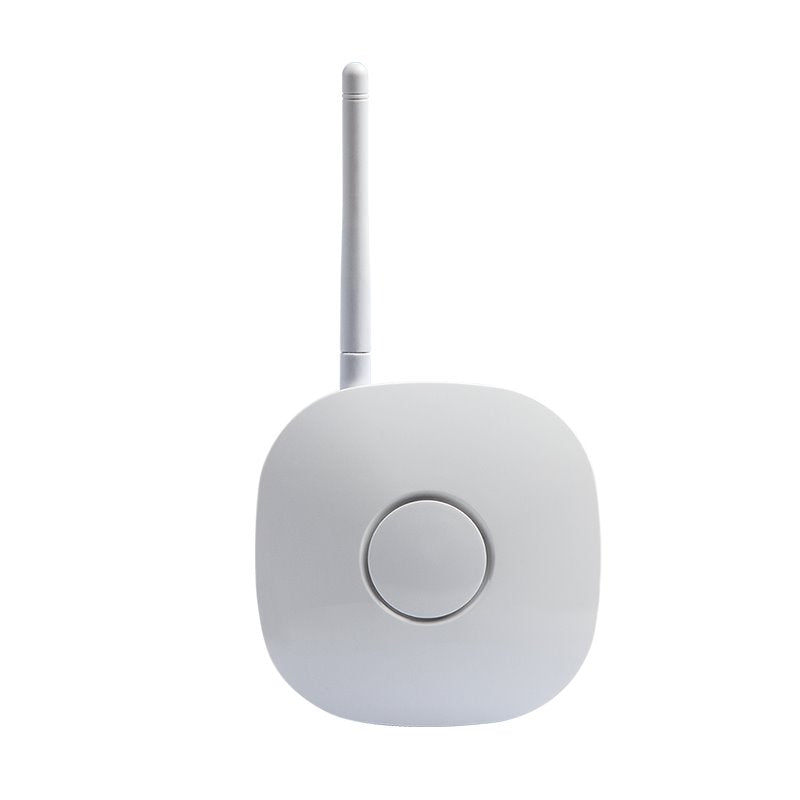

    The Hub

    The SyncSign IoT Hub is a bridge between the Internet and low power mesh network (PAN). The Hub’s uplink is over Wi-Fi or Ethernet, and it can manage up to 16 displays or sensors nearby.

    How it works

    The SyncSign Meeting Room display retrieves new information every 10 seconds, by polling Hub, and going into deep sleep in between. This scheduler also has superior coverage and can cover over 20,000 square feet of space. The 2.4Ghz ISM band usage, ensures that you have free license product deployment, all across the world.

    Syncsygn Hub

    • The Hub creates a mesh network that connect all displays and sensors.
    • The Hub synchronize the online calendar events, then push them to display screens.
    • The Hub reads sensors' data and analyze them on the fly.
    • Parallel operation possible (e.g. install more hubs on several floors).



    Syncsign 7.5 room meeting scheduler


    The system is very secure, allowing only nodes that are authorized to enter into the mesh network. The Hub and cloud server connection is protected via TLSv1.3. The setup only takes minutes. Since this if a wire-free device, you can move this device from place to place without a hassle. The 7.5 inch display screen comes in white, black, and red.The hub can be up-linked with ethernet or Wi-Fi, and also offers on premise deployment. This means, all of your data can be easily accessed within your in house server.

    Syncsign - how it works



    • 1 x 7.5 inch Sync Sign
    • 1 x USB Power Cable
    • 1 x Secure Wall Mount for 7.5-inch
    • 1 x Power Adaptor
    • 1 x Hub
  • Viewing Angle
    Close to 180°

    Resolution:
    880 x 528

    Active Area:
    163.24 x 97.94(mm)

    Pixel Pitch
    0.19 x 0.19(mm)

    DPI:
    137

    Battery:
    4000mAh built-in rechargeable polymer

    Battery Life:
    1-year standby

    Signal Booster:
    Built-in, up to 20dBm

    Power:
    DC 5V / 0.5A, USB Type C

    Connectivity:
    2.4GHz Wi-Fi + 802.15.4

    SKU:
    Display: D75R
    Hub: H1

    Hub

    Dimension:
    3.6 x 3.6 x 1.1 inches

    Operating Temperatures:
    From 0 to 45 Degrees (°C)

    Power Consumption:
    2W

    Outbound Ports:
    HTTPS(443) and MQTT/TLS (8883)

    Signal:
    20dBm Signal Booster (802.15.4 PAN)

    Wi-fi Connection:
    2.4GHz 802.11b/g/n Wi-Fi

    Cable speed connection:
    Up to 100Mbps Ethernet

    Cable Connectivity:
    5V/1A USB Adapter

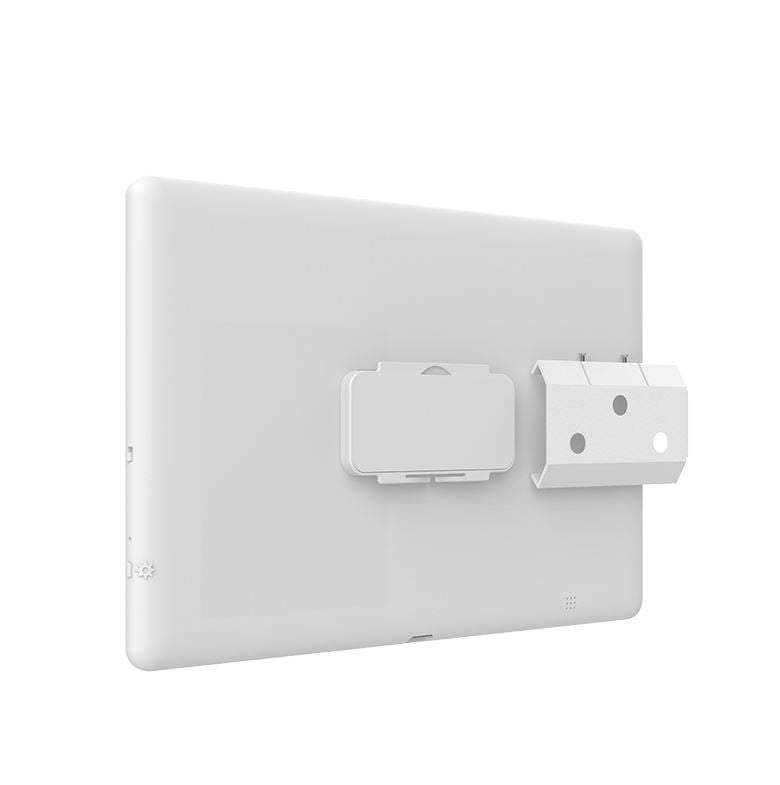

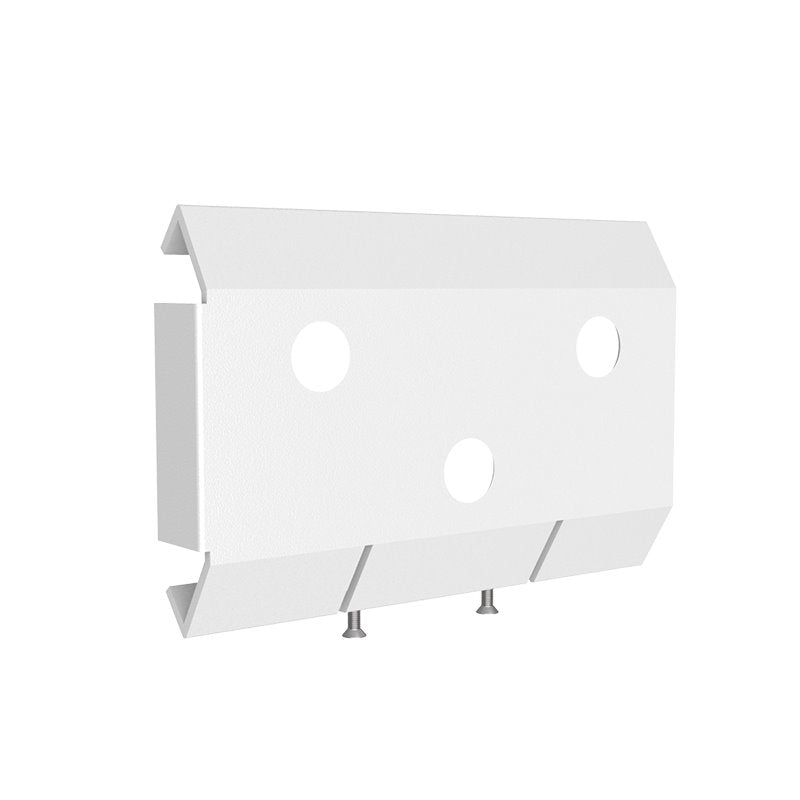

    Secure Wall Mount

    Material:

    Iron

    Color:
    White

    Size

    60.8 x 38 .6 x 9.3
