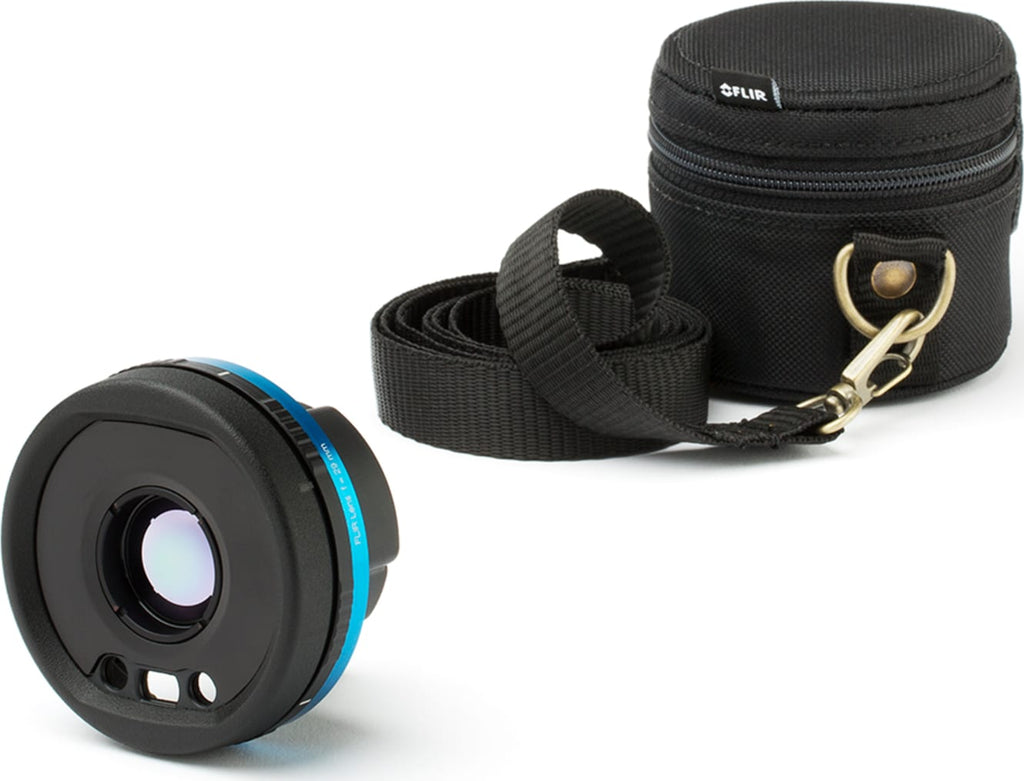

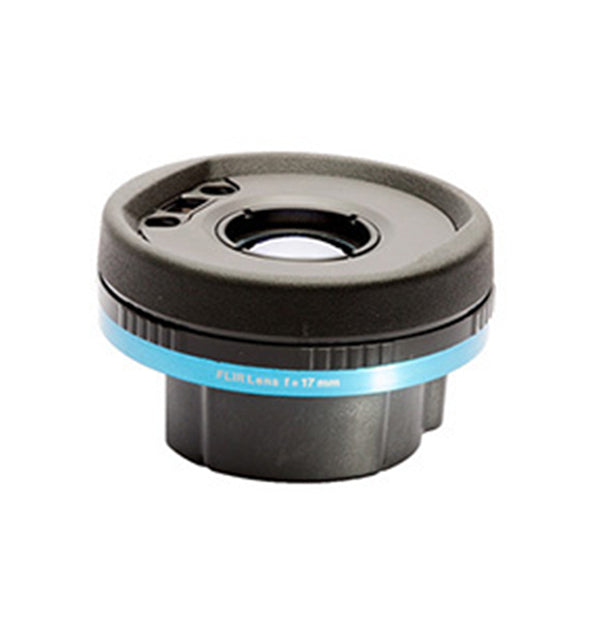

T199589 24° Lens (f=17 mm) with Case

T199589 Lens 24 Degree with Case. Auto-calibrates using AutoCal™ with the camera for quick swapping in the field with little downtime and no need to send to the factory.

SPECIFICATIONS:

Imaging & Optical Specifications

Field of View (FOV): 24° × 18°
Minimum Focus Distance: 0.15 m (0.49 ft)
Minimum Focus Distance with MSX: 0.5 m (1.64 ft)
Focal Length: 17 mm (0.67 in)
Lens Identification: AutoCal (Automatic)
F-number: f/1.3

Spatial Resolution (IFOV):
• 320 × 240 pixels: 1.31 mrad/pixel
• 464 × 348 pixels: 0.90 mrad/pixel
• 640 × 480 pixels: 0.66 mrad/pixel

Measurement Specifications

Measurement Accuracy:
±3°C (±5.4°F) or ±3% of reading

Accuracy Conditions:
Ambient temperature: 15–35°C (59–95°F)
Object temperature: Above 0°C (32°F)

Physical Specifications

Weight: 0.140 kg (0.31 lb)
Dimensions (L × D): 45.4 × 72 mm (1.79 × 2.83 in)

WHAT'S IN THE BOX:

1 x T199589 24° Lens (f=17 mm)

1 x Lens Case
