T199590 42° Lens (f=10 mm) with Case

T199590 42° Lens (f=10 mm) with Case

• For use with Models E75, E85, E95
• Automatically calibrates with the camera for precise temperature readings
• 42° x 32° FOV for wide area surveys

SPECIFICATIONS:

Imaging & Optical

Field of View (FOV): 42° × 32°
Minimum Focus Distance: 0.15 m (0.49 ft)
Minimum Focus Distance with MSX: 0.5 m (1.64 ft)
Focal Length: 10 mm (0.39 in)
Lens Identification: AutoCal (Automatic)
F-number: f/1.3

Spatial Resolution (IFOV):
• 320 × 240 pixels: 2.29 mrad/pixel
• 464 × 348 pixels: 1.57 mrad/pixel
• 640 × 480 pixels: 1.15 mrad/pixel

Measurement

Accuracy: ±3°C (±5.4°F) or ±3% of reading
Accuracy Conditions: Ambient temperature 15–35°C (59–95°F); object temperature above 0°C (32°F)

Physical

Weight: 0.140 kg (0.31 lb)
Dimensions (L × D): 45.4 × 72 mm (1.79 × 2.83 in)

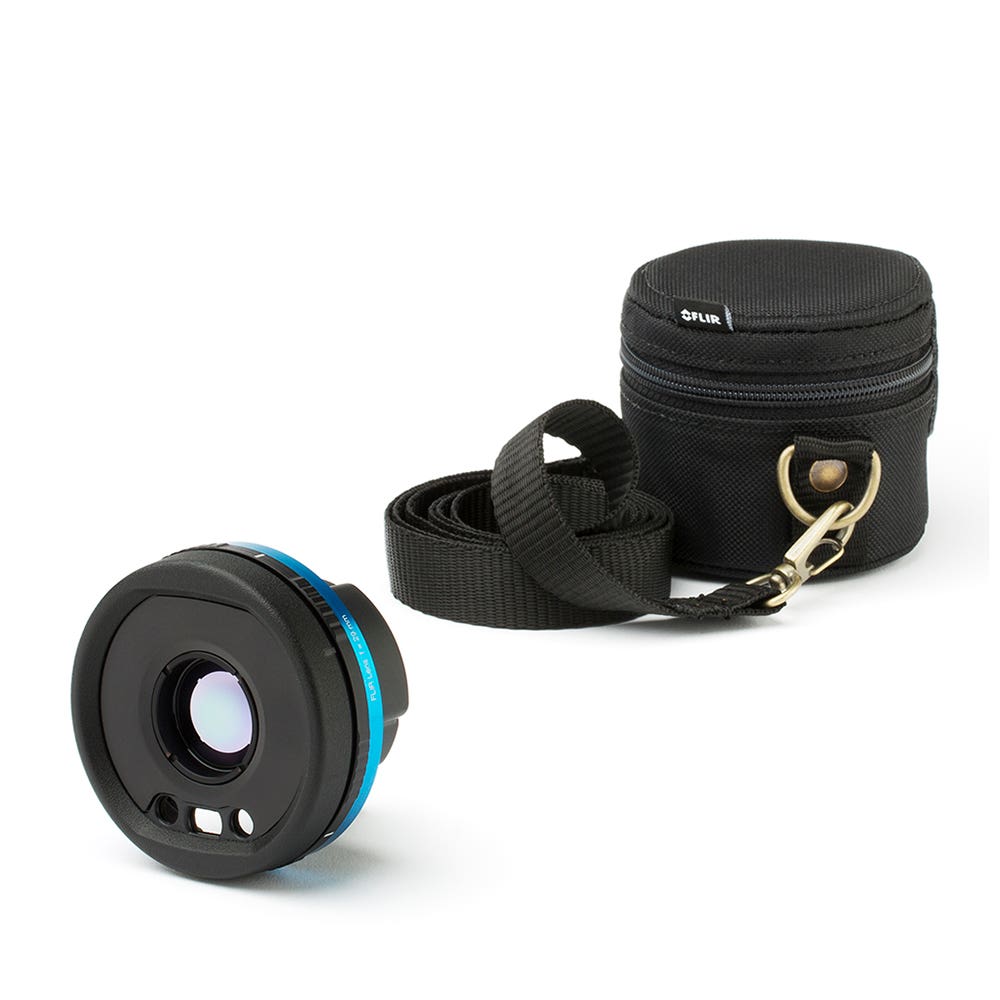

WHAT'S IN THE BOX:

1 x FLIR 42° Thermal Lens (f = 10 mm)
1 x Protective Lens Case
