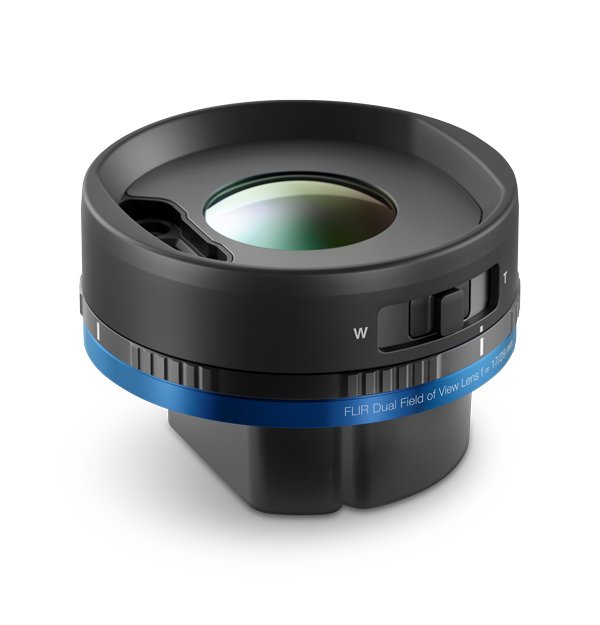

T300954 IR Lens Dual FOV, F=10/17mm (24°/42°) w/ Case (EXX/T5XX/T8XX/AXXX)
FlexView® dual field of view infrared lens (42°/24°), f=10/17 mm, with lens case. For FLIR T500-Series, T800-Series, and Exx-Series cameras.
(T300954)
You never have to change your lens in the field again—with the push of a button—instantly switch from extra wide views for added safety, wide views for scene context, or tighter views for accurate temperature measurement.
SPECIFICATIONS:
Imaging & Optical
Field of View (FOV):
• 42° × 32° (Wide)
• 24° × 18° (Standard)
Focal Length:
• 10 mm (42°)
• 17 mm (24°)
Minimum Focus Distance:
• 0.15 m (0.49 ft) – 42° mode
• 0.15 m (0.49 ft) – 24° mode
Minimum Focus Distance with MSX:
• 0.5 m (1.64 ft) – 42° mode
• 0.5 m (1.64 ft) – 24° mode
Lens Identification: Yes, AutoCal
F-number: f/1.3 (both modes)
Spatial Resolution (IFOV)
(Dependent on IR resolution of the camera)
42° Mode (10 mm):
• 320 × 240 pixels: 2.29 mrad/pixel
• 464 × 348 pixels: 1.57 mrad/pixel
• 640 × 480 pixels: 1.15 mrad/pixel
24° Mode (17 mm):
• 320 × 240 pixels: 1.31 mrad/pixel
• 464 × 348 pixels: 0.90 mrad/pixel
• 640 × 480 pixels: 0.66 mrad/pixel
Measurement
Accuracy:
±3°C (±5.4°F) or ±3% of reading
Accuracy Conditions:
Ambient temperature 15–35°C (59–95°F)
Object temperature above 0°C (32°F)
Physical
Weight: 0.140 kg (0.31 lb)
Dimensions (L × D): 45.4 × 72 mm (1.79 × 2.83 in)
WHAT'S IN THE BOX:
1 x FLIR Dual FOV IR Lens (42° / 24°)
1 x Protective Hard Lens Case
