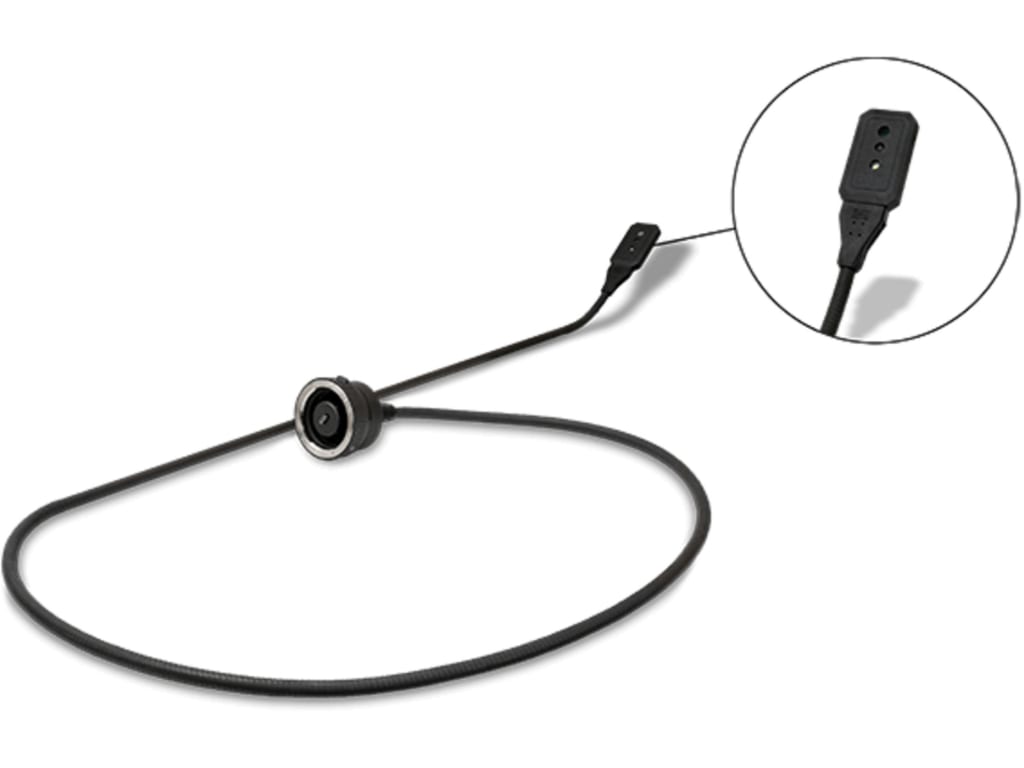

Flir Thermal 160x120 MSX Camera Probe with Rectangular Tip (VS290)
The FLIR VS290 is designed to help professionals in utility, building inspection, and manufacturing improve safety, productivity, and reduce diagnostic time. Use the VSC-IR32 camera probe with the FLIR VS290-00 to easily target hidden problems in difficult-to-access locations.
Specifications:
| IR resolution |
160 × 120 pixels |
| Digital image enhancement |
Yes |
| Thermal sensitivity/NETD |
<100 mK |
| Field of view (FOV) |
57° × 44° |
| Minimum focus distance |
0.15 m |
| Minimum focus distance with MSX |
0.65 m |
| Image frequency |
8.7 Hz |
| Focus |
Fixed |
| Focal plane array/spectral range |
Uncooled microbolometer/7.5–14 µm |
| Detector pitch |
12 μm |
| Object temperature range |
–10°C to 400°C (14°F to 752°F) (at room temperature) |
| Accuracy |
At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F). 0 to 100°C (32 to 212°F): ±3°C (±5.5°F) 100 to 400°C (212 to 752°F): ±3% |
| Structure and Dimensions |
2 m total length with 3 segments:
- 1.2 m semi-rigid
- 0.7 m rigid
- 0.1 m semi-rigid
Probe tip dimensions: 71.7 x 40.5 x 11 mm (2.8 x 1.6 x 0.43 in) |
| Probe Insulation |
2-layers of ruggedized insulating material. Black outer layer and bright yellow inner layer. |
| Resolution |
2 MP (1600 × 1200 pixels) |
| Field of view |
83° |
| Model |
CREE XPG2 |
| LED CCT |
6500 K |
| LED CRI |
70 |
| Beam angle |
120° |
| Rated power |
0.7 W |
| Light output (Lumens) |
117 lm |
| Encapsulation |
Probe tip : IP67 (IEC 60529) |
| Safety |
CAT IV 600 V |
| Weight (including battery) |
470 g (1.04 lbs) |
| Size (L × W × H) |
212.2 x 0.69 cm (83.5 x 0.3 in) |
| Packaging, type |
Cardboard box |
| Packaging, contents |
Thermal MSX camera probe |
| Packaging, weight |
1.26 kg (2.78 lbs) |
| Packaging, size |
32 x 17 x 11.5 cm (12.6 x 6.69 x 4.5 in) |
What's in the box:
- 1 x Thermal MSX camera probe
