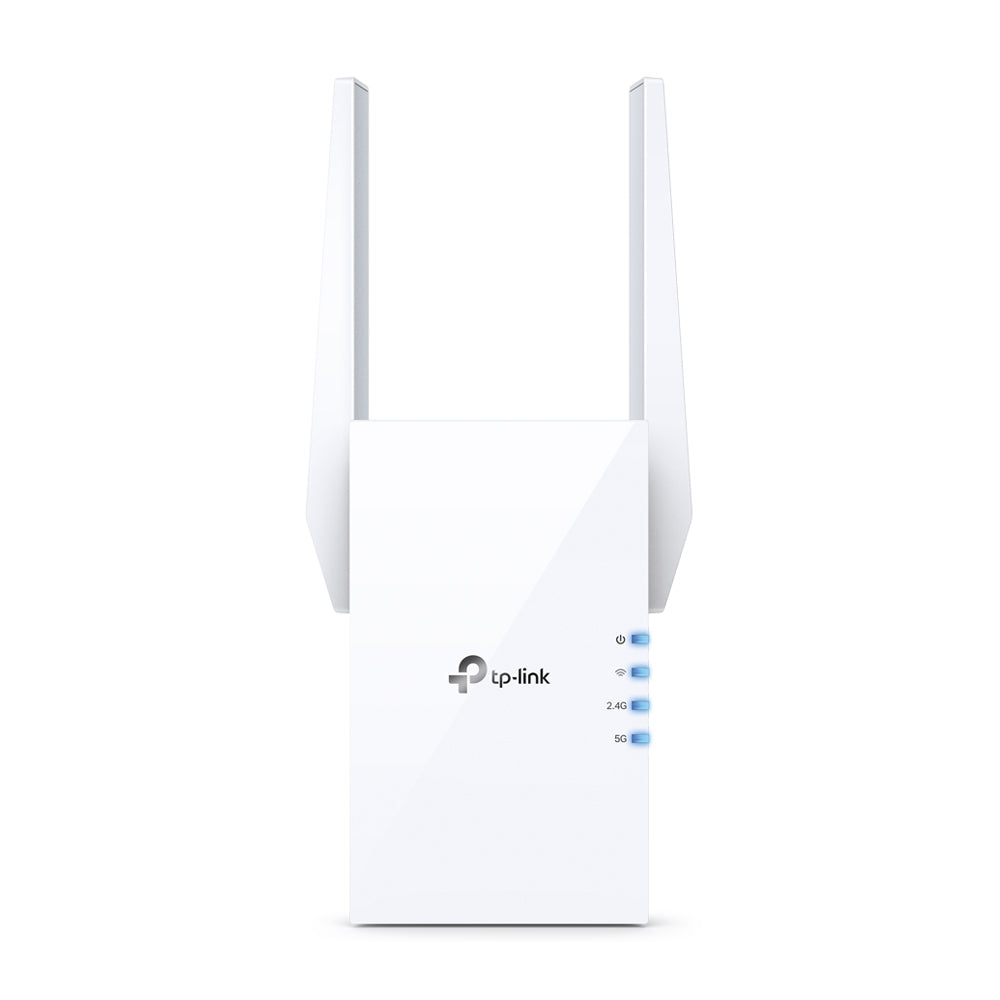

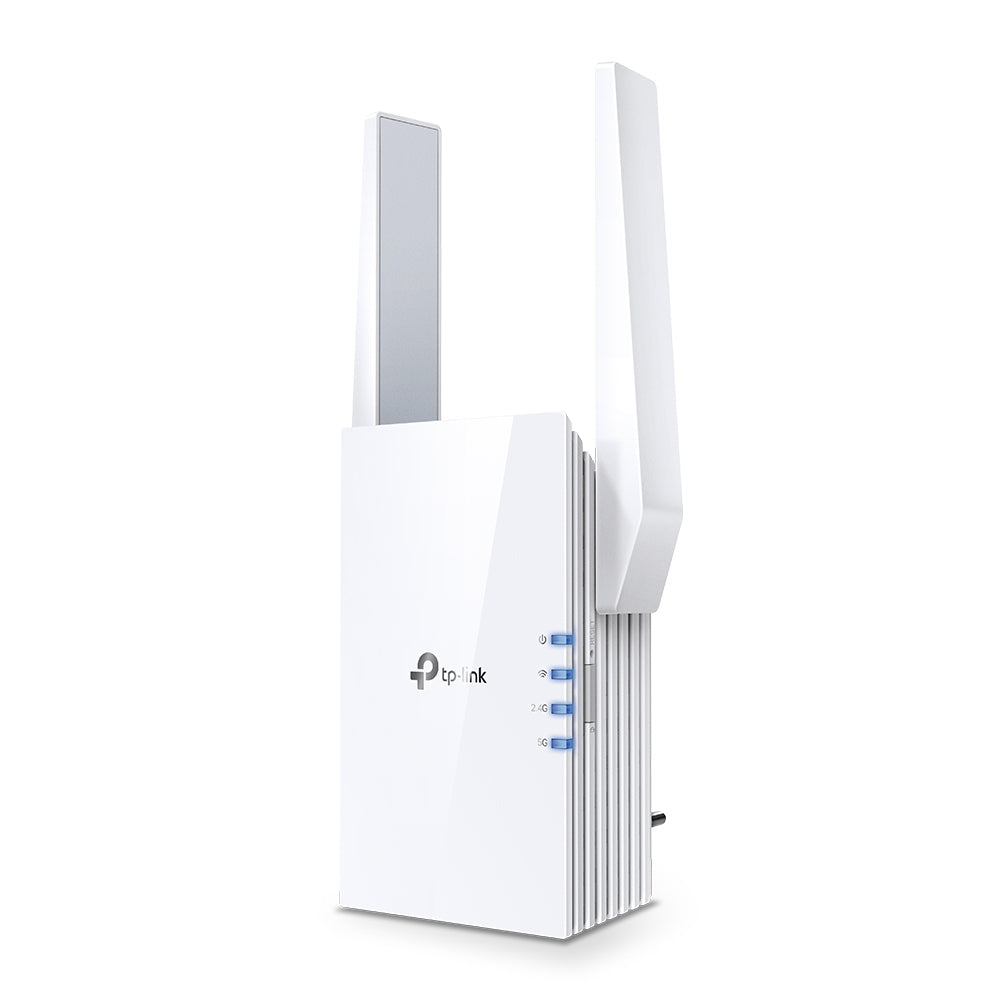

Tp-Link AX1500 Wi-Fi 6 Range Extender
Tp-Link AX1500 is the future of the fastest network loads, designed to expand the coverage of the fastest next-gen Wi-Fi, giving your home the smart edge. No more annoying lags or endless loading with dead spots to spoil your shows, games or live concerts. RE505X is loaded with the state-of-the-art wireless technology to optimize your Wi-Fi with faster speeds, larger capacity and ultra-low latency.

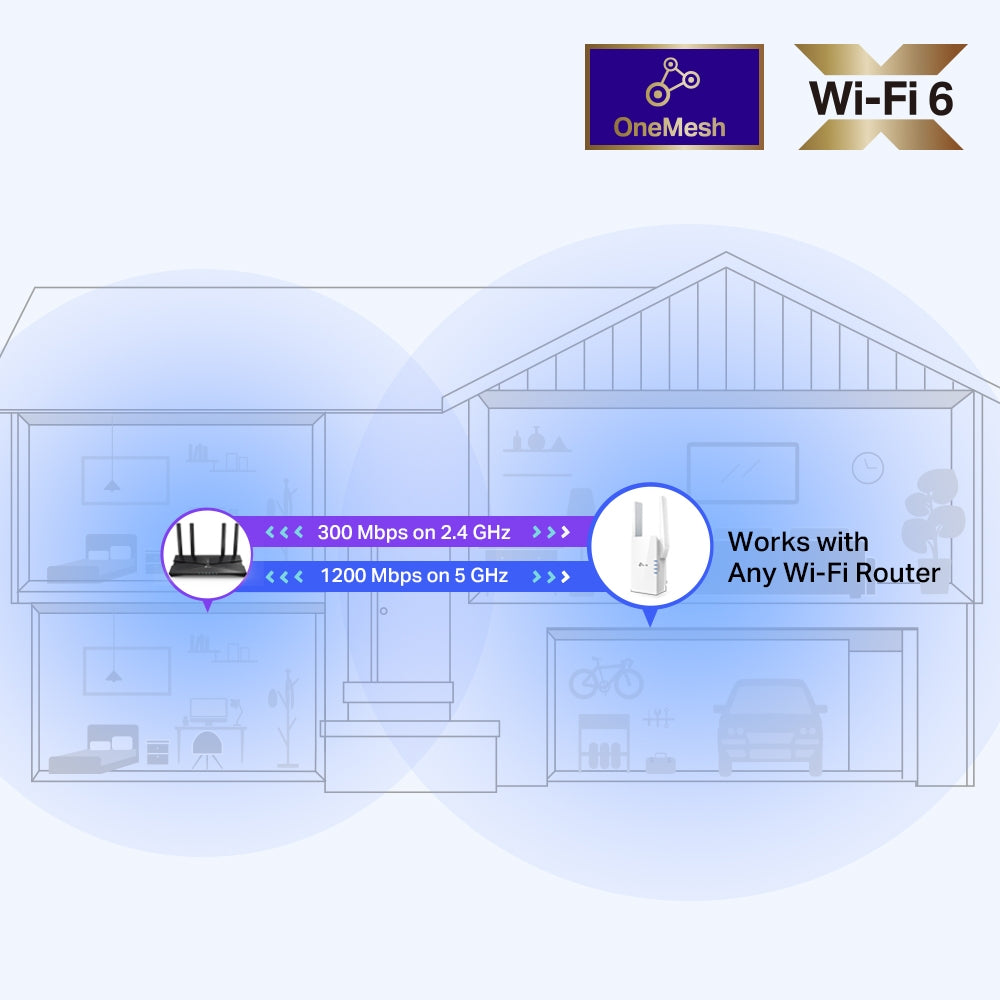

Tp-Link AX1500 boasts of its Trademark OneMesh router, a virtual mesh, the invisible magic cloak over your house that disperses stronger wi-fi signals to every nook and corner. Not just a mere range extender, fitted with a Gigabit Ethernet Port, this AX1500 Wi-Fi 6 creates a new Wi-Fi access point, a perfect booster for your wired network.
Features:
- Ultimate compatibility with your existing router / wired network
- Dual-Band supports streaming and gaming at speed you need
- Adaptive path selection picks optimal connectivity path to the router
- Uninterrupted connectivity anywhere in the house with smart roaming

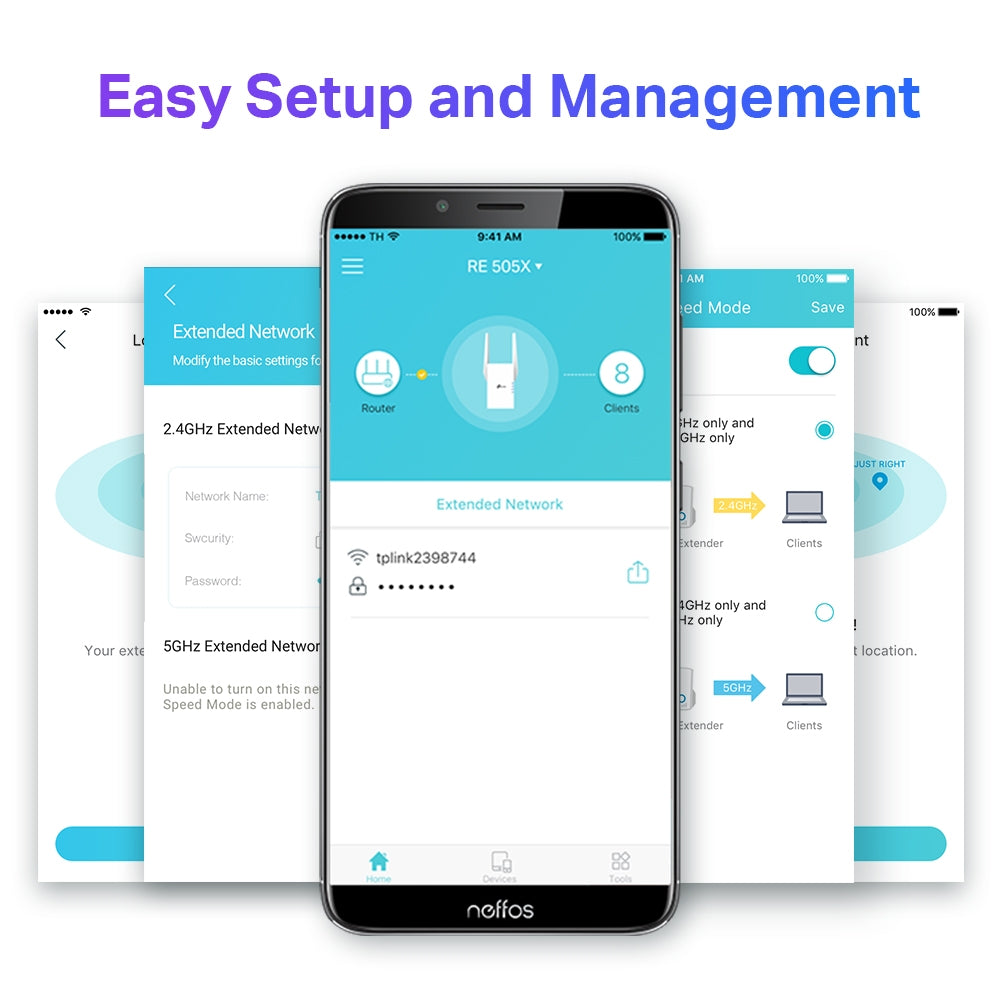

- Plug and play with Tp-Link Tether App
- Intelligent signal light indicates current signal strength, helps determine location with optimal Wi-Fi coverage
Specifications:
HARDWARE

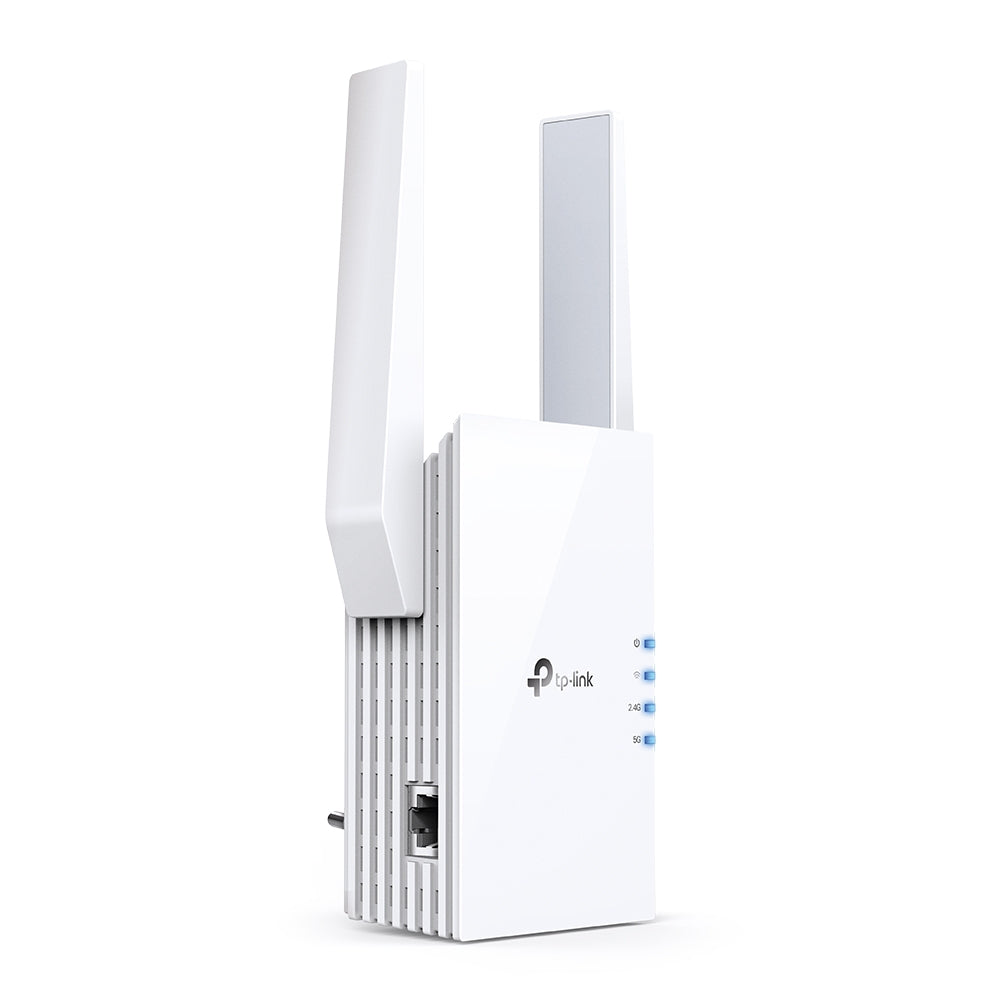

Ports: 1 Gigabit Ethernet Port
Button: WPS Button, Reset Button
Input Power: 100-240V~50/60Hz
Power Consumption: 10W
Dimensions (W x D x H): 2.9×1.8×4.9 in.
Antenna: 2 External Antennas
WIRELESS
Working Modes: Range Extender/Access Point
Wireless Standards: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency: 2.4GHz and 5GHz
Signal Rate: 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz
Reception Sensitivity:
5GHz:
11a 6Mbps: -93dBm,
11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm,
11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm,
11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm,
11ac HT80 MCS9: -62dBm
2.4GHz:
11g 54Mbps: -77dBm,
11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm
Transmit Power: CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm
Wireless Functions: Enable/Disable Wireless Radio, Wireless Statistics, Wireless Security 64/128-bit WEP, WPA/WPA-PSK2 encryptions
Transmission Power: CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm
OTHERS
Certification: FCC, RoHS
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or Java-enabled browser
Environment:
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
What's in the Box:
1 x Wi-Fi Range Extender RE505X
1 x Quick Installation Guide
