Tp-Link AXE5400 Wi-Fi 6E Range Extender

Tp-Link introduced the AXE5400, a Wi-Fi 6E Range Extender, that captures your existing wi-fi, amplifies and rebroadcasts it to every nook and corner of your nest, making your home smartness personified.

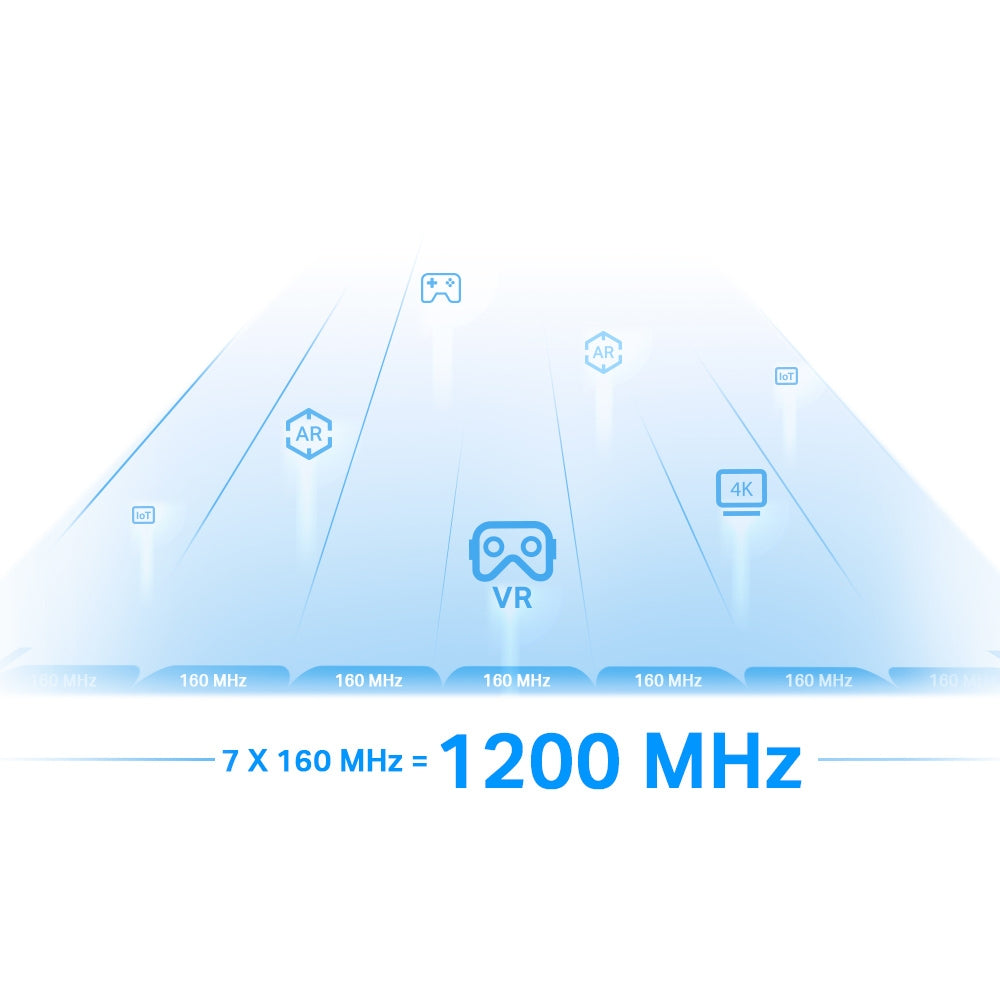

At an incredible 5400 Mbps, experience flawless streams, from top-notch series to heart-thumping live concerts, watch your shows the way they were meant to be watched. The lightning fast AXE5400 offers 6 GHz frequency at 160MHz bandwidth giving you an available spectrum of 1200 MHz.

Taking advantage of its tri-band reach, every connected device in your home receives phenomenal connectivity and you can power up to a whopping 96 devices in one go.

Features:

• Tri-band Mesh Wi-Fi boosts overall speed
• Doubles your traditional speed of 80MHz to a 160MHz channel bandwidth
• Plug and play Tether App for easy control
• Stay connected 24/7, at every sq. in. of every room
• Lower latency, higher throughput, faster speeds
• Empowers up to 96 devices
• 6 times broader coverage

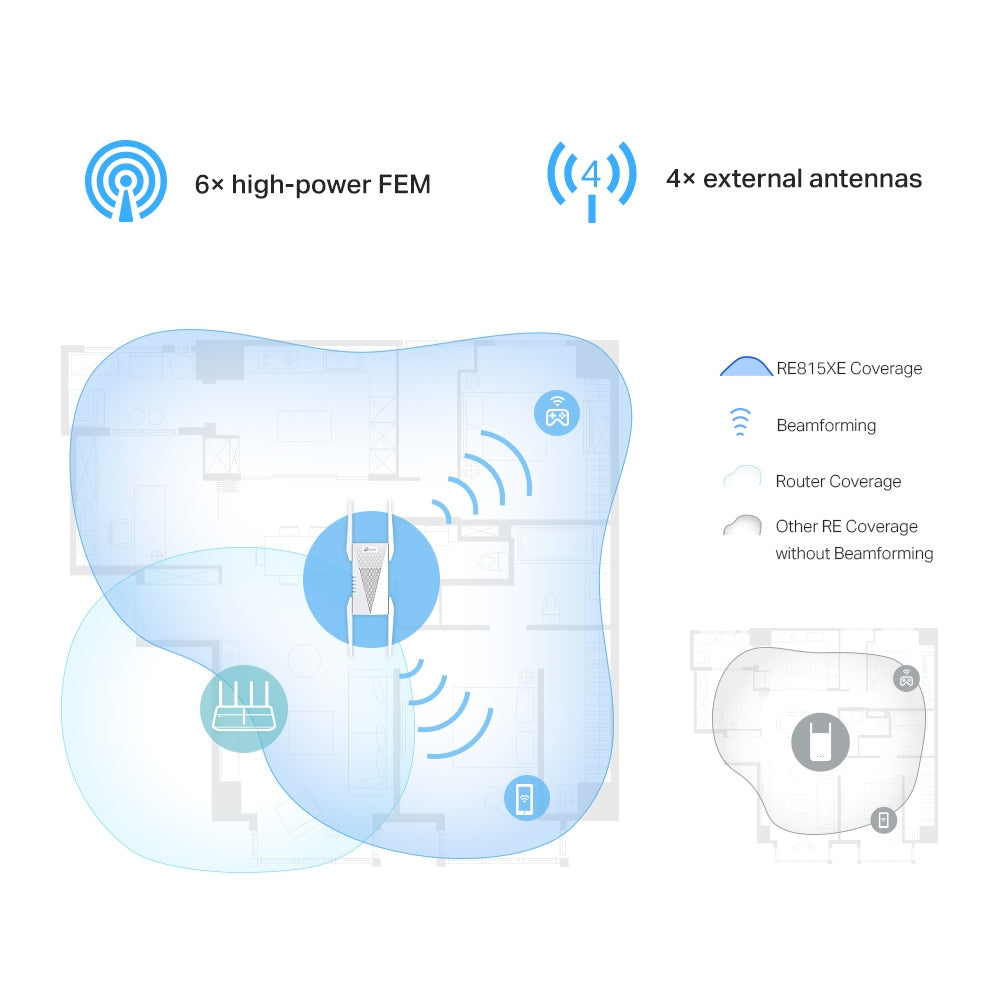

• Beamforming technology to locate devices
• OneMesh tech for seamless signal switching
• Built-in access point mode

Specifications:

HARDWARE

Ports: 1 Gigabit Ethernet Port

Button: WPS Button, Reset Button

Input Power: 100-240V~50/60Hz

Power Consumption: 23W

Dimensions (W x D x H): 4.2×1.6×13.7 in.

Antenna: 4 External Antennas

WIRELESS

Working Modes: Range Extender/Access Point

Wireless Standards: IEEE 802.11ax 6 GHz, IEEE 802.11a/n/ac/ax 5 GHz, IEEE 02.11b/g/n/ax 2.4 GHz

Frequency: 2.4GHz and 5GHz and 6GHz

Signal Rate: 574 Mbps at 2.4 GHz, 2402 Mbps at 5 GHz, 2402 Mbps at 6 GHz

Reception Sensitivity:

6GHz:
11ax HE20 MCS0：-92dBm, 11ax HE20 MCS11：-61dBm
11ax HE40 MCS0：-89dBm, 11ax HE40 MCS11：-58dBm
11ax HE80 MCS0：-86dBm, 11ax HE80 MCS11：-55dBm
11ax HE160 MCS0：-83dBm, 11ax HE160 MCS11：-52dBm

5GHz:
11ax HE20 MCS0：-93dBm, 11ax HE20 MCS11：-62dBm
11ax HE40 MCS0：-90dBm, 11ax HE40 MCS11：-59dBm
11ax HE80 MCS0：-87dBm, 11ax HE80 MCS11：-56dBm
11ax HE160 MCS0：-84dBm, 11ax HE160 MCS11：-53dBm

2.4GHz:
11ax HE20 MCS0：-95dBm, 11ax HE20 MCS11：-64dBm
11ax HE40 MCS0：-92dBm, 11ax HE40 MCS11：-62dBm

Wireless Functions: LED Control, Access Control, Power Schedule, Wi-Fi Coverage

Wireless Security: 64/128-bit WEP, WPA/WPA-PSK2 encryptions, WPA3

Transmission Power: FCC: 2.4GHz < 30dBm, 5GHz < 30dBm, 6GHz < 30dBm

OTHERS

Certification: FCC, RoHS

System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or Java-enabled browser

Environment:

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

What's in the Box:

1 x Wi-Fi Range Extender RE815XE

1 x Quick Installation Guide
