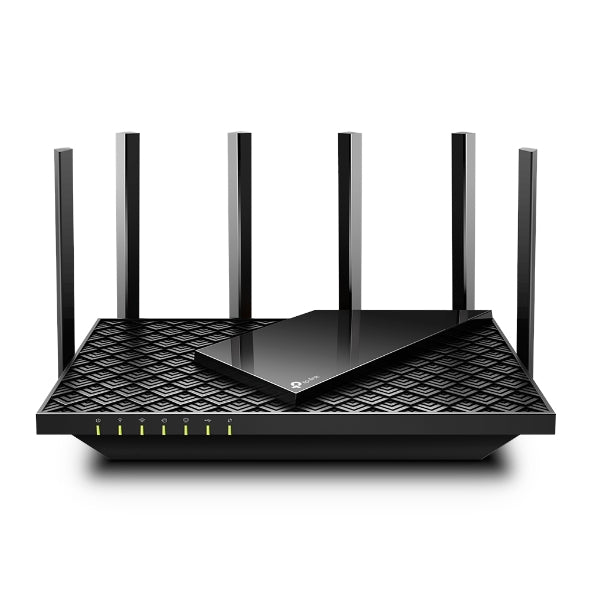

Tp-Link Router - AX5400 - Wireless - 1Gbps - Gigabit Ethernet,Wi-Fi - Networking / Ports Qty: 1 - 2.4 GHz;5 GHz;6GHz - 23Watt
Designed to puzzle you with its sleek looks, the TP-Link Router AX5400 is the champion Archer with Dual-Band Gigabit Wi-Fi 6 Router, for seamless browsing, streaming, downloading and gaming experience.
Loaded with typical TP-Link features, this wonder router connects 200+ devices in one go. Well supported with MU-MIMO and OFDMA, the AX5400 reduces data traffic congestion, quadruples the average throughput, and offers extensive coverage with optimal connectivity for all your devices.
Easy to set up and easier to use, this faster, cooler, safer Wi-Fi 6 upgrades your entire networking experience with faster speeds at higher capacity with lesser lags. Soak in the warp speed of 5378 Mbps, a whopping 164% faster than any other similar Wi-Fi 6.
Equipped with beamforming, this OneMesh coverage forms a comprehensive network for your whole home, with a multi-band backhaul under unified management delivers seamless, fast streaming for your roaming self.
Features:
- Fully featured Wi-Fi 6 enables 4.8 Gbps ultra-fast connection
- Connect 200+ devices simultaneously
- Enjoy lesser congestion and 4 times the average throughput with MU-MIMO and OFDMA support
- Convenient USB 3.0 port to share media and private cloud building
- TP-Link's premium HomeShield security, protects data privacy with added IoT protection
- Well vented design keeps the machine cool even as it delivers blazing speeds
- Static Link Aggregation available with 2 LAN ports
Specifications:
WIRELESS
Standards: Wi-Fi 6, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz
Wi-Fi Speeds: AX5400, 5 GHz: 4804 Mbps (802.11ax, HE160), 2.4 GHz: 574 Mbps (802.11ax)
Wi-Fi Range:
3 Bedroom Houses
6× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand Wi-Fi range
High-Power FEM
Improves transmission power to strengthen signal coverage
4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
Wi-Fi Capacity:
High
Dual-Band
Allocate devices to different bands for optimal performance
4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
6 Streams
Connect your devices to more bandwidth
Working Modes: Router Mode, Access Point Mode
HARDWARE
Processor: 1.5 GHz Triple-Core CPU

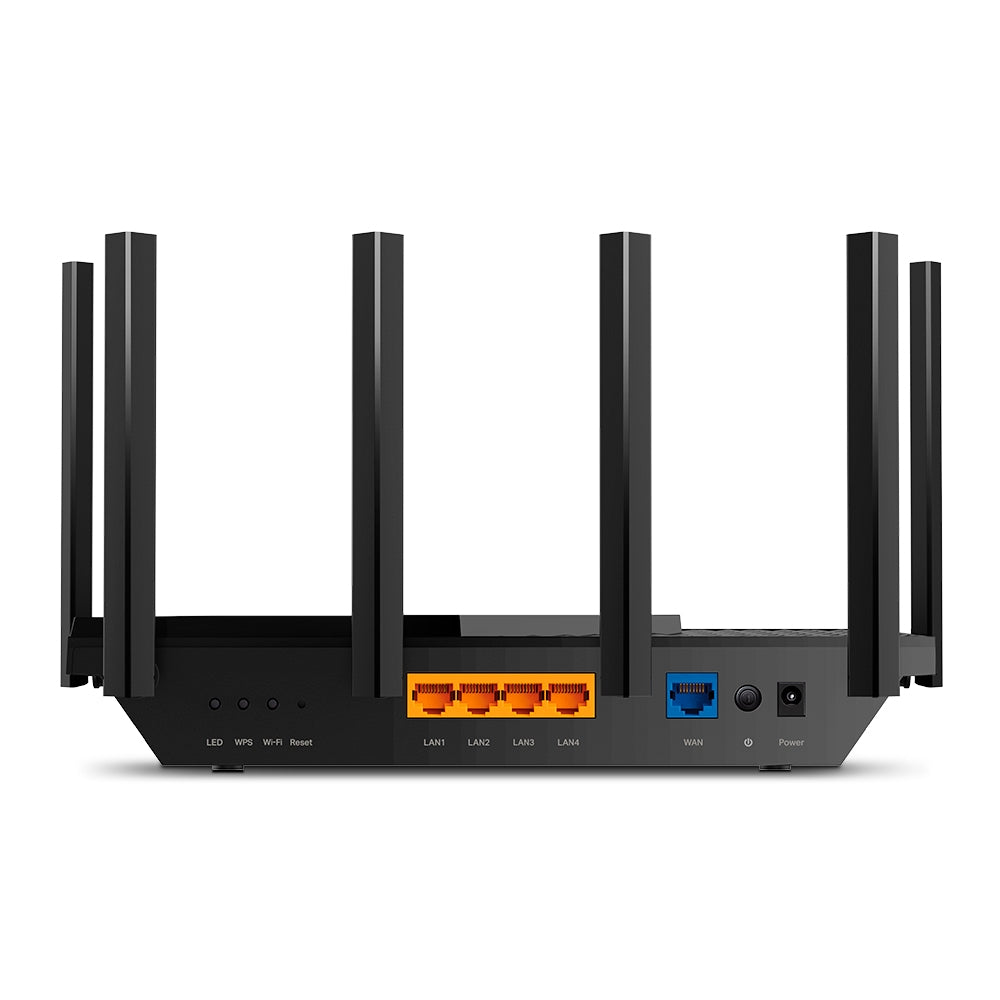

Ethernet Ports: 1× Gigabit WAN Port, 4× Gigabit LAN Ports, Static Link Aggregation (LAG) available with 2× LAN ports

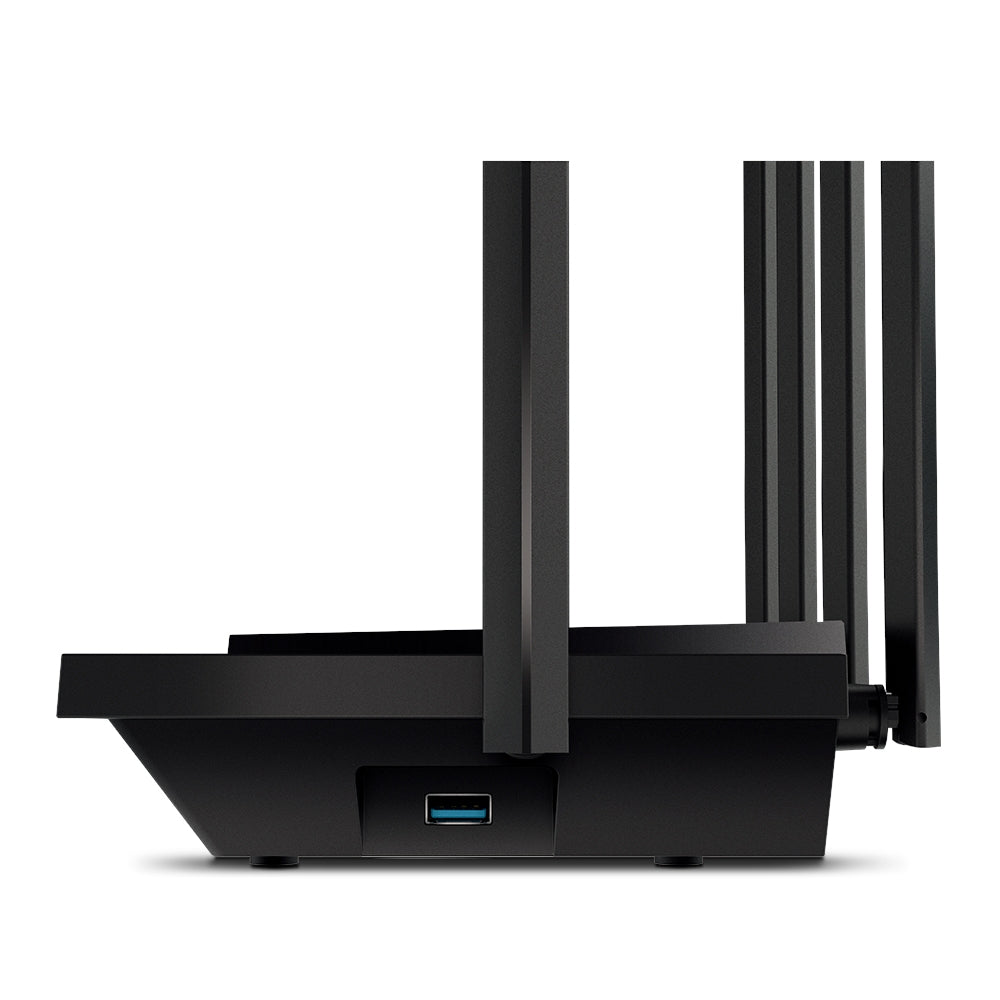

USB Support: 1× USB 3.0 Port, Supported Partition Formats - NTFS, exFAT, HFS+, FAT32,
Supported Functions - Apple Time Machine, FTP Server, Media Server, Samba Server
Buttons: Wi-Fi On/Off Button, Power On/Off Button, LED On/Off Button, WPS Button, Reset Button
Power: V1: 12 V ⎓ 2.5 A, V2: 12 V ⎓ 2 A
SECURITY
WiFi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer, Gateway
HomeShield Security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion , revention System, DDoS Attack Prevention, Home Network Scanner
Guest Network: 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network
VPN Server: OpenVPN, PPTP, L2TP
VPN Client: OpenVPN, PPTP, L2TP
SOFTWARE
Protocols: IPv4, IPv6
Service Kits: HomeShield
OneMesh™: OneMesh™ Supported, Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Parental Controls: HomeShield Parental Controls, Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking
Pause the Internet, Weekly and Monthly Reports
WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Quality of Service: QoS by Device
Cloud Service: Auto Firmware Upgrade, TP-Link ID, DDNS
NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server
IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
DHCP: Address Reservation, DHCP Client List, Server
DDNS: TP-Link, NO-IP, DynDNS
Management: Tether App, Webpage
OTHERS
Dimensions (W×D×H) 10.7 × 5.8 × 1.9 in
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Cable or DSL Modem (if needed), Subscription with an internet service provider (for internet access)
Certifications: FCC, CE, RoHS
Environment:
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
Wi-Fi Transmission Power:
CE:
<20dBm{2.4GHz}
<23dBm{5.15GHz~5.35GHz}
<30dBm{5.47GHz~5.725GHz}
FCC:
<24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz }
<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
Wi-Fi Reception Sensitivity:
2.4GHz:
11ac VHT20 MCS0:-94.5dBm
11ac VHT20 MCS8:-72.5dBm
11ac VHT40 MCS0:-92.5dBm
11ac VHT40 MCS9:-69.5dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64.5dBm
11ax HE40 MCS0:-92.5dBm
11ax HE40 MCS11:-62dBm
5GHz:
11ac VHT20 MCS0:-97dBm
11ac VHT20 MCS8:-74dBm
11ac VHT40 MCS0:-95dBm
11ac VHT40 MCS9:-70dBm
11ac VHT80 MCS0:-91.5dBm
11ac VHT80 MCS9:-66dBm
11ac VHT160 MCS0:-86dBm
11ac VHT160 MCS9:-61dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-91.5dBm
11ax HE40 MCS11:-62dBm
11ax HE80 MCS0:-88dBm
11ax HE80 MCS11:-58dBm
11ax HE160 MCS0:-85.5dBm
11ax HE160 MCS11:-55dBm
What's in the Box:
1 x Wi-Fi Router Archer AX73
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide
