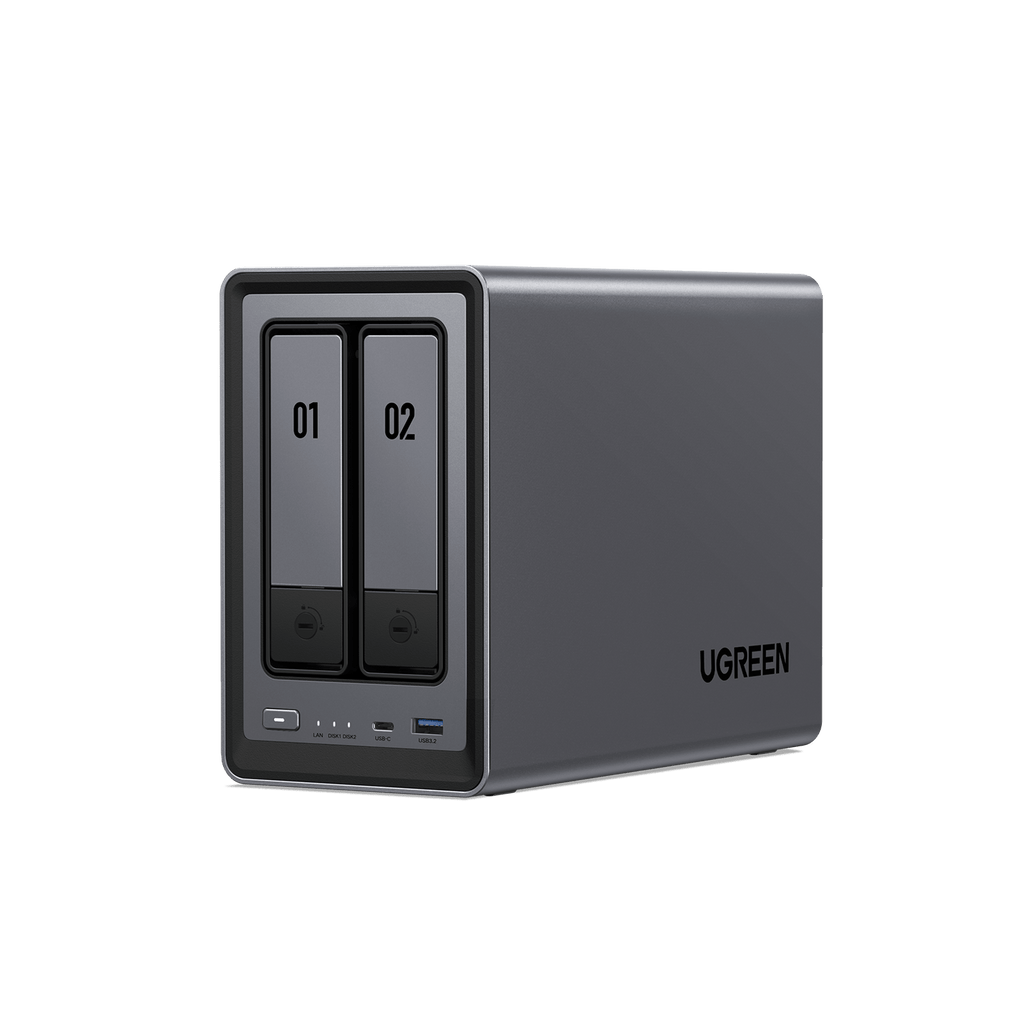

UGREEN DXP2800

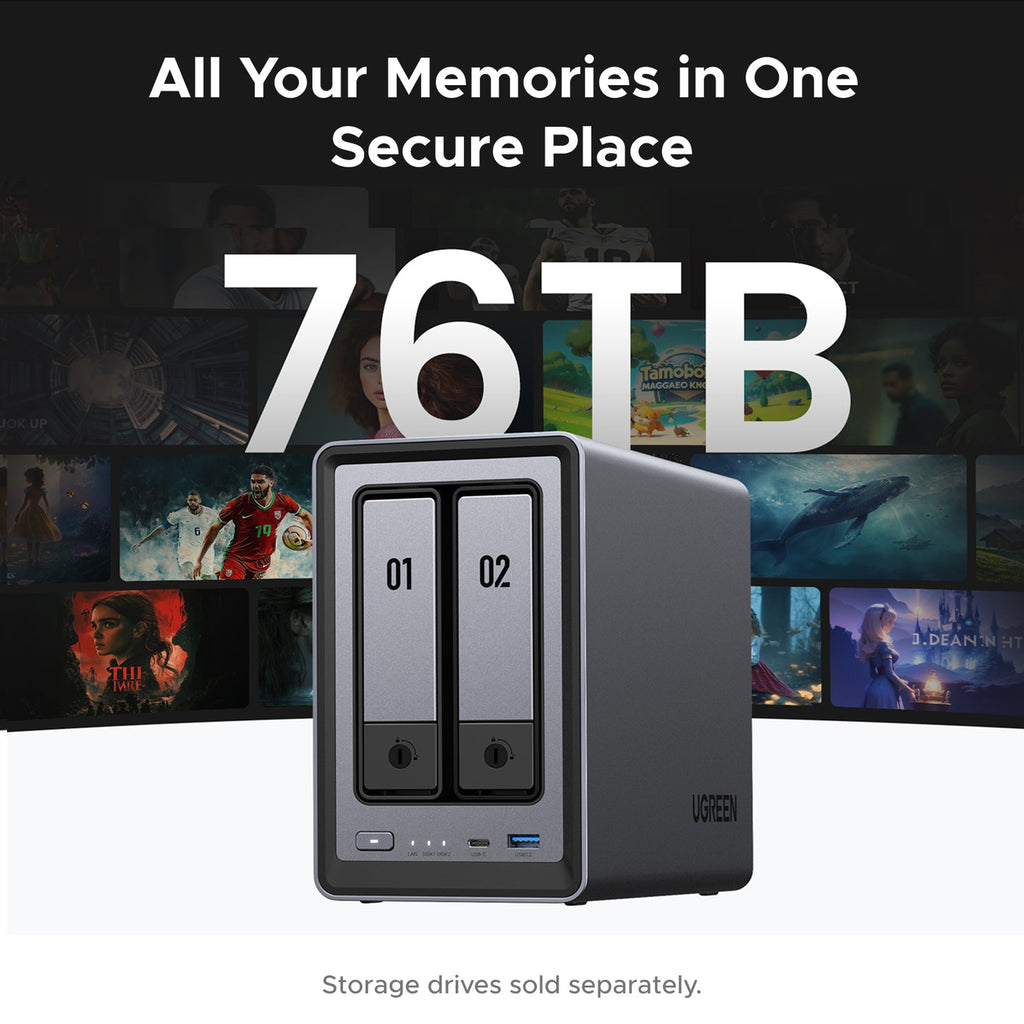

Compact yet powerful, UGreen DXP2800 is a 76TB 2-bay Network Attached Storage (NAS) solution, powered by 12th Gen Intel N100 processor and a 2.5GbE network port, your 4K home media hub ideal for everyday storage, home media libraries and media streaming needs.
With no vendor lock-in of any kind, UGreen NAS supports popular hard drive brands and is also compatible with a wide range of storage devices including 3.5”/2.5” SATA drives and M.2 SSDs. Winner of the “Best of Kickstarter” award, DXP2800 with its super-fast 8GB DDR5 RAM (expandable Uup to 16GB) can match your toughest demands for multitasking and running complex applications.
UGreen NAS uses high-speed 2.5GbE network port to get you lightning speed backups of 1GB in mere seconds. The two M.2 NVMe slots for high-speed SSDs remarkably amplify read and write speeds for optimal performance.
Specifications:
| SKU |
25242 |
| Model |
DXP2800 |
| Supported Languages |
English, Deutsch, Français, Español, Português, Italiano, 中文, 日本語 |
| Drive Bays |
2-Bay (SATA) |
| Operating System |
UGOS Pro |
| CPU Model |
N100 |
| CPU Brand & Architecture |
Intel X86 12th Generation N Series 4 Cores 4 Threads |
| Memory (RAM) |
8GB DDR5 |
| ODECC |
Supported |
| Expandable RAM (max) |
16GB |
| Flash Memory (System Disk) |
eMMC 32GB |
| SATA Drive Bays |
2 |
| M.2 SSD Drive Slots |
2 |
| RAID |
JBOD/Basic/0/1 |
| Maximum Storage |
76TB (2x 30TB + 2x 8TB) |
| LAN Ports (RJ45) |
1x 2.5GbE |
| PCIe Expansion |
- |
| Thunderbolt™ 4 Ports |
- |
| High-Speed USB Ports (Front Panel) |
1x USB-C, 1x USB-A (both 10Gb/s) |
| High-Speed USB Ports (Rear Panel) |
1x USB-A (5Gb/s) |
| USB 2.0 (Rear Panel) |
2x USB-A (480Mb/s) |
| SD Card Reader |
- |
| HDMI |
4K |
| Wi-Fi |
- |
| Product Dimensions |
9.1" × 4.3" × 7.0" |
| Power Consumption |
16.38W (drive access)
5.24W (drive hibernation) |
What’s in the Box:
1 x UGreen NASync DXP2800
1 x After-Sales Card
1 x User Manual
2 x Hard Drive Tray Keys
1 x Screws & Screwdriver
1 x Ethernet Cable (CAT 7)
1 x Power Adapter (DC 12V/5A)
