Supports max video resolution up to 4K@60Hz and 2K@60Hz with 18 Gbps bandwidth
Supports PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, and DTS High Res via the HDMI port

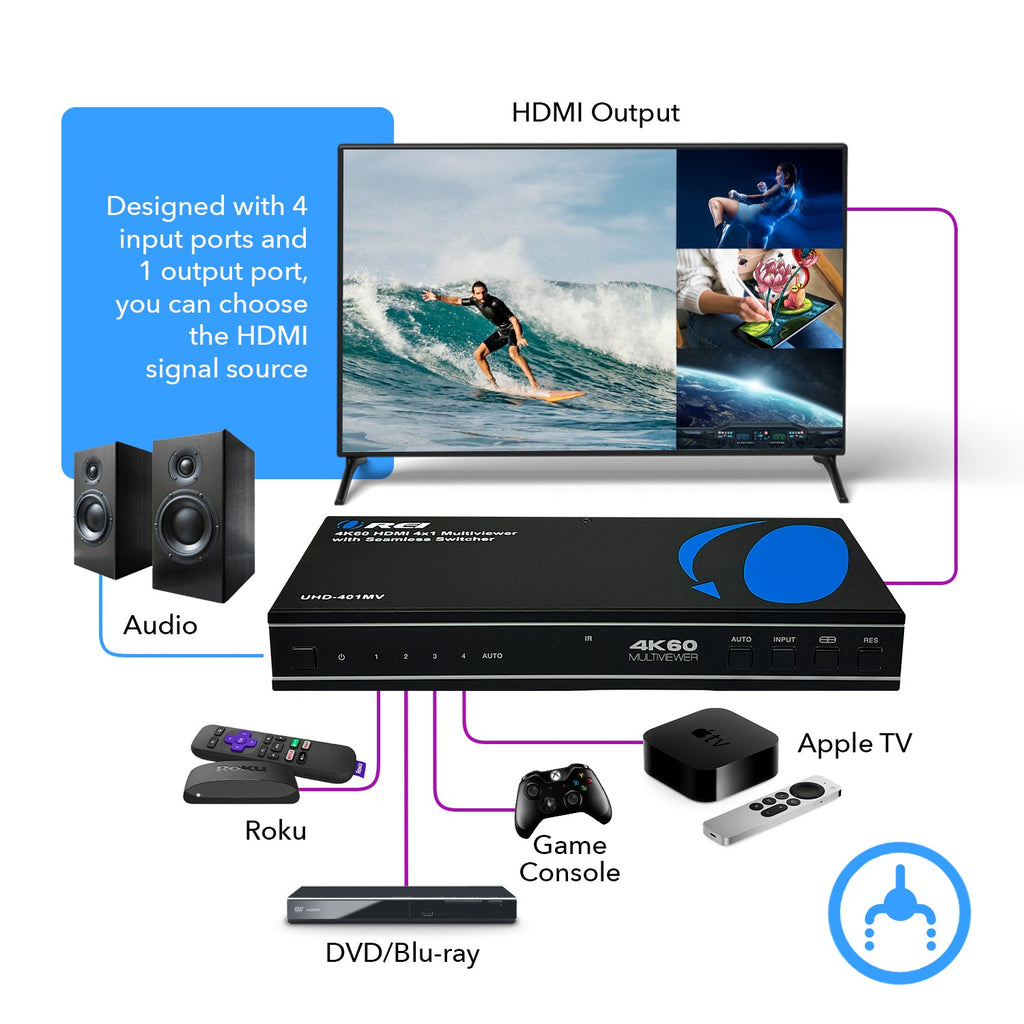

This HDMI switcher is designed with 4 HDMI Input ports, 1 HDMI output port, 1 Optical output, and an L/R port
Seamless switching on single-screen display mode and fast switching on multiview display mode
Audio de-embedding via analog and optical fiber audio ports

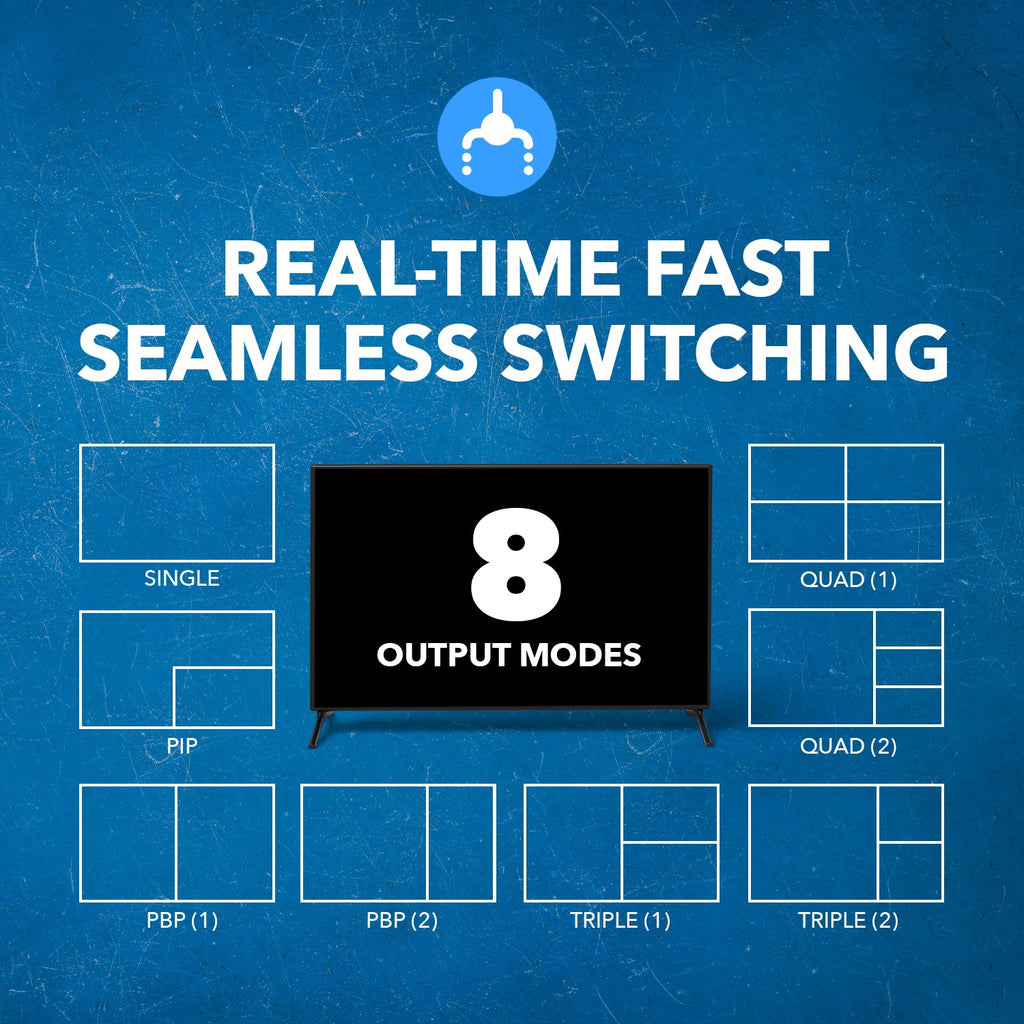

Supports Up to 8 display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
Support OSD navigation for advanced setting
Support volume control and independent audio selection

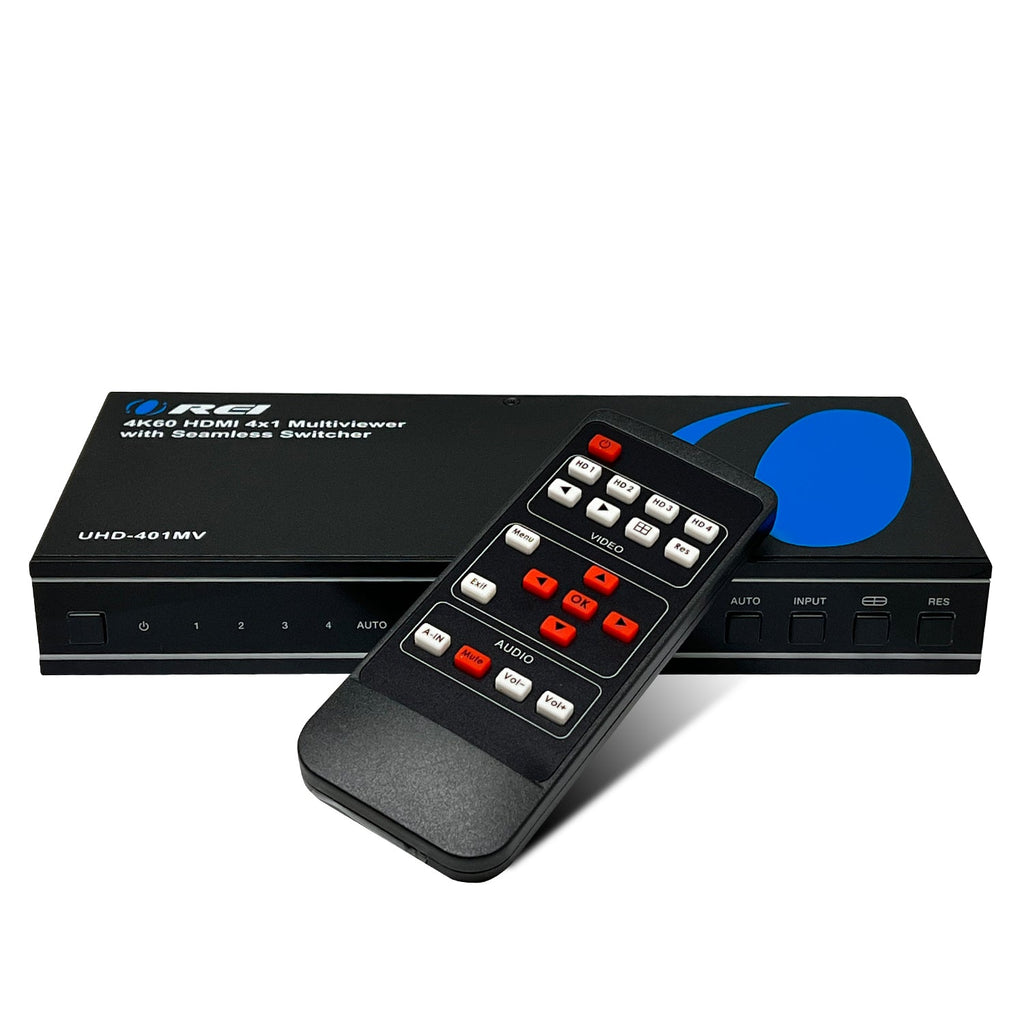

Control via front panel buttons, IR remote, RS-232 commands
This HDMI MultiViewer 4x1 switch is compatible with gaming consoles such as PlayStation, Xbox One, Nintendo, Roku, DVD, blue ray, players Amazon fire TV, cable TV, Chromecast, and so many other HDMI devices
Compact design for easy and flexible installation

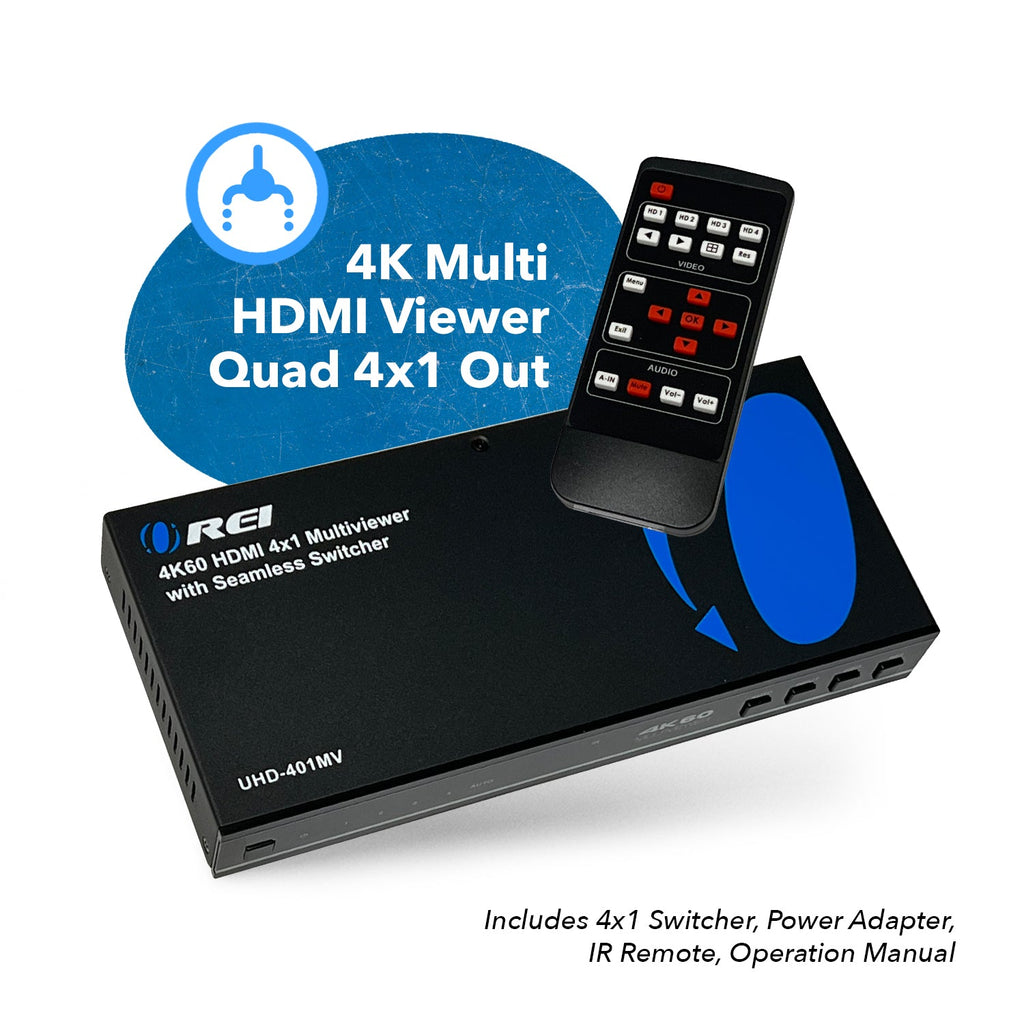

The OREI UHD-401MV 4K@60Hz and 2K@60Hz 4x1 Multiviewer Seamless UHD Video Switcher was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen. It can combine up to four video signals onto a single UHD or HD displayer. The user can easily manage each input via the supplied Control Software and create any layout and position of any of the four inputs on a single monitor. This device supports a full range of input video resolutions up to 4K@60Hz (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems. This device can be controlled via front panel buttons, IR remote, and RS-232 commands.
[shortdes]
4 Inputs - 1 output HDMI Multiviewer switch
Supports video resolution up to 4K@60Hz and 2K@60Hz
Supports up to 8 display mode
Supports EDID management
[/shortdes]
[tab]

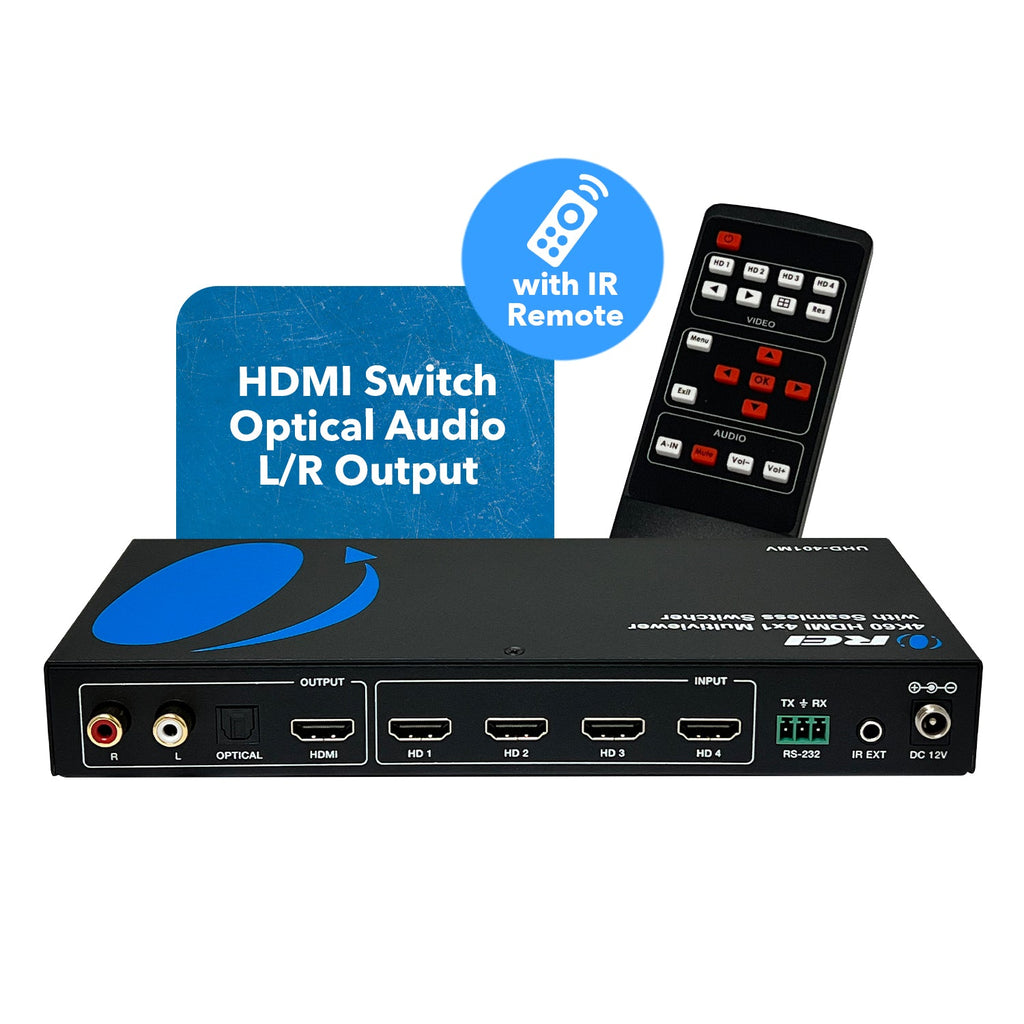

CONNECTIVITY
Input:
4×HDMI Type A [19-pin female]
Output:
1×HDMI OUT Type A [19-pin female]
1 x OPTICAL AUDIO OUT [S/PDIF]
1 x L/R AUDIO OUT RCA [Red & White]
Control Ports:
1x RS-232 [3pin-3.81mm phoenix connector]
1x IR Ext [3.5mm Stereo Mini-jack]
AUDIO AND VIDEO
Video Bandwidth:
18Gbps
Video Resolution:
Up to 4K2K@60
Audio Formats:
HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res Analog audio [3.5mm L/R]: PCM2.0;
OPTICAL (SPDIF): Dolby Digital, DTS 5.1, PCM2.0.
Note: It does not support HBR audio.
Color Depth:
8 bit
Color Space:
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
COMPLIANCE
HDMI Compliance:
HDMI 2.0b
HDCP Compliance:
HDCP 1.x, 2.2
POWER
Power Supply:
Input: AC 100 - 240V 50/60Hz
Output: DC 12V/2.5A
Power Consumption (Max):
10W
FUNCTIONS
RS-232
Control commands via RS-232
PROTECTION
Operating Temperature:
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature:
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20~90% RH (Non-condensing)
ESD Protection:
Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge)

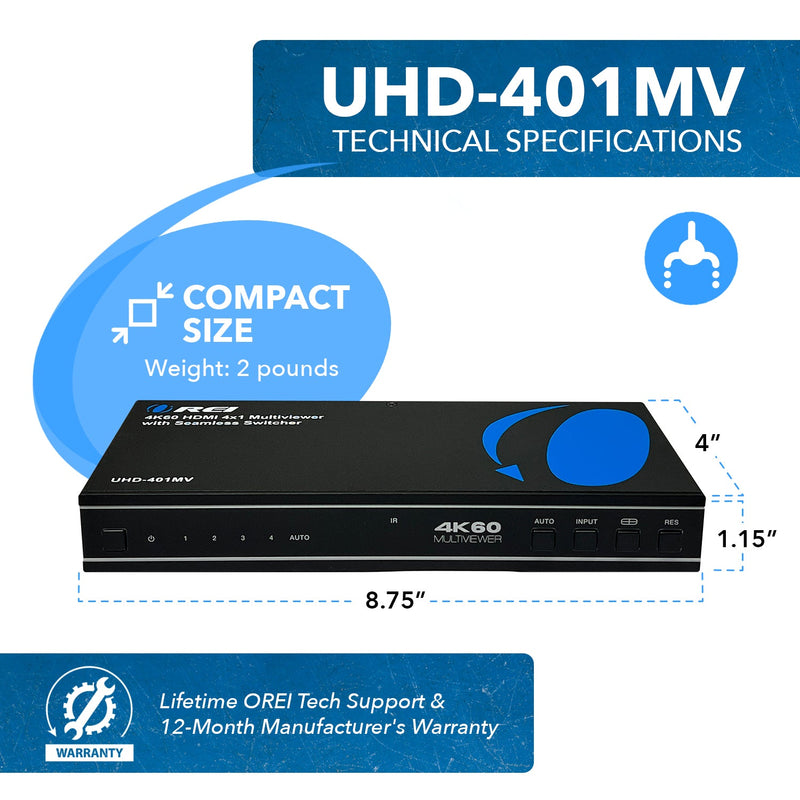

DIMENSIONS & WEIGHT
Height:
30mm
Width:
220mm
Depth:
100mm
Weight:
620g
REGULATORY
Safety and Emission:
CE | FCC | RoHS
PACKAGE CONTENTS
1 × UHD-401MV 4x1 Multiviewer Switch
1 × IR Remote
1x 3pin-3.81mm Phoenix Connector (male)
1x 38KHz IR Wideband Receiver Cable (1.5 meters)
2x Mounting Ear
4x Machine Screw (KM3*4)
4x Rubber Feet
1x 12V/2.5A Locking Power Adapter
1 × User Manual
Warranty
1 - Year Manufacturer's Warranty
[/tab]
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
You may also like
Recently viewed
Product FAQs
The OREI UHD-401MV supports a maximum video resolution of 4K@60Hz.
The UHD-401MV has 4 HDMI input ports.
The UHD-401MV can de-embed PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, and DTS High Res audio formats.
The UHD-401MV offers 8 display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), and Quad (2).
The UHD-401MV can be controlled via front panel buttons, an IR remote, or RS-232 commands.
