Velowave Forest XM MTB Electric Bike
Glide over gravel. Dominate steep climbs. The Forest XM is your all-terrain partner designed for both comfort and control. Built with front and rear suspension, a high-torque 1000W motor, and a long-range 48V 20Ah LG battery, this dual-suspension electric mountain bike handles rugged trails and urban obstacles without breaking a sweat. Crafted from lightweight 6061 aluminum, the integrated frame keeps it sleek, durable, and responsive.

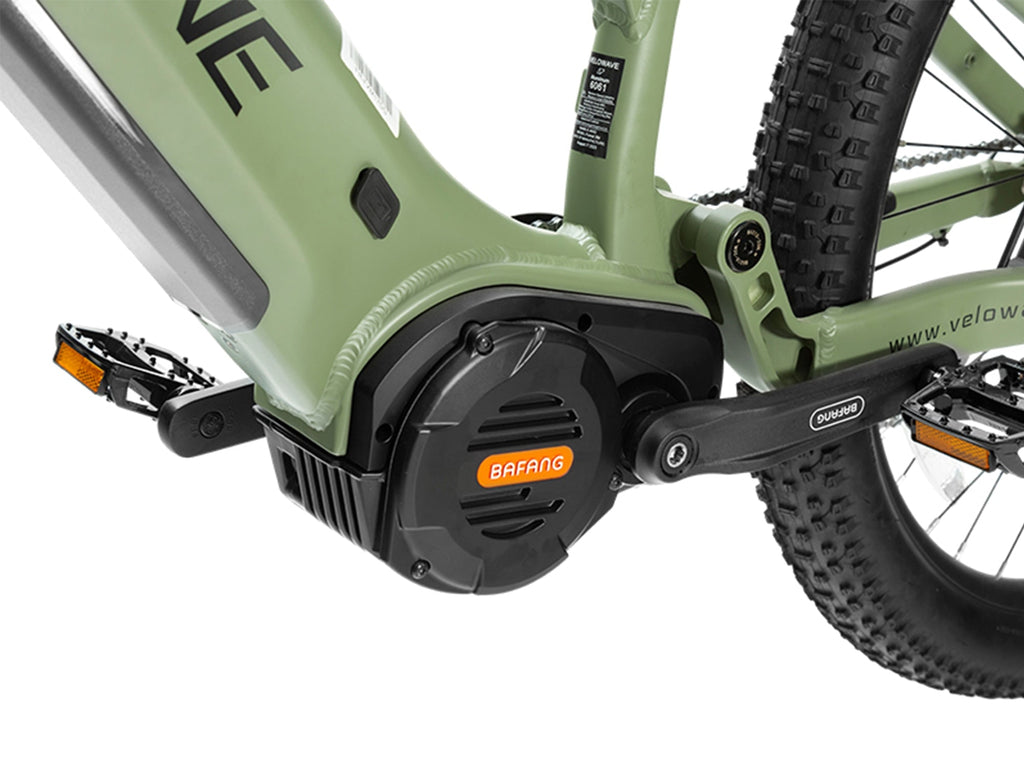

1000W Motor with 160Nm Torque
Climb hills and push through tough terrain with ease. The 1000W motor (peaks at 1200W) delivers 160Nm of torque, giving you strong, smooth acceleration even on steep or loose surfaces.
48V 20Ah LG Battery – Up to 85 Miles
The removable lithium-ion battery with premium LG cells supports up to 85 miles (PAS) or 60 miles (Throttle). Recharge with the 48V 3A charger in ~7 hours for daily readiness.
Advanced Full Suspension
Equipped with a 140mm travel air fork (with lockout) and RockShox rear suspension, the Forest XM absorbs bumps and drops, keeping your ride controlled and comfortable on gravel, trail, or pavement.
Shimano 10-Speed Drivetrain
The Shimano Deore 10-speed rear derailleur, 11-42T cassette, and thumb shift lever offer smooth, precise shifting—perfect for adjusting on the fly to hills, descents, or changing surfaces.
Hydraulic Disc Brakes with Power Cut-Off
Tektro hydraulic brakes with 180mm rotors and motor cutoff ensure consistent, controlled braking in all conditions—even when fully loaded or descending steep trails.
Specifications
Drivetrain
Shifter: Shimano 10-Speed Thumb Shift
Crankset: 170mm with 40T
Freewheel: Shimano 11-42T, 10-Speed Cassette
Pedals: Alloy Platform
Chain: KMC 134 Link, 10-Speed

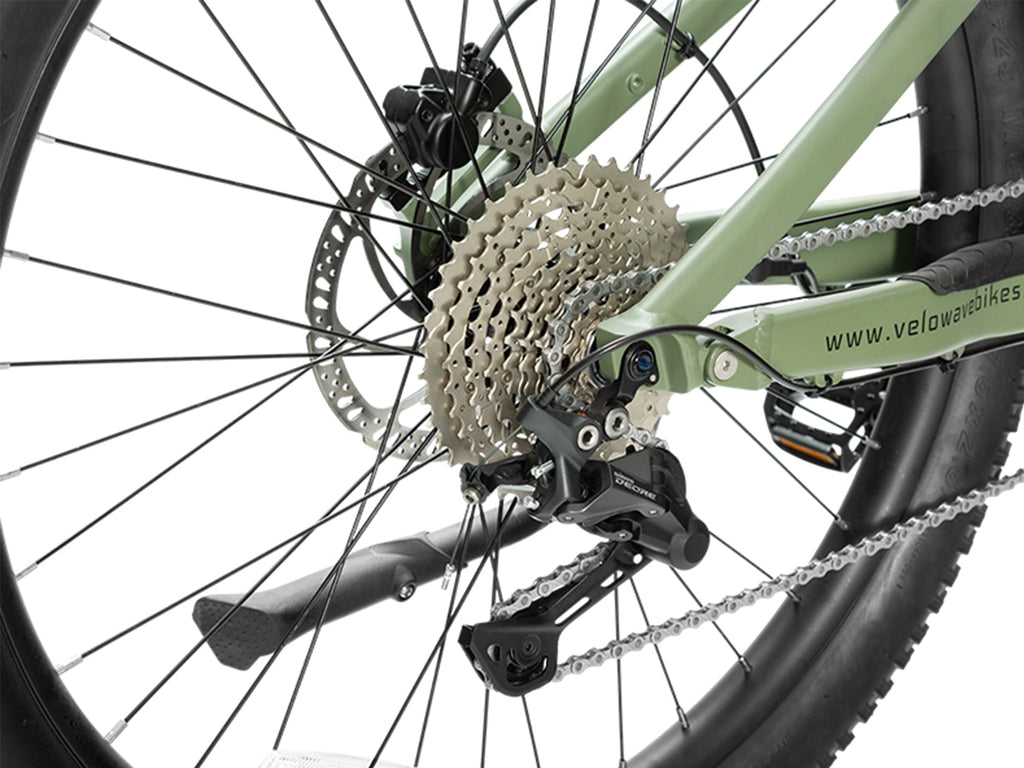

Rear Derailleur: Shimano Deore RD-M4120, 10-Speed
Frameset
Frame: 6061 Aluminum Alloy with Internal Battery, Front and Rear Suspension, 133mm Frame Travel
Fork: Air Suspension Fork, 140mm Travel with Lockout

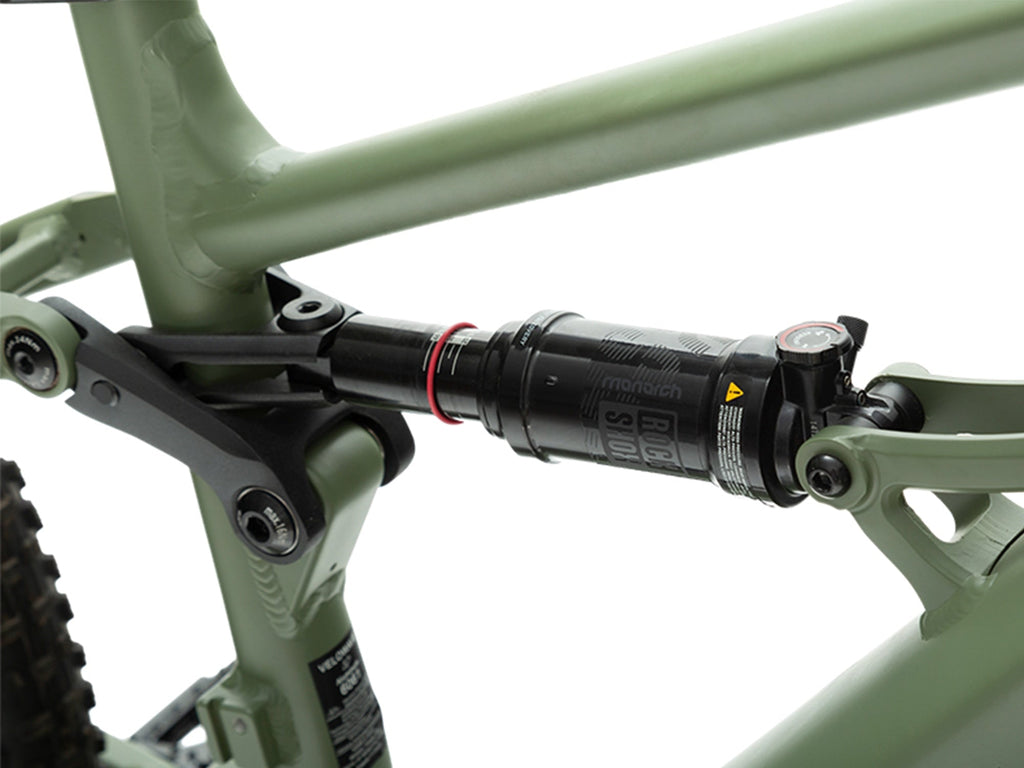

Rear Suspension: RockShox RS-MNR-R-C4, 184x44 Air Spring, 44mm Travel with External Rebound Adjustment
Wheels
Rims: Aluminum 27.5", 36H Front & Rear
Spokes: Black Stainless Steel, 13G x 269/270mm (Front and Rear)
Hubs: Disc Nutted Front and Rear Axles
Tires: Kenda 27.5" x 2.8" All-Terrain Tires
Tire Size: 27.5" x 2.8"
What’s in the Box
1x VELOWAVE Forest XM Electric Bike
1x 48V 20Ah LG Lithium Battery (Installed)
1x 48V 3A Battery Charger
1x Tool Kit
1x Kickstand
1x User Manual
