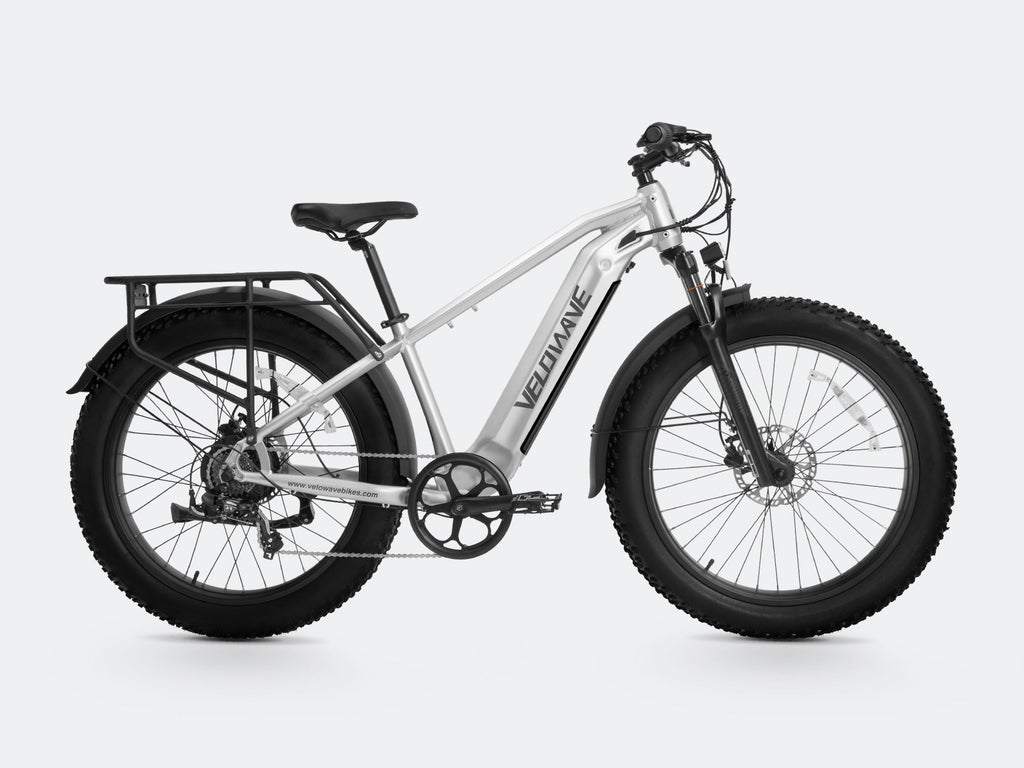

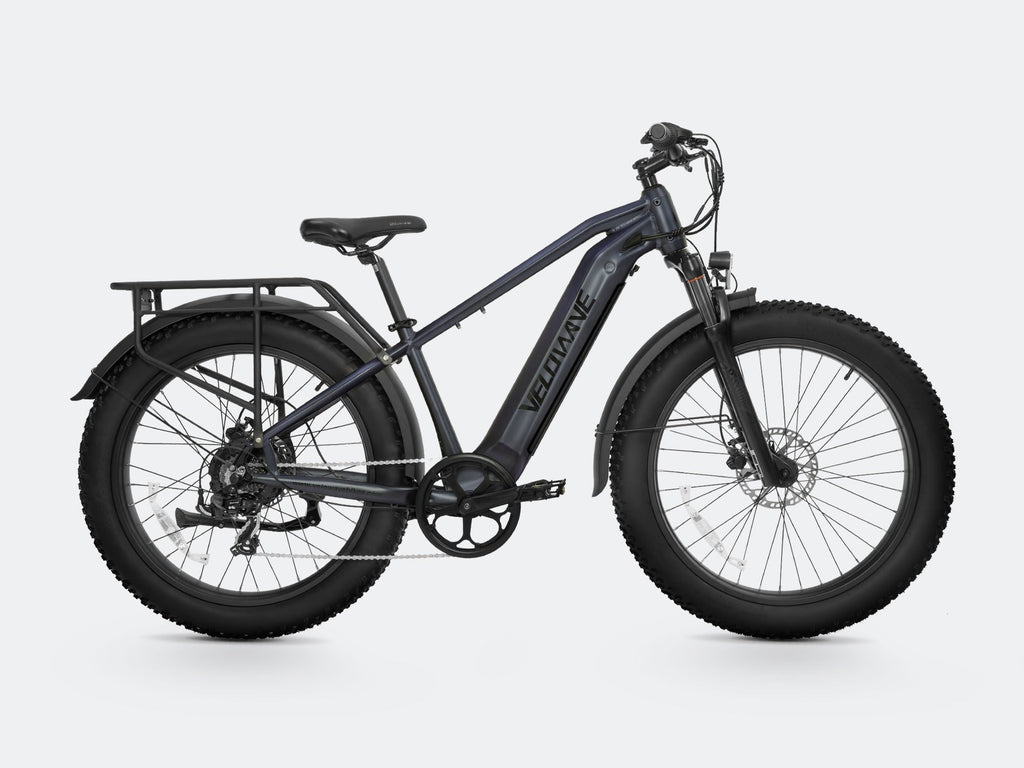

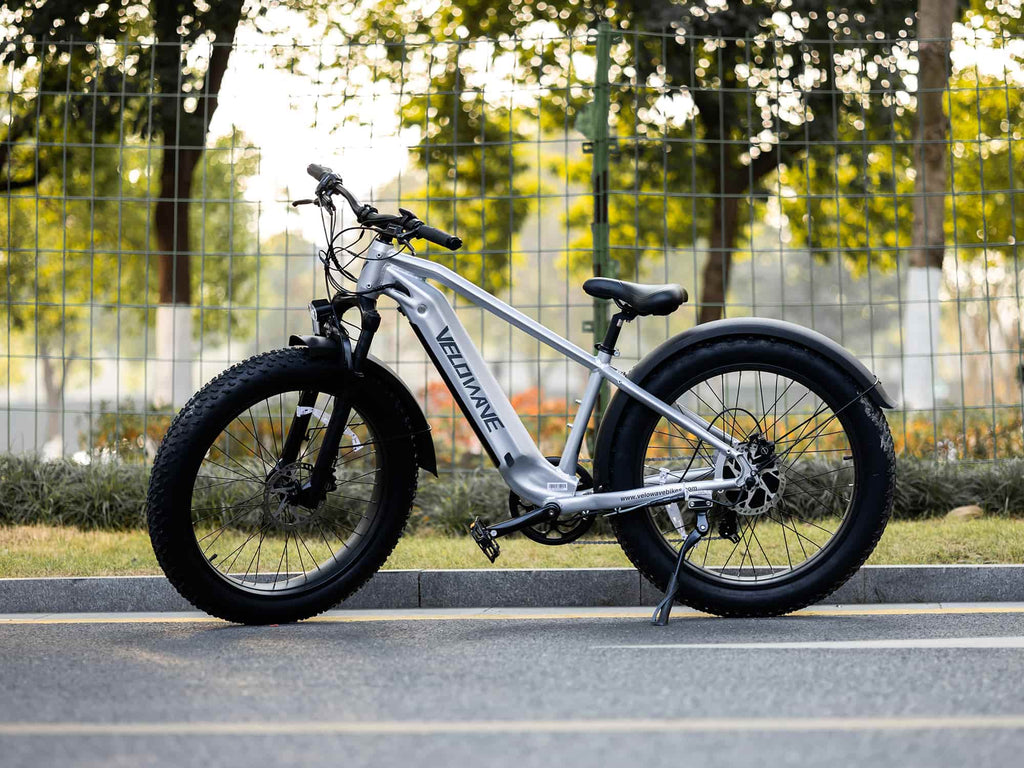

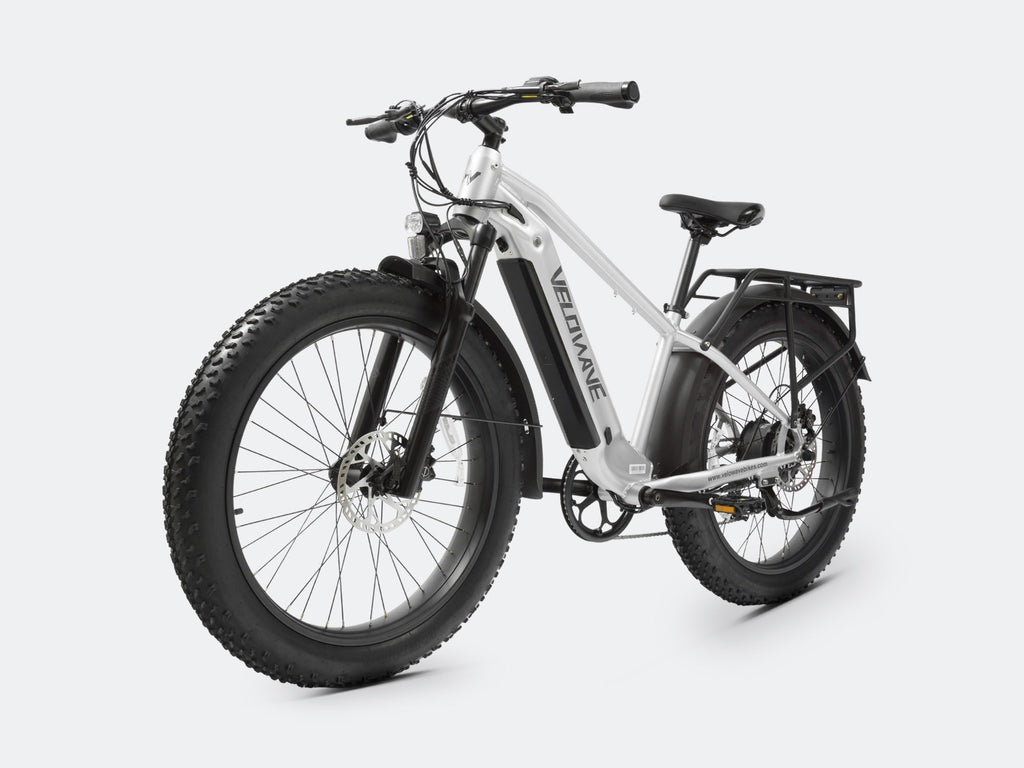

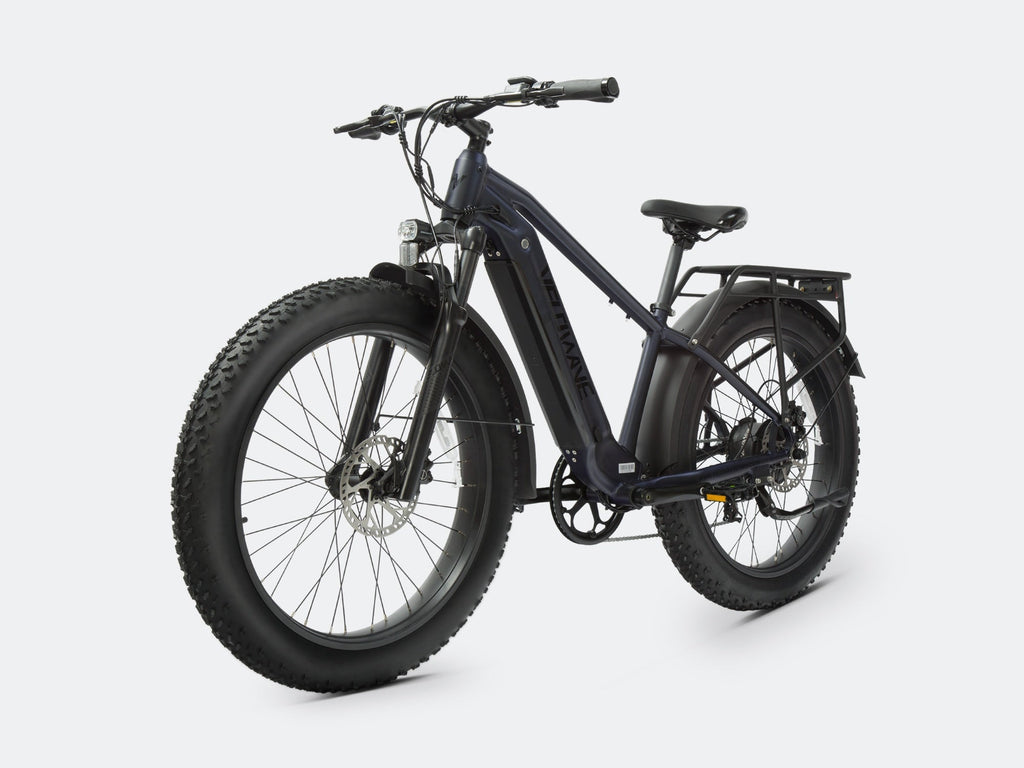

Ranger 2.0 Fat Tire All-Terrain Electric Bike
Power meets durability with the VELOWAVE Ranger 2.0, an electric bike designed for off-road thrill seekers and urban adventurers alike. Equipped with a 750W geared hub motor and a removable 48V 15Ah LG battery, this fat tire e-bike reaches speeds up to 28 MPH and delivers a range of 30+ miles on throttle or up to 90 miles with pedal assist. Tackle any terrain with confidence—from sand and snow to rocky trails—thanks to the wide 4-inch fat tires and robust 6061 aluminum alloy frame that supports up to 350 lbs. Whether you're commuting, cruising, or exploring off the grid, the Ranger 2.0 delivers rugged performance and sleek versatility.
750W High-Torque Motor
Conquer steep inclines and accelerate with ease using a powerful rear hub motor that peaks at 960W, ensuring responsive power on-demand.
Long-Range LG Battery (48V 15Ah)
Lockable and removable, the UL-certified LG battery gives you freedom to charge anywhere—up to 90 miles with pedal assist and 30+ miles on throttle-only mode.
All-Terrain 4.0" Fat Tires
Ride confidently across sand, snow, dirt, or urban pavement. These anti-slip, shock-absorbing tires provide ultimate grip and stability.
Sturdy 6061 Aluminum Frame
Built for strength and accessibility, the heavy-duty frame supports up to 350 lbs and features a reinforced rear triangle for added load capacity.
Hydraulic Disc Brakes
Get precise stopping power with hydraulic brakes that respond instantly—essential for safety in diverse riding conditions.
Multiple Riding Modes
Switch between throttle, pedal assist, or manual pedaling for a custom riding experience based on terrain, distance, or effort level.
Specifications
Motor: 750W geared hub motor (960W peak)
Battery: 48V 15Ah removable LG lithium-ion battery
Max Speed: 28 MPH
Range: Up to 90 miles (PAS), 30+ miles (throttle)
Frame: 6061 aluminum alloy
Tire Size: 26" x 4.0" fat tires
Weight Capacity: 350 lbs
Brakes: Hydraulic disc brakes
Display: LCD display with speed, distance, battery level, assist level
Geometry Specs:
Total Length: 1914mm
Head Tube Length: 140mm
Head Tube Angle: 70°
Seat Tube: 425mm
Seat Tube Angle: 70.3°
Handlebar Height: 1109mm
Bottom Bracket Height: 361mm
Chainstay Length: 496mm
Front-Center: 669mm
Wheelbase: 1170mm
Standover Height: 704mm
Reach: 404mm
Seat Height Min/Max: 823mm / 1012mm
What’s in the Box
1 x VELOWAVE Ranger 2.0 E-Bike (pre-assembled)
1 x 48V 15Ah LG Battery (installed)
1 x Battery Charger
1 x User Manual
