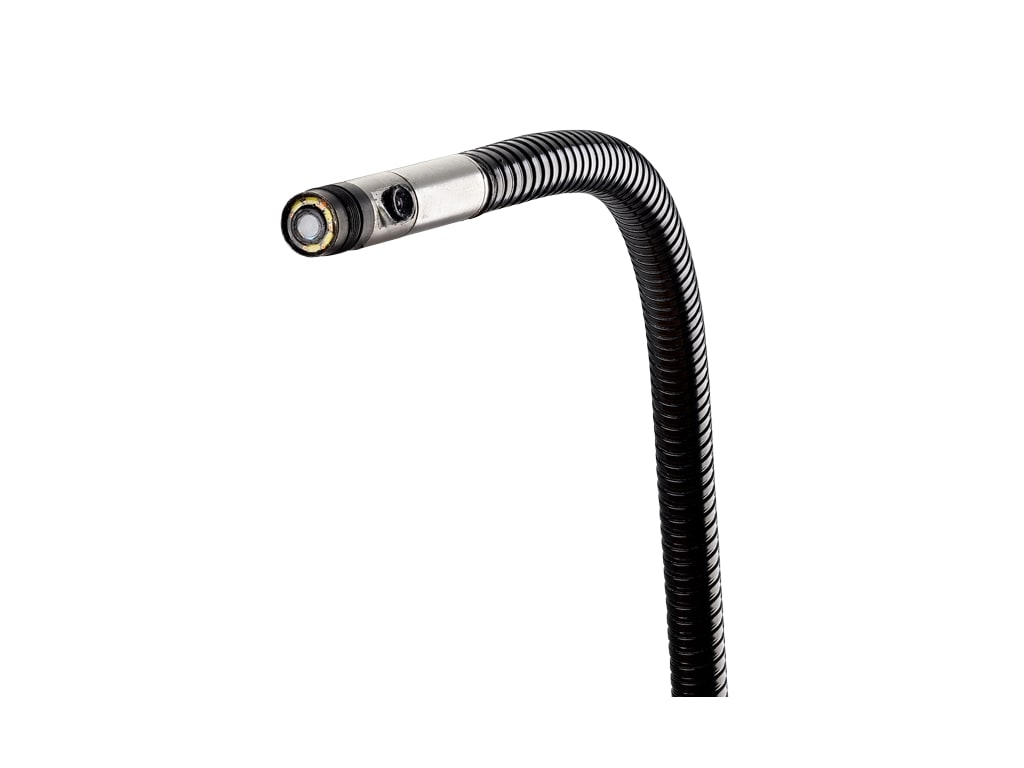

FLIR Videoscope Kit with Dual HD Camera 4.9mm x 1m long probe
The Flir VS80 is a versatile, professional videoscope that you can rely on when inspecting locations that are difficult or unsafe to access. The wide range of unique compatible probes* with waterproof (IP67) camera tips give you flexibility for virtually any type of inspection. Options include: a 160 × 120 thermal camera, 2-way and 4-way articulating visual camera, 30 m plumbing spool with 512 Hz sonde probe locator, HD camera, and dual HD camera probe.

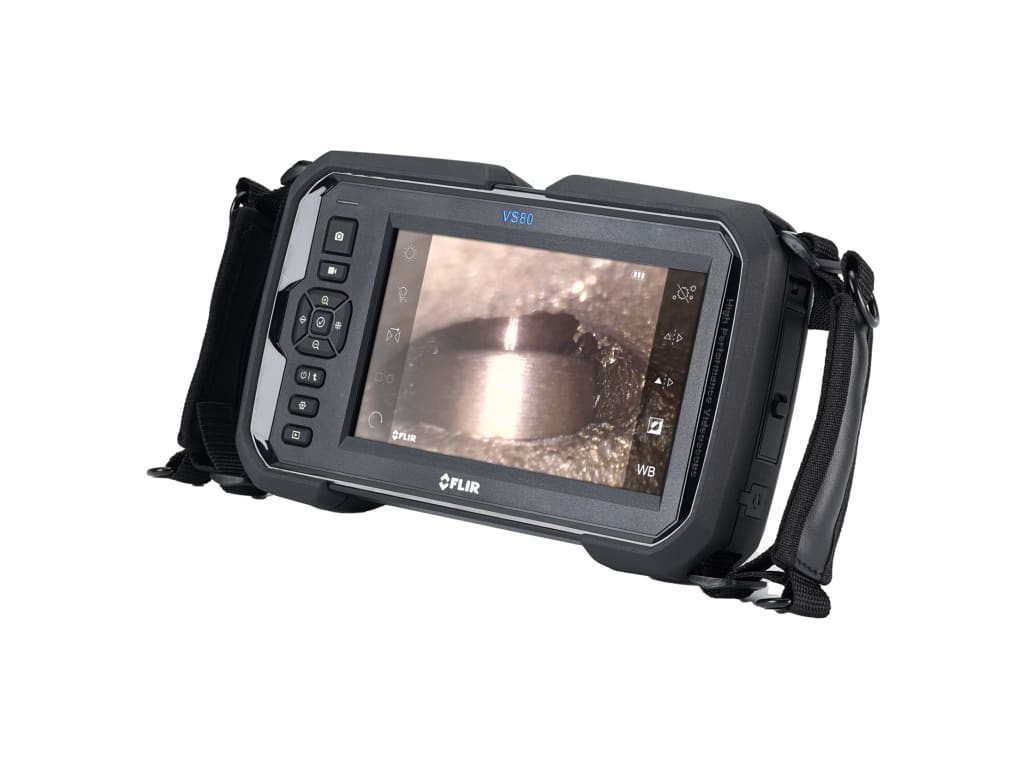

With one or more of the VS80 videoscope probes, you can perform a wide range of inspections, including industrial equipment maintenance, HVAC/R, building, and automotive applications. Easily maneuver the narrow camera probes into small openings and tight spaces, and view sharp, vivid images and videos from the large, 7-inch touchscreen display. Using the Flir Meterlink® Mobile app from a mobile device, you can view live images and video from the VS80, download saved files, and share them easily with customers or colleagues.
Choose a complete kit or purchase the VS80 display and camera probes separately.
Specifications:
| Highlighted |
| Diameter |
VS80-KIT-1, VS80-KIT-6: 5.5 mm
VS80-KIT-2: 4.5
VS80-KIT-3, VS80-KIT-7: 4.9 mm
VS80-KIT-5: 10 mm
VS80-KIT-8: 3.9 mm
VS80-IR21: 19 mm |
| Display resolution |
VS80-IR21: Camera probe: 160 × 120 IR Screen resolution 1024 × 600
VS80-KIT-1, VS80-KIT-2, VS80-KIT-4, VS80-KIT-5: Camera probe: 640 × 480 Screen resolution 1024 × 600
VS80-KIT-3, VS80-KIT-6, VS80-KIT-7, VS80-KIT-8: Camera probe: 1280 × 720 Screen resolution 1024 × 600 |
| Imaging & Optical |
| Color Palettes |
Iron, rainbow, grayscale, below alarm, above alarm |
| Depth of Field |
10 mm to infinity |
| Diameter |
VS80-KIT-1, VS80-KIT-6: 5.5 mm
VS80-KIT-2: 4.5
VS80-KIT-3, VS80-KIT-7: 4.9 mm
VS80-KIT-5: 10 mm
VS80-KIT-8: 3.9 mm
VS80-IR21: 19 mm |
| Display resolution |
VS80-IR21: Camera probe: 160 × 120 IR Screen resolution 1024 × 600
VS80-KIT-1, VS80-KIT-2, VS80-KIT-4, VS80-KIT-5: Camera probe: 640 × 480 Screen resolution 1024 × 600
VS80-KIT-3, VS80-KIT-6, VS80-KIT-7, VS80-KIT-8: Camera probe: 1280 × 720 Screen resolution 1024 × 600 |
| Field of View |
VS80-IR21: 71°
VS80-KIT-1, VS80-KIT-2, VS80-KIT-3, VS80-KIT-6, VS80-KIT-7, VS80-KIT-8: 90°
VS80-KIT-4, VS80-KIT-5: 87.1° |
| Frame Rate |
8.7 Hz |
| Measurement & Analysis |
| Object Temperature Range |
-10°C to 400°C (14°F to 752°F) |
| Spot Meter |
Centre spot, hot spot, cold spot, no measurement |
| Communication & Data Storage |
| Video/Image Transfer |
SD Card, USB, Wireless (Wi-Fi) |
| Power |
| Battery |
VS80: Li-Ion 3.6 V (internal) |
| Battery Life |
8 hrs |
| General |
| Probe Length |
VS80-IR21, VS80-KIT-1, VS80-KIT-2, VS80-KIT-3, VS80-KIT-6: 1 m
VS80-KIT-4, VS80-KIT-8: 2 m
VS80-KIT-7: 3 m
VS80-KIT-5: 25 m |
| Environmental & Certifications |
| Certifications |
IC, CE, FCC, UKCA, RCM |
| Warranty |
3 years |

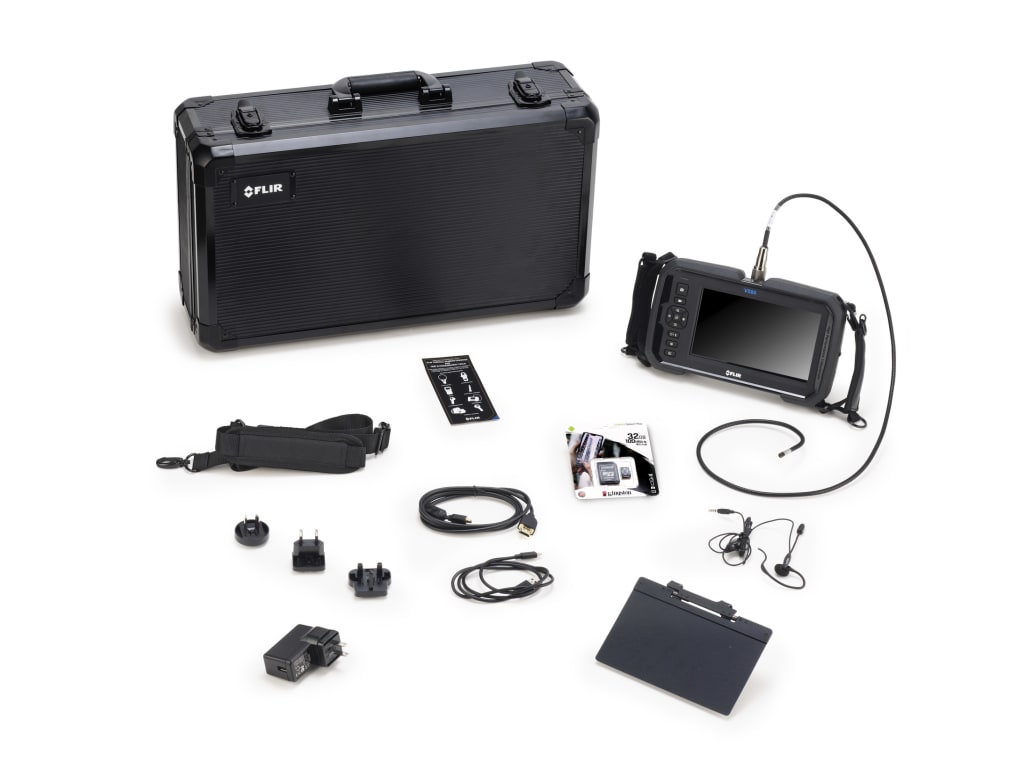

What's in the box:
- 1 x VS80 videoscope
- 1 x VS80C2-49-1RM
- 1 x Audio headset
- 1 x SD card
- 1 x USB cable
- 1 x HDMI cable
- 1 x Neck strap
- 1 x Hand strap
- 1 x Hard case
- 1 x Sun visor (retractable/removable)
- 1 x Power adapter with universal plugs (US, UK, EU, AUS)
- 1 x Printed quick start guide
