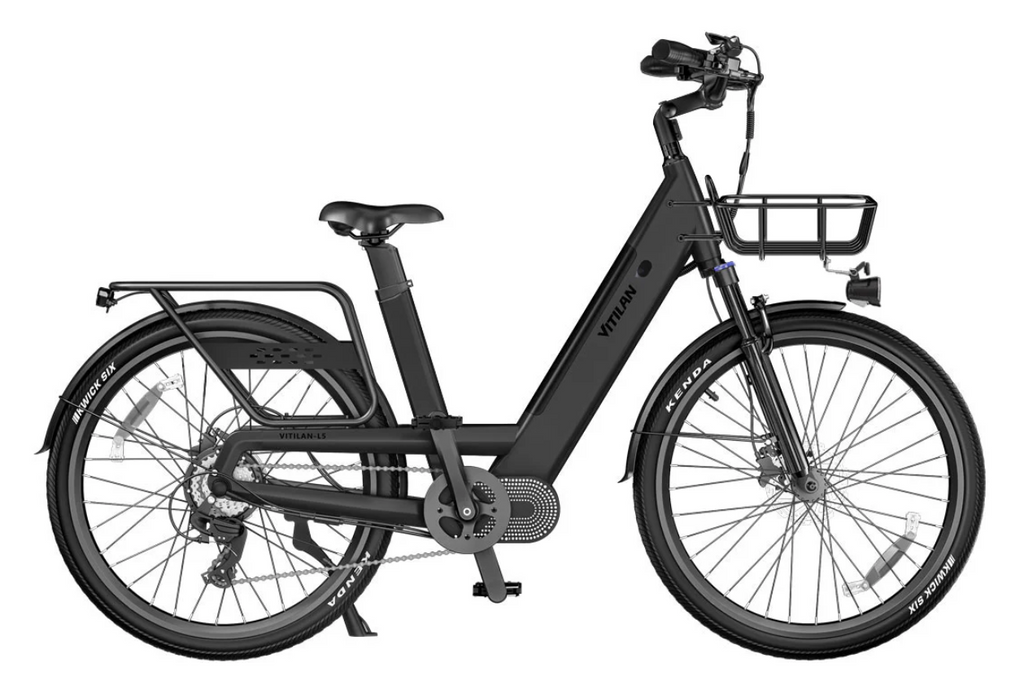

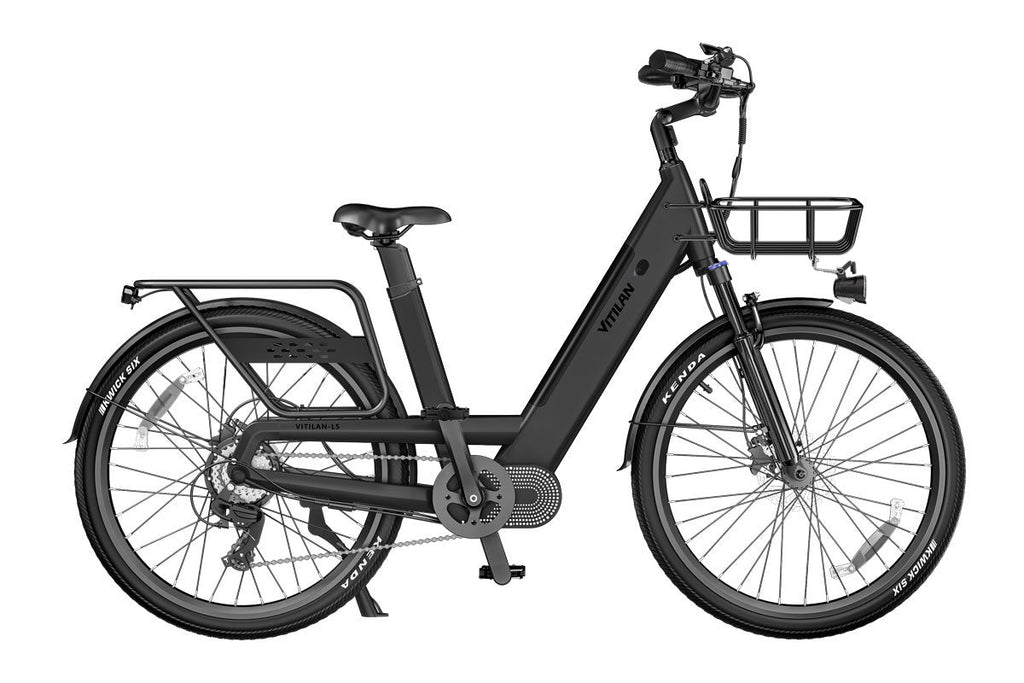

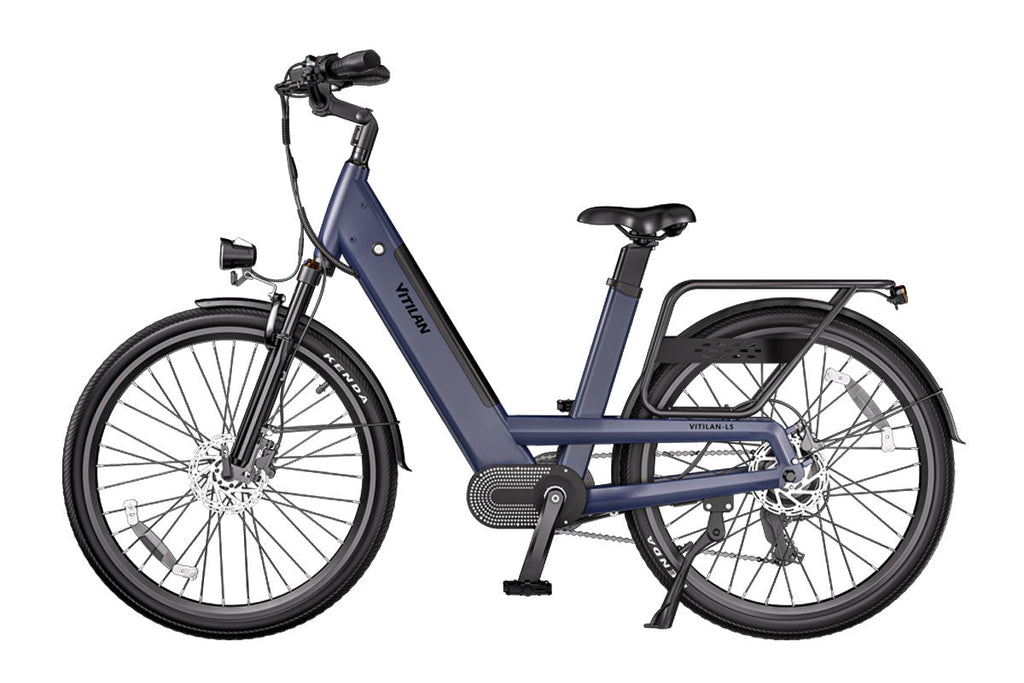

VITILAN L5 Urban Commuter Electric Bike

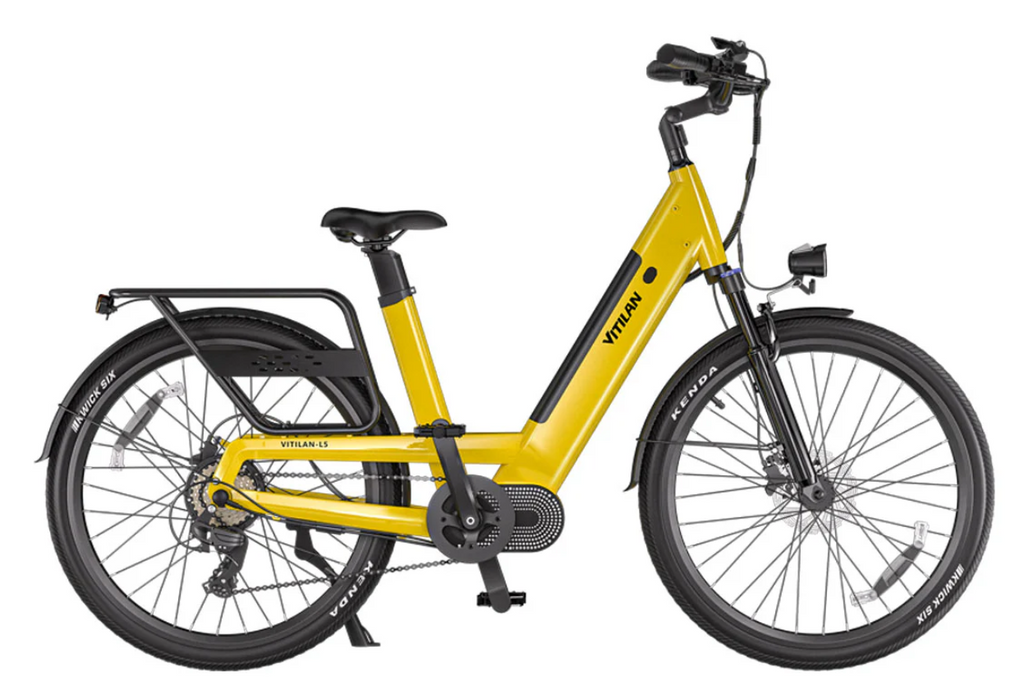

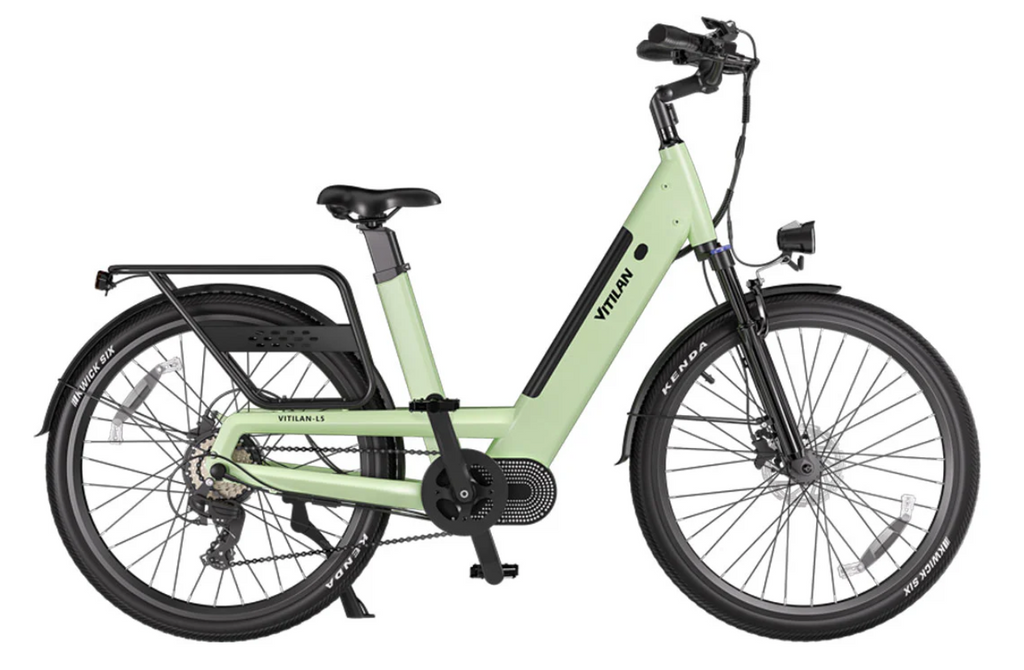

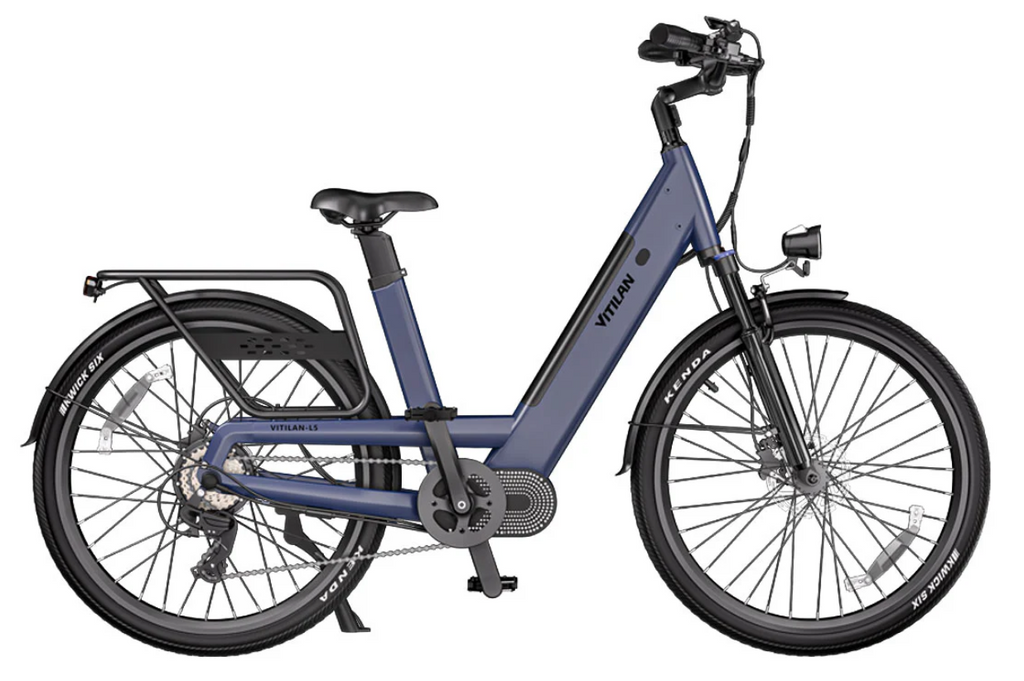

Arrive in style with the VITILAN L5, a dedicated Urban Commuter Electric Bike, an embodiment of style, crafted to explore the city lights in 7 speeds at 25 mph (960W peak power) in a luxurious combo of comfort, reliability, smart tech and green energy. VITILAN L5 is customized in 4 color styles to appeal to your fancies!
BRUSHLESS HUB MOTOR
Vitilan L5's superior 500W motor with 960W peak power and an impressive 65Nm torque allows you to scale uphill like a pro. The 25mph speed ensures you stay ahead in the trail game no matter how tough the terrain gets.

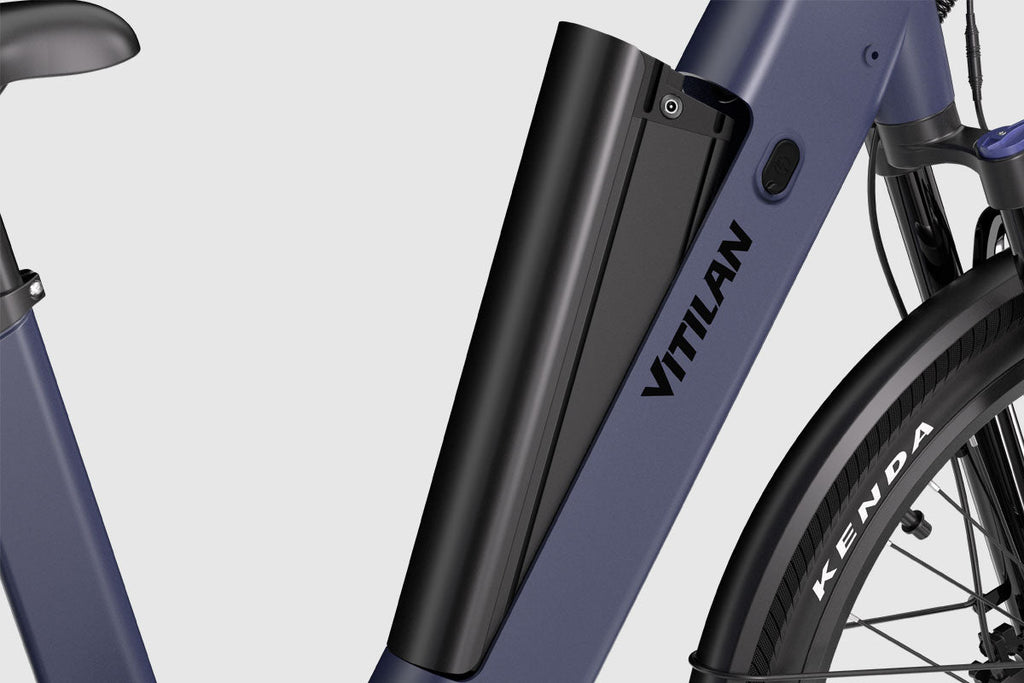

720Wh REMOVABLE BATTERY
L5 is fitted with the 48V 15Ah removable Samsung lithium-ion battery that lets you explore additional riding options even as the battery gets to charging with a 2.0A quick charger. Enjoy longer range of up to 80 kilometers with the reliable Samsung powering your ride.
SMOOTH PEPPY RIDE
Power pedal your way to work or glide along the sun-kissed beach line at leisure as the smart torque transforms your movements into smooth motor power, keeping your ride as comfortable as it can get.

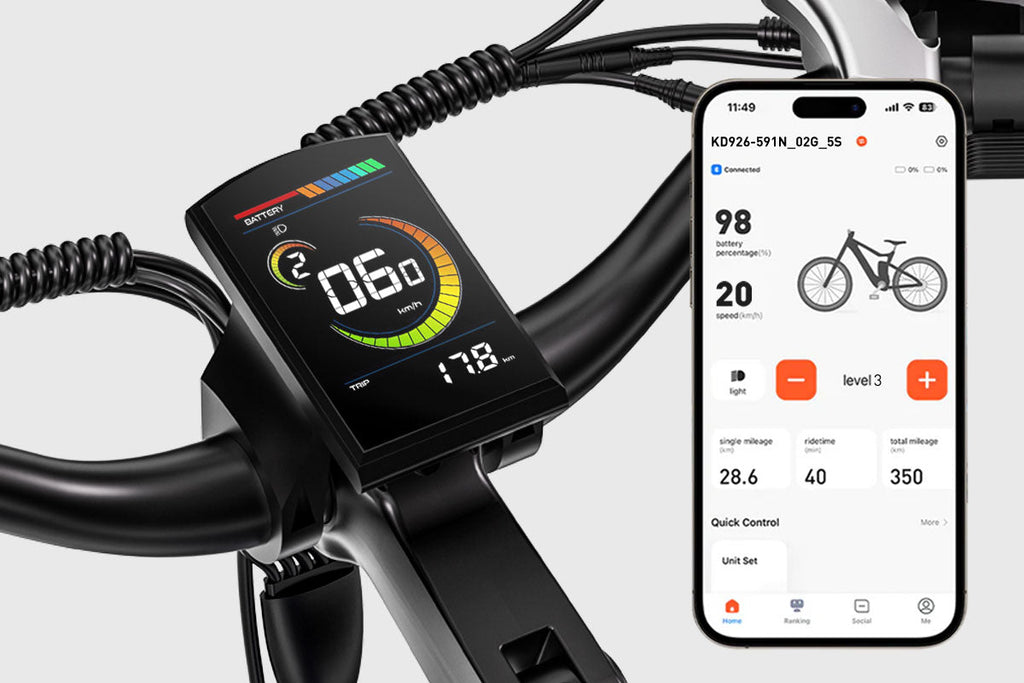

INTELLIGENT COLOR DISPLAY
L5's display is tempered glass laminated that lets you clearly view the TFT color smart meter even in the brightest sunlight. The included automatic light sensor and Apple AirTag helps locate and find your commute in a jiffy. Personalize your bike settings with our Vitilan smart app that lets you take full control of the ride ahead.
Highlights:

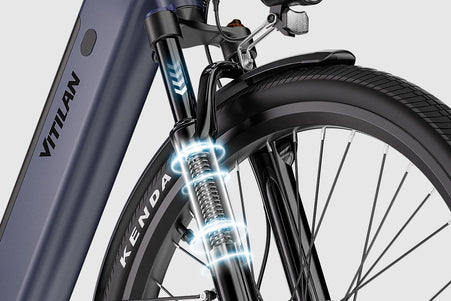

- Adjustable spring suspension fork to absorb impact on bumpy roads
- 180mm Hydraulic brake for controlled braking in harsh conditions
- Shimano 7-speed gear shift system to adjust to varying terrains

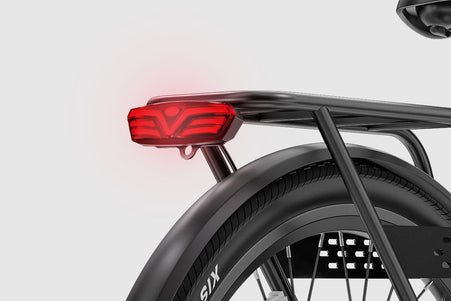

- Integrated Superman-like taillights keeps you visible to the traffic

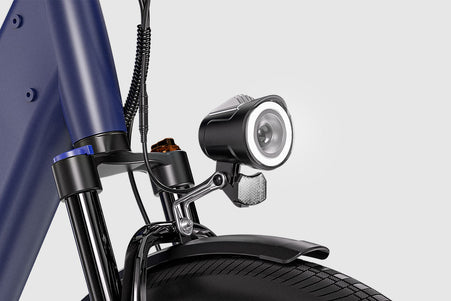

- Multi-angle headlight to light up your path
- Versatile, anti-puncture tires to match longer ride range
Specifications:
TECHNICAL
Motor Hub: 48V, 500W (peak 960W) Motor, max torque 65Nm
Battery: 48V, 15Ah, 720Wh SAM-SUNG Li-ion Battery
Charger: 54.6V 2.0A, Operates on 110V-240V AC, 50-60Hz
Sensor: Torque sensor
Display: 48V Multi-function Intelligent Display
Throttle: Thumb Throttle
Headlight: High output integrated LED, IPX6
Rear Light: Signal Turn Light/48V LED Light
Pedal Assist Range: 60 Miles
Throttle Range: 45 Miles
Controller: 48V / 20A
Pedals: All aluminum pedal forging
FRAMESETS
Frame: Aluminum alloy, fully integrated
Crankset: 38T*170MM, sand-black aluminum alloy crank
Cassette: 7 Speeds, 14-28T
Rear Derailleur: SHIMANO RD-TY300
Shift Lever: SHIMANO SL-TX50-7R
Chain: KMC C8
Brake: 180mm front and rear Hydraulic disc brakes
Fork: Adjustable Spring Suspension Fork
IP Level: IPX6

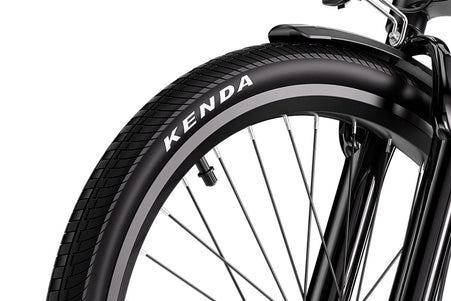

Tire: Kenda 26x2.4”, puncture-resistant liner
Max Load: 330lbs
Max Speed: 25MPH
What's in the Box:
1 x VITILAN L5 Urban Commuter Electric Bike
1 x User Manual
