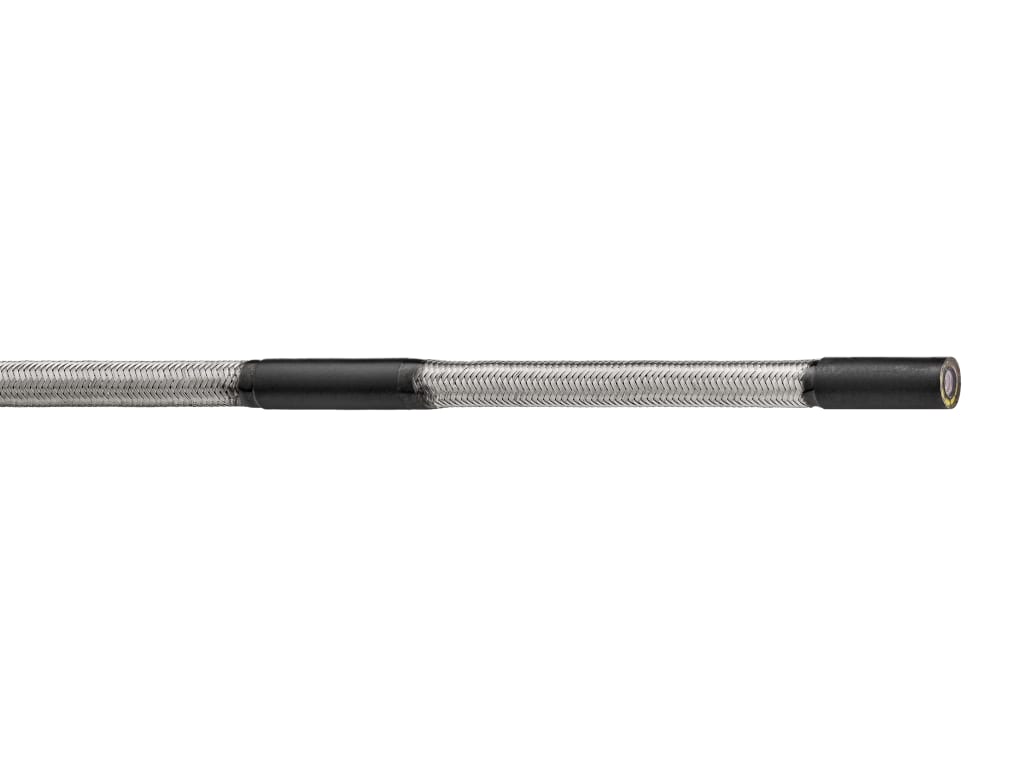

FLIR VS80 2-way articulating probe 4.5mm x 1m long

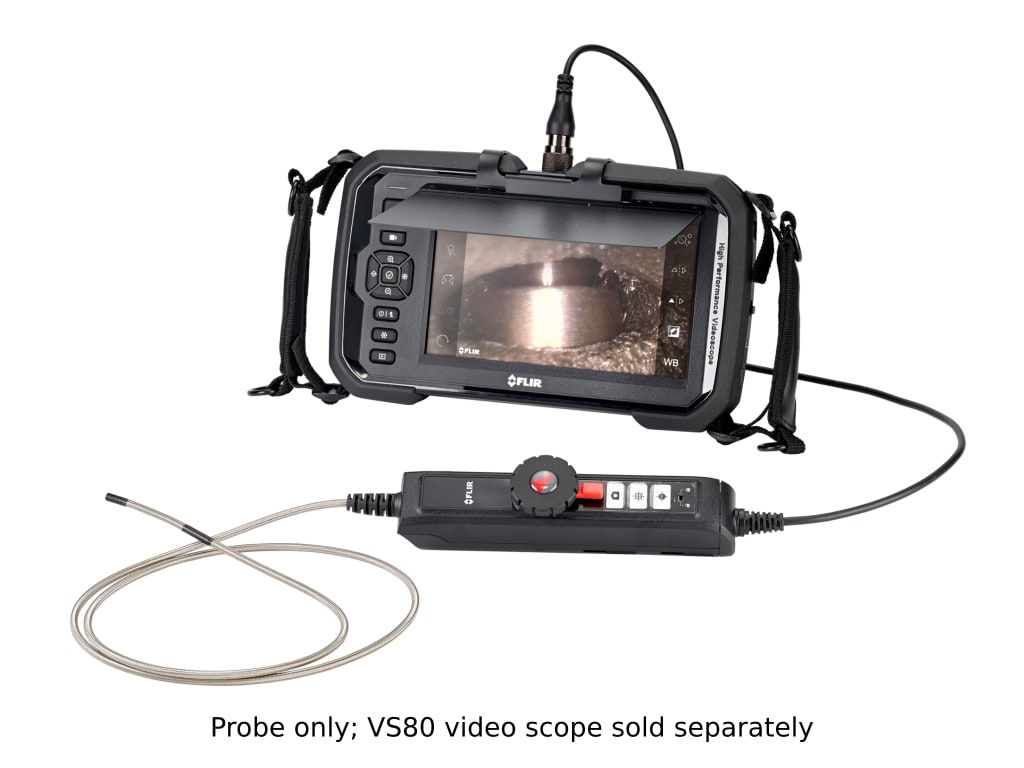

The FLIR VS80A2-45-1RM is a two-way articulating, stainless steel mesh camera probe for visual inspections in difficult-to-access areas. It is for use with the FLIR VS80 high-performance video scope.

Specifications:

Camera resolution: 640 (H) * 480 (V) pixels
Frame rate: 30 frames per second (fps)
Probe diameter: 3.9 mm (0.15 in)
Probe head diameter: 4.5 mm (0.2 in)
Probe head length: 14 mm (0.5 in)
Probe length: 1 m (3.3 ft)

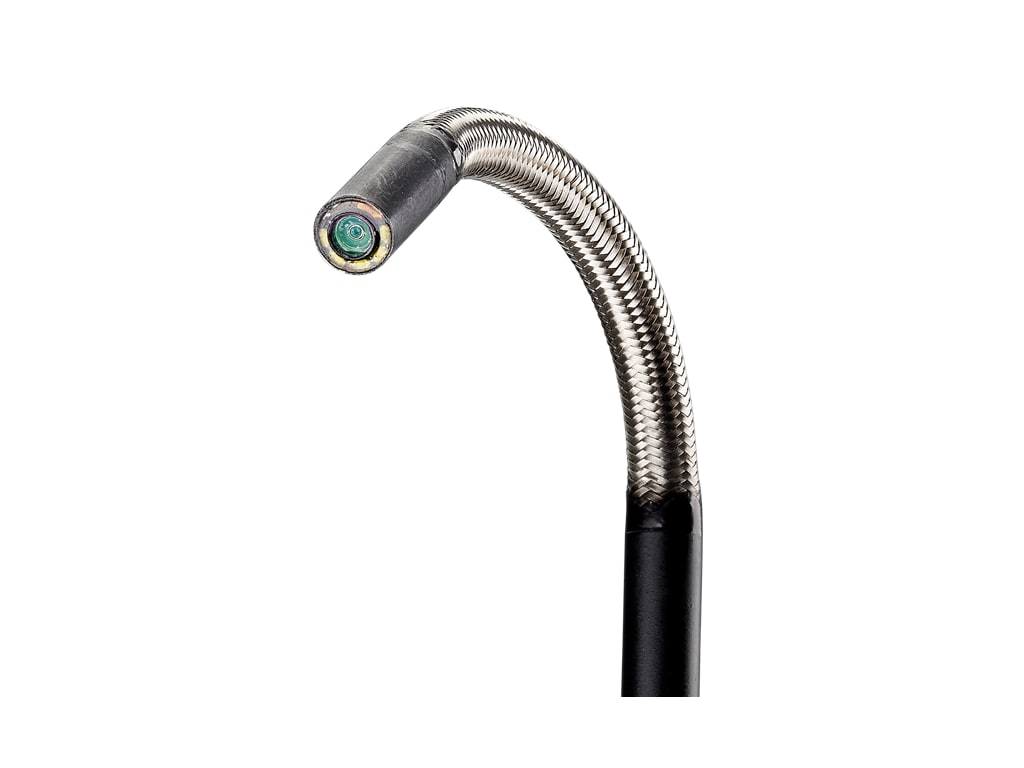

Articulation angle: 180° maximum (the angle may decrease if
the probe is looped)
Probe head material: Stainless steel
Probe body material: Braided mesh stainless steel
Worklights: Five (5) LED lamps
Field of View (FOV): 90°
Depth of Field (DOF): 1 to 10 cm (0.4 to 4.0 in)
Operating temperature: 0℃ to 60℃ (32℉ to 140℉)
Storage temperature: –10℃ to 60℃ (14℉ to 140℉)
Liquids approved for probe submersion: Brake and transmission fluid, diesel fuel, unleaded gasoline, engine oil, and CPC hydraulic oil (46AWS)
Ingress protection: Probe tip and body: IP 67 (IEC 60529)
Protected from submersion in water up to 1
meter (3.3 ft) for 30 minutes maximum. In
use: rain, splashes, and accidental
submersion

What's in the box:

1 x VS80A2-45-1RM 2-way articulating camera probe

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

Product FAQs

Name: FLIR VS80 2-way articulating probe
Brand: Flir
SKU: VS80A2-45-1RM
Price: 2299.0 USD
Availability: InStock

What is the camera resolution of the FLIR VS80 2-way articulating probe?

The camera resolution is 640 (H) * 480 (V) pixels.

What is the probe length and diameter of the FLIR VS80 2-way articulating probe?

The probe is 1 m (3.3 ft) long and has a diameter of 3.9 mm (0.15 in), with a probe head diameter of 4.5 mm (0.2 in).

What is the articulation angle of the probe?

The articulation angle is 180° maximum.

What is the ingress protection rating for the probe?

The probe tip and body have an IP 67 rating (IEC 60529).

Can the FLIR VS80 2-way articulating probe be submerged in liquids?

Yes, the probe is approved for submersion in brake and transmission fluid, diesel fuel, unleaded gasoline, engine oil, and CPC hydraulic oil (46AWS).
