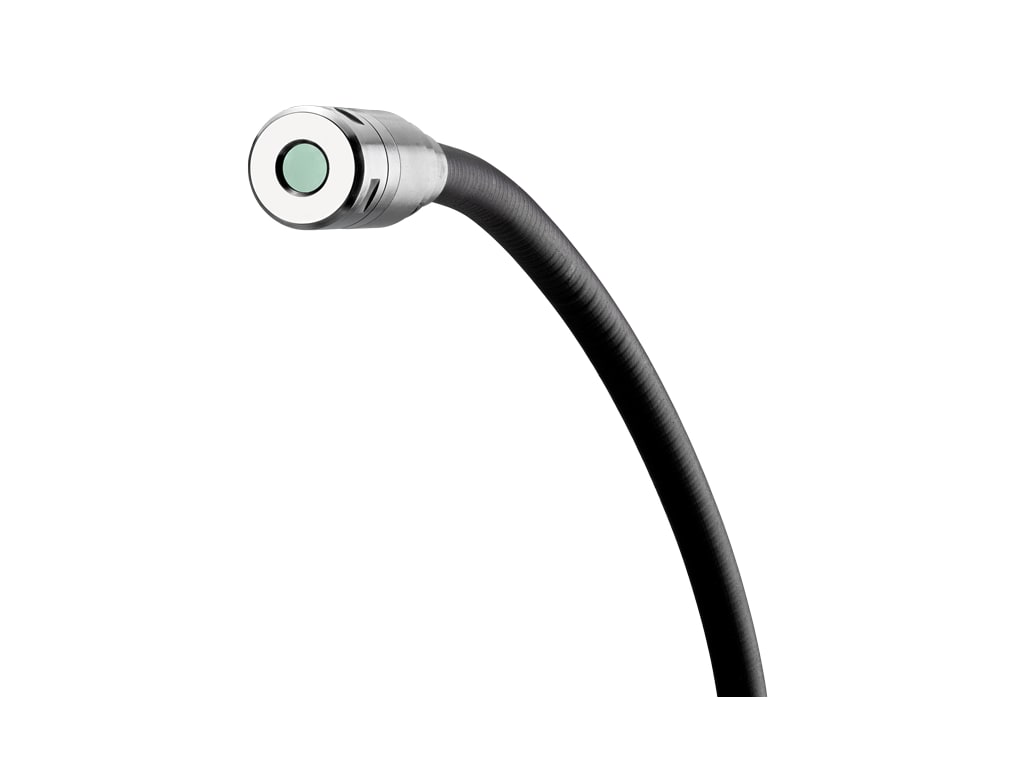

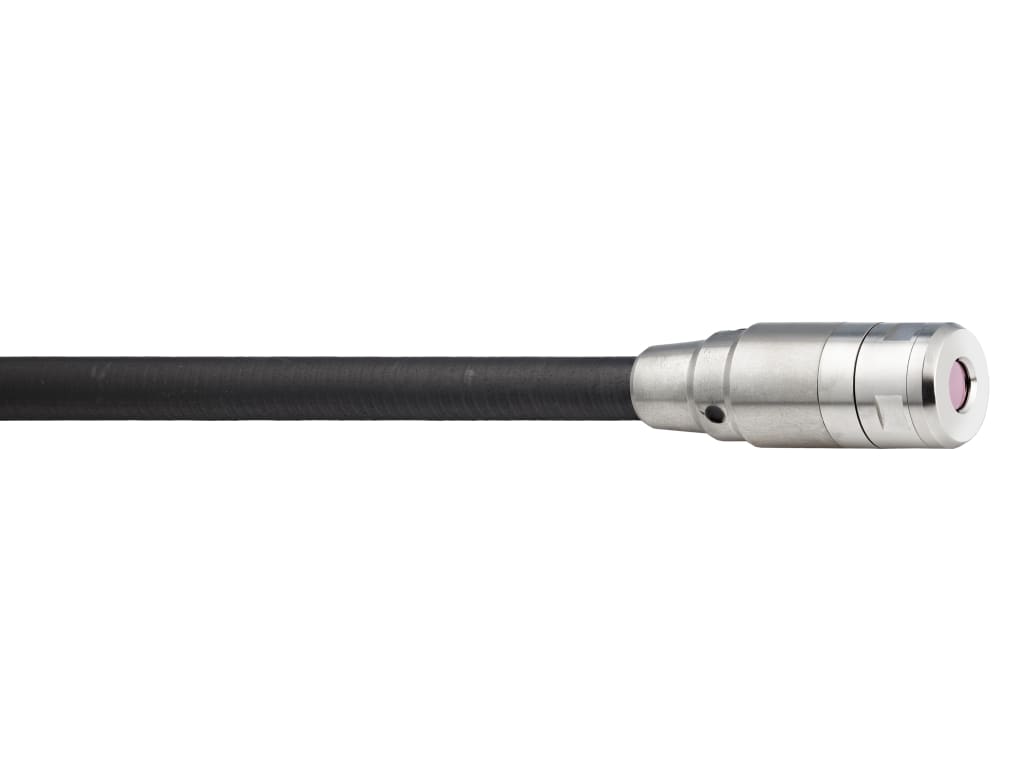

The FLIR VS80IR-21 is a semi-rigid general-purpose thermal camera probe for thermography inspections in difficult-to-access areas such as industrial gearboxes, aircraft engines, building attics, wall cavities, and crawl spaces. It is for use with the FLIR VS80 high-performance video scope.

Specifications:

• Imaging & Optical:
  • Thermal Resolution: 160 × 120 (19,200 pixels)
  • Field of View (FOV): 71°
  • Frame Rate: 8.7 Hz
  • Depth of Field: 10 mm to infinity
  • Color Palettes: Iron, rainbow, grayscale, below alarm, above alarm
  • Image Resolution: 640 × 480 pixels (visual/combined)
• Measurements & Analysis:
  • Object Temperature Range: -10°C to 400°C (14°F to 752°F)
  • Spot Meter: Centre spot, hot spot, cold spot, no measurement
• Physical & Environmental:
  • Probe Length: 1 meter (3.3 ft)
  • Probe Diameter: 19 mm
  • Probe Type: Semi-rigid
  • IP Rating (Probe Tip): IP67 (waterproof for 30 minutes at 1-meter depth)
  • Operating Temperature: -10°C to 60°C (14°F to 140°F)
  • Weight: 0.41 kg (0.9 lb)
• Compatibility:

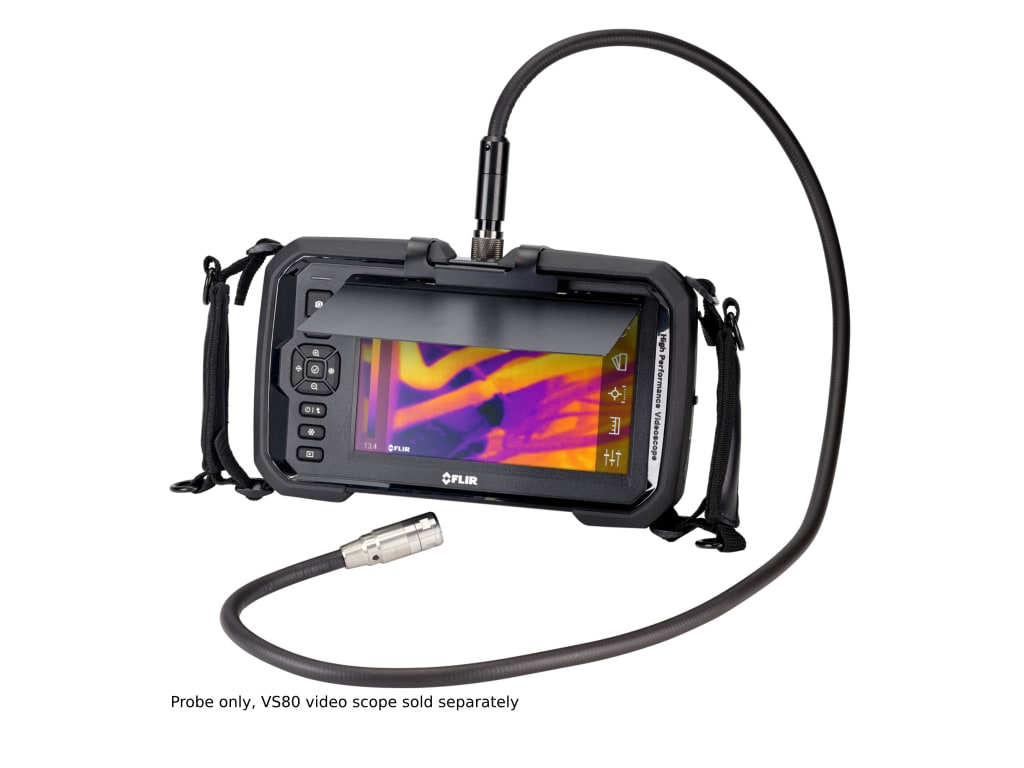

  • Main Unit: FLIR VS80 High-Performance Videoscope
• Warranty: 3 years

What's in the box:

• 1 x VS80CIR-21 Thermal Camera Probe
