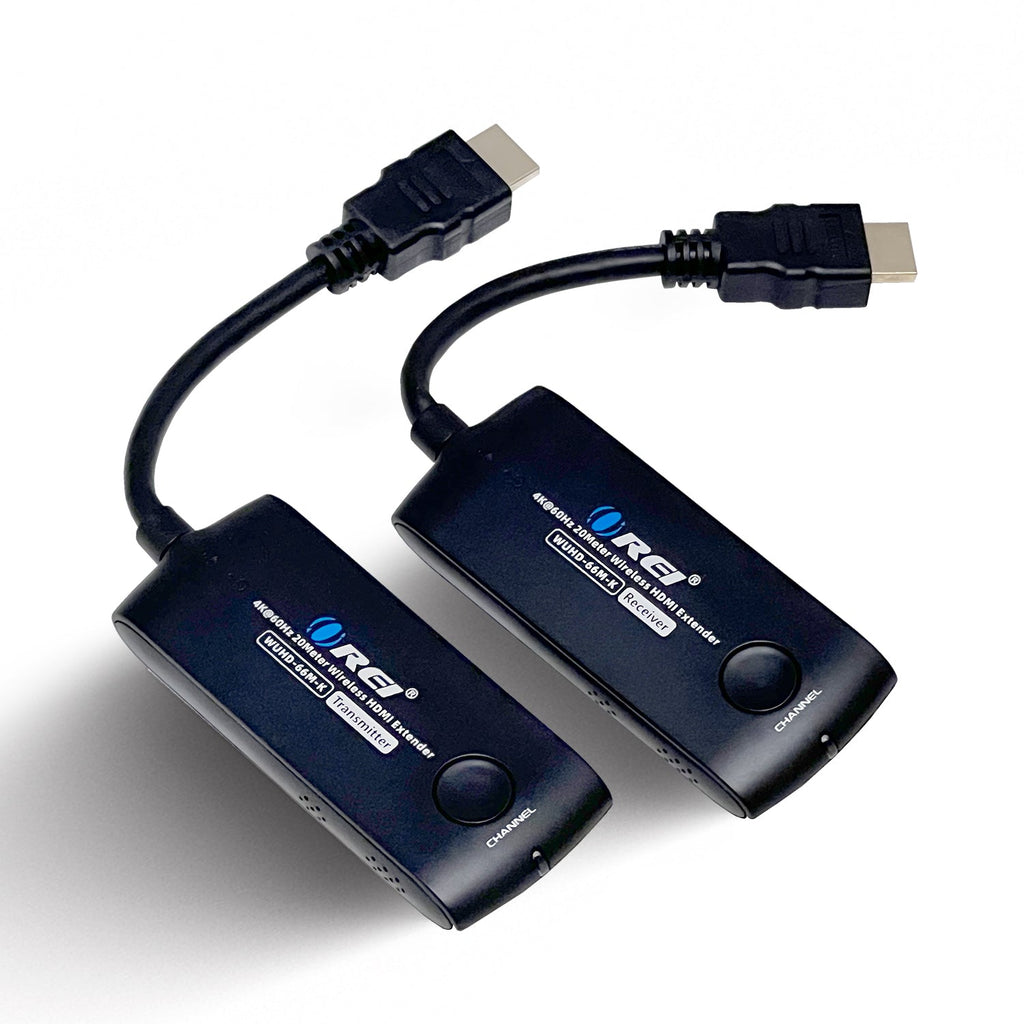

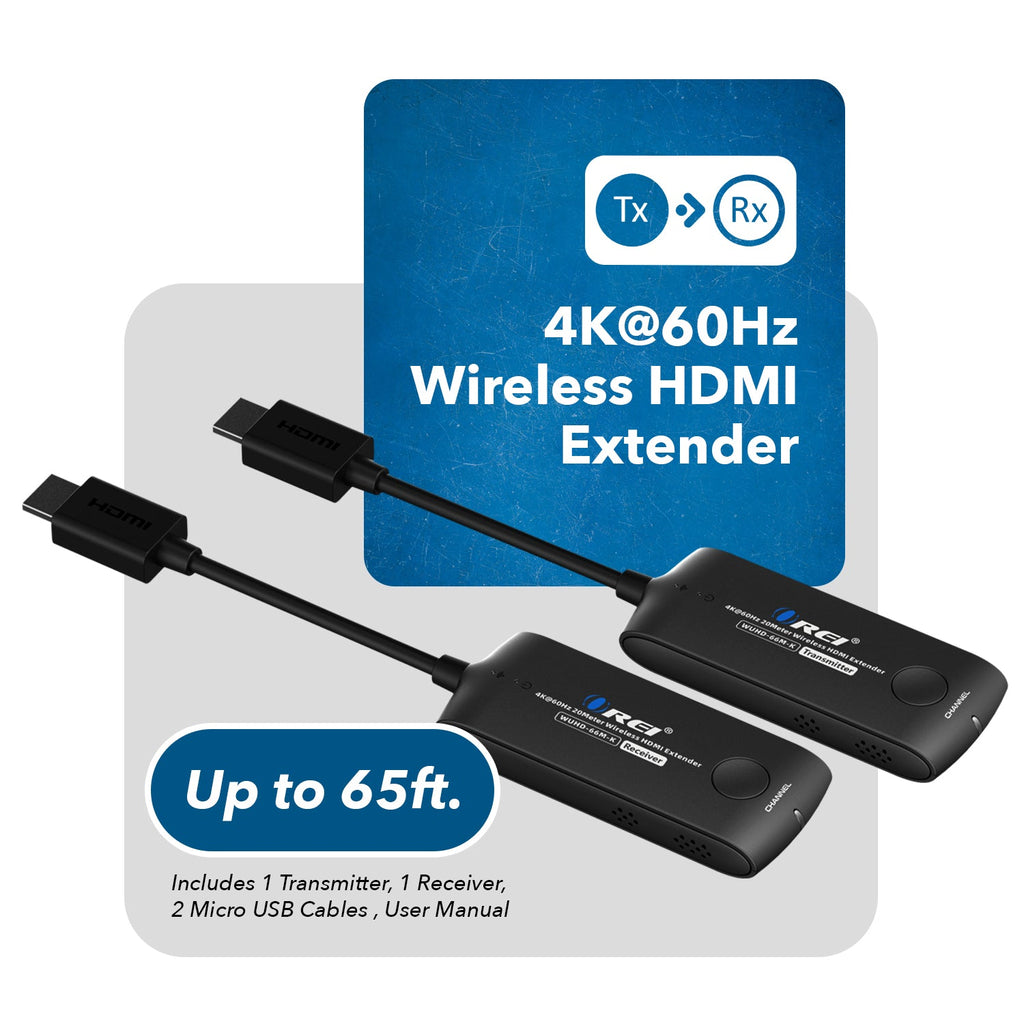

WUHD-66M-K: 4K@60Hz Wireless HDMI Extender up to 65 feet
Key Features:
HDMI 2.0 & HDCP 2.2 Compliant
Video resolutions up to 4K@60Hz

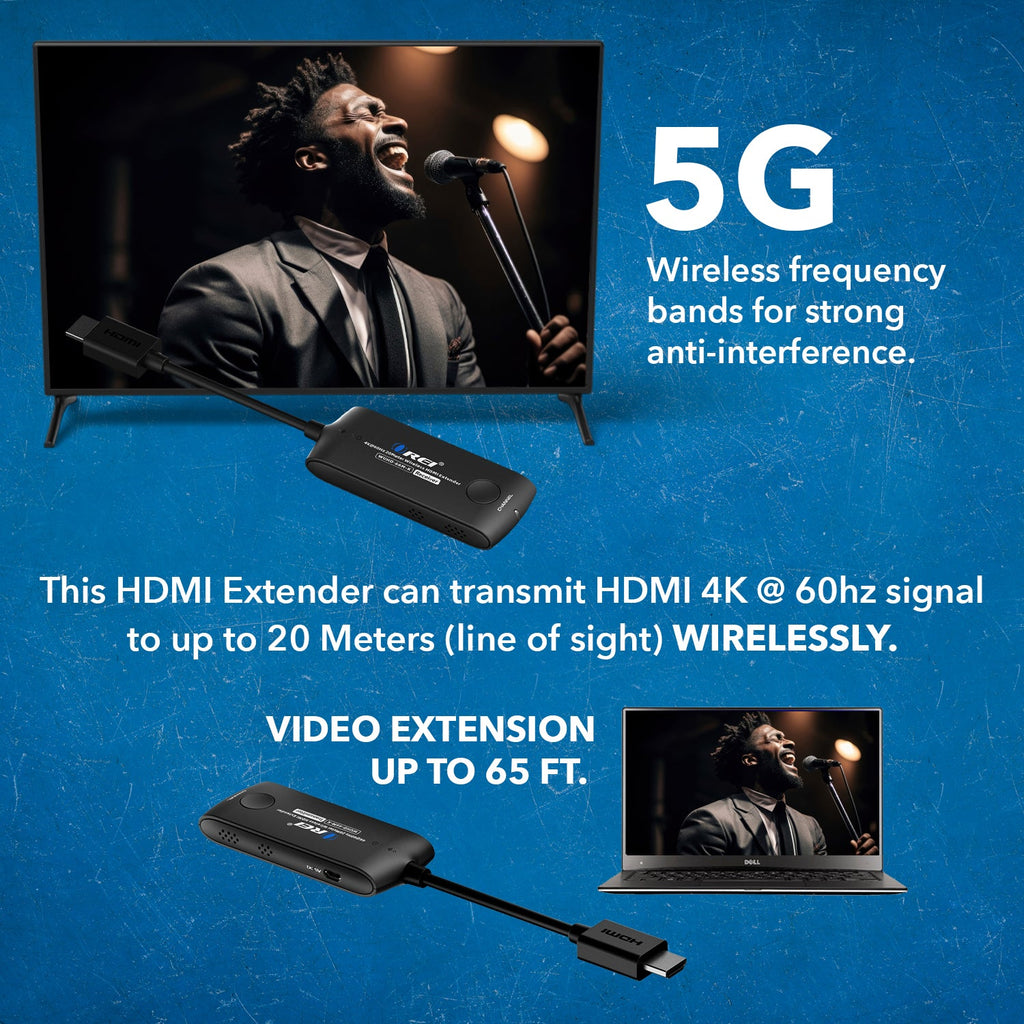

Wireless transmission up to 20M/65Ft line of sight.
HDMI male connectors on both ends, removing the need for HDMI cables.
SSID Pairing and Channel Switching to avoid interference with other nearby devices.
5G wireless frequency bands for strong anti-interference.
Plug & Play setup, no drivers or software required.

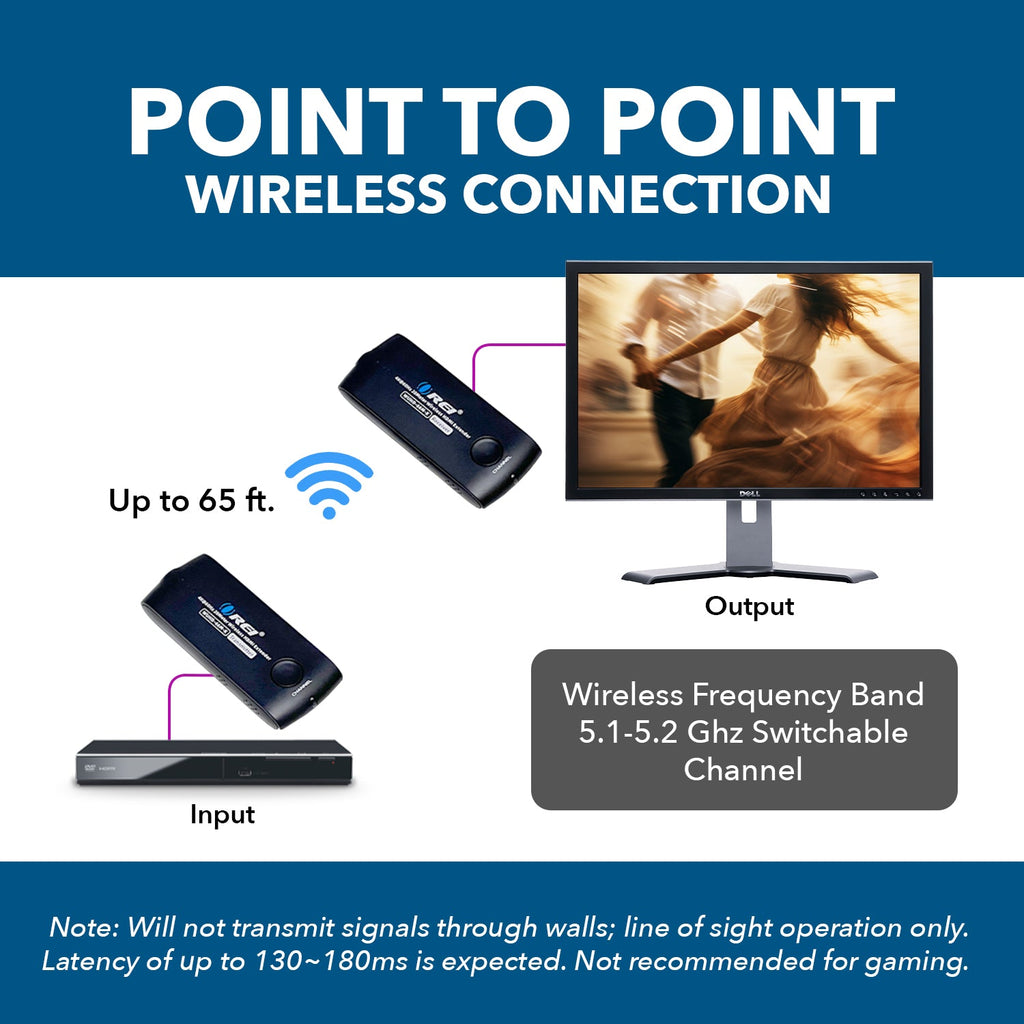

The WUHD-66M-K Wireless HDMI Extender can extend an HDMI signal up to 65 feet(20m) with 4K@60Hz resolution. The device uses ipcolor STREAM Technology to deliver high-definition, low-latency video transmission. 5G wireless frequency bands provide several advantages over traditional 2.4GHz and 5GHz bands, including stability, speed, security and anti-interference. The product features HDMI male connectors on both ends thus removing the need for HDMI cables. It supports 1-to-1 wireless transmission, effectively solving problems caused by complicated wiring. It's an ideal wireless video transmission solution for office meetings, home entertainment, multimedia education, etc.
[shortdes]
5g Wireless HDMI extender
Extends 4K@60Hz up to 65 feet line of sight

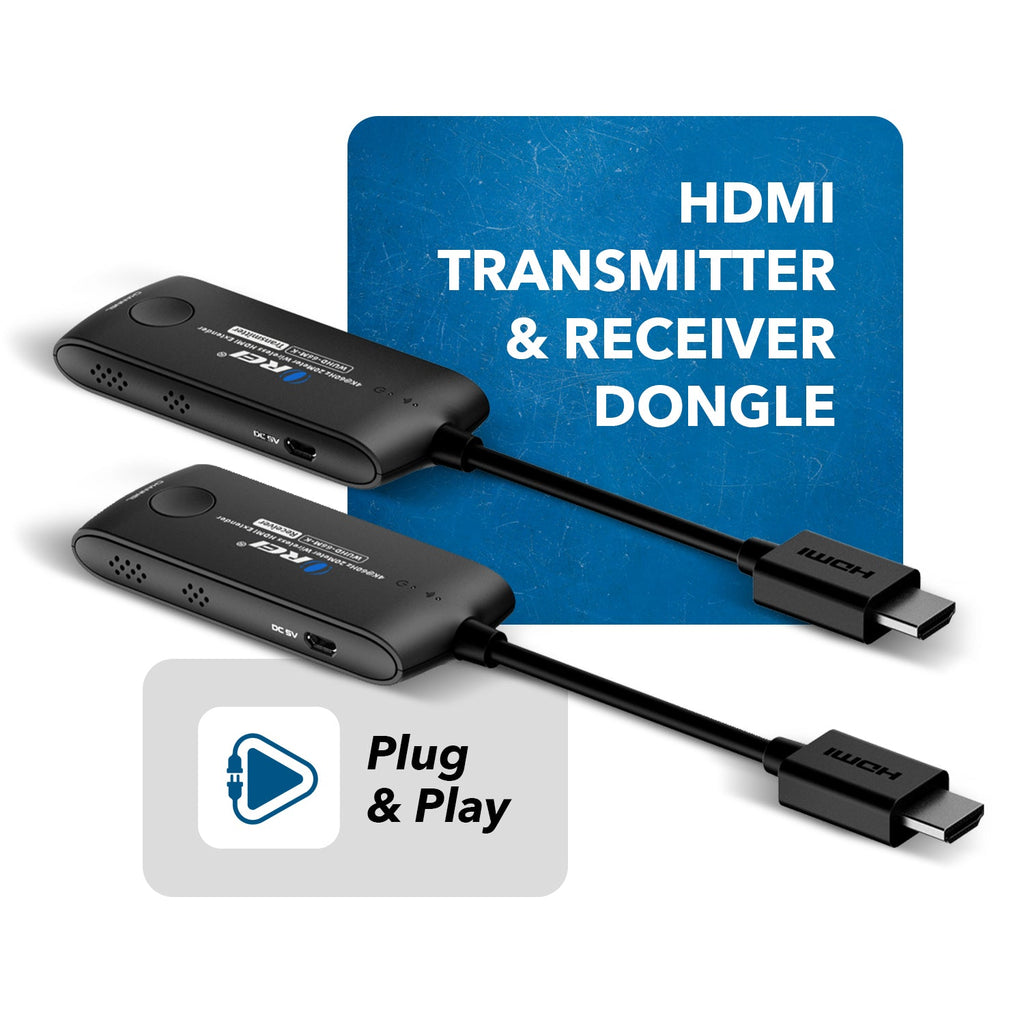

HDMI male connectors on the receiver and transmitter
[/shortdes]
[tab]
CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin male]
1 x DC 5V [Micro-USB, Power Input]
Receiver:
INPUT:
1 x DC 5V [Micro-USB, Power Input]
OUTPUT:
1 x HDMI [Type A, 19-pin male]
PACKAGE CONTENTS
1x Transmitter
1x Receiver
2x Micro-USB cable
User Manual
EXTENDING DISTANCE
4K@60HZ:
65 feet
VIDEO OUTPUT
Video Bandwidth:
18Gbps
Video Resolutions:
Up to 4K@60Hz
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
No
IR Control:
No
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
No
Number of Loop out ports:
0
AUDIO SUPPORT
HDMI Audio Formats:
PCM 2.0
COMPLIANCES
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDCP 2.2
POWER
Power Consumption:
Tx: ≤4.5W Rx: ≤3.5W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 5V/1A

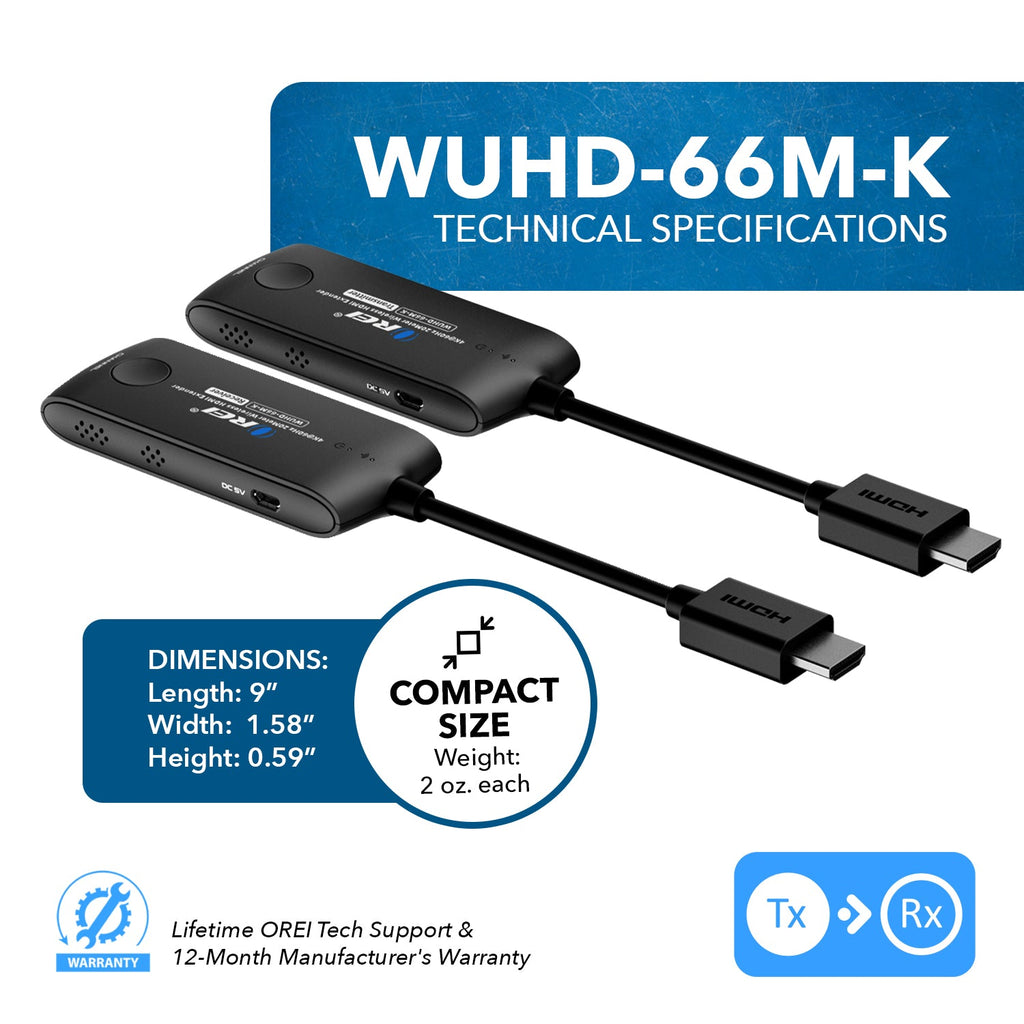

DIMENSIONS & WEIGHT
Transmitter:
Length:
230mm / 9.05in
Width:
40.2mm / 1.58in
Height:
15mm / 0.59in
Weight:
58g / 2oz
Receiver:
Length:
230mm / 9.05in
Width:
40.2mm / 1.58in
Height:
15mm / 0.59in
Weight:
58g / 2oz
PROPERTIES
Color:
Black
Housing:
ABS Plastic
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Please try the following steps to resolve your pixelating issue:
Please try replacing your current HDMI cables with High-Quality HDMI cables.Please make sure that you dont have any other wireless devices such as wifi router nearby this extender.If you have a wifi router, then please try moving the router away as the wireless signals interfears with each other & causing this issue.
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
Yes, you can implement the daisy chain method.
We recommend you to use High-Quality HDMI cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
[/tab1]
