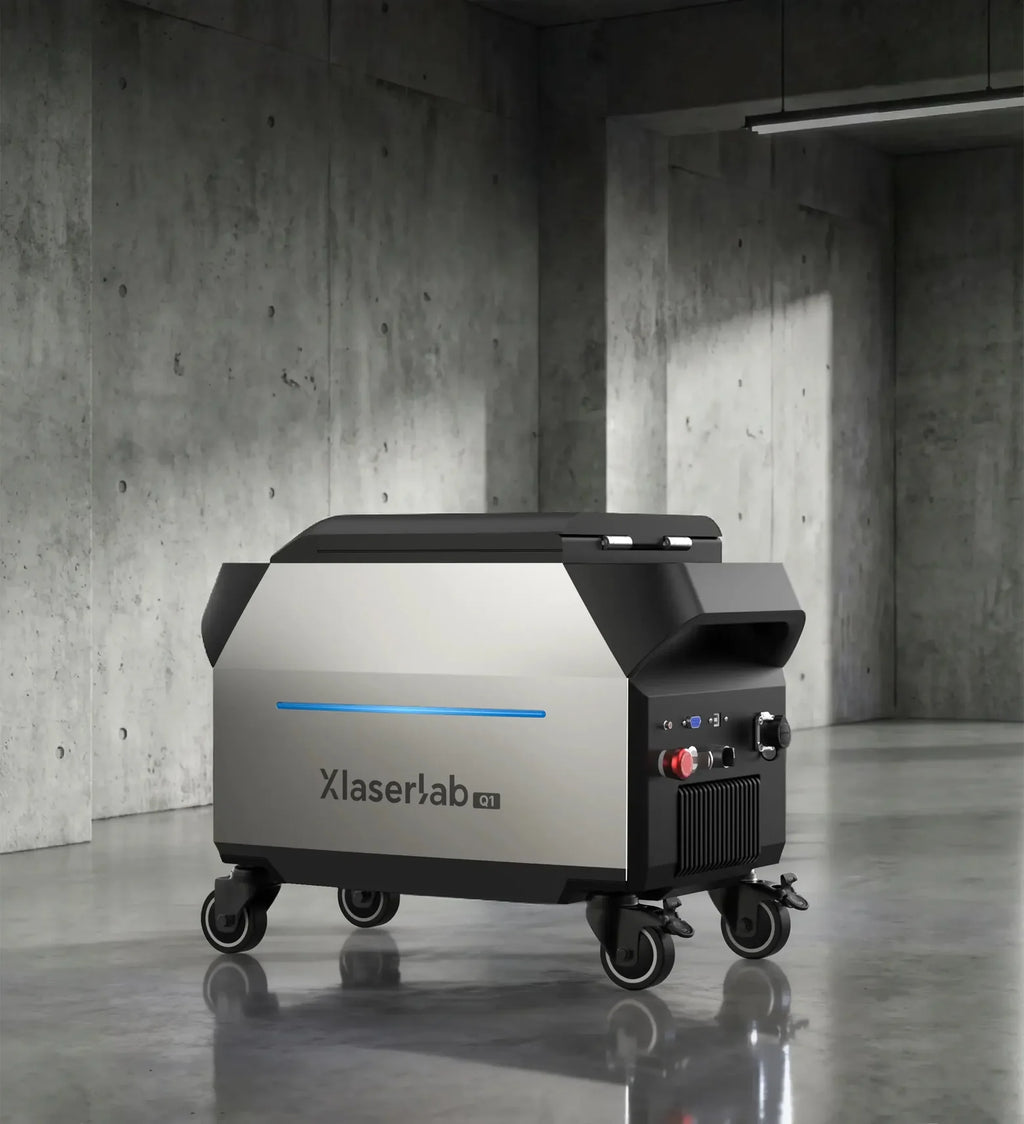

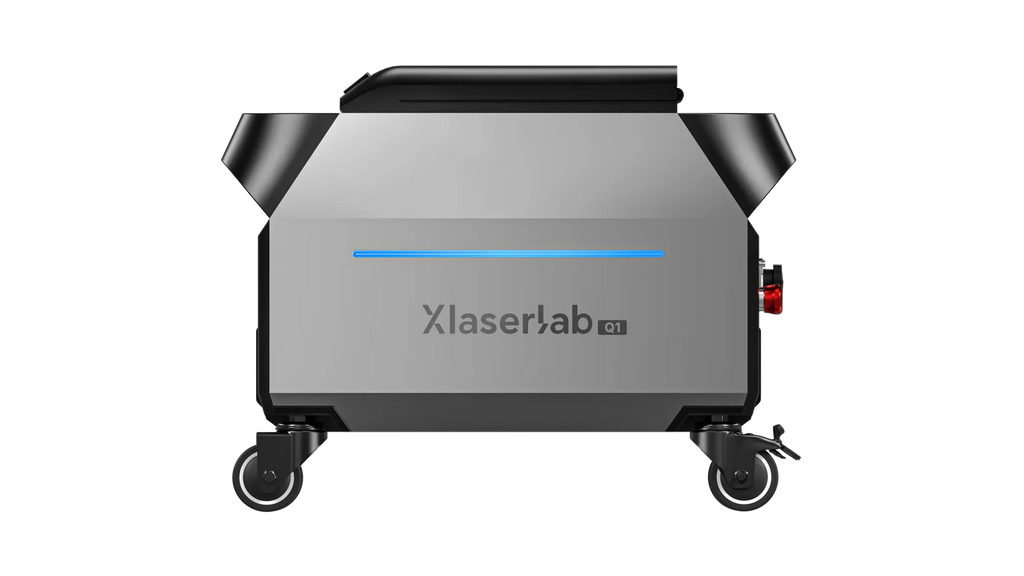

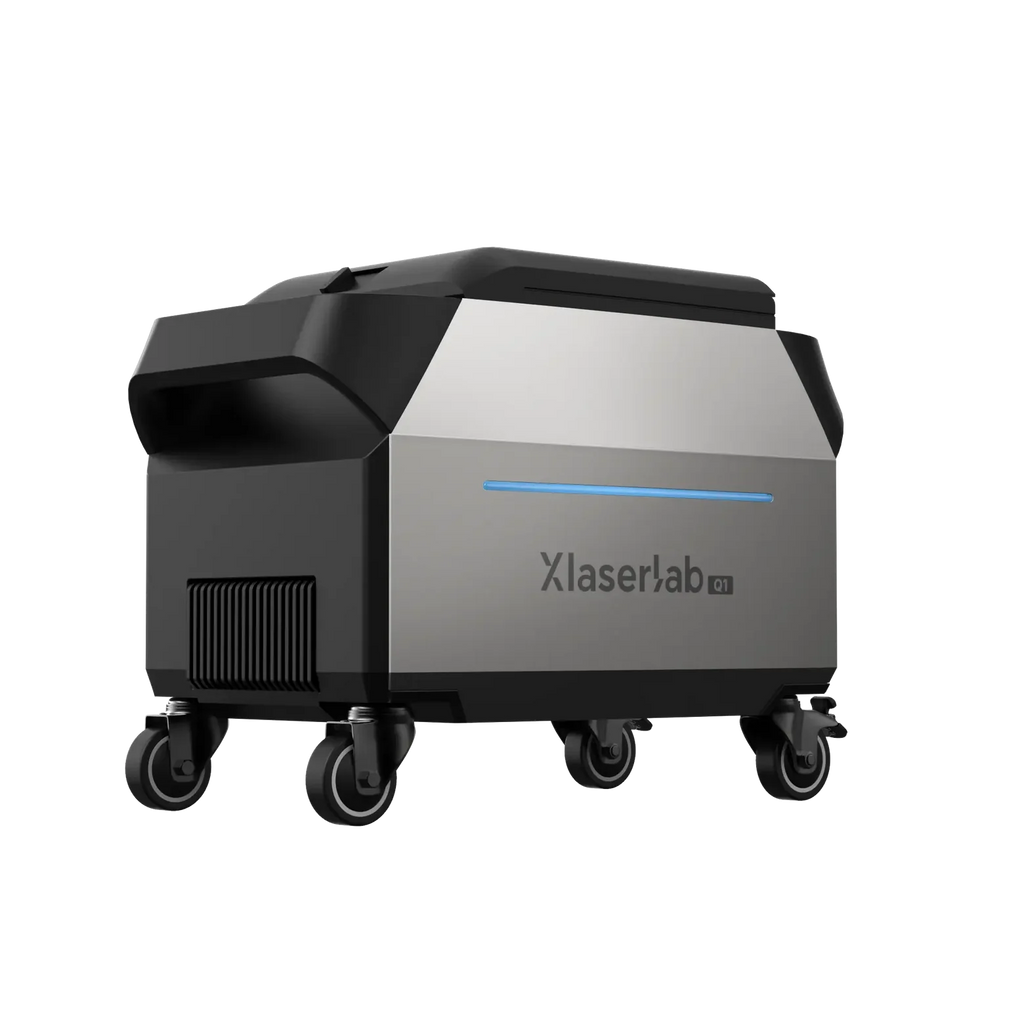

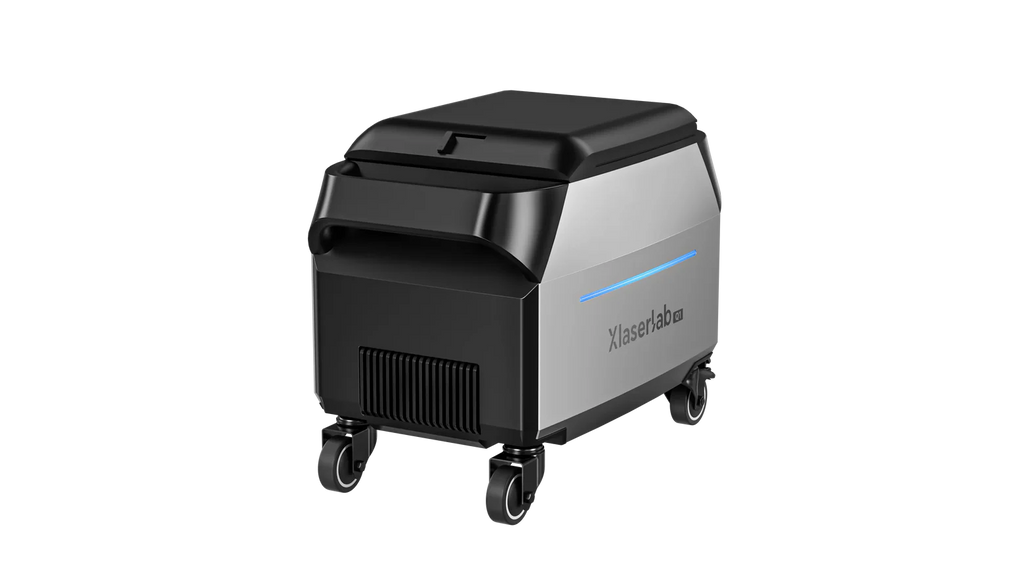

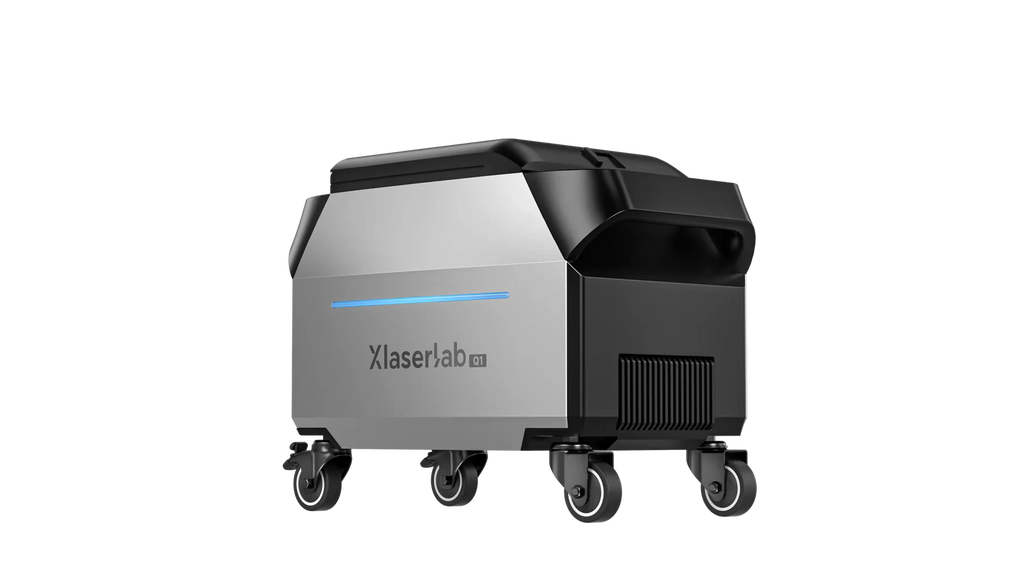

Xlaserlab Q1 Laser Cleaning Machine

Pulsed laser energy removes rust, paint, and coatings layer by layer—without grinding, burning, or damaging the base material.

200W-Level Performance at Just 120W

Powered by EnergyCore™ Technology, each pulse hits harder, delivering faster cleaning with less heat, lower power consumption, and higher efficiency.

Ready to Work in Seconds

True plug-and-play design. No setup, no calibration—just power on, aim, and start cleaning anywhere, anytime.

Built for Real-World Mobility

Only 17kg with a suitcase-style body and omnidirectional wheels, Q1 goes wherever the job is—perfect for on-site work and mobile services.

One Machine, Two Revenue Streams

Switch easily between cleaning and engraving to take on more jobs, create custom work, and maximize your return—without buying a second machine.

Product Specifications

Laser System

Laser Type: MOPA Pulsed Fiber Laser
Average Power: ≥120W
Wavelength: 1064nm ±10nm
Pulse Energy: ≥2mJ
Peak Power: ≥8kW
Beam Quality (M²): ≤1.6
Frequency Range: 1kHz – 4000kHz
Pulse Width: 10ns – 500ns

Output Head

Field Lens Focal Length: F=254mm (Standard), optional F=160mm / F=360mm
Cleaning Area: ≤120 × 120 mm (at F=254mm)

Output Patterns:
Cross, Rectangular, Spiral, Circular, Ring,
0°, 45°, 90°, 135° Straight Line, Straight Rotation

Optical Cable Type: High-strength flexible hose
Optical Cable Length: ≥3m

Control System: Real-time adjustment via onboard buttons with LCD display or wireless handheld tablet

Operation Assistance: Dual red-light focusing, LED illumination
Safety Control: Dual-button interlock

Output Head Dimensions: 255 × 101 mm (L × H), Head Diameter: Ø86 mm
Output Head Weight: 600g

Electrical

Power Supply: 100V – 240V AC
Frequency: 50Hz / 60Hz
Power Consumption: ≥500W
Power Cord Length: ≥5m
Control Method: IO / 485

System

Status Indicators: Four-color LED (Red, Blue, Yellow, Green)
Safety Protection: External industrial safety interlock interface

Machine Dimensions: 492 × 345 × 292 mm (L × W × H)
Machine Weight: <17 kg (excluding laser head)

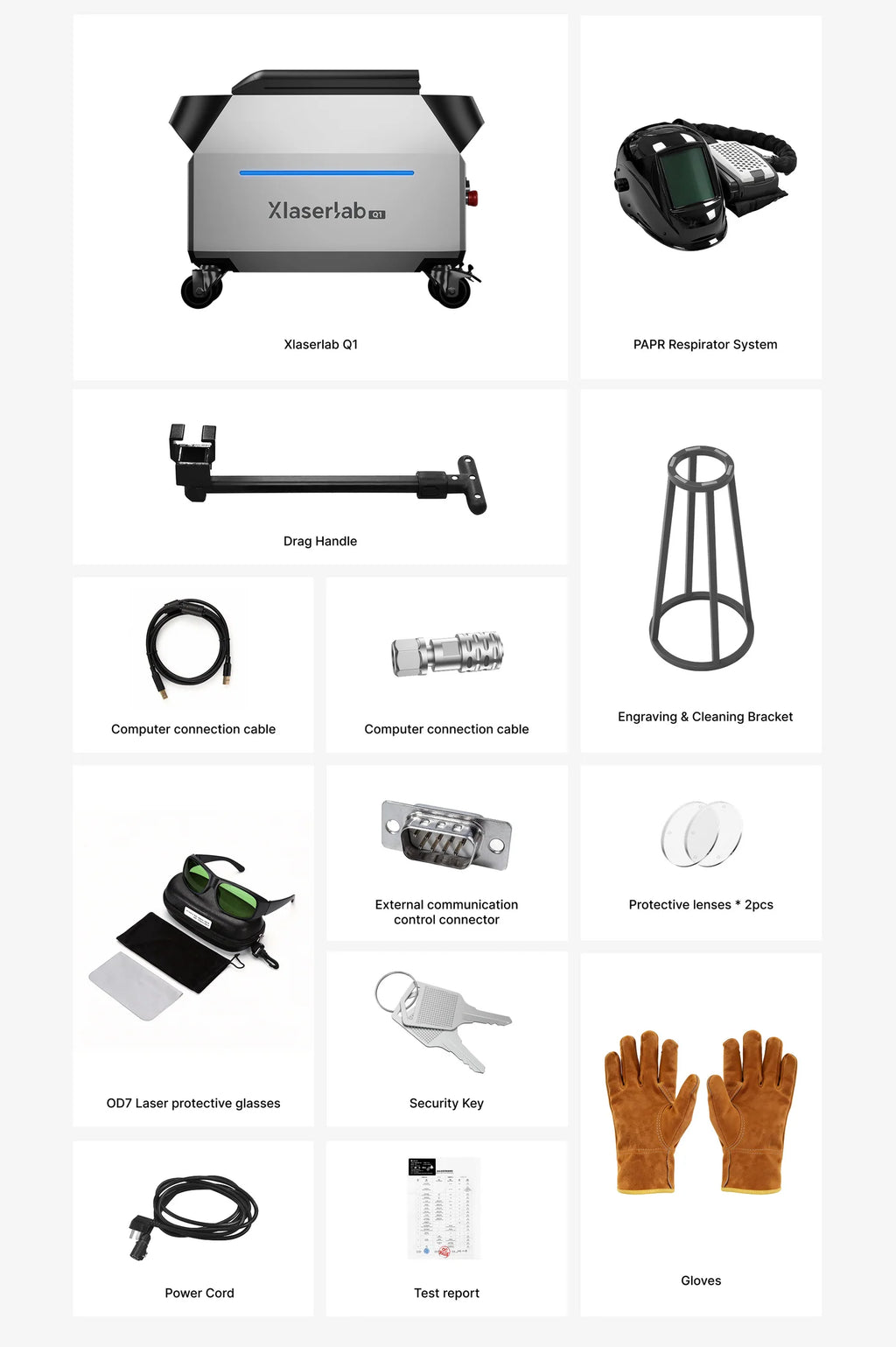

What's Included

1 x Xlaserlab Q1 unit
1 x PAPR Respirator System
1 x Drag Handle
1 x Computer Connection Cable
1 x Engraving & Cleaning Bracket
1 x Protective glasses
1 x Security Key
1 x Power Cord
1 x Pair of Gloves
1 x Test report book
