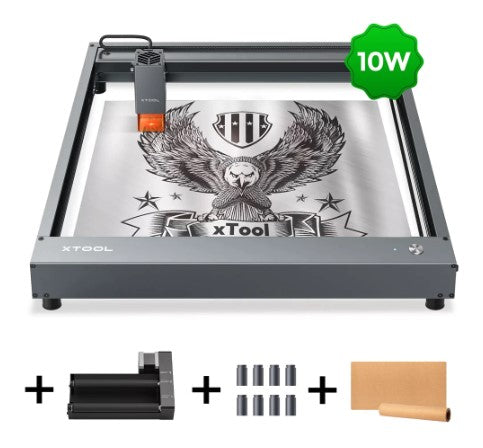

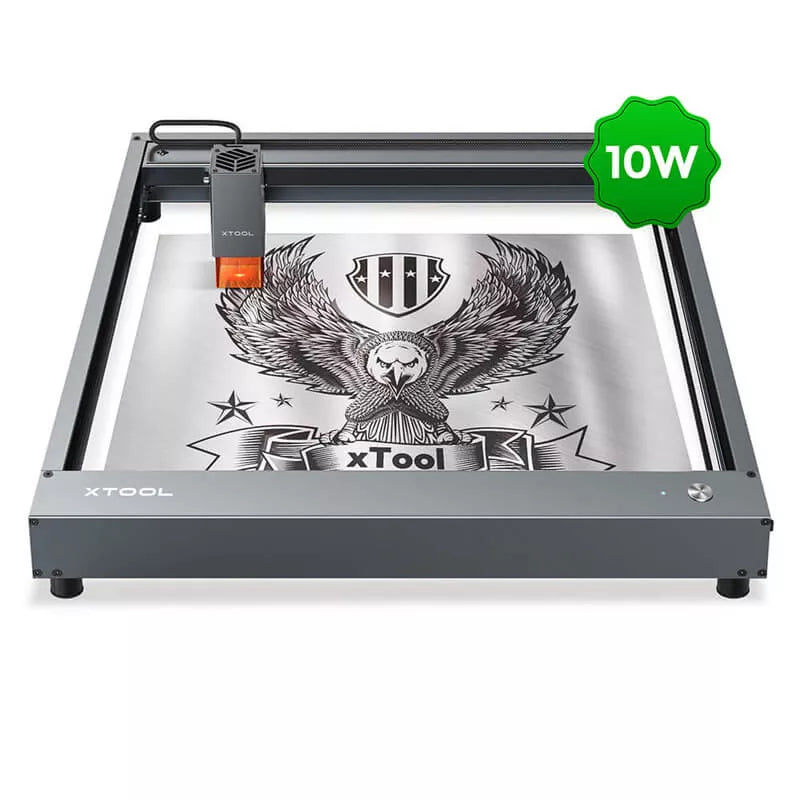

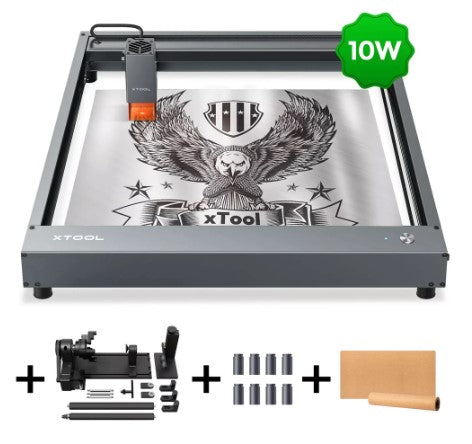

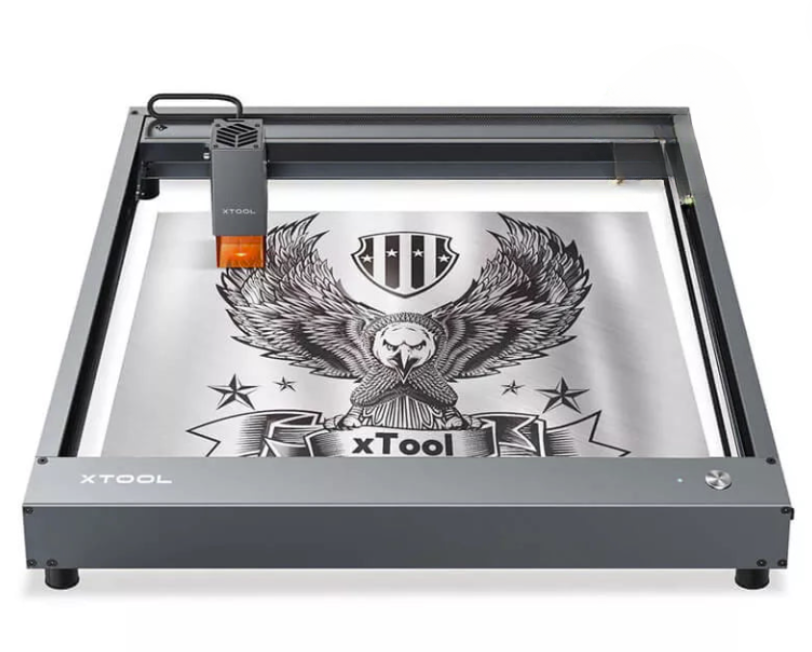

xTool D1: Higher Accuracy Diode DIY Laser Engraving & Cutting Machine 10W
Compatible with software Laserbox Basic/LightBurn.
The best high-power industrial compact laser engraver and cutter for beginners, hobbyists, designers, artists, home-makers, and professionals.
Better technologies (industrial grade steel wheel & shaft / tension wheel / synchronous belt / Compressed light spot, etc.) makes the carving more precise and the carved works perfect. With more humanized designs, you can concentrate on your creation all the time.The main difference between 5W and 10W is the power of the laser module. 10W model supports more engraving materials, finer engraving and faster engraving speed compared to 5W model. For example, 10W can cut 10mm wood at one time, which 5W cannot do in one cut.
High Accuracy DIY Laser Cutting & Engraving
Adopted industrial grade structural design, the movement accuracy of xTool D1 can incredibly reach 0.01mm. With 0.08*0.08mm ultra-fine compressed laser spot, always show the best details whether engraving or cutting.
Industrial Grade ALL-STEEL Wheel & Shaft
Different from the plastic steel of other laser machines, the ALL-STEEL wheel & shaft allow xTool D1 to work with a higher precision of 0.01mm. In addition, it supports more than 100,000+ times of sliding and has a lifetime 3 times longer than that of the plastic wheel.
Tension Wheel & Synchronous Belt
By tightening the synchronous belt with the tension wheel adjuster, the movement gap is well eliminated, the machine vibration is reduced and the movement stability is improved, so that the engraving remains accurate even at high processing speeds.
Engraving Fine Vector Graphics
Moderate tension of the synchronous belt is essential to the accuracy of the movement. The tension wheel & synchronous belt allow the D1 to engrave fine vector graphics at high-speed.
0.02mm Repeat Positioning Accuracy
The sturdy structure design makes D1 more stable, and the repeat positioning accuracy is less than 0.02mm. It maintains a perfect engraving effect even after long-term use.
Better Laser Enhances Cutting & Engraving Effect
Use innovative dual laser technology to combine two laser beams into one spot. The compressed spot has higher power, higher cutting ability, faster speed and better effect under the same electric power. The power of 10W dual laser xTool D1 is equivalent to a single laser 15W laser cutting machine.

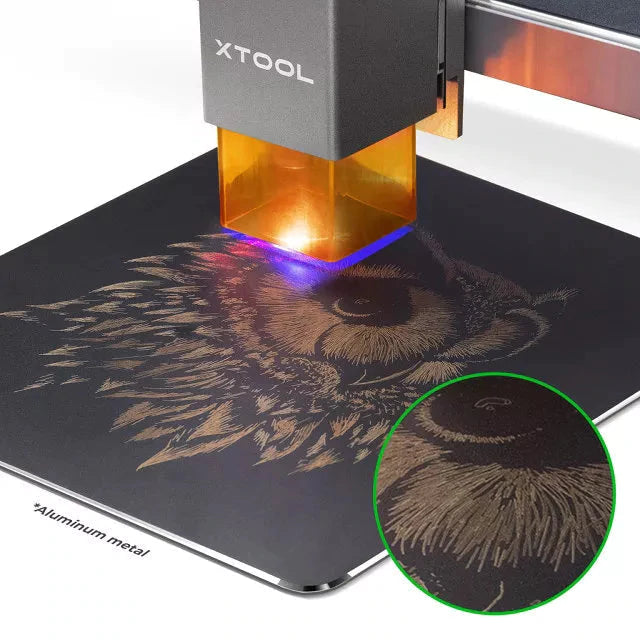

Directly Engrave Stainless Steel Metal
No coating needed Faster speed Darker engraved pattern

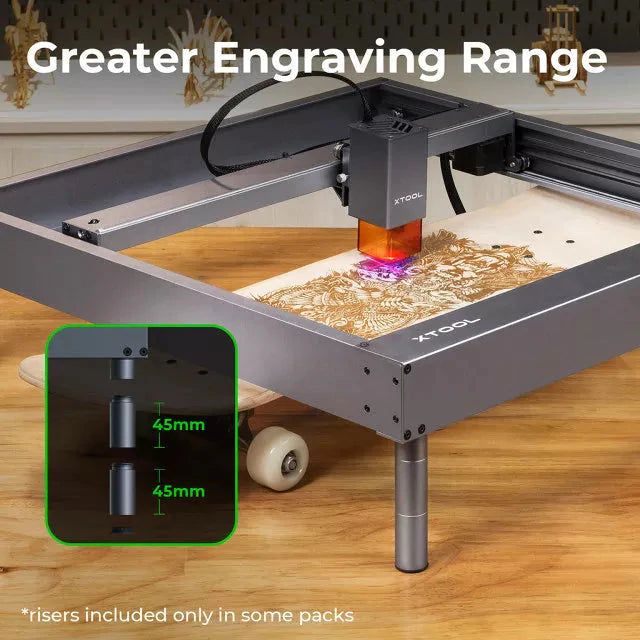

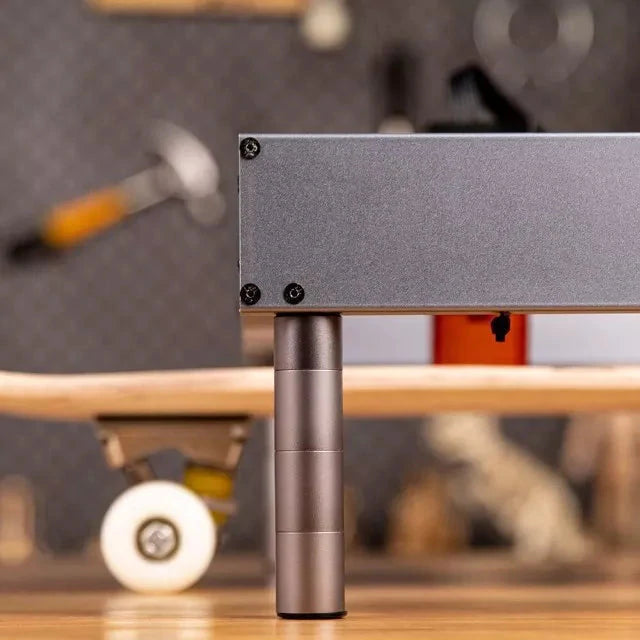

Use additional risers (sold separately) to increase the height of xTool D1 to facilitate the engraving of higher objects(use 2 sets to increase height to 140mm). Customize your skateboard or basketball to make them cooler.
Easy Focus Adjustment
Only take 3 steps to adjust the focus in 5 seconds. Pull down the original focus lever, slide the laser slider to make the focus lever close to the material's surface, recover the focus lever.
Large Engraving Area
A large working area of 432*406mm ( 17*16 inch ), more than the size of A3 paper, allows you to engrave more patterns at once. Easy to use and more efficient.
Multiple Transfer Data Ways
You can transfer data via Wi-Fi, USB cable, a large capacity TF card (Offline Use) and use D1 anytime and anywhere.
Modeles xTool D1 - 10W Machine Power 60W Laser Electric Power 40W Laser Module Output Power 10W Laser Spot 0.08 mm Wavelength 450 - 460 nm Routing Speed 160 mm/s Working Area 432 * 406 mm (17 * 16 inch) Max. Workpiece Height 50 mm Voltage Input 100-240V 50-60HZ Voltage Output 12V 7A 84W Connecting Interfaces USB/Wi-Fi Certification FCC/FDA Operating Systems Windows/macOS/Android/iOS Control Software Laserbox Software/ Laserbox App File Type(s) SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc. Product Weight 5 kg/11.02 lb Package Weight 6 kg/13.23 lb Product Size (L * W * H) 600*590*150 mm/23.62*23.23*5.91 in Package Size (L * W * H) 620*345*130 mm/24.41*13.58*5.12 in
