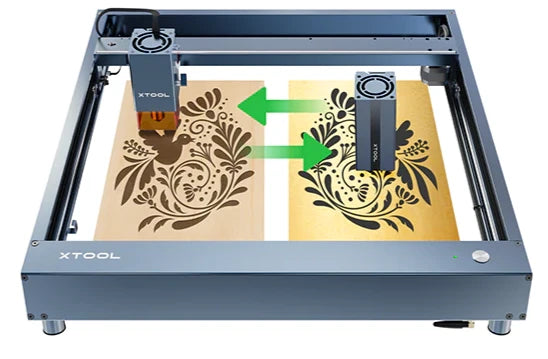

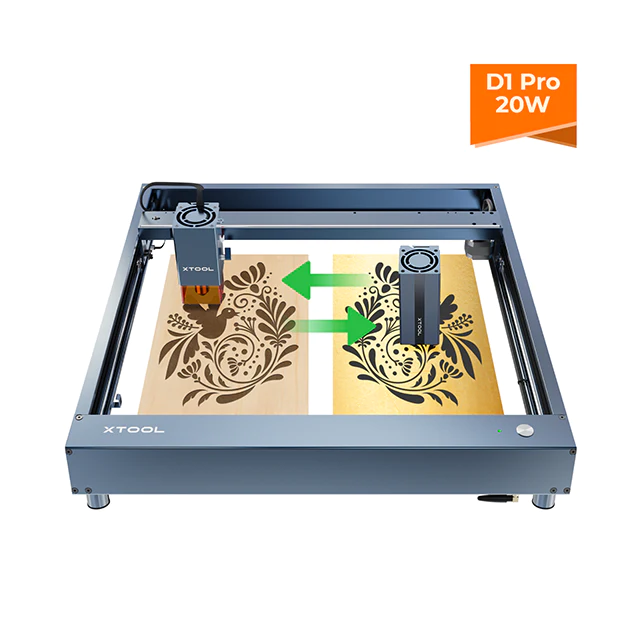

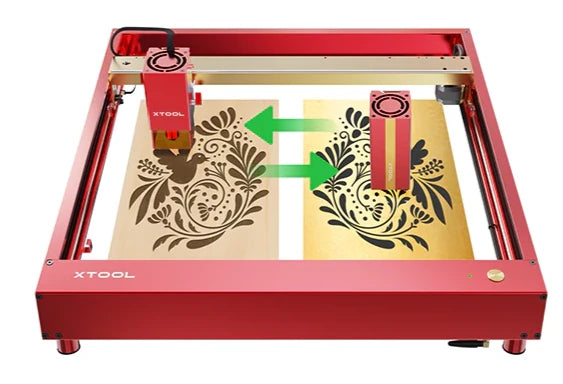

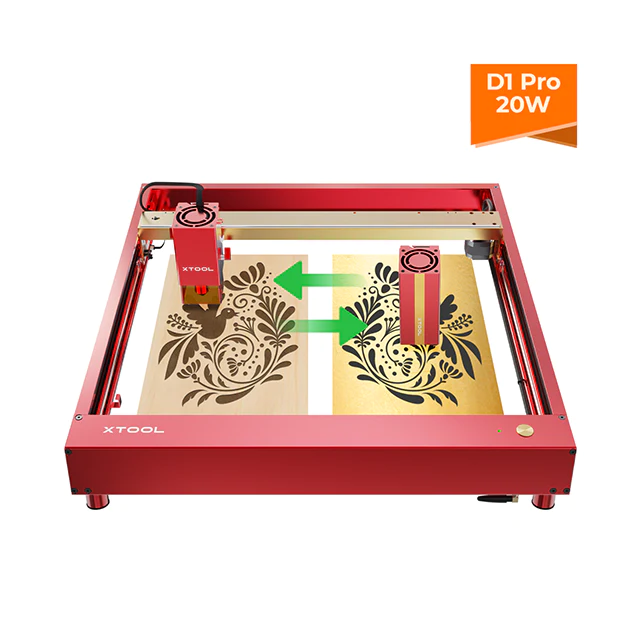

xTool D1 Pro 2-in-1 Kit: 455nm Blue Laser & 1064nm Infrared Laser
Meet All Your Engraving & Cutting Needs
1064nm Infrared Laser
Engrave on All Metals
Excellent Result on Plastic & Acrylic
455nm Blue Laser
Powerful 20W Diode Laser
10mm BassWood Cutting in One-PASS
8mm Acrylic Cutting in One-PASS
Compressed Spot Technology
Higher Productivity at A Higher Speed
Improve The Accuracy to The Extreme
Why D1 Pro Provide the Highest Accuracy:
- Engraving/cutting accuracy to reach 0.004 inches
- Repositioning accuracy down to less than 0.007 inches.
Limit Switches in All Directions
Limit switches will trigger the alarm if the laser head is about to hit the boundary of the machine in All Directions.
Safe to Use
The emergency stop will be triggered by the detection of flames, smoke and tipping.
Better Software at Your Service
Get started quickly with our user-friendly software: XCS
Updating Project Files
Batch Processing with Circular Array
Default Working Parameters for Materials
Compatible with mature engraving software: LightBurn
The layout, editing, and control software for common laser cutter. Engraving file format supports NC, BMP, JPG, PNG, DXF, etc.
Quick start guide/Instructions/Brochure
Aliminium sheet A4
Limit switch connection cable
Cable tie pack
Parts storage box
455nm blue laser module
1064nm infrared laser module
Infrared laser module user manual
Nozzle connector components
Type xTool D1 Pro-20W xTool D1 Pro-10W 1064nm Infrared Laser Module Machine Power 120W 60W 120W Laser Electric Power 84W 40W 84W Laser Module Output Power 20W 10W 2W Wavelength 455nm 455nm 1064nm Laser Spot 0.08*0.10 mm 0.08*0.06 mm 0.03*0.03 mm Routing Speed 400 mm/s 400 mm/s 400 mm/s Working Area 430 * 390 mm (16.93 * 15.35 inch) 430*400 mm(16.93*15.75 inch) 430 * 390 mm (16.93 * 15.35 inch) Max. Workpiece Height 50 mm (2 inch) 50 mm (2 inch) 50 mm (2 inch) Max. Workpiece Height with X risers 50mm+X*45mm（each set riser height column） 50mm+X*45mm（each set riser height column） 50mm+X*45mm（each set riser height column） Materials Wood, leather, paper, cardboard, acrylic( black, brown, red, yellow, green), stone, paint glass, paint ceramics, stainless steel, titanium, iron, aluminium oxide. Wood, leather, paper, cardboard, acrylic( black, brown, red, yellow, green), stone, paint glass, paint ceramics, stainless steel, titanium, iron, aluminium oxide. All metals( including gold, silver, platinum, copper, aluminum, zinc, titanium, iron, stainless steel, metal oxides and alloy), leather, opaque plastic, black acrylic, stone, paint glass, paint ceramics, circuit board.
